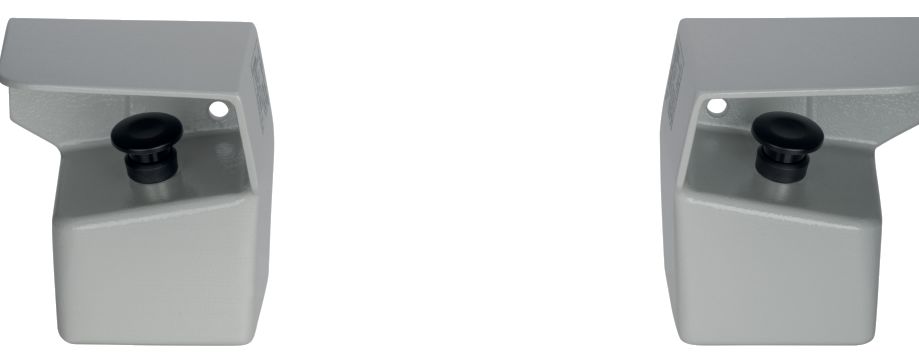

Schmersal 101022853 SEP09.0.3.1.22/95 two-hand control panel
|
469,83 EUR 490,26 EUR |
|
|
( 559,10 EUR incl. VAT ) ≈ £398.89 | ≈ $529.50 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1331120 |
|---|---|
| Mfg Part No: | 101022853 |
| UPC/EAN: | 4250116203260 |
| Weight: | 0.123 kg |
| Type: | SEP09.0.3.1.22/95 |
Product information for Schmersal 101022853:
Product Type:
- SEP09.0.3.1.22/95
Article Number:
- 101022853
EAN:
- 4250116203260
eCl@ss Classification:
- Version 12.0: 27-37-12-19
- Version 11.0: 27-37-12-19
- Version 9.0: 27-37-12-19
ETIM Classification:
- Version 7.0: EC001260
- Version 6.0: EC001260
Certifications:
- cULus
General Data:
- Housing Material: Aluminum
- Housing Coating: Powder-coated
- Housing Color: RAL 7004 (Grey)
- Gross Weight: 3,500 g
- Number of NC Contacts: 2
- Number of NO Contacts: 2
- Number of Operation Buttons: 2
Mechanical Data:
- Mechanical Lifespan: 10,000,000 operations
- Connection Type: Screw Terminal M20 x 1.5
- Max. Connection Cross-Section: 1.5 mm²
- Width: 155 mm
- Height: 160 mm
- Depth: 150 mm
- Button Length: 40 mm
Environmental Conditions:
- Protection Rating: IP54
- Rated Insulation Voltage (Ui): 440 V
Electrical Data:
- Thermal Continuous Current: 10 A
- AC-15 Voltage: 250 VAC
- AC-15 Current: 8 A
- DC-13 Voltage: 24 VDC
- DC-13 Current: 5 A
Accessories:
- Recommended Combinations: SRB201ZH, SRB200ZHX1, SRB201ZHX3
Note:
- Optional: Low-force actuation buttons available
- Each button includes 1 NO contact and 1 NC contact
