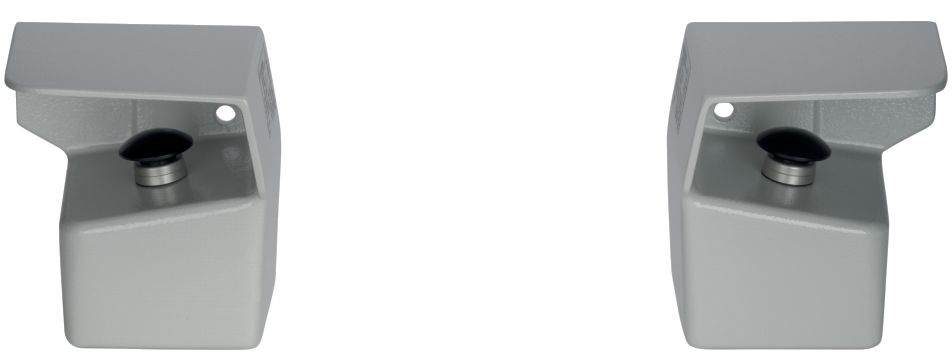

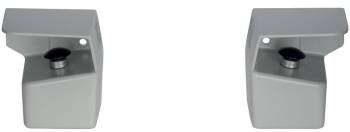

Schmersal 101022849 SEP09.0.1.0.22/95 two-hand control panel

Your rating:
Average rating
product review for Schmersal 101022849 SEP09.0.1.0.22/95 two-hand control panel
( 4.6 / 5 ) 14 ratings
Schmersal 101022849
This image may differ from the desired article.
-13% 447,16 EUR 514,25 EUR
( 532,12 EUR incl. VAT )
≈ £374.27  |  ≈ $491.43
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Schmersal 101022849 SEP09.0.1.0.22/95 two-hand control panel
Lieske Part No.:1331121
Mfg Part No: 101022849
UPC/EAN: 4250116203246
Weight:0.123 kg
Type:SEP09.0.1.0.22/95

Product information for Schmersal 101022849:

The Schmersal SEP09.0.1.0.22/95 is a two-hand control button designed for safety-critical applications in industry. The device serves as a control panel, requiring both hands of the operator to be activated simultaneously to ensure safe and controlled operation of machines or systems. The construction is based on a robust aluminium housing, powder-coated to resist mechanical stress and corrosion. The housing colour corresponds to RAL 7004 (Grey), representing a standardised colour scheme in industrial electrotechnics. Dimensions are 155 mm width, 160 mm height, and 150 mm depth, allowing integration into typical industrial control configurations.

Applications

The SEP09.0.1.0.22/95 is used in systems where high operational safety is required, for example in manufacturing industry, presses, cutting machines, or other machines with moving parts. The two-hand operation prevents unintended or uncontrolled activation, as both hands must be positioned on the device to trigger a function. This complies with the requirements of standards EN ISO 13850 and EN ISO 13851, which apply to safety-relevant control elements. The protection rating IP54 ensures the device is protected against dust and splashing water, making it suitable for industrial environments where moisture or particle contamination may occur.

Functions and Equipment in Detail

The control panel features two control buttons, each equipped with a closers (normally open, closes when actuated) and an openers (normally closed, opens when actuated). This enables flexible integration into various control logics. The mechanical service life is up to 10 million switching operations, indicating high reliability and durability. Connection is made via screw terminals with a maximum cross-section of 1.5 mm², sufficient for connection to standard cables in industrial electrotechnics. The terminals are M20 x 1.5, ensuring a secure and mechanically stable connection.

Technology Explained Simply

The electrical data of the device are tailored for industrial applications. The thermal continuous current is 10 A, indicating the maximum current load over extended periods. For alternating current (AC-15), the permissible voltage is 250 VAC with a current of 8 A, while for direct current (DC-13), a voltage of 24 VDC and a current of 5 A are allowed. These values are typical for control systems in industry and allow use in various networks. The operating temperature ranges from -25 °C to +70 °C, enabling use in environments with varying climatic conditions. The relative humidity must not exceed 95 %, which is also standard for industrial installations.

Compatibility and Accessories

The device is recommended for use with specific accessories, including models SRB201ZH, SRB200ZHX1, and SRB201ZHX3. These components can extend functionality or integrate into existing safety concepts. Combination with these parts depends on the application case and system requirements.

Mounting and Installation

Mounting is typically done in enclosures or on machine surfaces, taking into account the device’s dimensions and connection type. The screw terminals allow for simple and secure connection to existing wiring. Installation must comply with applicable standards and safety regulations, particularly EN ISO 13850 and EN ISO 13851. The mechanical stability of the aluminium housing ensures durable mounting without wear or loosening.

Advantages in Operation

The SEP09.0.1.0.22/95 offers high operational safety through two-hand operation, preventing unintended activations. The long service life of up to 10 million switching operations reduces maintenance and replacement frequency. The IP54 protection rating and temperature resistance from -25 °C to +70 °C enable flexible use in various industrial environments. Certification to cULus confirms compliance with international safety standards, facilitating acceptance in different markets.

General
Product typetwo-hand operating pushbutton
ManufacturerSchmersal
Housing materialAluminium
Housing coatingPowder coating
Colour housingRAL 7004 (Grey)
Number of control buttons2
Number of normally closed contacts2
Number of normally open contacts2
Connection typeScrew connection M20 x 1.5
Maximum connection cross-section1,5 mm²
Degree of protectionIP54
Ambient temperature-25 ... +70 °C
Relative humidity≤ 95 %
Thermal continuous current10 A
AC-15 voltage250 VAC
AC-15 current8 A
DC-13 voltage24 VDC
DC-13 current5 A
ApprovalscULus
