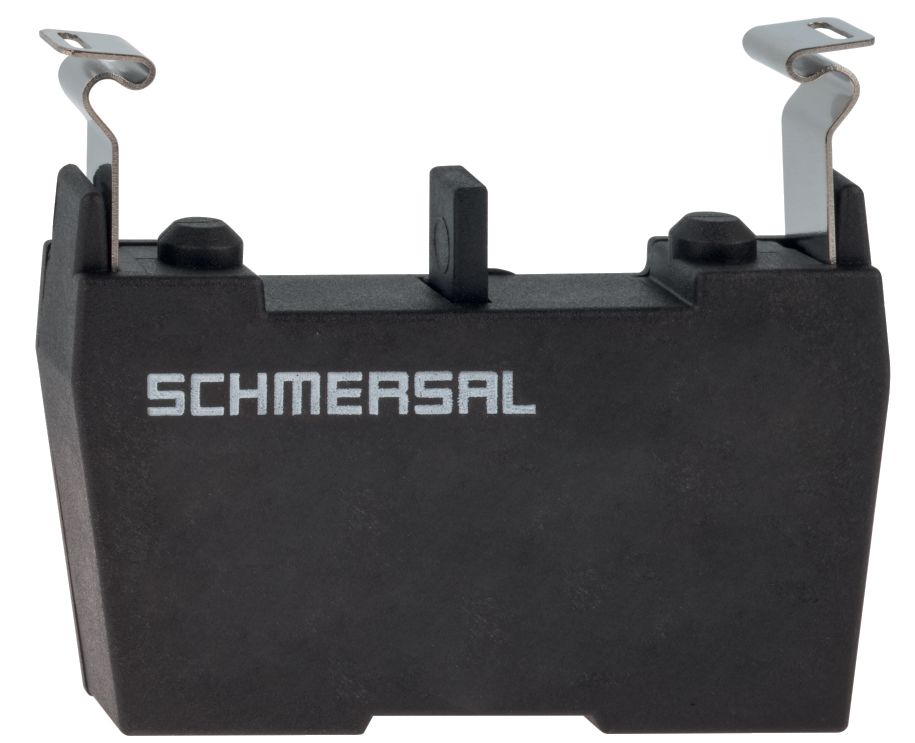

Schmersal EFK03.2 contact element S spring clamp 101022273
|
9,34 EUR |
|||||||||||
|
( 11,11 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1331126 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101022273 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101022273:
Product Description in English:
The EFK03.2 contact element is a high-quality and efficient component designed for safety-critical applications, especially for emergency stop (E-STOP) solutions. Featuring a durable normally open (NO) contact and a slow-action switching mechanism, it ensures precise operation and high reliability. The housing, made from fiberglass-reinforced, self-extinguishing thermoplastic, ensures robustness and longevity. The spring-force terminal facilitates simple installation and secure connections.
Technical Data:
Product Type Designation:
- EFK03.2
Article Number:
- 101022273
EAN:
- 4030661429267
eCl@ss and ETIM Numbers:
- eCl@ss Version 12.0: 27-37-13-02
- ETIM Version 7.0: EC000041
Approvals and Standards:
- Certifications: cULus
- Standards: EN IEC 60947-5-1, EN IEC 60947-1
Material and Weight:
- Housing Material: Plastic, fiberglass-reinforced thermoplastic, self-extinguishing
- Gross Weight: 15 g
Mechanical Properties:
- Length: 46 mm
- Width: 10 mm
- Depth: 51 mm
- Mechanical Lifespan: Min. 10,000,000 switching cycles
- Forced Opening Distance: 2 mm
- Contact Opening Width: 3 mm
- Mounting Instructions: Clip-on
- Protection Class: IP40 (Switching chamber), IP40 (Terminals)
Electrical Properties:
- Thermal Continuous Current: 10 A
- Utilization Category AC-15: 230 VAC, 8 A
- Utilization Category DC-13: 24 VDC, 5 A
- Low Voltage Capability: ≥ 5 V / ≥ 3.2 mA
- Contact Material: Silver
- Maximum Switching Frequency: 1,200 /h
Environmental Conditions:
- Ambient Temperature: -25 ... +80 °C
- Protection Class: IP40
- Shock Resistance: 110 g / 4 ms
- Vibration Resistance: 20 g / 10 … 200 Hz
Connection Data:
- Connection Type: Spring-force terminal
- Connection Cross-Section: 2 x 0.08 mm² to 2 x 1.5 mm²
Contact Designation:
- Normally Open (NO): 23-24
Type: EFK03.2
Questions & answers
What is the delivery time of Schmersal EFK03.2 contact element S spring clamp 101022273?
The article Schmersal EFK03.2 contact element S spring clamp 101022273 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101022273 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal EFK03.2 contact element S spring clamp 101022273 always at the best possible price. We can give you a discount of 2% on Schmersal EFK03.2 contact element S spring clamp 101022273 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 25 pieces of Schmersal EFK03.2 contact element S spring clamp 101022273 we can offer you a price of 9,20 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
