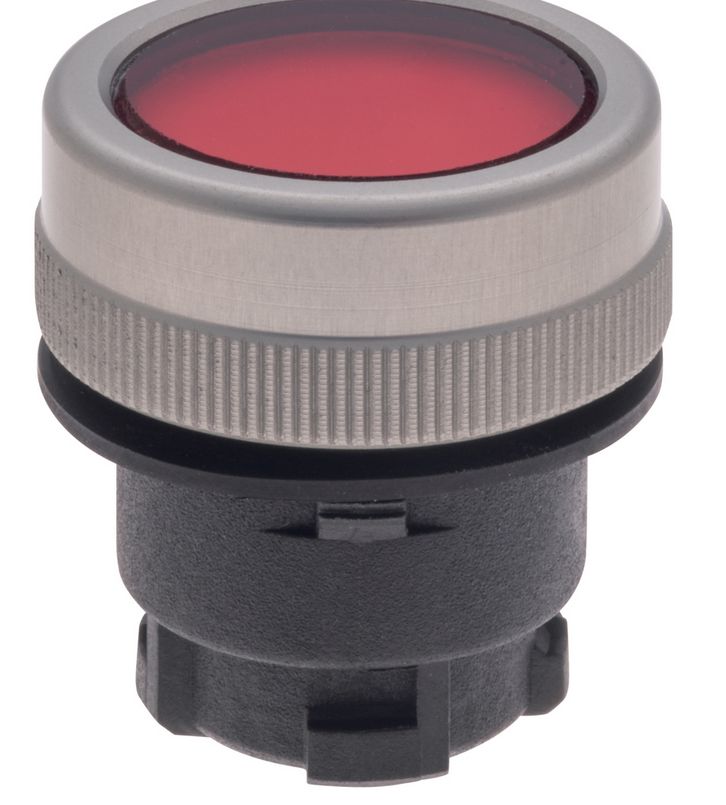

Schmersal 101006461 EMLRT indicator light round flat red
|
-16% 12,06 EUR 14,29 EUR |
|
|
( 14,35 EUR incl. VAT ) ≈ £10.24 | ≈ $13.59 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1331461 |
|---|---|
| Mfg Part No: | 101006461 |
| UPC/EAN: | 4030661485089 |
| Weight: | 0.123 kg |
| Type: | EMLRT |
Product information for Schmersal 101006461:
The EMLRT indicator light is a stylish signaling element designed for front panel mounting. Featuring a flat red glass dome and robust aluminum front ring, it combines modern aesthetics with high functionality. It provides reliable status indication, is illuminated, and suitable for various applications.
Technical Data:
Product Designation:
- EMLRT
Article Number:
- 101006461
EAN:
- 4030661485089
eCl@ss Numbers:
- Version 12.0: 27-37-12-11
- Version 11.0: 27-37-12-11
- Version 9.0: 27-37-12-11
ETIM Numbers:
- Version 7.0: EC000223
- Version 6.0: EC000223
Approvals - Regulations:
- Certificates: cULus
- Standards: EN IEC 60947-5-1, EN IEC 60947-1
General Data:
- Design: Indicator Light
- Construction: Round, flat dome
- Mounting Conditions (Mechanical): Arbitrary
- Sealing Type: Form seals
- Dome Material: Glass
- Front Ring Material: Aluminum
- Dome Color: Red
- Front Ring Color: Silver
- Gross Weight: 35 g
- Illuminated: Yes
- Mounting Flange: Yes
- Full Insulation: Yes
Mechanical Data:
- Mounting: Mounting flange
- Screw Tightening Torque: 0.6 Nm
Mechanical Data - Dimensions:
- Height: 14 mm
- Note (Installation Height): Height above the front plate
- Overall Diameter: 29.5 mm
- Dome Height: 0 mm
- Dome Diameter: 25 mm
- Front Ring Diameter: 29.5 mm
- Installation Diameter: 22.3 mm
- Panel Thickness, Min.: 1 mm
- Panel Thickness, Max.: 6 mm
- Grid Dimension: 40 x 50 mm
Environmental Conditions:
- Protection Class: IP65
- Ambient Temperature: -25 ... +75 °C
- Shock Resistance: 30 g / 18 ms
- Vibration Resistance: 20 g / 10 ... 150 Hz
