Schmersal EDLWS light aster white 101006406
|
18,20 EUR |
|
|
( 21,66 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1331047 |
|---|---|
| Mfg Part No: | 101006406 |
| Weight: | 0 kg |
Product information for Schmersal 101006406:
Product Description in English:

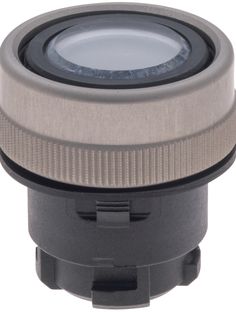

The EDLWS Illuminated Pushbutton is a high-quality and functional control element designed for industrial applications. It features a modern design with a white button surface and a silver aluminum bezel. This pushbutton is suitable for front panel mounting and offers a high protection rating of IP65, making it ideal for use in demanding environments.
Technical Data:
Product Type Designation:
- EDLWS
Order Number:
- 101006406
EAN:
- 4030661484846
eCl@ss and ETIM Numbers:
- eCl@ss Version 12.0: 27-37-12-11
- eCl@ss Version 11.0: 27-37-12-11
- eCl@ss Version 9.0: 27-37-12-11
- ETIM Version 7.0: EC000223
- ETIM Version 6.0: EC000223
Certificates:
- cULus
Material and Weight:
- Button Material: Plastic
- Bezel Material: Aluminum
- Button Color: White
- Bezel Color: Silver
- Gross Weight: 33 g
Features:
- Shape: Round
- Mounting: Front panel
- Sealing Type: Membrane, Lip Seals, Form Seals
- Fully Insulated: Yes
- Illuminated: Yes
- Actuation: Momentary
- Maximum Number of Contact Elements: 2
Mechanical Data:
- Mechanical Lifespan: At least 1,000,000 actuations
- Actuation Travel: 5 mm
- Actuation Force: Approximately 1.5 N
- Mounting: Central Nut
- Maximum Tightening Torque: 0.6 Nm
Dimensions:
- Overall Diameter: 29.5 mm
- Mounting Diameter: 22.3 mm
- Height: 14 mm
- Button Surface Height: 0.5 mm
- Button Surface Diameter: 20 mm
- Panel Thickness: 1.5 mm to 6 mm
- Grid Dimension: 40 x 50 mm
Environmental Conditions:
- Protection Rating: IP65
- Operating Temperature: -25 °C to +75 °C
- Shock Resistance: 30 g / 18 ms
- Vibration Resistance: 20 g / 10 ... 150 Hz
Electrical Data:
- Maximum Switching Frequency: 1,200 operations per hour
Type: EDLWS
Questions & answers
What is the delivery time of Schmersal EDLWS light aster white 101006406?
The article Schmersal EDLWS light aster white 101006406 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101006406 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal EDLWS light aster white 101006406 always at the best possible price. We can give you a discount of 2% on Schmersal EDLWS light aster white 101006406 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
