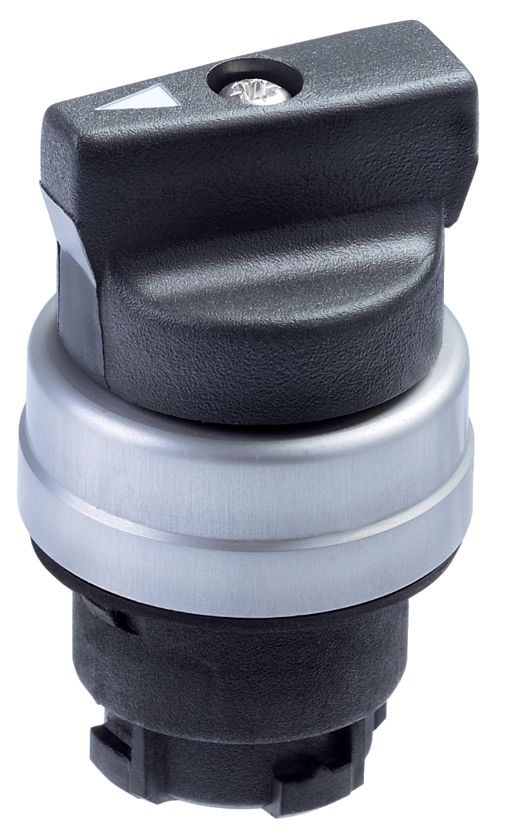

Schmersal EWS21 selector switch 2 pieces. Right locking 101006377

The EWS21 toggle switch is a robust and versatile rotary switch designed for demanding environments. Featuring a short toggle, rotational latching function, and an elegant silver bezel, it ensures reliability and durability.

Technical Data:

Product Designation:

• EWS21

Article Number:

• 101006377

EAN:

• 4030661484938

eCl@ss Numbers:

• Version 12.0: 27-37-12-13
• Version 11.0: 27-37-12-13
• Version 9.0: 27-37-12-13

ETIM Numbers:

• Version 7.0: EC000222
• Version 6.0: EC000222

Approvals - Regulations:

• Certifications: cULus
• Standards: EN IEC 60947-5-1, EN IEC 60947-1

General Data:

• Design: Toggle switch
• Mounting Conditions (Mechanical): Arbitrary
• Toggle: Short
• Sealing Type: Membrane, Lip Seals, Form Seals
• Bezel Material: Aluminum
• Toggle Material: Plastic
• Bezel Color: Silver
• Toggle Color: Grey
• Gross Weight: 45 g

General Properties:

• Latching Present: Yes
• Full Insulation: Yes
• Number of Plungers: 1
• Number of Switch Positions: 2

Mechanical Data:

• Unlocking: Rotary Unlocking
• Latching Position: Right
• Mechanical Lifetime, Min.: 300,000 switching cycles
• Switching Angle, Right: 70 °
• Mounting: Mounting Flange
• Screw Tightening Torque: 0.6 Nm

Mechanical Data - Dimensions:

• Height: 28 mm
• Length x Width x Height: Installation Diameter Ø: 22 mm
• Bezel Diameter: 29.5 mm
• Toggle Length: 28 mm
• Installation Diameter: 22.3 mm
• Panel Thickness, Min.: 1 mm
• Panel Thickness, Max.: 6 mm
• Grid Dimension: 50 x 50 mm

Environmental Conditions:

• Protection Rating: IP65
• Ambient Temperature: +0 ... +80 °C
• Shock Resistance: 30 g / 18 ms
• Vibration Resistance: 20 g / 10 ... 150 Hz

Type: EWS21
