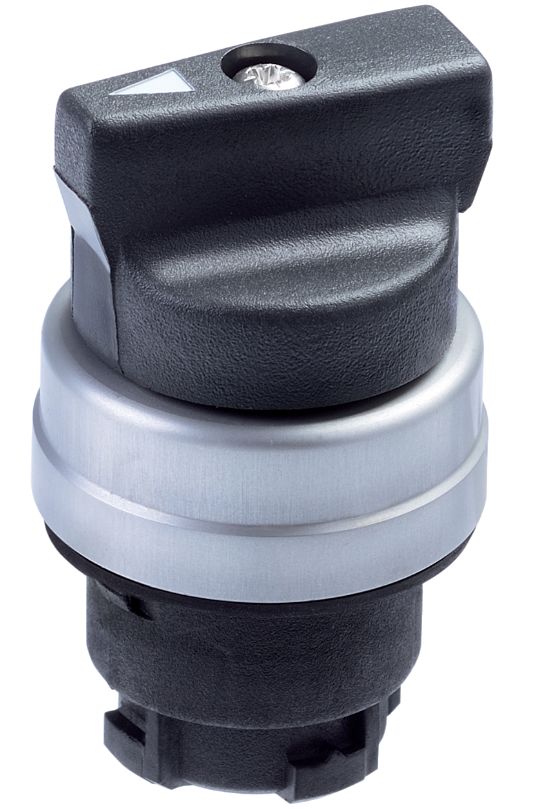

Schmersal EWTS32 selector button 3 pieces. Right momentary, left latching 101006373

Schmersal Toggle Switch EWTS32

Order Details:

• Product Type Designation: EWTS32
• Article Number (Order Number): 101006373
• EAN (European Article Number): 4030661615080
• eCl@ss Number, Version 12.0: 27-37-12-13
• eCl@ss Number, Version 11.0: 27-37-12-13
• eCl@ss Number, Version 9.0: 27-37-12-13
• ETIM Number, Version 7.0: EC000222
• ETIM Number, Version 6.0: EC000222

Approvals and Regulations:

• Certificates: cULus
• Standards:
- EN IEC 60947-5-1
- EN IEC 60947-1


General Data:

• Design: Toggle switch
• Mounting conditions (mechanical): Arbitrary
• Toggle: Short
• Sealing type:
- Membrane
- Lip seals
- Molded seals

• Material of front ring: Aluminum
• Material of toggle: Plastic
• Color of front ring: Silver
• Color of toggle: Gray
• Gross weight: 43 g

General Features:

• Momentary operation: Yes
• Latching: Yes
• Full insulation: Yes
• Number of plungers: 2
• Number of switch positions: 3

Mechanical Data:

• Release:
- Right: Without rotational release
- Left: Rotational release

• Latching position: Left
• Momentary position: Right
• Minimum mechanical lifespan: 300,000 switching cycles
• Switching angle:
- Left: 55°
- Right: 35°

• Mounting: Flange mounting
• Screw tightening torque: 0.6 Nm

Mechanical Dimensions:

• Height: 28 mm
• Installation diameter Ø: 22 mm
• Diameter of front ring: 29.5 mm
• Length of toggle: 28 mm
• Installation diameter: 22.3 mm
• Front plate thickness:
- Minimum: 1 mm
- Maximum: 6 mm

• Grid size: 50 x 50 mm

Environmental Conditions:

• Protection rating: IP65
• Ambient temperature: +0 ... +80 °C
• Shock resistance: 30 g / 18 ms
• Vibration resistance: 20 g / 10 ... 150 Hz

Note:

The specified data has been carefully verified. Images may differ from the original. Further technical details can be found in the operating instructions. Technical changes and errors are subject to change.

Generated on: 21.12.2024, 12:37
Type: EWTS32
