Schmersal EDP40SW impact button black 101006296
|
27,89 EUR |
|||||||||||
|
( 33,19 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1331044 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101006296 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101006296:
Product Description in English:

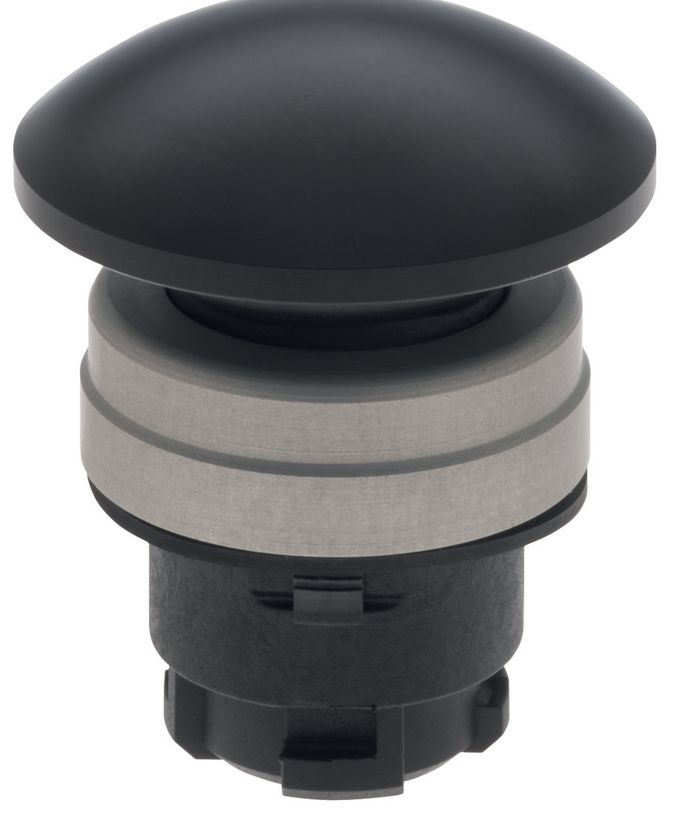

The EDP40SW Impact Pushbutton is a robust control element designed for demanding industrial applications. Featuring a black aluminum actuator and a silver aluminum bezel, it combines sleek aesthetics with practical functionality. This impact pushbutton is specifically made for front panel mounting and offers an IP65 protection rating, making it resistant to dust and water.
Technical Data:
Product Type Designation:
- EDP40SW
Order Number:
- 101006296
EAN:
- 4030661464466
eCl@ss and ETIM Numbers:
- eCl@ss Version 12.0: 27-37-12-12
- eCl@ss Version 11.0: 27-37-12-12
- eCl@ss Version 9.0: 27-37-12-12
- ETIM Version 7.0: EC001038
- ETIM Version 6.0: EC001038
Certificates:
- cULus
Material and Weight:
- Actuator Material: Aluminum
- Bezel Material: Aluminum
- Actuator Color: Black
- Bezel Color: Silver
- Gross Weight: 51 g
Features:
- Shape: Round
- Mounting: Front panel
- Sealing Type: Form seals
- Momentary Actuation: Yes
- Fully Insulated: Yes
Mechanical Data:
- Latching: None
- Actuation Travel: 5 mm
- Actuation Force: Approximately 2 N
- Mounting: EFM flange
- Maximum Tightening Torque: 0.6 Nm
Dimensions:
- Overall Diameter: 32 mm
- Actuator Diameter: 37 mm
- Bezel Diameter: 29.5 mm
- Mounting Diameter: 22.3 mm
- Panel Thickness: 1 mm to 6 mm
- Grid Dimension: 50 x 60 mm
- Depth behind the panel incl. contact element: 27.5 mm
Environmental Conditions:
- Protection Rating: IP65
- Operating Temperature: -25 °C to +75 °C
- Shock Resistance: 30 g / 18 ms
- Vibration Resistance: 20 g / 10 ... 150 Hz
Electrical Data:
- Maximum Switching Frequency: 1,200 operations per hour
Type: EDP40SW
Questions & answers
What is the delivery time of Schmersal EDP40SW impact button black 101006296?
The article Schmersal EDP40SW impact button black 101006296 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101006296 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal EDP40SW impact button black 101006296 always at the best possible price. We can give you a discount of 2% on Schmersal EDP40SW impact button black 101006296 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of Schmersal EDP40SW impact button black 101006296 we can offer you a price of 27,05 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
