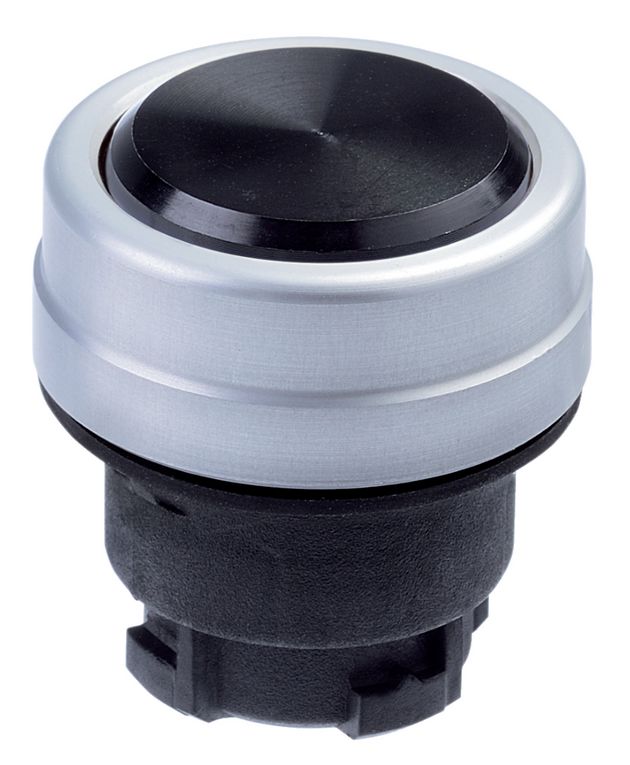

Schmersal EDTSW push button black 101006229
|
15,67 EUR |
|||||||||||
|
( 18,65 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1331030 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101006229 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101006229:
Product Description in English:
The EDTSW Push Button is a robust and versatile button, combining sophisticated design with durability. With a premium black aluminum actuator and anodized aluminum front ring, this push button delivers a sleek appearance and reliable performance. Its sealing methods, including membranes and form seals, ensure IP65 protection, making it suitable for demanding applications. The mechanical lifespan of up to 10 million switching cycles highlights its superior quality and durability.
Technical Data:
Product Type Designation:
- EDTSW
Order Number:
- 101006229
EAN:
- 4030661484792
eCl@ss and ETIM Numbers:
- eCl@ss Version 12.0: 27-37-12-10
- eCl@ss Version 11.0: 27-37-12-10
- eCl@ss Version 9.0: 27-37-12-10
- ETIM Version 7.0: EC000221
- ETIM Version 6.0: EC000221
Certificates:
- cULus
Material and Weight:
- Actuator Material: Aluminum
- Dome Material: Plastic
- Front Ring Material: Aluminum, anodized
- Actuator Color: Black
- Front Ring Color: Silver
- Gross Weight: 38 g
Features:
- Shape: Round
- Operating Mode: Momentary
- Installation Conditions: Arbitrary
- Max. Number of Contact Elements: 3
- Fully Insulated: Yes
- Mounting Flange: Yes
Mechanical Data:
- Reset Mechanism: None
- Mechanical Lifespan, Minimum: 10,000,000 operations
- Mechanical Lifespan, Command Devices: 1,000,000 operations
- Actuation Travel: 4 mm to 5 mm
- Typical Actuation Force: 1.5 N
- Mounting: Flange mount EFM
- Maximum Tightening Torque: 0.6 Nm
Dimensions:
- Installation Height: 14 mm (above the front panel)
- Mounting Diameter: 22.3 mm
- Actuator Surface Diameter: 23 mm
- Front Ring Diameter: 29.5 mm
- Panel Thickness: 1 mm to 6 mm
- Grid Spacing: 40 x 50 mm
Environmental Conditions:
- Protection Rating: IP65
- Operating Temperature: -25 °C to +80 °C
- Shock Resistance: 30 g / 18 ms
- Vibration Resistance: 20 g / 10 ... 150 Hz
Electrical Data:
- Maximum Switching Frequency: 1,000 operations per hour
Type: EDTSW
