Schmersal EDL.VGN illuminated button green 101006217

Product Description in English:

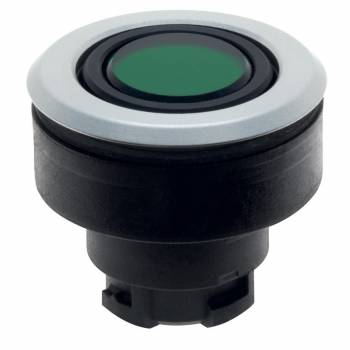

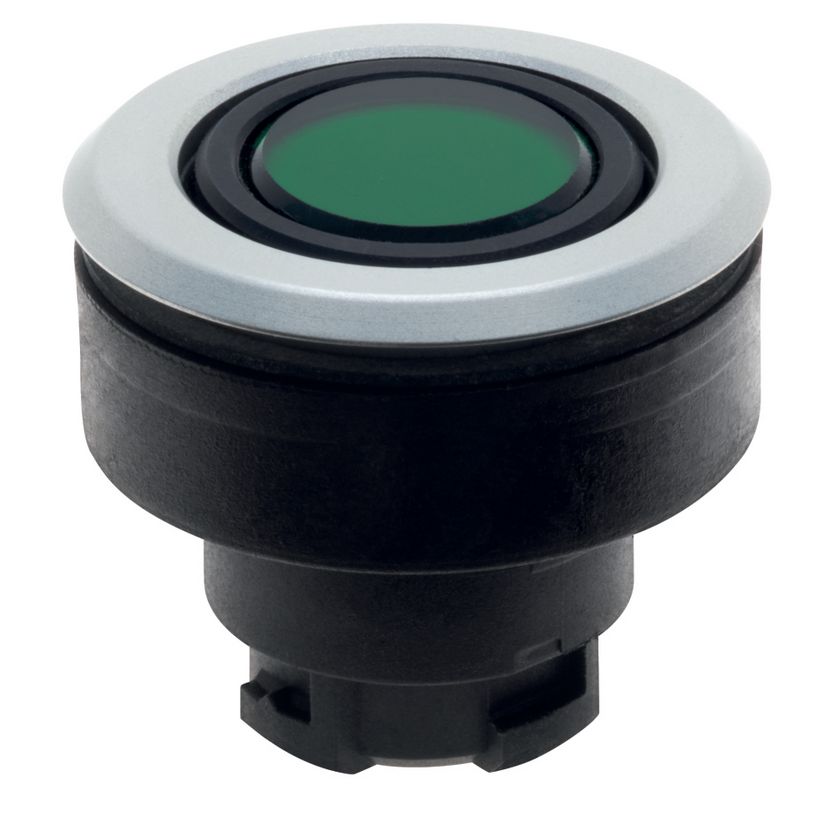

The EDL.VGN is a green illuminated pushbutton designed for front panel mounting with a round shape and fully insulated construction. This pushbutton is ideal for control and operator panels in industrial applications, providing clear visual feedback. The silver aluminum front ring and green plastic actuator give the button a premium appearance. The pushbutton is illuminated, momentary action, and easy to mount with a central nut. With an IP65 protection rating, it is suitable for demanding environments.

Technical Data:

Product Type:

• EDL.VGN

Article Number:

• 101006217

EAN:

• 4030661548111

eCl@ss Classification:

• Version 12.0: 27-37-12-11
• Version 11.0: 27-37-12-11
• Version 9.0: 27-37-12-11

ETIM Classification:

• Version 7.0: EC000223
• Version 6.0: EC000223

Approvals:

• cULus

General Data:

• Standards: EN IEC 60947-5-1, EN IEC 60947-1
• Design: Front panel mounting, illuminated pushbutton
• Shape: Round, momentary action
• Sealing Type: Form seals
• Actuator Material: Plastic
• Front Ring Material: Aluminum
• Actuator Color: Green
• Front Ring Color: Silver
• Gross Weight: 40 g

Features:

• Illuminated: Yes
• Mounting Flange: Yes
• Momentary Action: Yes
• Full Insulation: Yes
• Number of Contact Elements, Max: 2

Mechanical Data:

• Release: Without
• Mechanical Lifespan: Minimum 1,000,000 operations
• Actuation Travel: 5 mm
• Actuation Force: Approx. 1.5 N
• Mounting: Central nut
• Screw Tightening Torque: 0.6 Nm

Dimensions:

• Height: 3 mm
• Overall Diameter: 35 mm
• Actuation Surface Height: 0.5 mm
• Actuation Surface Diameter: 20 mm
• Mounting Diameter: 30.5 mm
• Front Plate Thickness: 1.5 mm to 6 mm
• Grid Dimension: 40 x 50 mm

Environmental Conditions:

• Protection Rating: IP65
• Operating Temperature: -25 to +75 °C
• Vibration Resistance: 5 g
• Shock Resistance: <50 g (EN 60068-2-27)

Electrical Data:

• Maximum Switching Frequency: 1,200 cycles/h

Type: EDL.VGN
