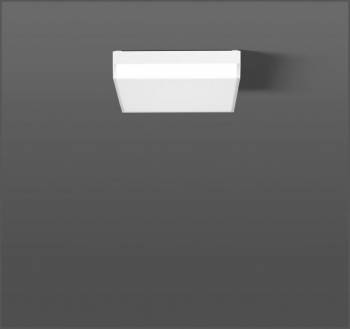

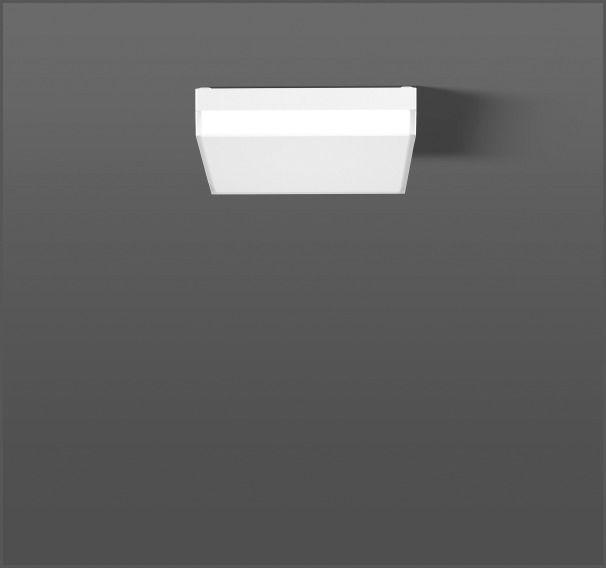

RZB 312667.002.19 FLAT SLIM square, 13...21 W, 1350...2400 lm, ws, luminaire

Decorative square LED surface-mounted light. Die-cast aluminum fitting, powder-coated. Comes as standard with GoreT Protective Vents membrane valve to prevent condensation. The large connection space on the back for convenient routing of the connection cable is also perfect for through-wiring. Matt crystal glass diffuser, painted inside with mounting fixation. Diffuser with frame made of die-cast aluminum, powder-coated, glued. Diffuser attached with clip system. Homogeneous and soft illumination. Suitable for ceiling mounting, wall mounting. Extremely simple installation thanks to plug & play plug-in system. Attachment outside the sealed area with hole tolerance compensation. MultiLumen: The luminous flux of the light can be adjusted in 2 levels. MultiColour: Color temperature can be selected using a jumper. No factory presetting, color temperature must be set during installation. With integrated HF motion detector and light sensor. Functional parameters of the motion detector (ceiling mounting up to 4.0 m or wall mounting up to 2.5 m): HF detector 5.8 GHz. Detection angle 30°-150°. Detection range up to 6 m radial, depending on the mounting situation and diffuser/cover. Hold time, daylight threshold and sensitivity adjustable via dip switch. Can be switched as a master light up to 400 W (resistive load), 300 VA (LED).
Type: 312667.002.19
