Rutenbeck UM-Cat.6A iso 25/10G 25GB universal module shielded 13900310
|
116,28 EUR 121,18 EUR |
|
|
( 138,37 EUR incl. VAT ) ≈ £99.77 | ≈ $134.77 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| Sales unit: 12 pieces | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 1780310 |
|---|---|
| Mfg Part No: | 13900310 |
| UPC/EAN: | 4043921665770 |
| Weight: | 0.123 kg |

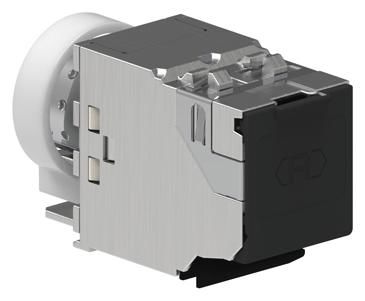

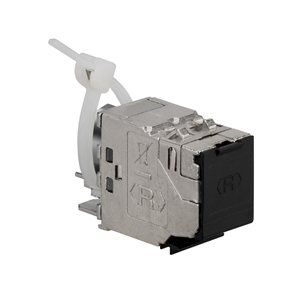

Product information for Rutenbeck 13900310:
25GB universal module, shielded, for keystone module cutouts, - for use in 25 Gigabit Ethernet networks (transmission bandwidth up to 1250 MHz), - for use in 10 Gigabit Ethernet networks (transmission bandwidth up to 500 MHz), - 1 x RJ45 plug-in opening, - fits in standard keystone openings (14.8 x 19.3 mm), - zinc die-cast design, - nickel-plated housing surface, - 360° strain relief and shielding, - for data cables with 6-10 mm diameter, - solid conductors: IDC terminals for one conductor 0.57-0.64 mm Ø, AWG23-22, outer diameter 0.9-1.6 mm (PE), - 1 wire per contact, can be reused 4 times (with the same or larger cross-section), - standard-compliant shield contact, - defined earth connection possible using standard flat plug connectors, - suitable for construction sites (only 2 parts), - integrated dust protection cap (removable/replaceable if required), - color code T568A and T568B in accordance with TIA/EIA-568 B.2, - suitable for PoE+ in accordance with IEEE 802.3at, - UPOE-compliant, - HDBaseT-compliant, - with separately available mounting adapter to match TAE design covers from the switch industry (Berker, Busch-Jaeger, GIRA, Jung, Merten, etc.), - in accordance with the following standard requirements for 25Gbit:, - ISO/IEC TR 11801-9905, - ISO/IEC 11801, Class I up to 1250 MHz, shielded, - in accordance with the following standard requirements for 10Gbit:, - ISO/IEC 11 801, Cat.6A, shielded, - DIN EN 50173-1, Cat.6A, shielded, - ANSI TIA/EIA-568-C2 Category 6A, - DIN EN 60 603-7-51, 500 MHz, shielded, - service life > 750 mating cycles, - GHMT counter-certified
Type: UM-Cat.6A iso 25/10G
The item price shown refers to 12 pieces Rutenbeck 13900310
Type: UM-Cat.6A iso 25/10G
The item price shown refers to 12 pieces Rutenbeck 13900310
Questions & answers
What is the delivery time of Rutenbeck UM-Cat.6A iso 25/10G 25GB universal module shielded 13900310?
The article Rutenbeck UM-Cat.6A iso 25/10G 25GB universal module shielded 13900310 is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rutenbeck 13900310 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rutenbeck UM-Cat.6A iso 25/10G 25GB universal module shielded 13900310 always at the best possible price. We can give you a discount of 2% on Rutenbeck UM-Cat.6A iso 25/10G 25GB universal module shielded 13900310 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
Rutenbeck UM-Cat.6A iso 25/10G 25GB universal module shielded 13900310 is offered by us in a sales unit of 12 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
