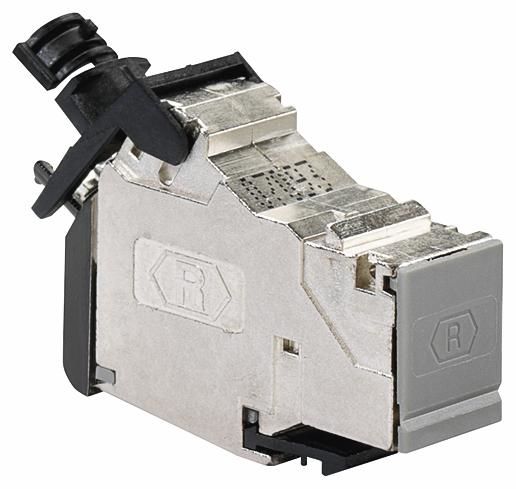

Rutenbeck UM-Cat.6A iso U 10G universal module mouse gray 8p 13700300 content_copy

10GB universal module, unshielded, - for use in 10 Gigabit Ethernet networks (transmission bandwidth up to 500 MHz), - 1 x RJ45 plug opening, - sturdy zinc die-cast housing, - coated housing surface, - 360° strain relief, - for data cables with 6-10 mm diameter, - solid conductors: IDC terminals for one conductor 0.51 - 0.64 mm Ø, AWG 24-22, outer diameter 0.7-1.6 mm (PE), - flexible conductors: IDC terminals for one conductor 0.13-0.22 mm Ø, AWG 26 (PE foamskin), AWG 24 (PE solid), outer diameter 0.9-1.1 mm (PE), - 1 wire per contact, can be reused >10 times (with the same or larger cross-section), - Bending radius-optimized feed of the connection cables (30°), - Installation without special pliers/tools, - integrated dust protection cap (removable/replaceable if required), - color code T568A and T568B in accordance with TIA/EIA-568-B.2, - suitable for PoE++ / 4PPoE in accordance with IEEE 802.3bt, - UPOE-compliant, - HDBaseT-compliant, - with separately available mounting adapter to match TAE design covers from the switch industry (Berker, Busch-Jaeger, GIRA, Jung, Merten, etc.), - in accordance with the following standard requirements:, - ISO/IEC 11801, Cat.6A, unshielded, - DIN EN 50173-1, Cat.6A, unshielded, - ANSI TIA/EIA-568-C.2 Category 6A, unshielded, - DIN EN 60 603-7-41, 500 MHz, unshielded, - service life > 750 mating cycles, - RJ11/12 mismating protected
Type: UM-Cat.6A iso U 10G
