RUNPOTEC 10171

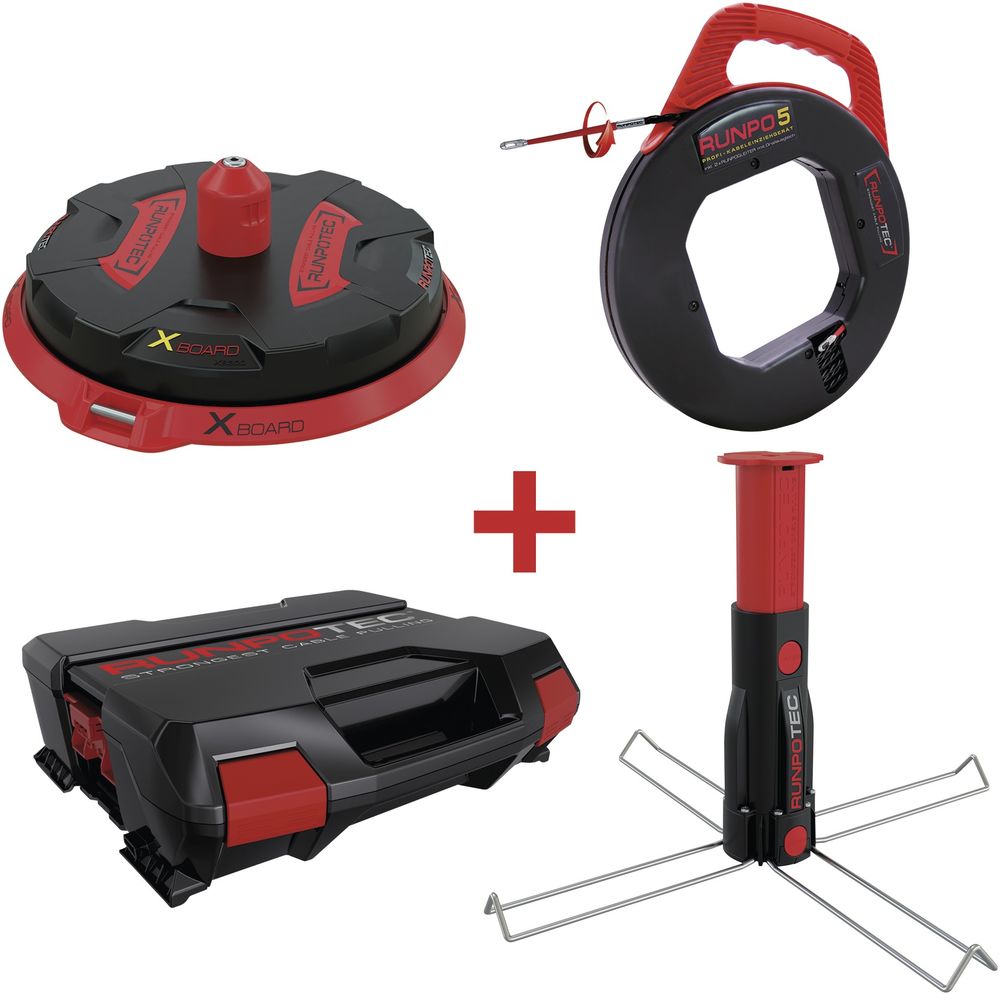

RUNPO 5 +XB 300 MULTI-SET including multifunctional mandrel in the system case

The multi-function mandrel has been specially developed for the X BOARD XB 300 and XB 500 cable unwinding system. By attaching it to the stainless steel center mandrel of the XB 300 and then unfolding the 4 side brackets, loose cable bundles can also be unrolled. The telescopic center mandrel has a diameter of 72 mm. This makes it ideal for unrolling thinner cable bundles with a small inner diameter or single wires. The normal height of the multi-function mandrel is 196 mm and can be extended to a maximum of 294 mm using the telescopic mechanism. This means that high cable bundles or corresponding pipe bundles can be unrolled. When the 4 side brackets are unfolded, there is a total support surface with a diameter of 430 mm. Ideally, this should correspond to the respective cable or pipe bundle. The option of combining it with the RUNPOSTICKS is still possible thanks to a given opening.
Optimal application area: XB300: Unrolling (damaged) drums up to max. 300 kg as well as loose cable bundles or single wires. Height up to 290 mm and diameter up to 430 mm, RUNPO 5: for pipe dimensions 16 mm - 40 mm.
Application video: you can watch a short, very informative application video by scanning the QR code or at www.runpotec.com
Scope of delivery: 1 x X BOARD XB 300, 1 x multifunctional mandrel, 1 x RUNPO 5 - 30 m, 1 x RUNPOTEC system case
Type: 10171
