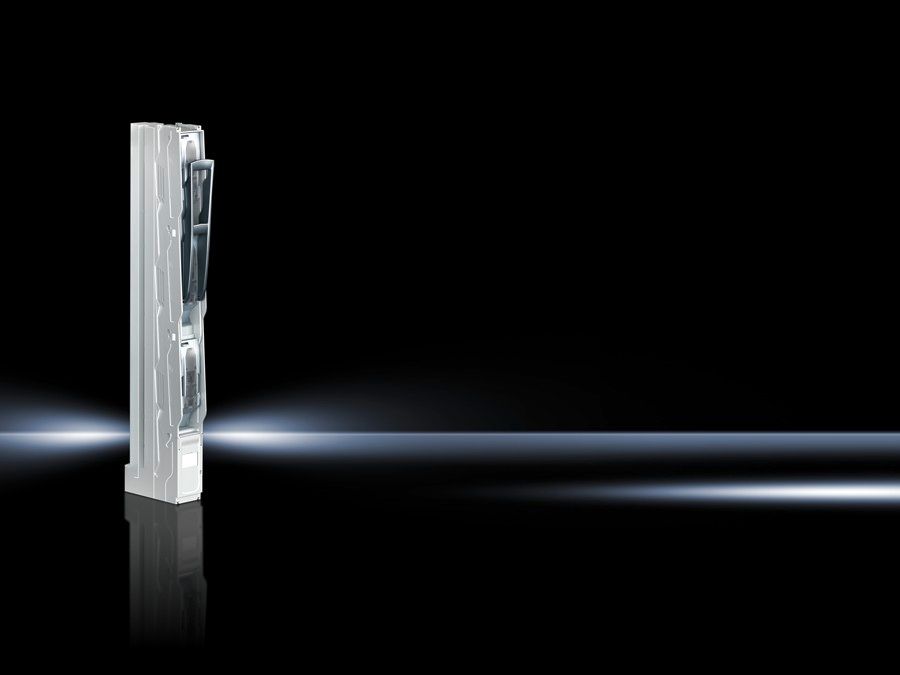

Rittal 9677000 SV NH slimline fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, screw M8, 185 mm, for current transformer installation
|
5.716,92 EUR |
|
|
incl. 5.616,24 EUR copper surcharge ( 6.803,13 EUR incl. VAT ) ≈ £4,905.12 | ≈ $6,625.91 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Lieske Part No.: | 597124 |
|---|---|
| Mfg Part No: | 9677000 |
| UPC/EAN: | 4028177705418 |
| Weight: | 0.123 kg |
Further Power distribution components from RittalFurther products in category Power distribution components
All products of Rittal
Product information for Rittal 9677000:
Material: Polyamide (PA 6.6)
Fire protection corresponding to UL 94-V0
Contact tracks: Partially silver-plated hard copper
Colour: Chassis: RAL 7035
Cover: RAL 7001
Handle: RAL 7016
Basis of test: IEC/DIN EN 60 947-3
DIN EN 60 269-2 (fuse inserts)
Note: When using NH slimline fuse-switch disconnectors on busbars with contact hazard protection cover, the contact terminal must be used
Packs of: 1 pc(s).
EAN: 4028177705418
Customs tariff number: 85365080
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27371402
ETIM 6.0: EC001046
Design: 3-pole, switchable
Size: 00
To fit busbars: with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 185 mm
Dimensions: Width: 50 mm
Height: 670 mm
Type of electrical connection: Screw M8
Rated operating voltage: 690 V, 3~
Connection for round conductor cross-sections: 1.5 mm² - 95 mm²
Rated operating current max.: 160 A
Cable outlet: Top/bottom
For converter installation: yes
Weight/pack: 2.65 kg
Type: SV 9677000
Fire protection corresponding to UL 94-V0
Contact tracks: Partially silver-plated hard copper
Colour: Chassis: RAL 7035
Cover: RAL 7001
Handle: RAL 7016
Basis of test: IEC/DIN EN 60 947-3
DIN EN 60 269-2 (fuse inserts)
Note: When using NH slimline fuse-switch disconnectors on busbars with contact hazard protection cover, the contact terminal must be used
Packs of: 1 pc(s).
EAN: 4028177705418
Customs tariff number: 85365080
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27371402
ETIM 6.0: EC001046
Design: 3-pole, switchable
Size: 00
To fit busbars: with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 185 mm
Dimensions: Width: 50 mm
Height: 670 mm
Type of electrical connection: Screw M8
Rated operating voltage: 690 V, 3~
Connection for round conductor cross-sections: 1.5 mm² - 95 mm²
Rated operating current max.: 160 A
Cable outlet: Top/bottom
For converter installation: yes
Weight/pack: 2.65 kg
Type: SV 9677000
Please note...
This article contains a copper surcharge of 5.616,24 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
