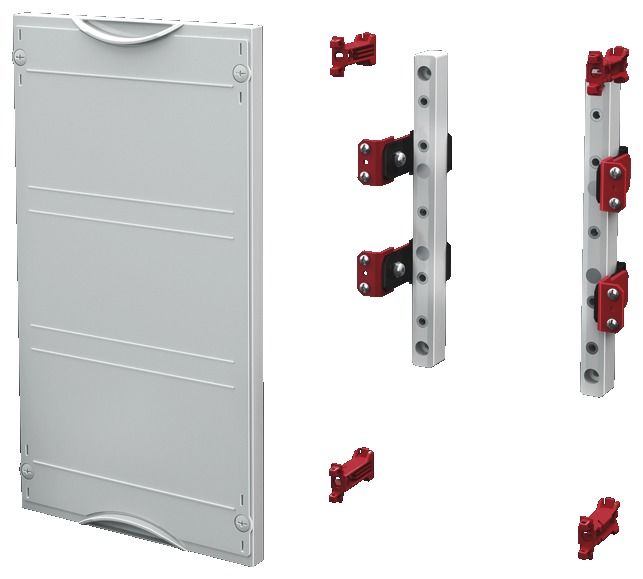

Rittal 9666583 SV NH fuse-switch disconnector module (ISV), 3 WU (750 mm), 3 U (450 mm), for 10 x size 00, (SV 9346XXX, 100 mm)
|
-12% 119,72 EUR 136,30 EUR |
|
|
( 142,47 EUR incl. VAT ) ≈ £102.96 | ≈ $136.48 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Lieske Part No.: | 984836 |
|---|---|
| Mfg Part No: | 9666583 |
| UPC/EAN: | 4028177676473 |
| Weight: | 3.34 kg |
Further System Accessories from RittalFurther products in category System Accessories
All products of Rittal
Product information for Rittal 9666583:
For NH slimline fuse-switch disconnectors, sizes 00 to 3 (100/185 mm bar centre distance).
Material: Cover: Polystyrene
Colour: RAL 7035
Note: In order to ensure problem-free cable connection, a contact hazard protection module or an N/PE busbar module must be installed above or below the NH slimline fuse-switch disconnector modules.
Busbars are not included with the supply
Packs of: 1 pc(s).
EAN: 4028177676473
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27142409
ETIM 6.0: EC001893
Design: For size: 00
To fit: Model No.: 9346.020
Model No.: 9346.030
For NH slimline fuse-switch disconnectors: 10 x 00
Centre-to-centre spacing of busbars: 100 mm
Dimensions: Width: 750 mm
Height: 450 mm
Size: Width units (WU) @ 250 mm: 3
Height units (U) @ 150 mm: 3
For no. of NH slimline fuse-switch disconnectors: 10
Weight/pack: 3.34 kg
Type: SV 9666583
Material: Cover: Polystyrene
Colour: RAL 7035
Note: In order to ensure problem-free cable connection, a contact hazard protection module or an N/PE busbar module must be installed above or below the NH slimline fuse-switch disconnector modules.
Busbars are not included with the supply
Packs of: 1 pc(s).
EAN: 4028177676473
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27142409
ETIM 6.0: EC001893
Design: For size: 00
To fit: Model No.: 9346.020
Model No.: 9346.030
For NH slimline fuse-switch disconnectors: 10 x 00
Centre-to-centre spacing of busbars: 100 mm
Dimensions: Width: 750 mm
Height: 450 mm
Size: Width units (WU) @ 250 mm: 3
Height units (U) @ 150 mm: 3
For no. of NH slimline fuse-switch disconnectors: 10
Weight/pack: 3.34 kg
Type: SV 9666583
Questions & answers
What is the delivery time of Rittal 9666583 SV NH fuse-switch disconnector module (ISV), 3 WU (750 mm), 3 U (450 mm), for 10 x size 00, (SV 9346XXX, 100 mm)?
The article Rittal 9666583 SV NH fuse-switch disconnector module (ISV), 3 WU (750 mm), 3 U (450 mm), for 10 x size 00, (SV 9346XXX, 100 mm) is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9666583 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9666583 SV NH fuse-switch disconnector module (ISV), 3 WU (750 mm), 3 U (450 mm), for 10 x size 00, (SV 9346XXX, 100 mm) always at the best possible price. We can give you a discount of 2% on Rittal 9666583 SV NH fuse-switch disconnector module (ISV), 3 WU (750 mm), 3 U (450 mm), for 10 x size 00, (SV 9346XXX, 100 mm) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
