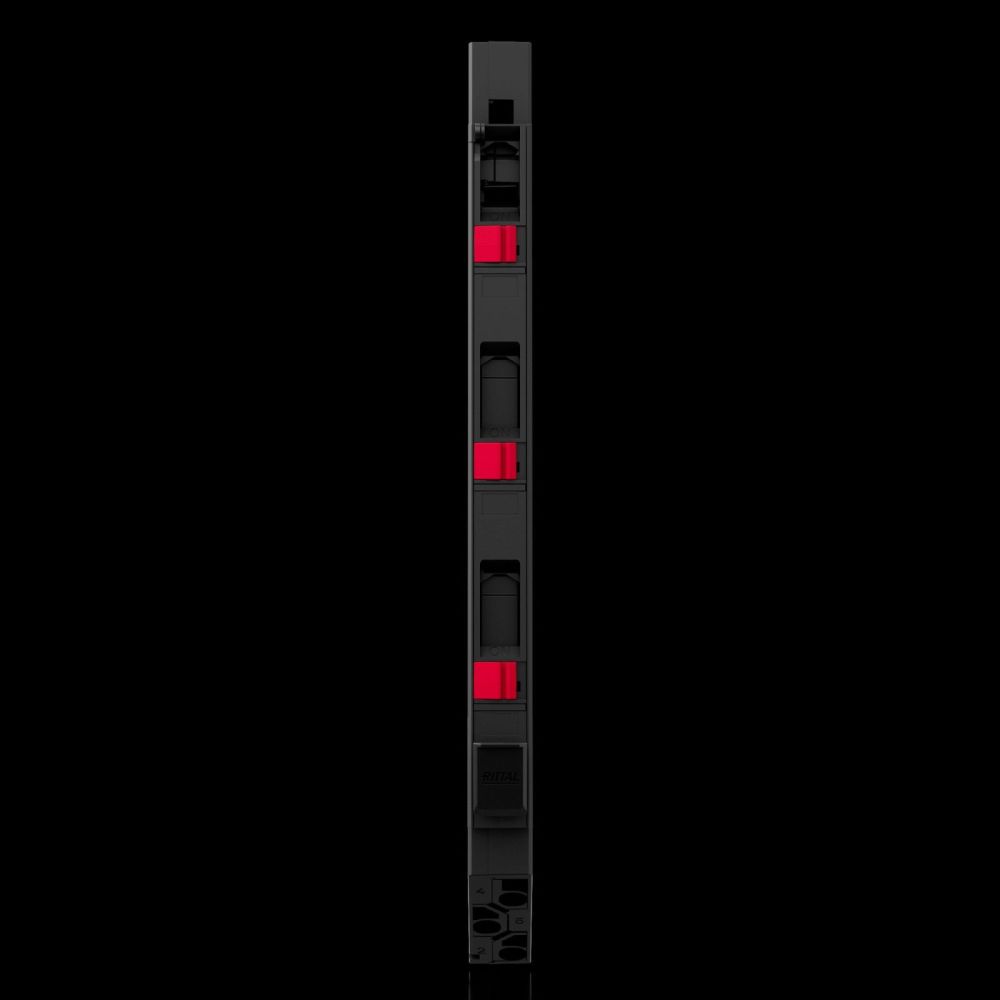

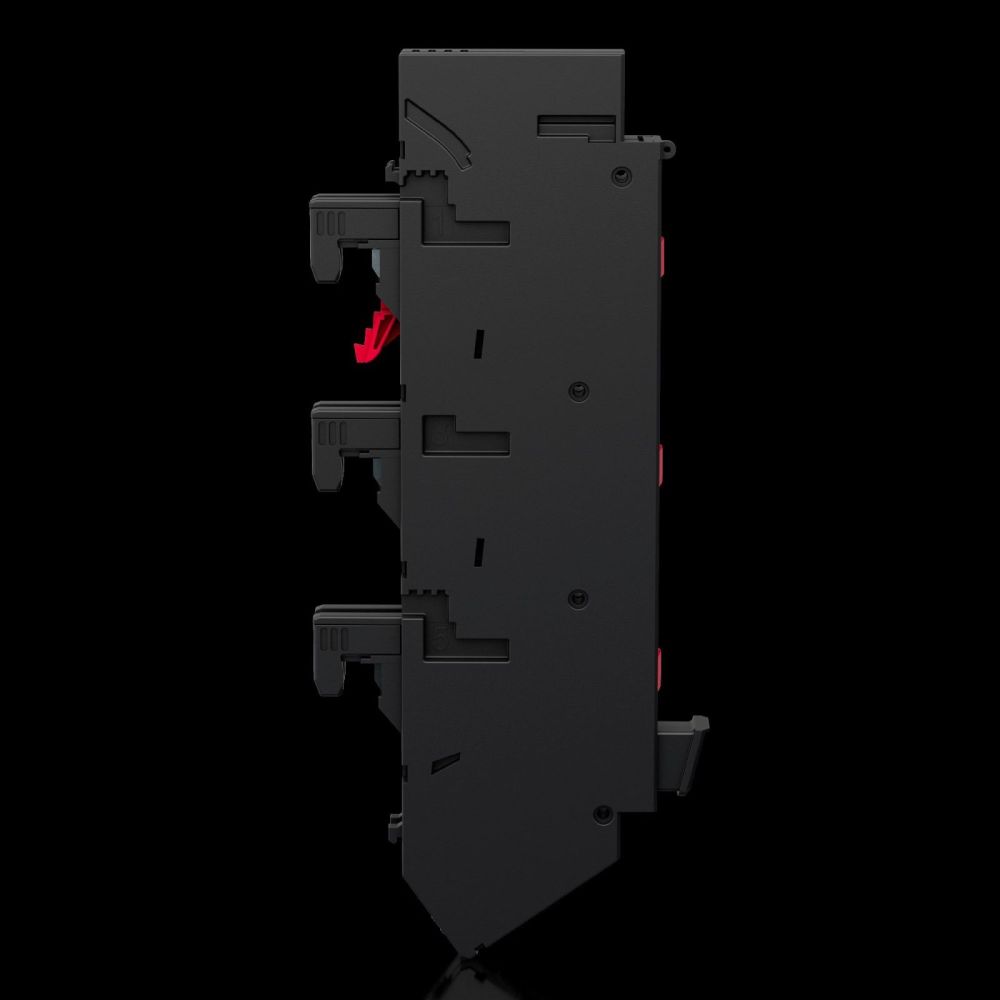

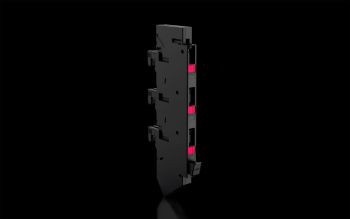

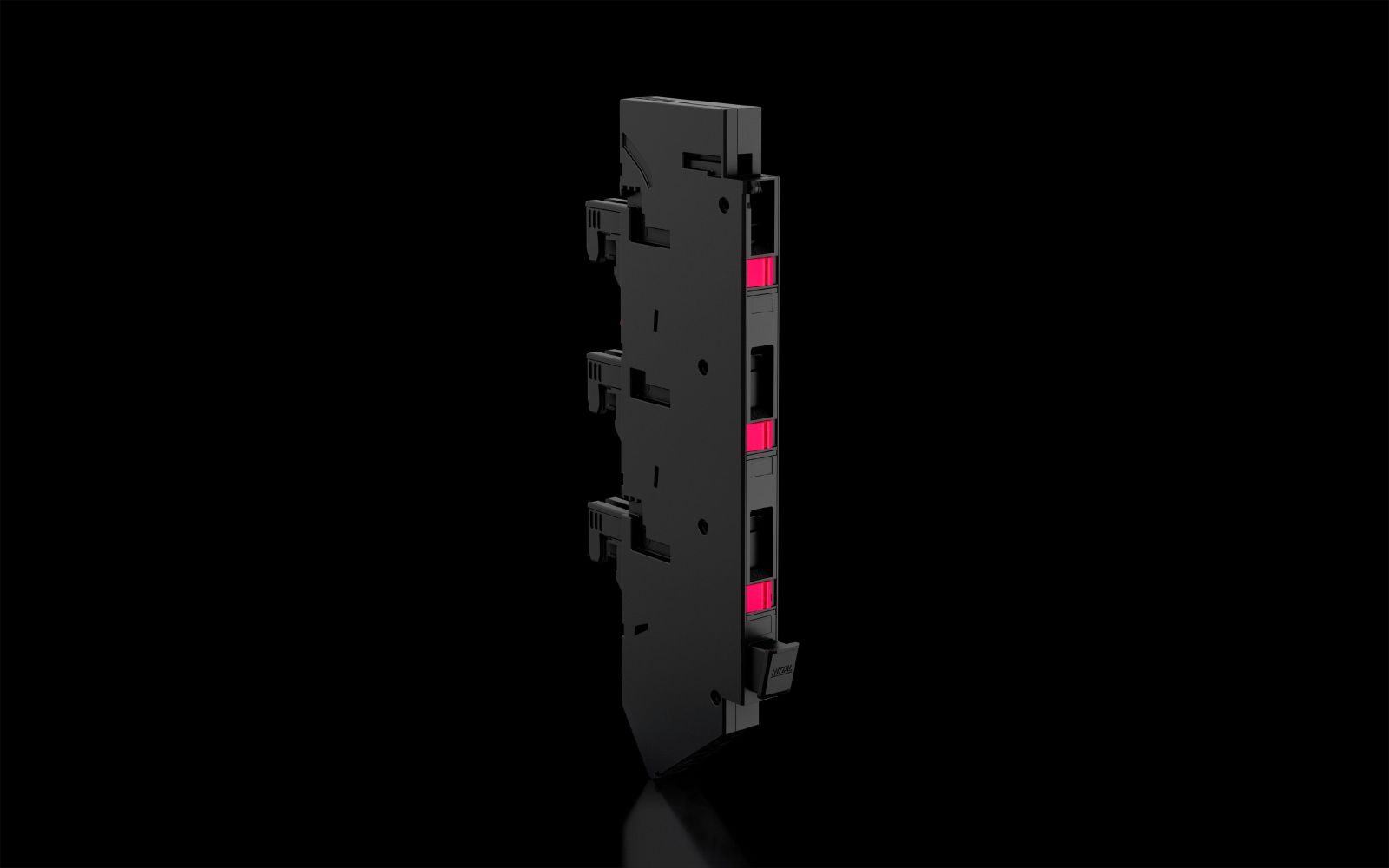

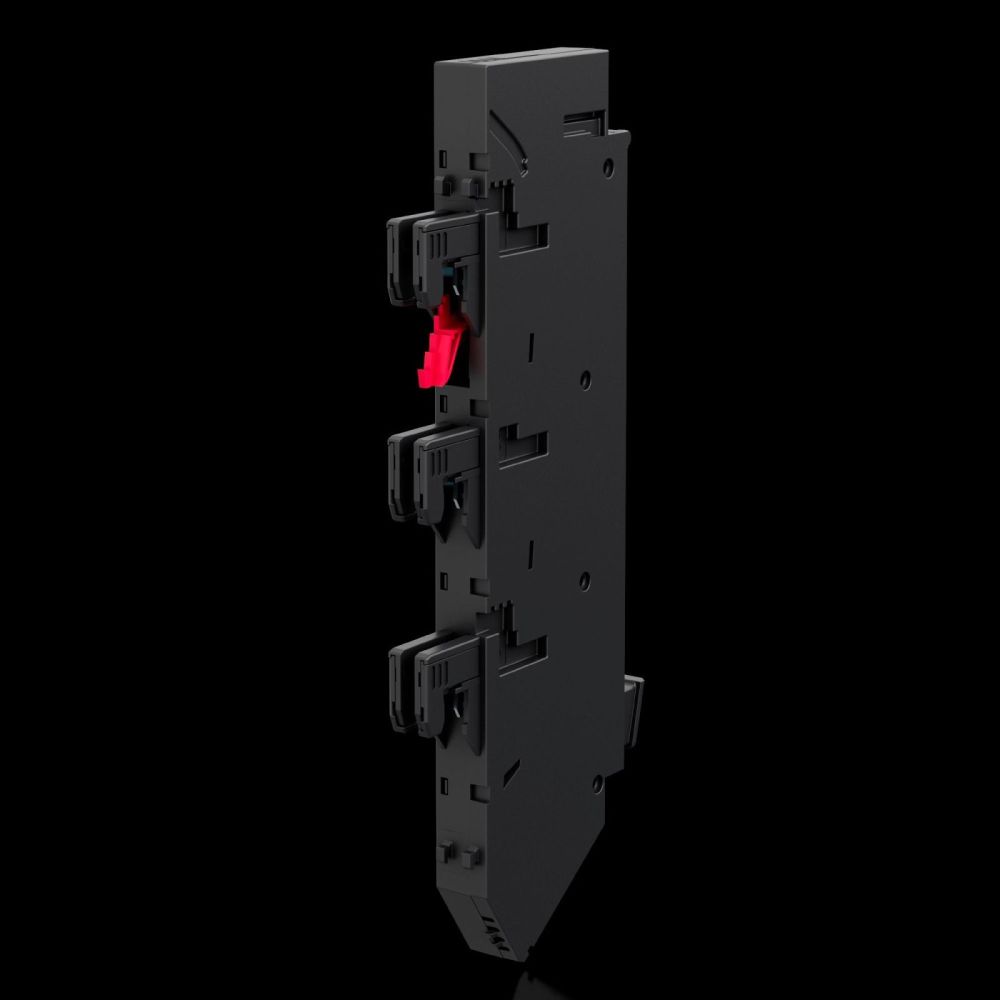

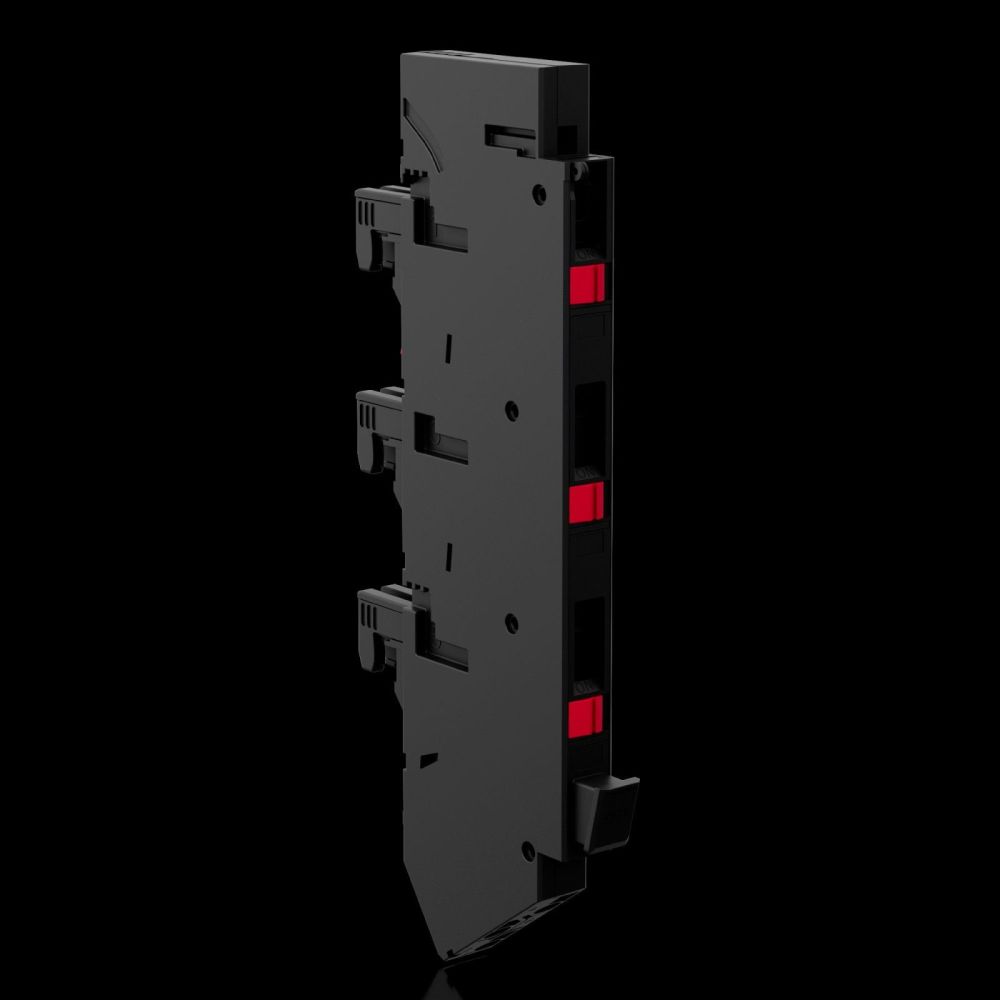

Rittal 9364022 RX fuse carrier 1=4 32 A 3-pole 10x38 mm LED W:18 mm

Your rating:
Average rating
product review for Rittal 9364022 RX fuse carrier 1=4 32 A 3-pole 10x38 mm LED W:18 mm
( 5 / 5 ) 1 ratings
Rittal 9364022
This image may differ from the desired article.
Rittal 9364022Rittal 9364022Rittal 9364022Rittal 9364022Rittal 9364022Rittal 9364022
-6% 96,60 EUR 103,27 EUR
( 114,95 EUR incl. VAT )
≈ £80.76  |  ≈ $106.74
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9364022 RX fuse carrier 1=4 32 A 3-pole 10x38 mm LED W:18 mm
Datasheet:file_download Download
Lieske Part No.:612134
Mfg Part No: 9364022
UPC/EAN: 4069196001921
Weight:1.014 kg
Type:RX 9364022

Product information for Rittal 9364022:

The Rittal RX 9364022 is a compact fuse carrier for 60 mm busbar systems, specifically designed for mounting on RiLineX and RiLine60 rails. It enables the safe and reliable installation and operation of cylindrical fuses with dimensions 10 x 38 mm. The unit provides optical LED fuse monitoring, visually indicating the status of the inserted fuse, thereby simplifying maintenance and fault diagnosis during operation.

Applications
This device is intended for use in industrial electrical installations, particularly in enclosures and distributions where safe and controlled current interruption is required. It is suitable for applications with a rated operational voltage of 400 V AC and a maximum rated current of 32 A. The usage category AC-20B (400 V/100 A) defines the application range for switching operations in low-voltage environments. The overvoltage category 4 and pollution degree 3 make the device suitable for environments with high electrical stress and pollution risks, such as production plants or machine controls.

Functions and Equipment in Detail
The fuses are connected via special fuse holders, which are lockable when open and sealable when closed. This ensures safe operation and prevents unintended actuation. The spring-loaded terminals allow for tool-free and quick conductor connection at a 45° angle. The terminals are designed for round conductors with cross-sections from 1.5 to 6 mm² (or AWG 16 to AWG 10), and also allow connection of stranded conductors with wire end ferrules. The maximum conductor cross-section specified in the datasheet is 16 mm², indicating flexible adaptation to various connection conditions.

Technology Explained Simply
The fuse carrier is made of polyamide (PA 6), classified as flame-retardant according to UL 94-V0. The protection rating IP 2XB according to IEC 60 529 protects against finger contact and vertical dripping water, which is sufficient for use in enclosed enclosures. The rated insulation voltage Ui is 800 V, ensuring adequate electrical insulation for use in low-voltage installations. The power loss is limited to a maximum of 3 W, minimizing thermal load during operation. The operating temperature ranges from -5 °C to 55 °C, with a storage temperature up to 75 °C. The maximum operating air humidity is 90 %, with no condensation allowed.

Compatibility and Accessories
The device is designed for busbars with dimensions 15 x 5/10 mm, 20 x 5/10 mm, and 30 x 5/10 mm. The semi-automatic rail adaptation enables tool-free snap-on mounting on rails with a thickness of 5 mm or 10 mm. Suitable accessories include the enclosure protection profile RX 9365025 (L: 1200 mm) and the mounting clip RX 9365027, which can provide additional securing and protection against contact.

Mounting and Installation
Mounting is tool-free by snapping onto the busbar. The semi-automatic adaptation to rail thickness (5 mm or 10 mm) simplifies installation. Conductor connections are made via the spring-loaded terminals at a 45° angle, ensuring a secure and quick connection. Cable exits are at the bottom, enabling organized cable routing within the enclosure.

Operational Advantages
The fuse carrier offers complete shock protection without additional screw caps, accelerating installation and increasing safety. The optical LED monitoring allows for quick visual inspection of the fuse status. The tool-free mounting and semi-automatic rail adaptation reduce installation time. The spring-loaded terminals ensure a maintenance-free and reliable conductor connection. Compliance with the standard IEC/DIN EN 60 947-3 ensures conformity with applicable safety standards for switching devices.

Color and Material
The device is available in the colors RAL 35745 (dark gray) and RAL 9005 (black). The polyamide (PA 6) material offers high mechanical strength and heat resistance, with the UL 94-V0 flammability classification ensuring high fire resistance.

Dimensions
The dimensions are 17.8 mm (width) x 262.5 mm (height) x 95 mm (depth). The compact design enables dense mounting in enclosures and optimizes space requirements.

General
Market-relevant product changes(Secondary)
MaterialPolyamide (PA 6), flammability rating according to UL 94-V0
ColourRAL 35745, RAL 9005
Electrical connection typeSpring-loaded clamp
Rated current max.32 A
Rated operating voltage400 V AC
Cable exitBelow
Number of poles3-pole
Suitable for busbar systemRiLineX, RiLine60
Width17,8 mm
Height262,5 mm
Depth95 mm
Connection of stranded wires, fine-stranded with ferrule1,5 ‐ 6 mm²
Connection of stranded wires, fine-stranded with ferrule AWGAWG 16 ‐ AWG 10
Connection of stranded wires, stranded1,5 ‐ 6 mm²
Connection of stranded wires, stranded AWGAWG 16 ‐ AWG 10
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Rated voltage400 V AC
Over voltage category4
Pollution degree3
StandardsIEC/DIN EN 60 947-3
Rated insulation voltage Ui800 V
Maximum power dissipation3 W
Degree of protection IP according to IEC 60 529IP 2XB
Operating air humidity max.90 %
Operating temperature range-5 °C...55 °C
Storage temperature range-25 °C...75 °C
Humidity (non-condensing)10...90 %
Utility categoryAC-20B (400 V/100 A)
Fuse links10 x 38 mm
Fire load3,565 MJ/m²
Copper content (kg/piece)0,043
PCF/VE (Cradle-to-Gate)6,72


Product data sheet
Datasheet for Rittal 9364022, EAN: 4069196001921
