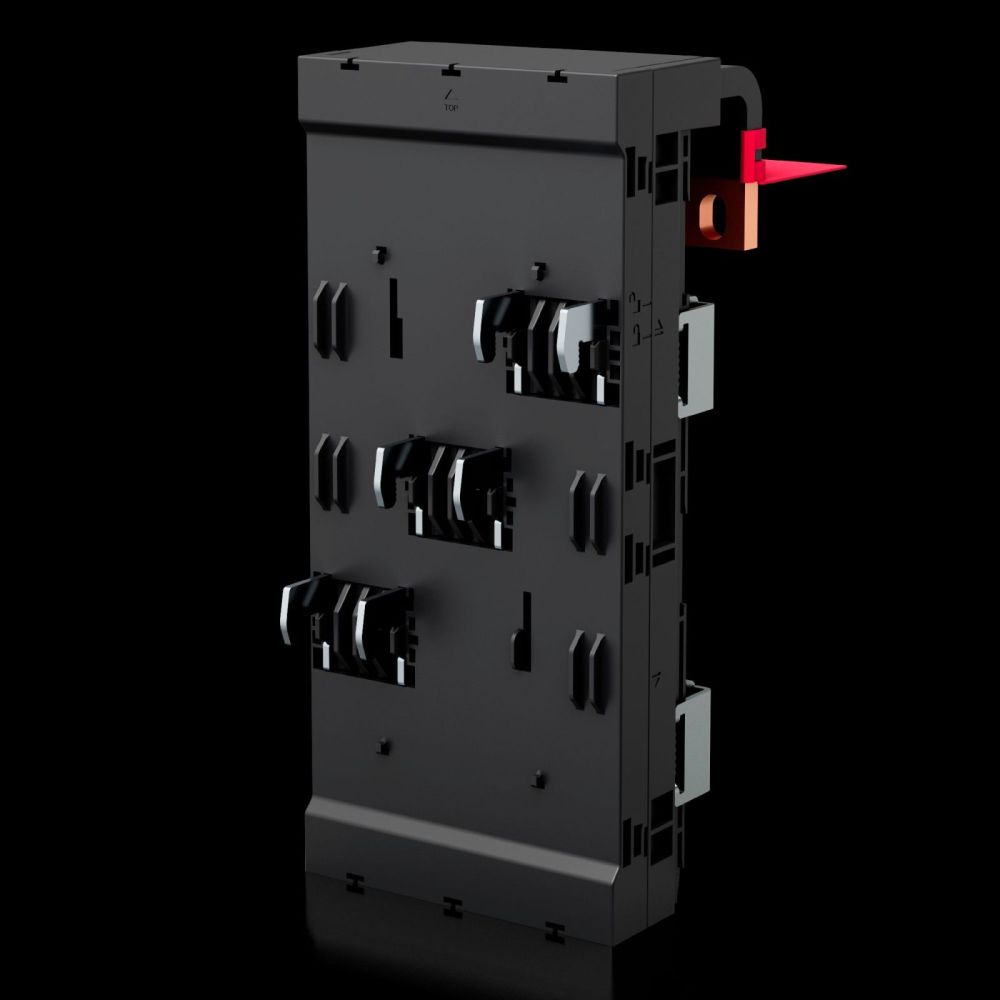

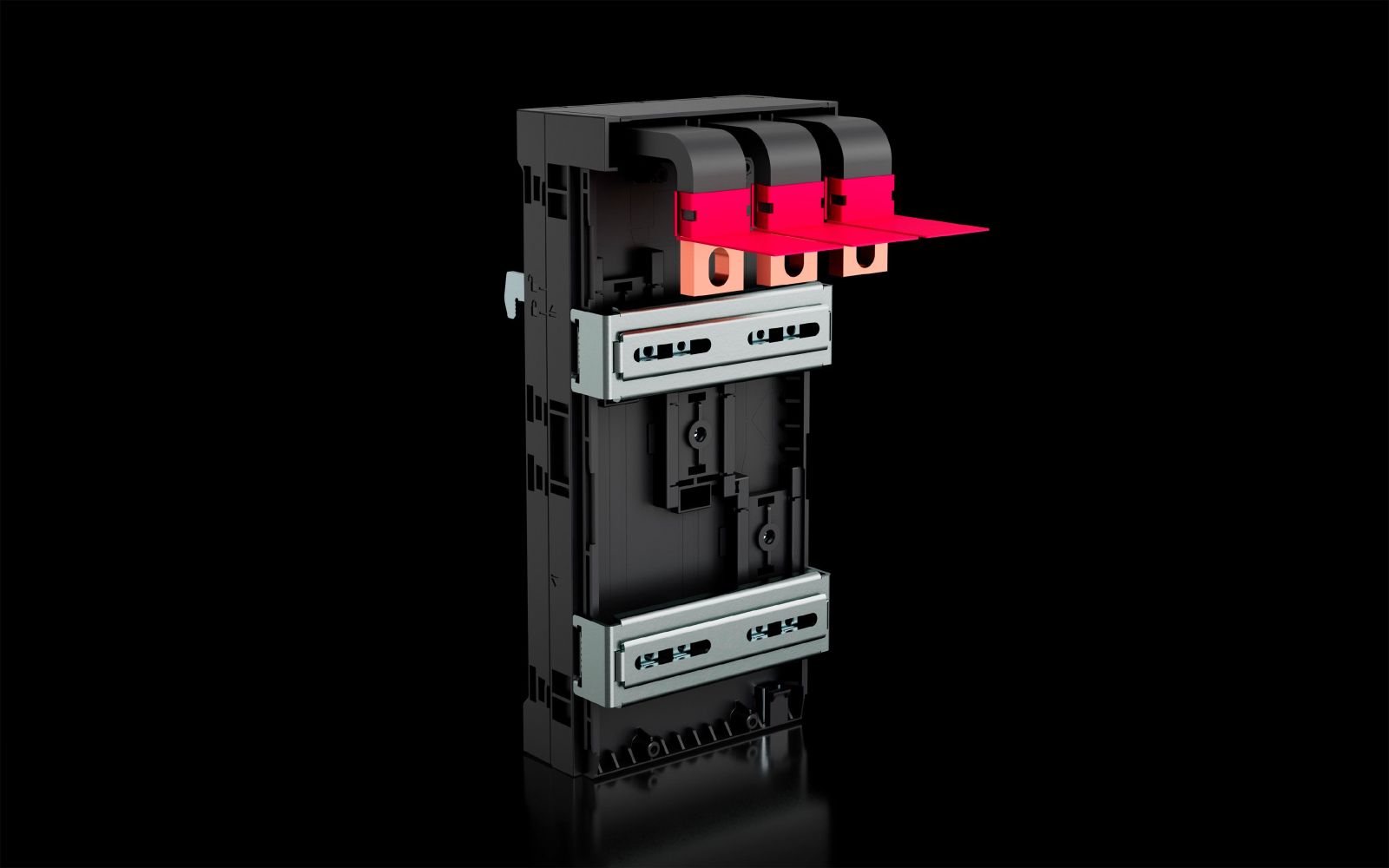

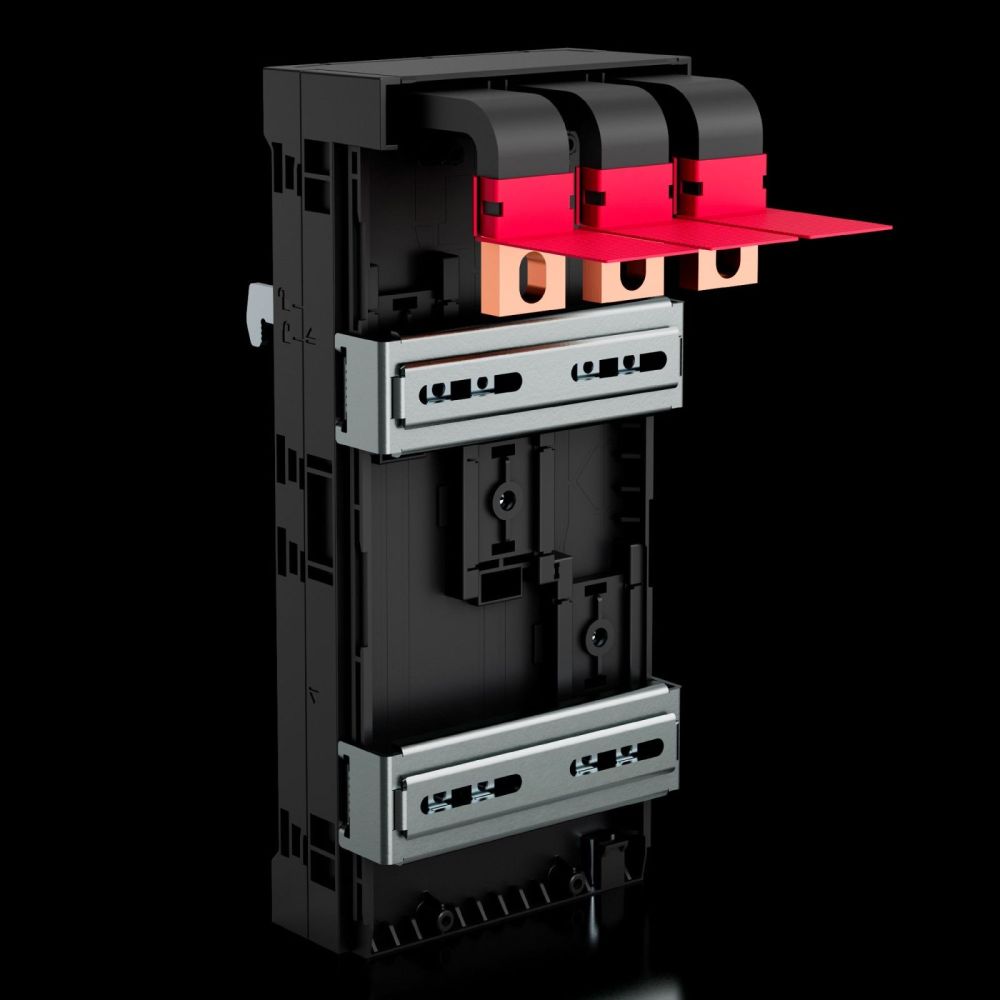

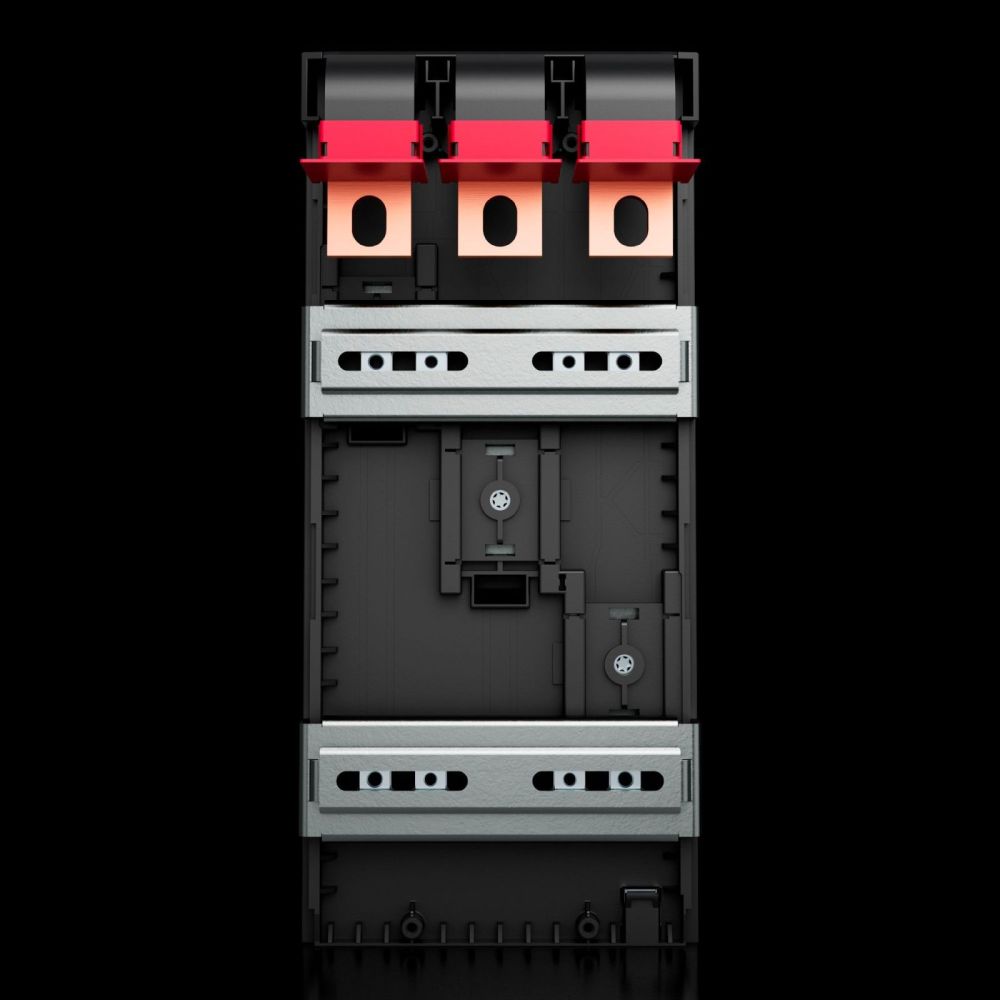

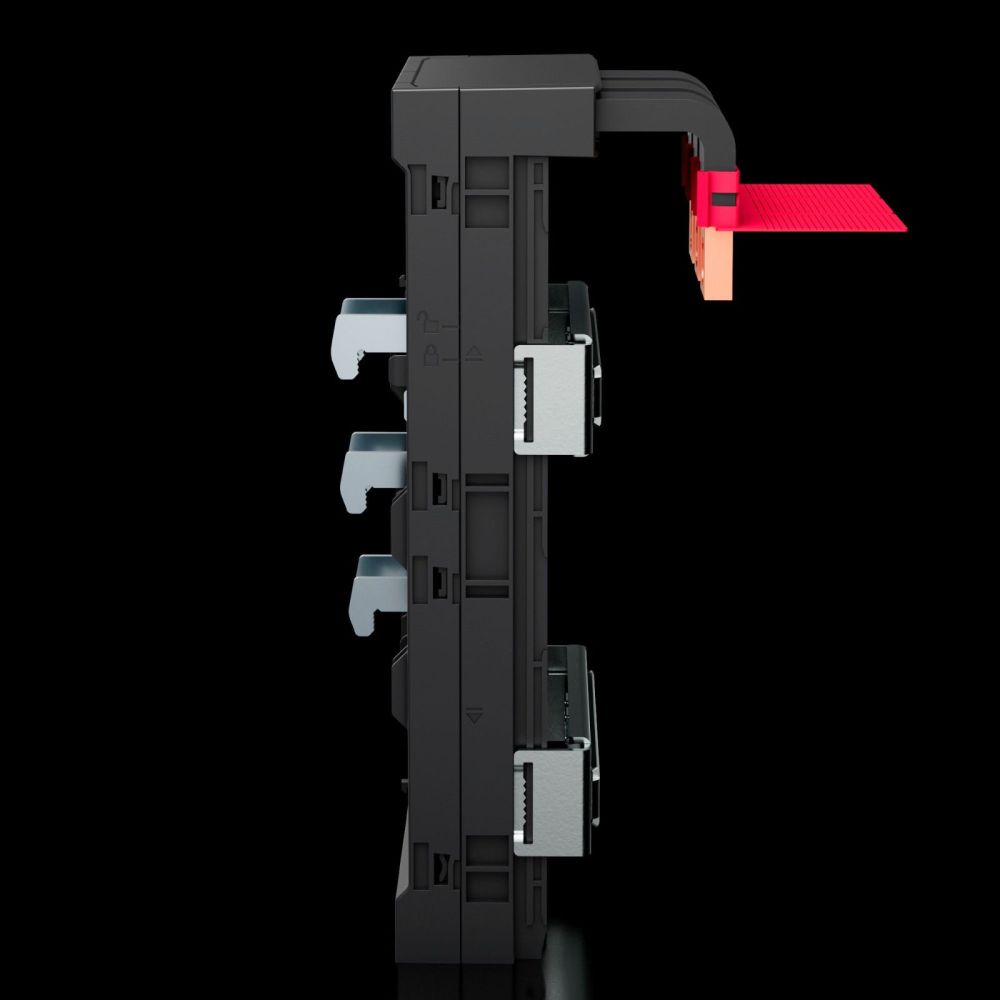

Rittal 9360635 RX CB-device adapter 630 A 3-pole universal W:140 mm

Your rating:
Average rating
product review for Rittal 9360635 RX CB-device adapter 630 A 3-pole universal W:140 mm
( 4.3 / 5 ) 3 ratings
Rittal 9360635
This image may differ from the desired article.
Rittal 9360635Rittal 9360635Rittal 9360635Rittal 9360635Rittal 9360635Rittal 9360635
-6% 158,70 EUR 169,67 EUR
( 188,85 EUR incl. VAT )
≈ £132.67  |  ≈ $175.36
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9360635 RX CB-device adapter 630 A 3-pole universal W:140 mm
Datasheet:file_download Download
Lieske Part No.:1571800
Mfg Part No: 9360635
UPC/EAN: 4028177997066
Weight:4.722 kg
Type:RX 9360635

Product information for Rittal 9360635:

The Rittal RX 9360635 is a CB device adapter for 60 mm busbar systems, specifically designed for the direct mounting of compact power circuit breakers (MCCB) onto the board. The universal version with sliding nuts enables flexible mounting of various switch types and provides a tool-free snap-in mounting. The adapter is designed for a maximum rated current of 630 A and supports a busbar thickness of 5 mm and 10 mm. The semi-automatic adjustment of busbar thickness is achieved via adjustable support rails, enabling quick and easy pre-assembly of market-standard switches outside the enclosure.

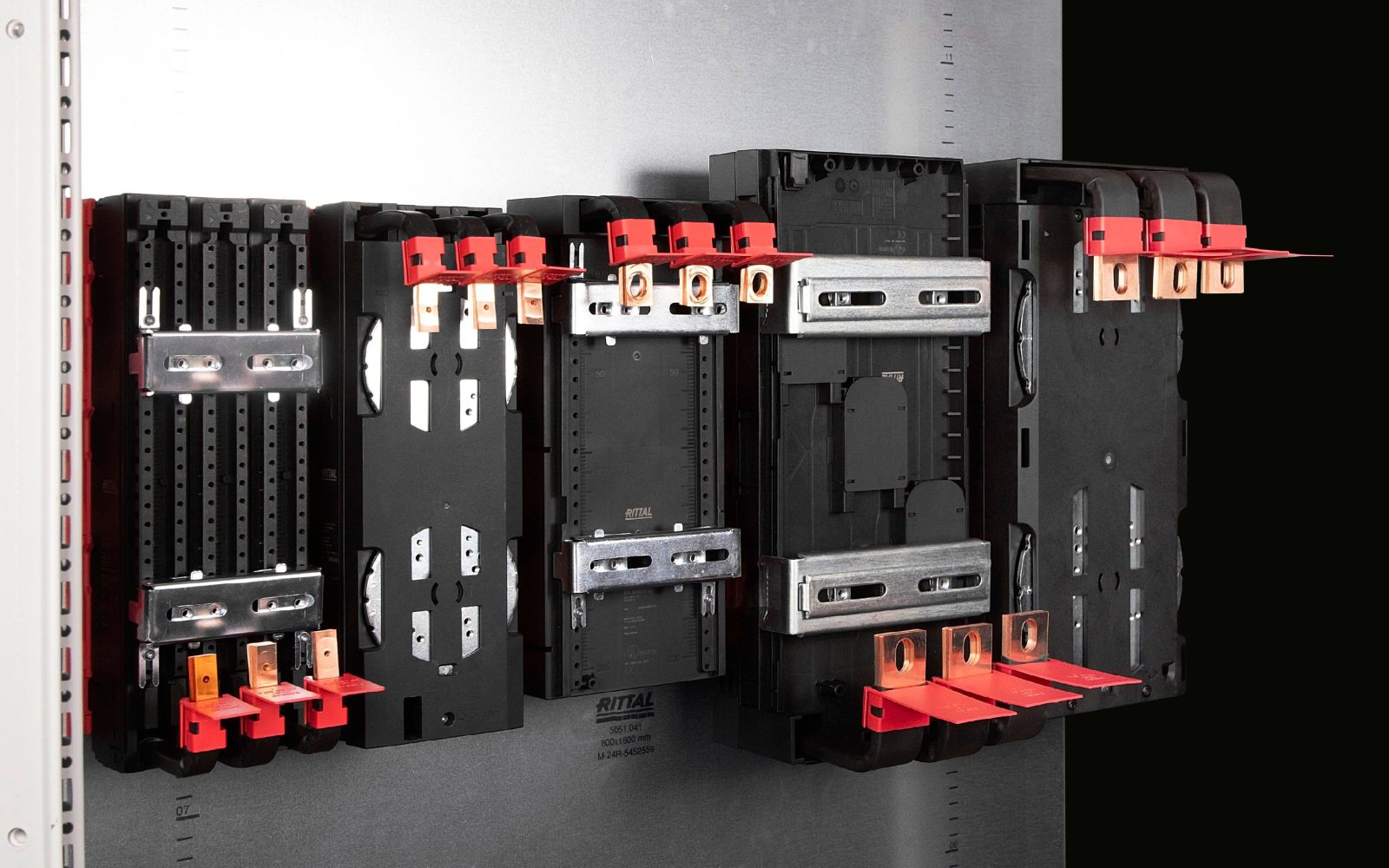

Applications include the mounting of power circuit breakers in industrial enclosures, particularly in systems with RiLineX or RiLine60. The protection rating IP 2XB according to IEC 60 529 provides protection against finger contact and against solid foreign objects, but not against water or dust. The rated voltage is 690 V AC (600 V AC according to UL), and the rated insulation voltage Ui is 800 V for 5 mm and 1,000 V for 10 mm busbar thickness. The pollution degree 3 is suitable for environments with heavy contamination, such as those found in industrial plants.

Functions and equipment in detail include a tool-free snap-in mounting up to 250 A, which reduces mounting time. The connection type is via a screw M10, supporting a cross-section of 29 mm² (for 5 mm busbar thickness) and 10 mm² (for 10 mm busbar thickness). The cable exit can be set either top or bottom, enabling flexible integration into existing control systems. The rated impulse voltage Uimp is 8 kV, ensuring reliability during transient voltage surges.

Technology explained simply shows that the adapter is made of polyamide (PA 6), which according to UL 94 exhibits a specific flammability behavior. The color variants are RAL 9005 (black) and RAL 35745 (gray). The power loss is limited to a maximum of 24 W, minimizing heat generation during operation. The frequency of the fundamental wave is between 50 and 60 Hz, sufficient for most industrial applications. The operating temperature range is from -25 °C to 55 °C, and the storage temperature range is from -25 °C to 75 °C, ensuring broad usability under various climatic conditions.

Compatibility and accessories include use with the busbar systems RiLineX and RiLine60. Compatible busbar profiles are available in dimensions 15 x 5/10 mm, 20 x 5/10 mm, and 30 x 5/10 mm. As accessories, the enclosure protection profile RX 9365025 (length 1200 mm) and the mounting clip RX 9365027 are offered, serving for secure mounting and protection of connections.

Mounting and installation is performed via tool-free snap-in mounting, where the sliding nuts enable adaptation to various switch types. The air humidity during operation must not be condensing and ranges between 10 % and 90 %.

Operational advantages lie in fast and secure mounting, flexibility in adapting to different switches, and reduced mounting time through pre-assembly outside the enclosure. The copper content is 2.64 kg per unit, and the fire load is 16.043 MJ/m², relevant for fire protection planning. The PCF/VE (Cradle-to-Gate) is 28.1, describing the environmental impact of the product.

The adapter is designed for use in industrial environments where reliability, flexibility, and fast mounting are critical. The combination of universal design, tool-free mounting, and compatible integration into RiLineX and RiLine60 systems makes it a practical solution for enclosure technology.

General
ModelUniversal
MaterialPolyamide (PA 6), flammability according to UL 94
ColourRAL 9005, RAL 35745
Scope of deliveryIncluding 3 connection chamber covers, 2 traverses and mounting material
Degree of protection IP according to IEC 60 529IP 2XB
Rated impulse voltage Uimp8 kV
Rated voltage690 V AC, 600 V AC (UL)
Rated insulation voltage Uiat rail thickness 5 mm: 800 V, at rail thickness 10 mm: 1,000 V
Pollution degree3
Number of poles3-pole
Cable exitAbove/under
Electrical connection typeM10 screw
Cross section29 mm², 10 mm²
Suitable for manufacturer (type)Easily find the appropriate device adapter using our selection guide in the Downloads section.
Suitable for busbar systemRiLineX, RiLine60
Maximum power dissipation24 W
Frequency of fundamental wave50...60 Hz
Humidity (non-condensing)10...90 %
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Operating temperature range-25 °C...55 °C
Storage temperature range-25 °C...75 °C
Width145 mm
Height325,8 mm
Depth76,4 mm
Fire load16,043 MJ/m²
Copper content (kg/piece)2,64
PCF/VE (Cradle-to-Gate)28,1


Product data sheet
Datasheet for Rittal 9360635, EAN: 4028177997066

Questions & answers

What is the delivery time of Rittal 9360635 RX CB-device adapter 630 A 3-pole universal W:140 mm?

The article Rittal 9360635 RX CB-device adapter 630 A 3-pole universal W:140 mm is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9360635 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9360635 RX CB-device adapter 630 A 3-pole universal W:140 mm always at the best possible price. We can give you a discount of 2% on Rittal 9360635 RX CB-device adapter 630 A 3-pole universal W:140 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
