Rittal 9360625 RX CB-device adapter 400 A 3-pole universal W:140 mm

Your rating:
Average rating
product review for Rittal 9360625 RX CB-device adapter 400 A 3-pole universal W:140 mm
( 4.5 / 5 ) 4 ratings

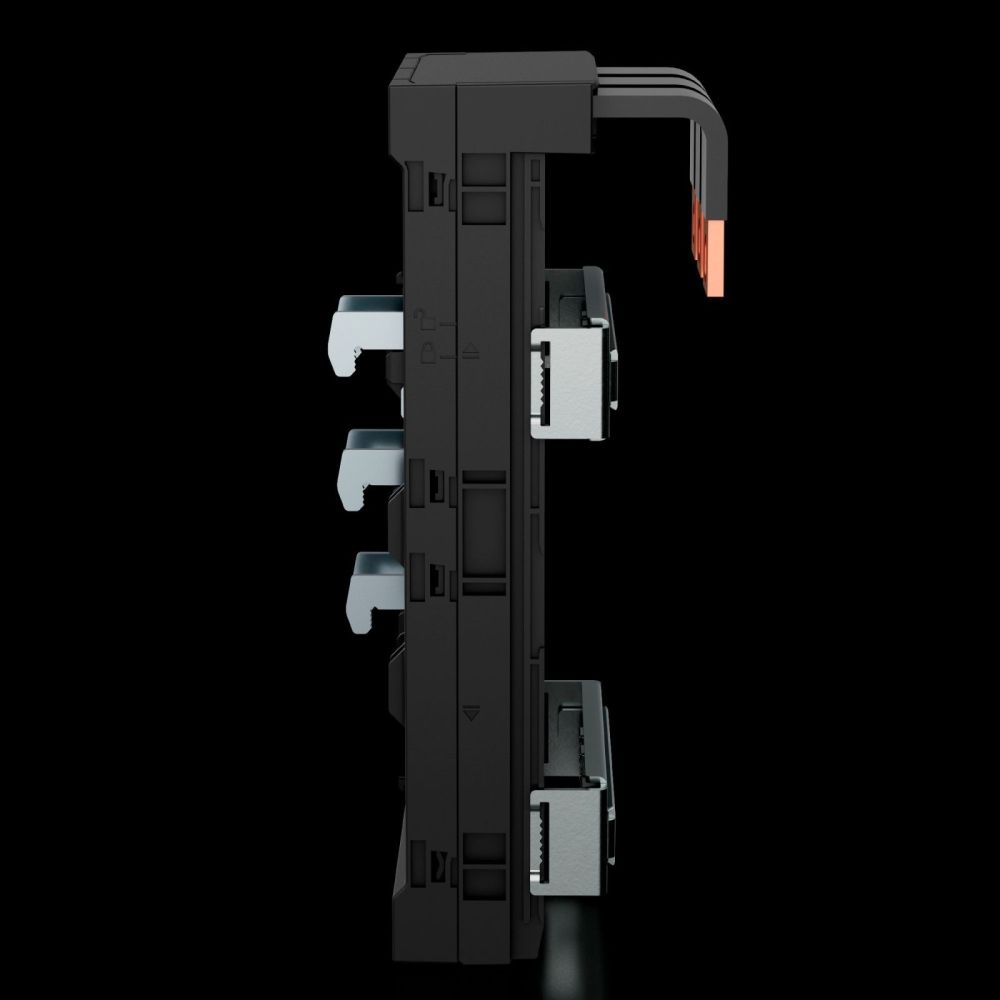

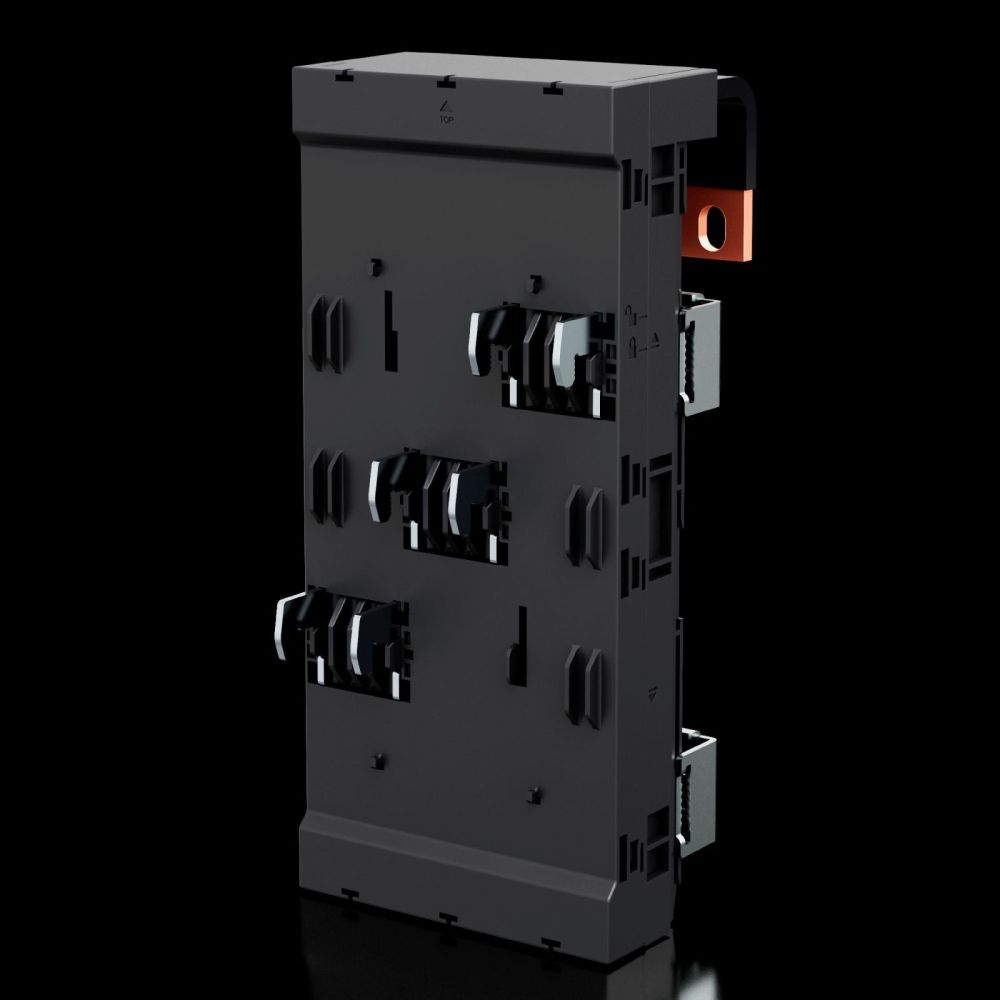

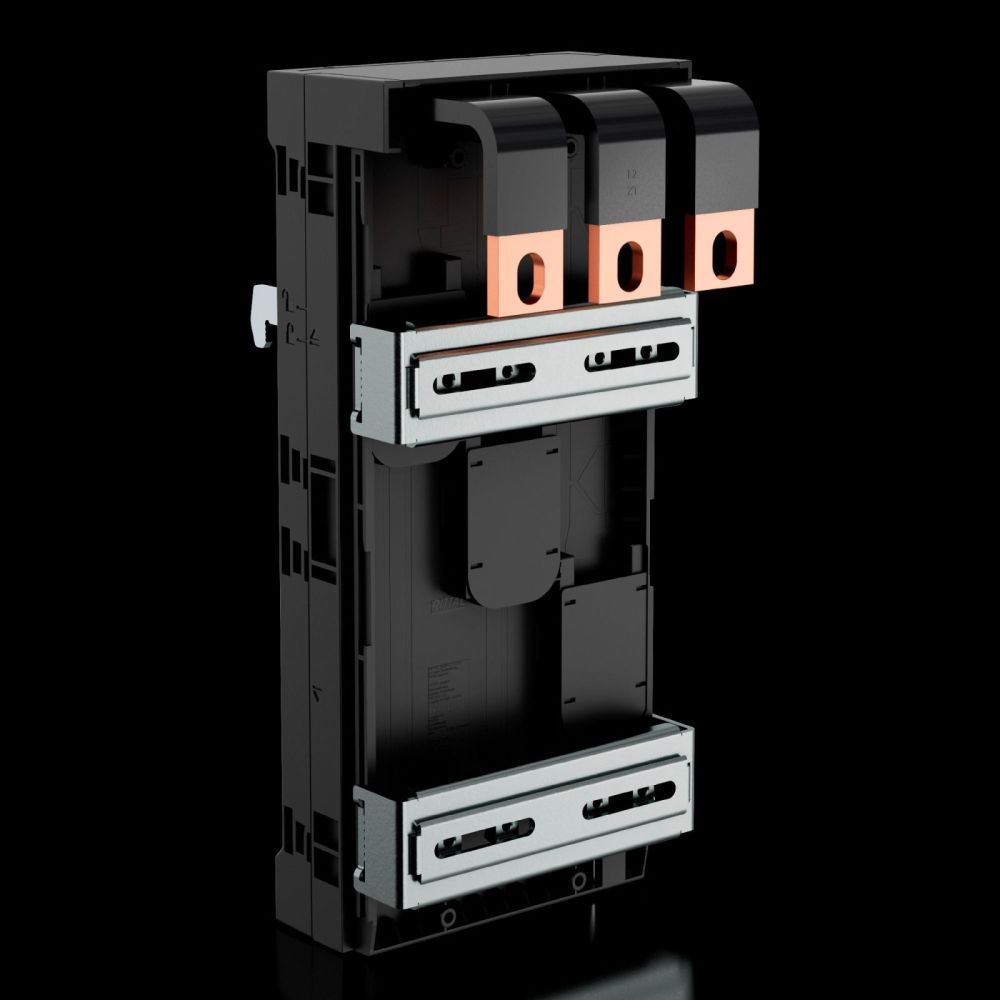

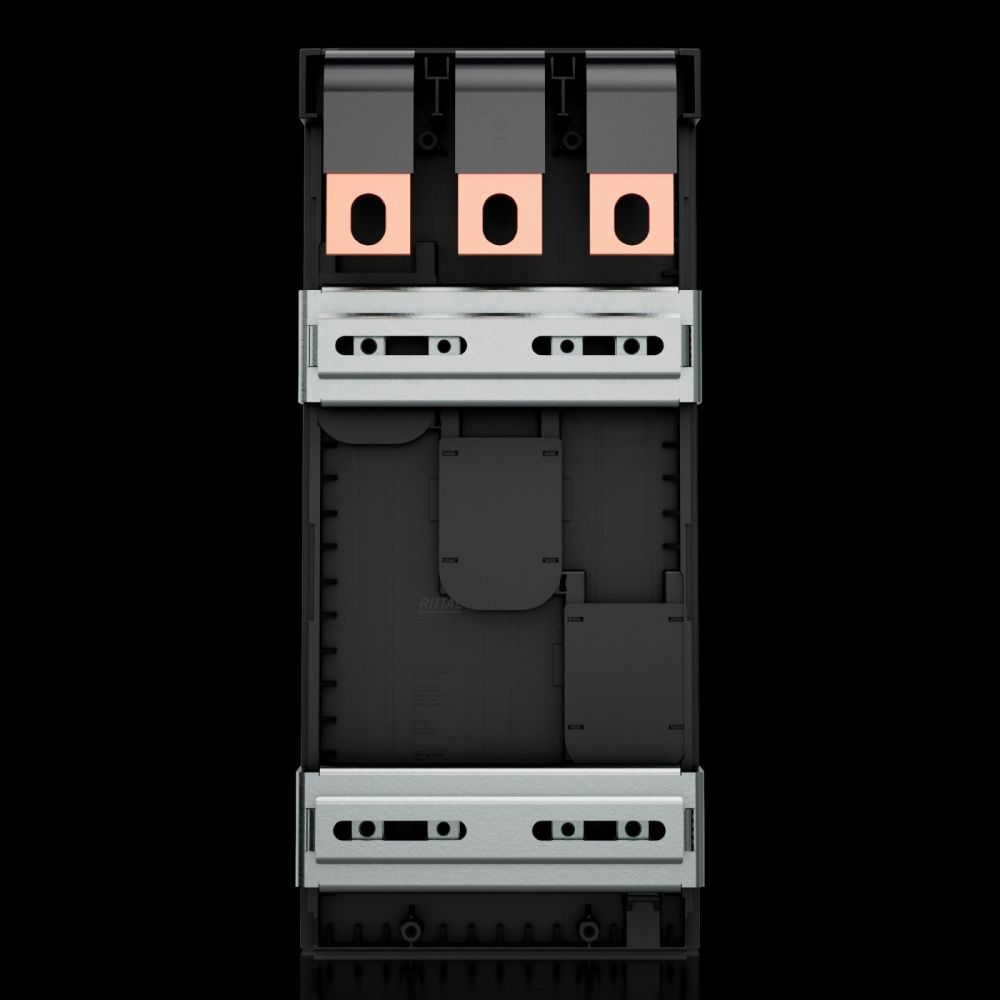

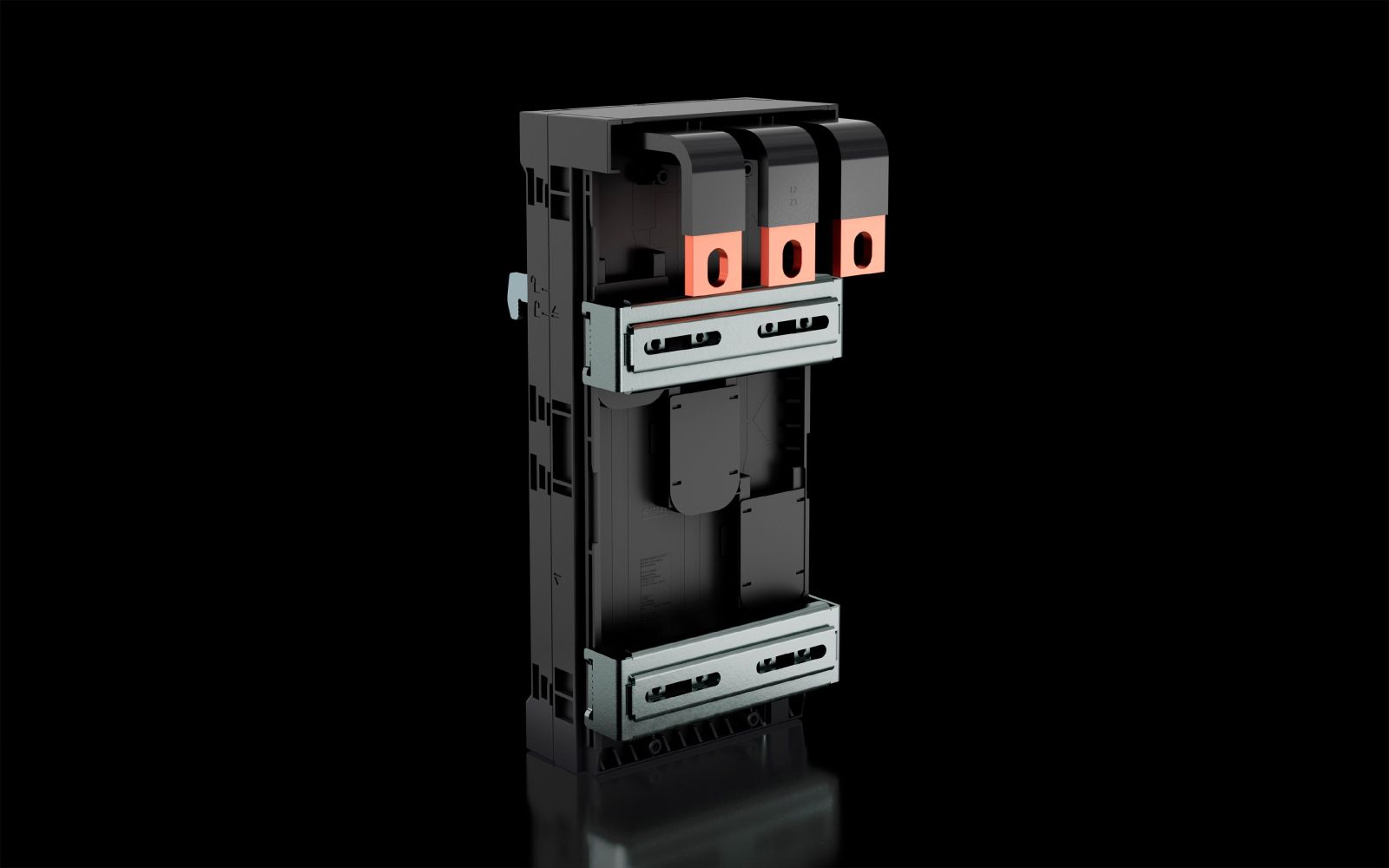

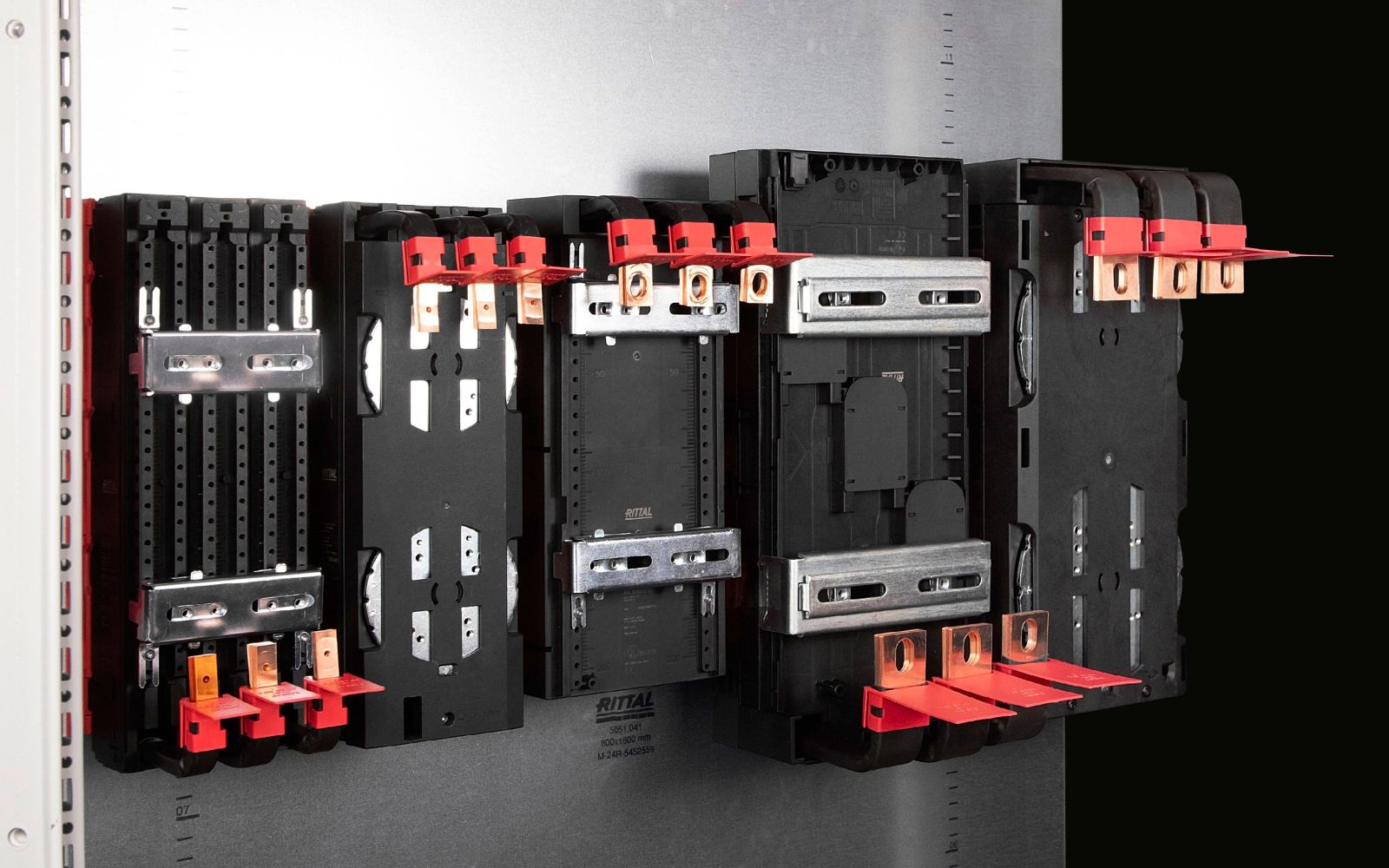

Rittal 9360625
This image may differ from the desired article.
Rittal 9360625Rittal 9360625Rittal 9360625Rittal 9360625Rittal 9360625Rittal 9360625
-6% 140,30 EUR 149,99 EUR
( 166,96 EUR incl. VAT )
≈ £117.29  |  ≈ $155.03
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 1 pieces
1x Rittal 9360625 RX CB-device adapter 400 A 3-pole universal W:140 mm
Datasheet:file_download Download
Lieske Part No.:157180
Mfg Part No: 9360625
UPC/EAN: 4028177997073
Weight:3.8 kg
Type:RX 9360625

Product information for Rittal 9360625:

The Rittal RX 9360625 is a CB-device adapter for 60 mm busbar systems, specifically designed for use in industrial enclosures. As a universal version with sliding nuts, it enables flexible mounting of compact circuit breakers (MCCB) and offers a tool-free push-on mounting. The adapter is rated for a maximum nominal current of 400 A and supports mounting on RiLineX and RiLine60 busbar systems.

Applications

The adapter is used for direct mounting of compact circuit breakers onto the board and enables quick and easy pre-assembly of market-standard switch types outside the enclosure. This reduces mounting time within the enclosure and increases installation efficiency. It is suitable for industrial applications requiring flexible and reliable power distribution, particularly in enclosures with 60 mm wide busbars.

Functions and Equipment in Detail

The adapter features a tool-free push-on mounting, which is possible up to 250 A, with busbar thickness adjustable between 5 mm and 10 mm via semi-automatic adjustment. The connection type is via M10 screws, supporting a cross-section of 29 mm² (for 5 mm busbar thickness) and 10 mm² (for 10 mm busbar thickness). The cable exit can be easily reconfigured from top to bottom or vice versa, providing high flexibility during installation.

Technology Explained Simply

The adapter is made of polyamide (PA 6), which according to UL 94 exhibits a specific flammability rating, important for safety in electrical installations. The protection rating IP 2XB according to IEC 60 529 protects against finger contact and solid foreign objects, but not against water or dust. The rated voltage is 690 V AC (600 V AC according to UL), and the rated insulation voltage Ui is 800 V for 5 mm and 1,000 V for 10 mm busbar thickness. The rated impulse voltage Uimp is 8 kV, describing the device’s ability to withstand electrical overvoltages. The pollution degree 3 is intended for environments with increased contamination, as commonly found in industrial facilities.

Compatibility and Accessories

The adapter is compatible with the busbar systems RiLineX and RiLine60 and adapts to busbars with dimensions 15 x 5/10 mm, 20 x 5/10 mm, and 30 x 5/10 mm. As accessories, the enclosure protection profile RX 9365025 (length 1200 mm) and the mounting clip RX 9365027 are available, which can be used for secure mounting and protection of connections.

Mounting and Installation

Mounting is done tool-free by pushing the adapter onto the busbar. The sliding nuts allow easy adjustment of the fastening to various switch types. The delivery includes 3 connection space covers, 2 cross-braces, and mounting material, which facilitates direct installation in the enclosure. The operating temperature range is between -25 °C and +55 °C, while the storage temperature range extends from -25 °C to +75 °C. The operating humidity must not be condensing and ranges between 10 % and 90 %.

Advantages in Operation

The adapter offers high mounting flexibility, reduces installation time through pre-assembly outside the enclosure, and ensures safe and reliable power distribution. The tool-free mounting and easy adjustment of busbar thickness increase efficiency during commissioning. The power loss is a maximum of 19.5 W, which is relevant for the thermal load on the enclosure. The frequency of the fundamental wave is 50 to 60 Hz, matching standard mains frequencies. The copper content is 1.652 kg per piece, indicating the material composition.

General
ModelUniversal
MaterialPolyamide (PA 6), flammability according to UL 94
ColourRAL 9005, RAL 35745
Scope of deliveryIncluding 3 connection chamber covers, 2 traverses and mounting material
Degree of protection IP according to IEC 60 529IP 2XB
Rated impulse voltage Uimp8 kV
Rated voltage690 V AC, 600 V AC (UL)
Rated insulation voltage Uiat rail thickness 5 mm: 800 V, at rail thickness 10 mm: 1,000 V
Pollution degree3
Number of poles3-pole
Cable exitAbove/under
Electrical connection typeM10 screw
Cross section29 mm², 10 mm²
Suitable for manufacturer (type)Easily find the appropriate device adapter using our selection guide in the Downloads section.
Suitable for busbar systemRiLineX, RiLine60
Maximum power dissipation19,5 W
Frequency of fundamental wave50...60 Hz
Humidity (non-condensing)10...90 %
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Operating temperature range-25 °C...55 °C
Storage temperature range-25 °C...75 °C
Width145 mm
Height325,8 mm
Depth76,4 mm
Fire load16,043 MJ/m²
Copper content (kg/piece)1,652
PCF/VE (Cradle-to-Gate)21,11


Product data sheet
Datasheet for Rittal 9360625, EAN: 4028177997073
