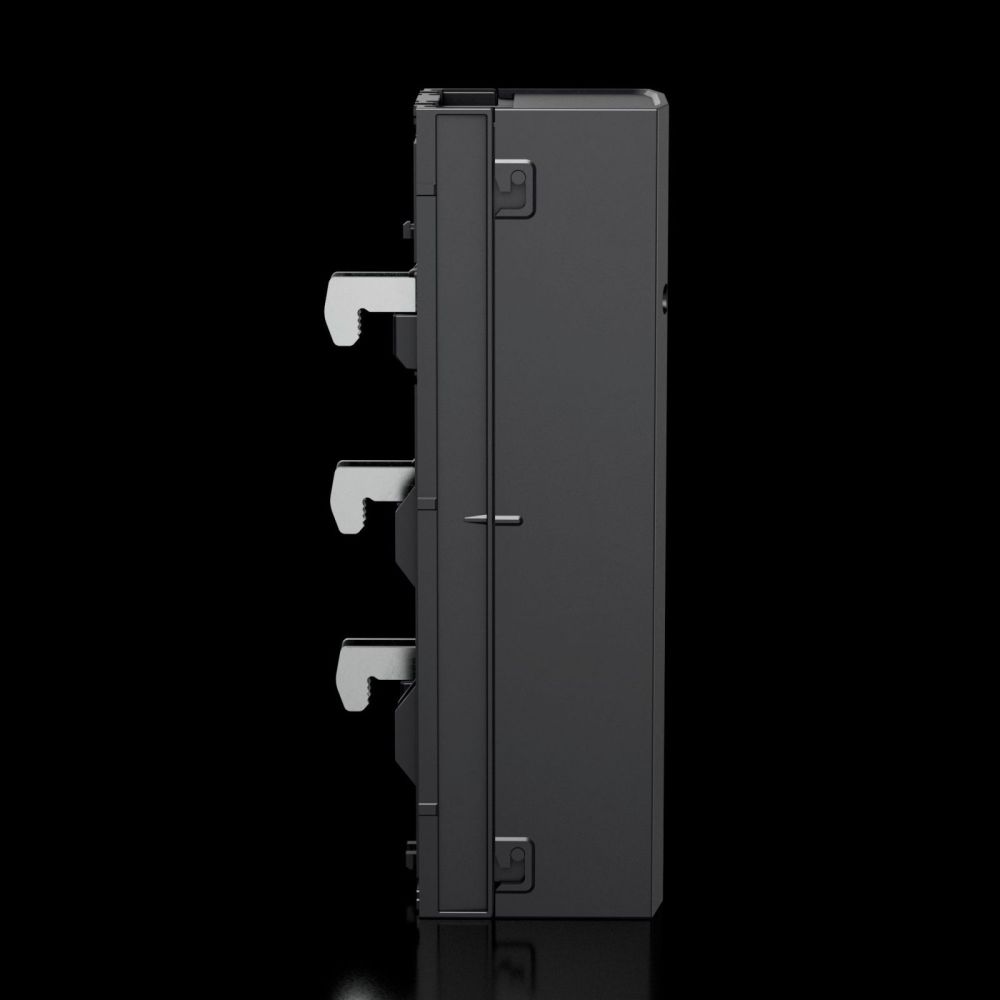

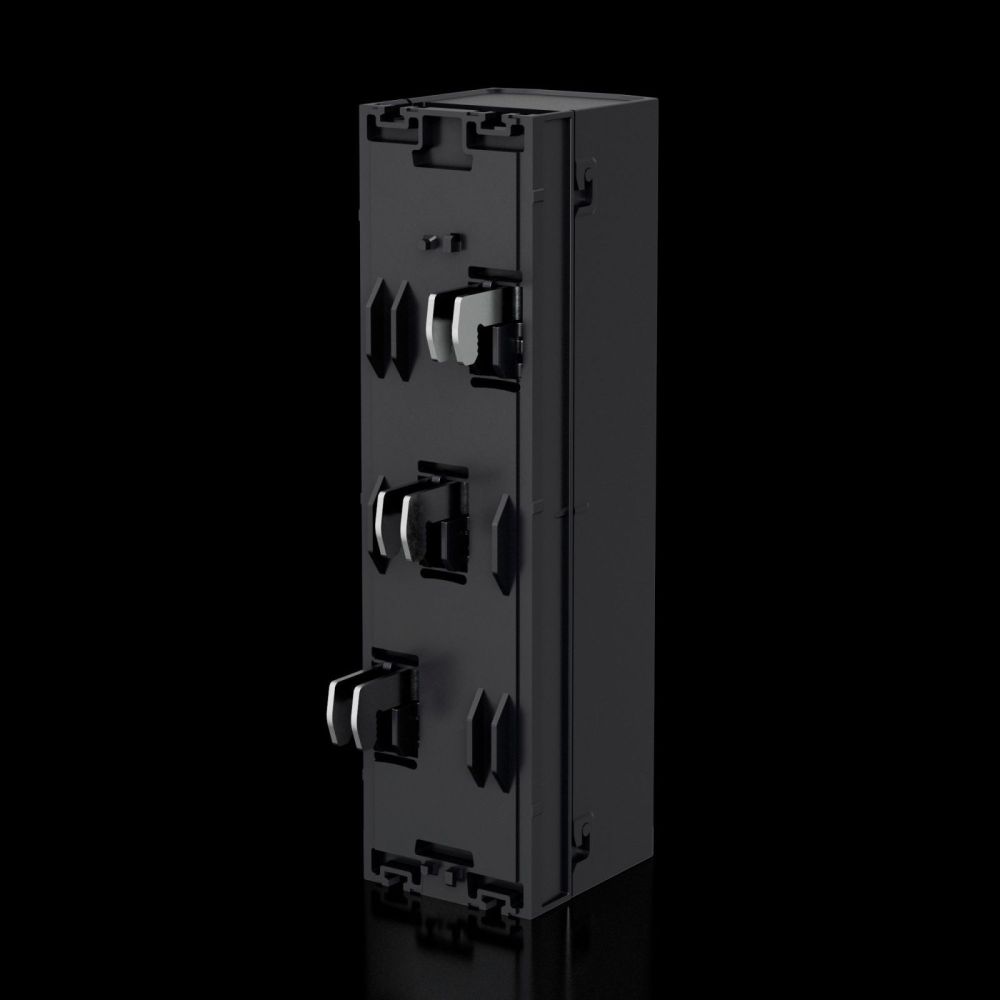

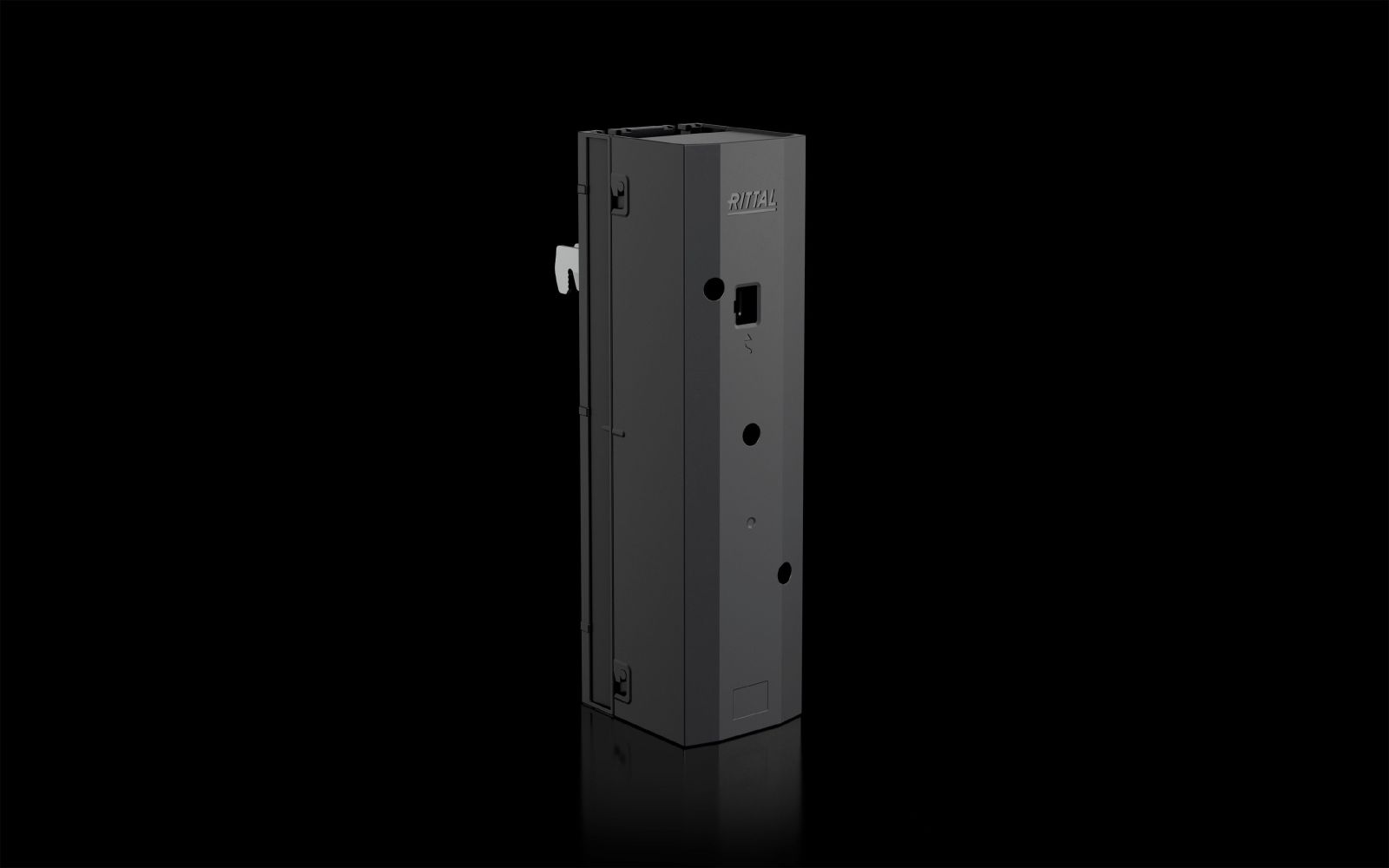

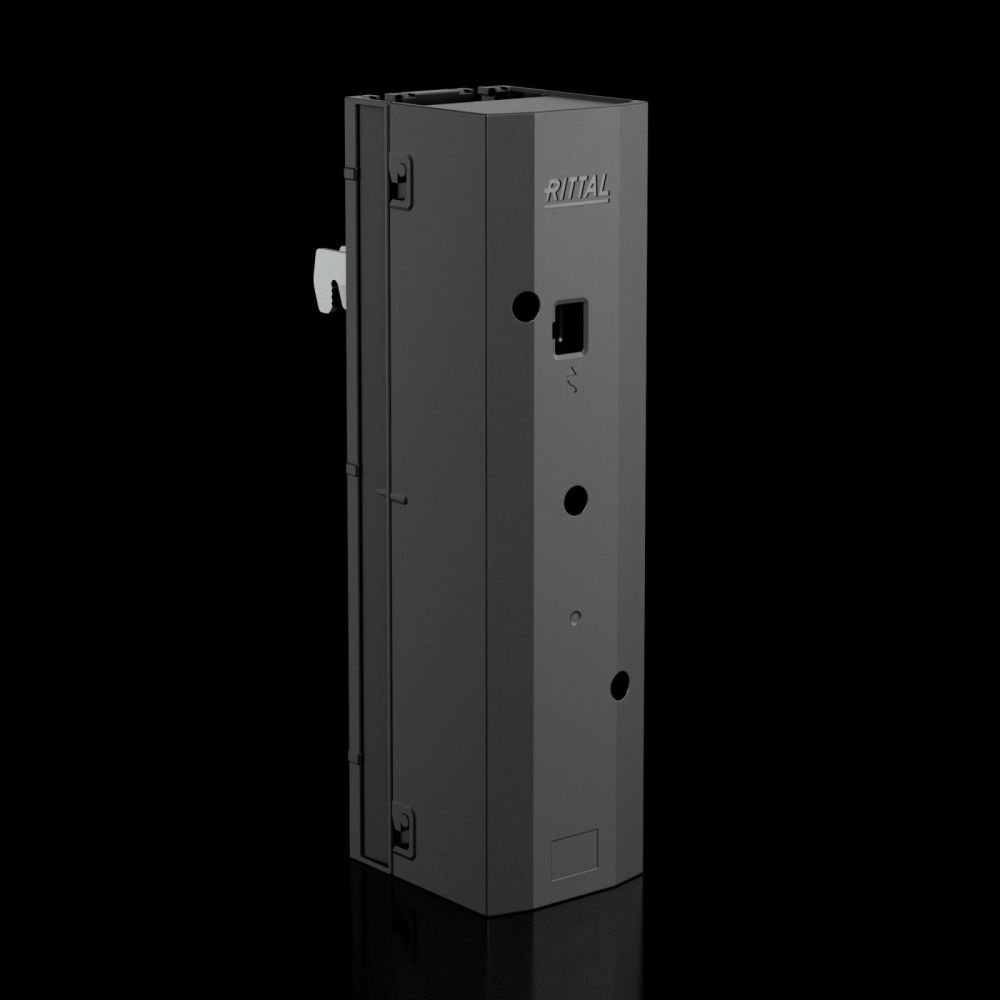

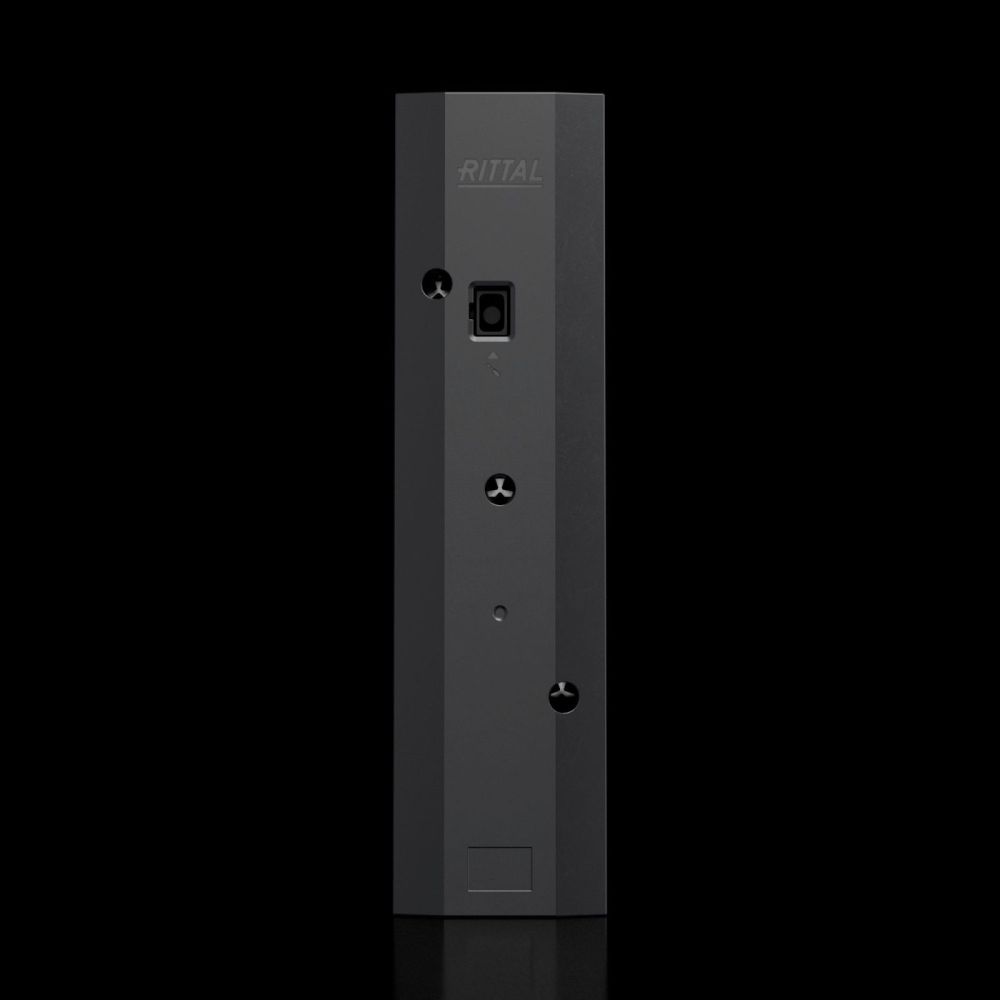

Rittal 9360210 RX connection adapter 3-pole W: 63 mm max. 70 mm² terminal space W x H: 13 x 5 mm, pack of 4

Your rating:
Average rating
product review for Rittal 9360210 RX connection adapter 3-pole W: 63 mm max. 70 mm² terminal space W x H: 13 x 5 mm, pack of 4
( 5 / 5 ) 3 ratings
Rittal 9360210
This image may differ from the desired article.
Rittal 9360210Rittal 9360210Rittal 9360210Rittal 9360210Rittal 9360210Rittal 9360210
87,40 EUR 90,90 EUR
( 104,01 EUR incl. VAT )
≈ £73.07  |  ≈ $96.58
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 9360210 RX connection adapter 3-pole W: 63 mm max. 70 mm² terminal space W x H: 13 x 5 mm, pack of 4
Datasheet:file_download Download
Lieske Part No.:157179
Mfg Part No: 9360210
UPC/EAN: 4028177997257
Weight:1.925 kg
Type:RX 9360210

Product information for Rittal 9360210:

The Rittal RX 9360210 is a connection adapter for 60 mm busbar systems, specifically designed for the RiLineX and RiLine60 systems. It enables secure and efficient mounting on the busbar system as well as cable connection with only one screw. Installation is carried out by simply snapping onto the RiLineX board, where the connection conductor and adapter are screwed together onto the rail. This ensures a stable and reliable connection suitable for industrial applications.

Applications

The adapter is intended for use in industrial electrical installations, particularly in enclosures and power distribution systems, where a secure and compact connection between busbar and round conductors is required. It is suitable for installations with a rated voltage up to 800 V AC/DC (IEC) or 600 V AC/DC (UL) and is used in environments with an operating temperature range of -5 °C to 55 °C. The maximum operating air humidity is 90 %, with no condensation allowed.

Functions and Equipment in Detail

The connection adapter features a screw fastening suitable for rail thicknesses between 5 and 10 mm. The connection terminals allow for through-wiring, enabling conductors to be connected from above or below. The terminals are designed for round conductors with a cross-section of 2.5 to 70 mm². The pole count is 3-pole, making it suitable for three-phase installations. The rated current for round conductors is up to 320 A (IEC) or 280 A (UL), with a nominal current reference value of 171 A. The power loss is limited to a maximum of 14 W, ensuring efficient heat dissipation.

Technology Explained Simply

The adapter is made of polyamide (PA 6), a robust plastic with good mechanical strength and heat resistance. The material complies with UL 94 flammability standards, ensuring safe use in electrical installations. The protection class IP 2X according to IEC 60529 protects against finger contact and against entry of solid foreign objects larger than 12.5 mm, but not against water. The rated insulation voltage Ui is 800 V, and the rated impulse voltage Uimp is 8 kV, ensuring electrical strength under transient voltage stresses. The pollution degree 3 indicates suitability for environments with heavy contamination, such as industrial facilities.

Compatibility and Accessories

The adapter is specifically developed for busbar systems with a center-to-center spacing of 60 mm and fits rails with dimensions 12 x 5/10 mm, 15 x 5/10 mm, 20 x 5/10 mm, and 30 x 5/10 mm. As accessories, the enclosure protection profile RX 9365025 (length 1200 mm) and the mounting clip RX 9365027 are available, which can be used to enhance shock protection and secure mounting.

Installation and Mounting

Installation is tool-dependent, carried out by screwing onto the RiLineX board. Removal is also only possible with tools, preventing unintended disconnection. Connection conductors are directly fastened to the terminals, with through-wiring enabling flexible cabling. The terminals are designed to ensure a secure and durable connection even under high current loads.

Operational Advantages

The connection adapter features high current-carrying capacity and short-circuit resistance. The universal shock protection function adapts to the conductor cross-section used, ensuring safe and standard-compliant installation. The compact design and simple mounting reduce installation time and increase system reliability. Compliance with standards IEC/EN 61439-1 and UL 508 ensures conformity with international safety standards.

Additional Technical Specifications

The adapter is designed for an operating temperature range of -5 °C to 55 °C, with a storage temperature up to 75 °C. Operating air humidity must not exceed 90 %, with no condensation allowed. The fire load is 6.963 MJ/m², and the PCF/VE (Cradle-to-Gate) is specified as 9.86. The packaging unit contains 4 pieces.

Standards and Approvals

The connection adapter complies with standards IEC/EN 61439-1 and UL 508. It is UL-approved (UL + C-UL listed), enabling its use in the USA and Canada. The electrical values according to UL (SCCR) include 10 kA at 600 V (unprotected), 100 kA at 600 V with circuit breaker (max. 250 A, DIVQ/7), and 100 kA at 600 V with fuse (Class J, max. 200 A, JDDZ/7).

General
MaterialPolyamide (PA 6), flammability according to UL 94
ColourRAL 9005
Rated current (reference value, IEC)171 A
Rated current round conductor max. (IEC)320 A
Rated current for round conductor max. (UL)280 A
Electrical values UL (SCCR)10 kA - 600 V, RMS, unprotected, 100 kA - 600 V, Circuit Breaker max. 250 A, DIVQ/7, 100 kA - 600 V, Fuse Class J max. 200 A, JDDZ/7
Cable exitAbove/under
For rail systems with centre spacing60 mm
Number of poles3-pole
Suitable for busbar systemRiLineX, RiLine60
Width63,2 mm
Height239,4 mm
Depth79,2 mm
Connection of ring conductors2,5 ‐ 70 mm²
Suitable for busbars12 x 5/10 mm, 15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Rated voltage800 V AC, 800 V DC, 600 V AC (UL), 600 V DC (UL)
Pollution degree3
StandardsIEC/EN 61439-1, UL 508
Rated impulse voltage Uimp8 kV
Rated insulation voltage Ui800 V
Maximum power dissipation14 W
Degree of protection IP according to IEC 60 529IP 2X
Operating air humidity max.90 %
Operating temperature range-5 °C...55 °C
Storage temperature range-25 °C...75 °C
Humidity (non-condensing)10...90 %
Fire load6,963 MJ/m²
PCF/VE (Cradle-to-Gate)9,86


Product data sheet
