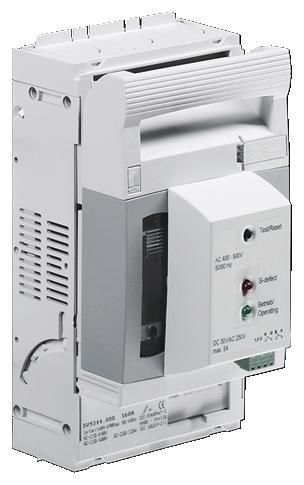

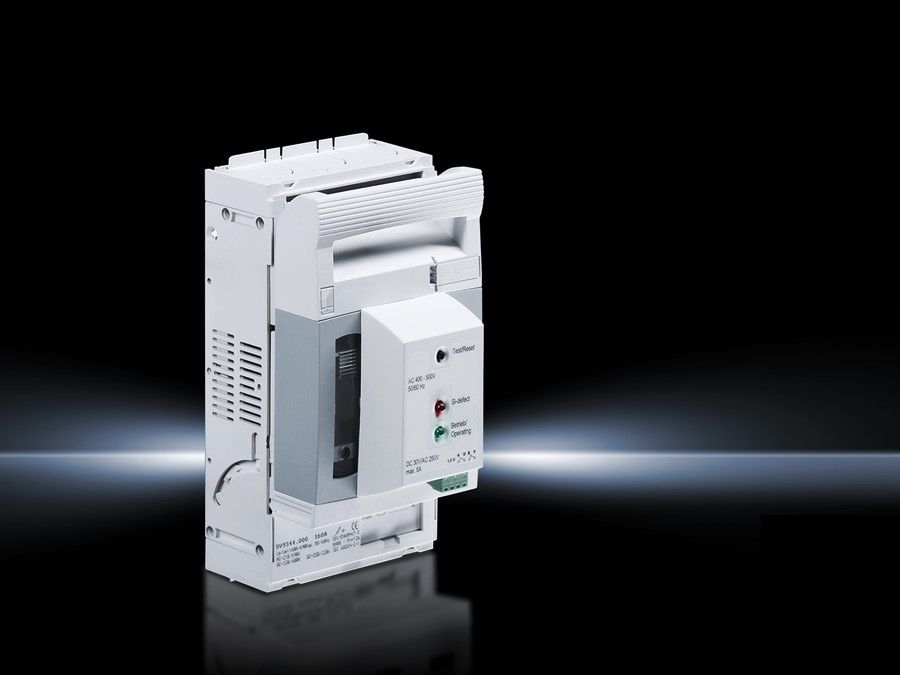

Rittal 9344020 SV NH fuse-switch disconnector, size 00, 160 A, 400-690 V, 3-pole, box terminal, with electronic fuse monitoring, for mounting plate assembly
|
-11% 149,71 EUR 167,59 EUR |
|
|
incl. 1,47 EUR copper surcharge ( 178,15 EUR incl. VAT ) ≈ £128.30 | ≈ $170.07 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 359095 |
| Mfg Part No: | 9344020 |
| UPC/EAN: | 4028177540521 |
| Weight: | 0.837 kg |
| Type: | SV 9344020 |
Product information for Rittal 9344020:
Fire protection corresponding to UL 94-V0
Contact tracks: Electrolytic copper, silver-plated
Colour: Chassis: RAL 7035
Cover: RAL 7035/7001
Basis of test: IEC/DIN EN 60 947-3
DIN EN 60 269-2 (fuse inserts)
Packs of: 1 pc(s).
EAN: 4028177540521
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27371401
ETIM 6.0: EC001040
Design: Size: 00
Number of poles: 3-pole
For mounting plate assembly: yes
Dimensions: Width: 106 mm
Height: 194 mm
Type of electrical connection: Box terminal
Rated operating voltage: 400 V - 690 V, 3~
Clamping area for laminated copper bars: Width: 13 mm
Height: 13 mm
Connection for round conductor cross-sections: 4 mm² - 95 mm²
Rated operating current max.: 160 A
Cable outlet: Top/bottom
Weight/pack: 0.86 kg
Questions & answers
What is the delivery time of Rittal 9344020 SV NH fuse-switch disconnector, size 00, 160 A, 400-690 V, 3-pole, box terminal, with electronic fuse monitoring, for mounting plate assembly?
The article Rittal 9344020 SV NH fuse-switch disconnector, size 00, 160 A, 400-690 V, 3-pole, box terminal, with electronic fuse monitoring, for mounting plate assembly is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9344020 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9344020 SV NH fuse-switch disconnector, size 00, 160 A, 400-690 V, 3-pole, box terminal, with electronic fuse monitoring, for mounting plate assembly always at the best possible price. We can give you a discount of 2% on Rittal 9344020 SV NH fuse-switch disconnector, size 00, 160 A, 400-690 V, 3-pole, box terminal, with electronic fuse monitoring, for mounting plate assembly if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Fitting accessory for Rittal 9344020 SV NH fuse-switch disconnector, size 00, 160 A, 400-690 V, 3-pole, box terminal, with electronic fuse monitoring, for mounting plate assembly
 |
Rittal 9344520 SV Connection space cover, for NH fuse-switch disconnector, size 00
For extending the contact hazard protection cover, e.g. when using ring terminals with a long collar. Bayable as required at the top and bottom. Material: Polyamide (PA 6) Colour: RAL 7035 Packs of: 2 ... Lieske Part No.: 479803 Mfg Part No: 9344520 Type: SV 9344520 |
-5% 4,13 EUR 4,37 EUR
 ≈ £3.54 | ≈ $4.69
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
Rittal 3071000 SV Micro-switch, for NH fuse-switch disconnector size 000/00,, NH slimline fuse-switch disconnector, size 1-3
To indicate the switch position of the NH unit (cover). Packs of: 5 pc(s). EAN: 4028177036055 Customs tariff number: 85369085 eCl@ss 5.1: 27370302 eCl@ss 7.0: 27400613 ETIM 6.0: EC001900 Design: For ... Lieske Part No.: 928271 Mfg Part No: 3071000 Type: SV 3071000 |
-8% 17,71 EUR 19,31 EUR
≈ £15.18 | ≈ $20.12
Made to order · Delivery time approx. 5 workdaysinfo_outline
|
Altenative Products for Rittal 9344020 SV NH fuse-switch disconnector, size 00, 160 A, 400-690 V, 3-pole, box terminal, with electronic fuse monitoring, for mounting plate assembly
 |
Rittal 9363035 RX NH-Sicherungslasttrenner Gr.00 160A 3p SI-Überwachung 800V MTPL
RiLineX NH-Sicherungslasttrenner in Größe 00 für Montageplatten. Der Deckel ist abschließbar, plombierbar und verfügt über eine visuelle Sicherungsüberwachung. Die sichere Spannungsprüfung ... Lieske Part No.: 1571932 Mfg Part No: 9363035 Type: RX 9363035 |
-5% 146,37 EUR 153,69 EUR
≈ £125.44 | ≈ $166.28
Made to order · Delivery time approx. 5 workdaysinfo_outline
|
