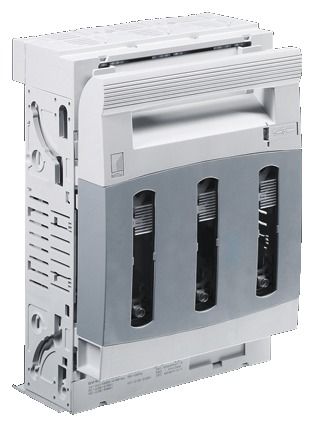

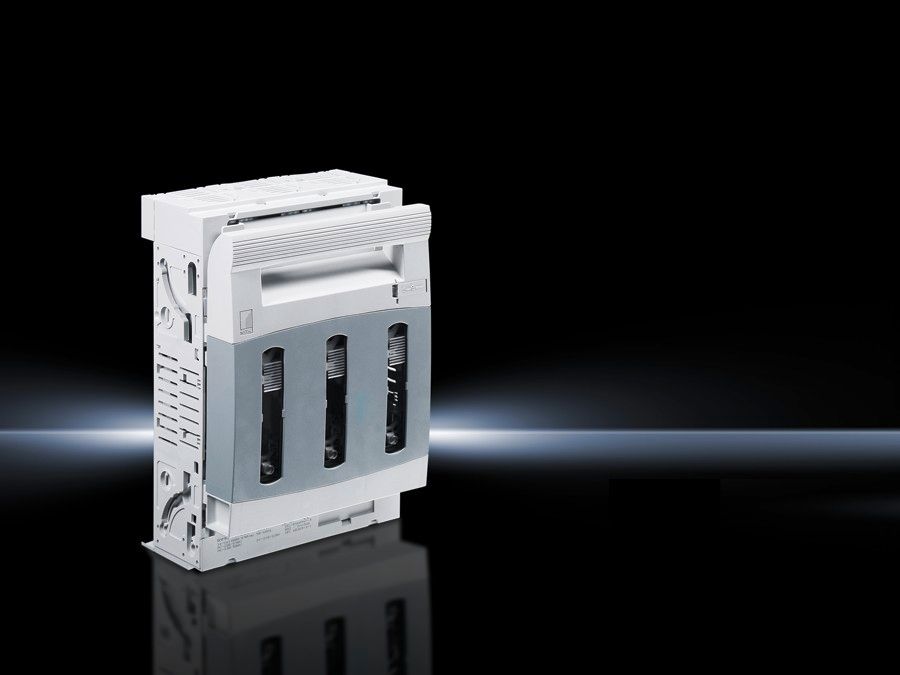

Rittal 9343210 SV NH fuse-switch disconnector, size 2, 400 A, 690 V, 3-pole, screw M10
|
240,21 EUR |
|||||||||||
|
incl. 5,29 EUR copper surcharge ( 285,85 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: 2 pieces | |||||||||||
| Lieske Part No.: | 488854 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 9343210 | ||||||||||
| UPC/EAN: | 4028177540392 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 9343210:
Fire protection corresponding to UL 94-V0
Contact tracks: Electrolytic copper, silver-plated
Colour: Chassis: RAL 7035
Cover: RAL 7035/7001
Basis of test: IEC/DIN EN 60 947-3
DIN EN 60 269-2 (fuse inserts)
Note: The technical data may vary for UR applications. Applications to UR only in conjunction with Special Purpose Fuses.
Packs of: 1 pc(s).
EAN: 4028177540392
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27371401
ETIM 6.0: EC001040
Design: Size: 2
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 210 mm
Height: 298 mm
Type of electrical connection: Screw M10
Rated operating voltage: 690 V, 3~
Clamping area for laminated copper bars: Width: 50 mm
Height: 10 mm
Connection for round conductor cross-sections: 10 mm² - 240 mm²
Rated operating current max.: 400 A
Cable outlet: Top/bottom
Weight/pack: 3.36 kg
Type: SV 9343.210
Questions & answers
What is the delivery time of Rittal 9343210 SV NH fuse-switch disconnector, size 2, 400 A, 690 V, 3-pole, screw M10?
The article Rittal 9343210 SV NH fuse-switch disconnector, size 2, 400 A, 690 V, 3-pole, screw M10 is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9343210 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9343210 SV NH fuse-switch disconnector, size 2, 400 A, 690 V, 3-pole, screw M10 always at the best possible price. We can give you a discount of 2% on Rittal 9343210 SV NH fuse-switch disconnector, size 2, 400 A, 690 V, 3-pole, screw M10 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Rittal 9343210 SV NH fuse-switch disconnector, size 2, 400 A, 690 V, 3-pole, screw M10 we can offer you a price of 236,69 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
