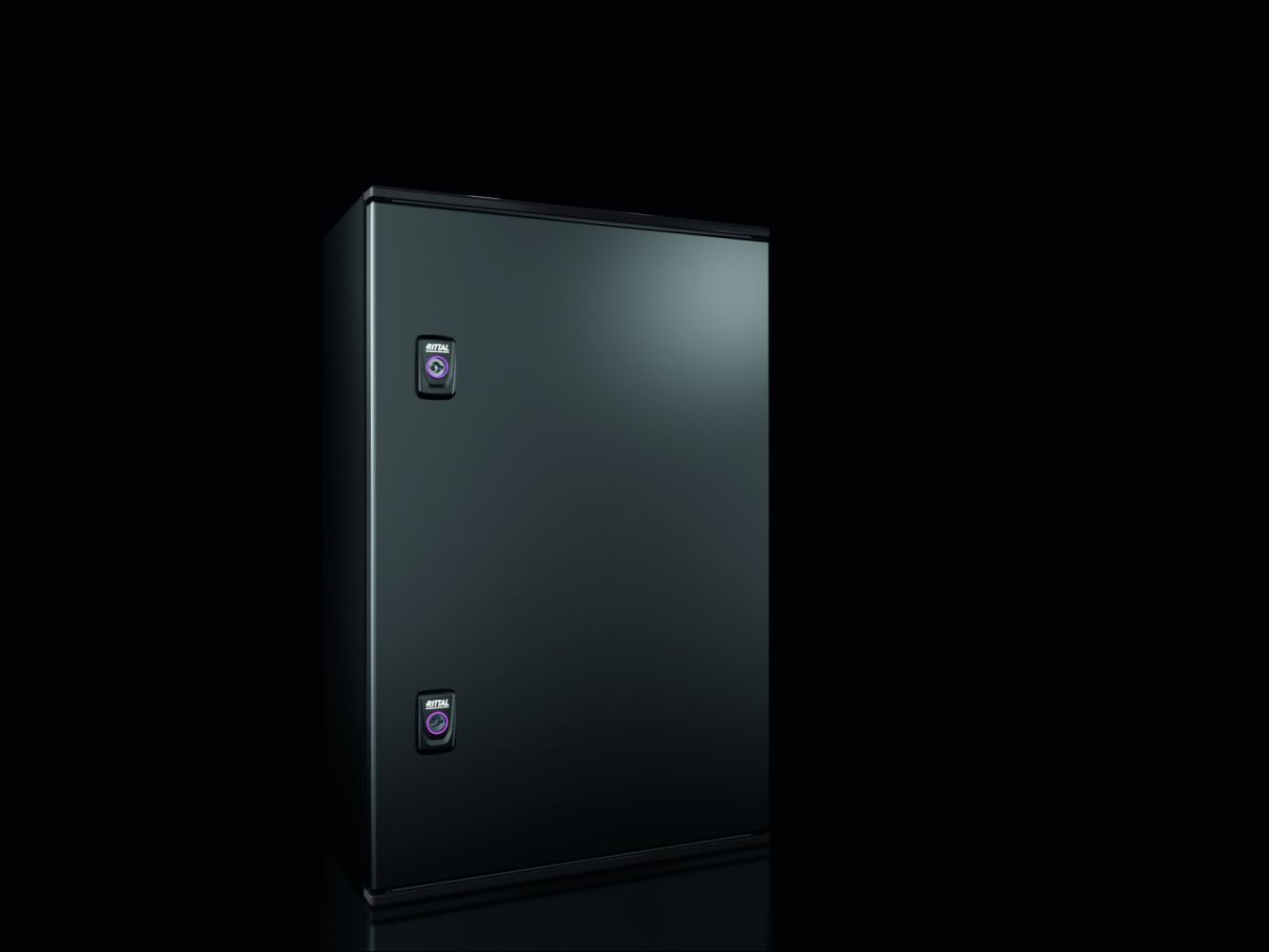

Rittal 9205100 AX plastic Ex enclosure, 400x600x200 mm, empty enclosure
|
316,94 EUR |
|
|
( 377,16 EUR incl. VAT ) ≈ £265.28 | ≈ $348.32 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1989432 |
| Mfg Part No: | 9205100 |
| UPC/EAN: | 4028177952096 |
| Weight: | 12.7 kg |
| Type: | KE 9205100 |
Product information for Rittal 9205100:
Applications
This enclosure is intended for use in explosive environments, particularly in areas classified as Zone 1, 2, 21 or 22. It is suitable for applications in the chemical industry, petrochemicals, power generation, and other sectors where flammable gases, vapours or dusts may be present. Approvals according to ATEX (PTB 03 ATEX 1011U) and IECEx (IEC EX PTB 10.0011U) ensure compliance with European and international safety standards.
Functions and Equipment in Detail
The enclosure consists of a one-piece, impact-resistant body made of glass-fibre-reinforced, unsaturated polyester, which is self-extinguishing according to UL 94 V-0. The door is fitted with a continuous silicone seal, ensuring a tight seal. The door features a 130° stainless steel hinge, allowing an opening angle of 130°. The door pivot can be changed from left to right. Integrated guide rails are located at the top and bottom of the door, ensuring secure guidance during opening and closing. The mounting plate made of galvanised steel sheet (3 mm thickness) is equipped with grounding hole and allows secure fixation inside the enclosure.
Technology Explained Simply
The protection rating IP 65 according to IEC 60 529 means the enclosure is dust-tight and protected against splashing water, making it suitable for outdoor use or in damp environments. The protection ratings NEMA Type 1, 3R, 3RX, 4, 4X and 12 cover various environmental conditions, from dry indoor spaces to weather-resistant outdoor installations. The IK code IK09 indicates high mechanical impact resistance, protecting the enclosure against mechanical damage. The surface resistance of less than 10⁹ Ω ensures static charges are dissipated, which is critical in explosive environments.
Compatibility and Accessories
Various accessories are available for this enclosure to facilitate mounting and use. These include wall mounting brackets for AX plastic in RAL 9011, a door latch, universal brackets, and plastic screws for internal installation. These components enable flexible and secure installation of the enclosure at various locations and support internal installation with additional mounting options.
Mounting and Installation
The enclosure is supplied with a mounting plate that enables secure fixation of devices inside. The mounting plate measures 305 mm x 525 mm and has a material thickness of 3 mm. Integrated mounting bosses in the enclosure body and on the door facilitate internal installation. The door can be secured with two latches, ensuring a secure and tight closure. Installation is typically done on a wall or support structure, with wall mounting brackets serving as an optional addition.
Operational Advantages
The enclosure offers high mechanical and chemical resistance, is temperature resistant between -40 °C and +70 °C, and protects installed devices from environmental influences. The integrated grounding option on the mounting plate ensures a safe electrical connection. QR codes on the enclosure, door, and mounting plate enable unique identification and easy access to relevant product information, as well as traceability of individual components. The combination of robust material, high protection rating, and approvals for explosive environments makes this enclosure a reliable solution for demanding industrial applications.
| General | |
| Model | Ex enclosure |
| Applications | Zone 1 and 2 or 21 and 22 according to 2014/34/EU, ambient temperature range: -40 °C...+70 °C, the specified temperatures may be limited by installed devices, protection type according to EN 60 079: device protection by increased safety (Ex e), device protection by enclosure (Ex tb) |
| Material | Housing: glass-fibre-reinforced unsaturated polyester, surface resistance: < 10⁹ Ω, door: glass-fibre-reinforced unsaturated polyester, surface resistance: < 10⁹ Ω, continuously bonded silicone seal, mounting plate: sheet steel, zinc-coated |
| Colour | RAL 9011 |
| Scope of delivery | housing, door, mounting plate |
| Width | 400 mm |
| Height | 600 mm |
| Depth | 200 mm |
| Mounting plate dimensions (W x H) | 305 mm x 525 mm |
| Mounting plate material thickness | 3 mm |
| Lock | Number of locks: 2 |
| Degree of protection IP according to IEC 60 529 | IP 65 |
| NEMA degree of protection | Type 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12 |
| IK code | IK09 |
| Operating temperature range | -40 °C...70 °C |
| Operation temperature | The specified temperatures may be limited by the installed devices |
| Certificate IEC EX PTB 10.0011U | |
| Certificate PTB 03 ATEX 1011U | |
Questions & answers
What is the delivery time of Rittal 9205100 AX plastic Ex enclosure, 400x600x200 mm, empty enclosure?
The article Rittal 9205100 AX plastic Ex enclosure, 400x600x200 mm, empty enclosure is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9205100 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9205100 AX plastic Ex enclosure, 400x600x200 mm, empty enclosure always at the best possible price. We can give you a discount of 2% on Rittal 9205100 AX plastic Ex enclosure, 400x600x200 mm, empty enclosure if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
