Rittal 8617506 VX baying quick connector, single-piece, sheet steel

Your rating:
Average rating
product review for Rittal 8617506 VX baying quick connector, single-piece, sheet steel
( 4.4 / 5 ) 19 ratings
Rittal 8617506
This image may differ from the desired article.
Rittal 8617506Rittal 8617506Rittal 8617506Rittal 8617506
17,60 EUR 18,30 EUR
( 20,94 EUR incl. VAT )
≈ £14.71  |  ≈ $19.45
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 8617506 VX baying quick connector, single-piece, sheet steel
Datasheet:file_download Download
Lieske Part No.:1593507
Mfg Part No: 8617506
UPC/EAN: 4028177942332
Weight:0.705 kg
Type:VX 8617506

Product information for Rittal 8617506:

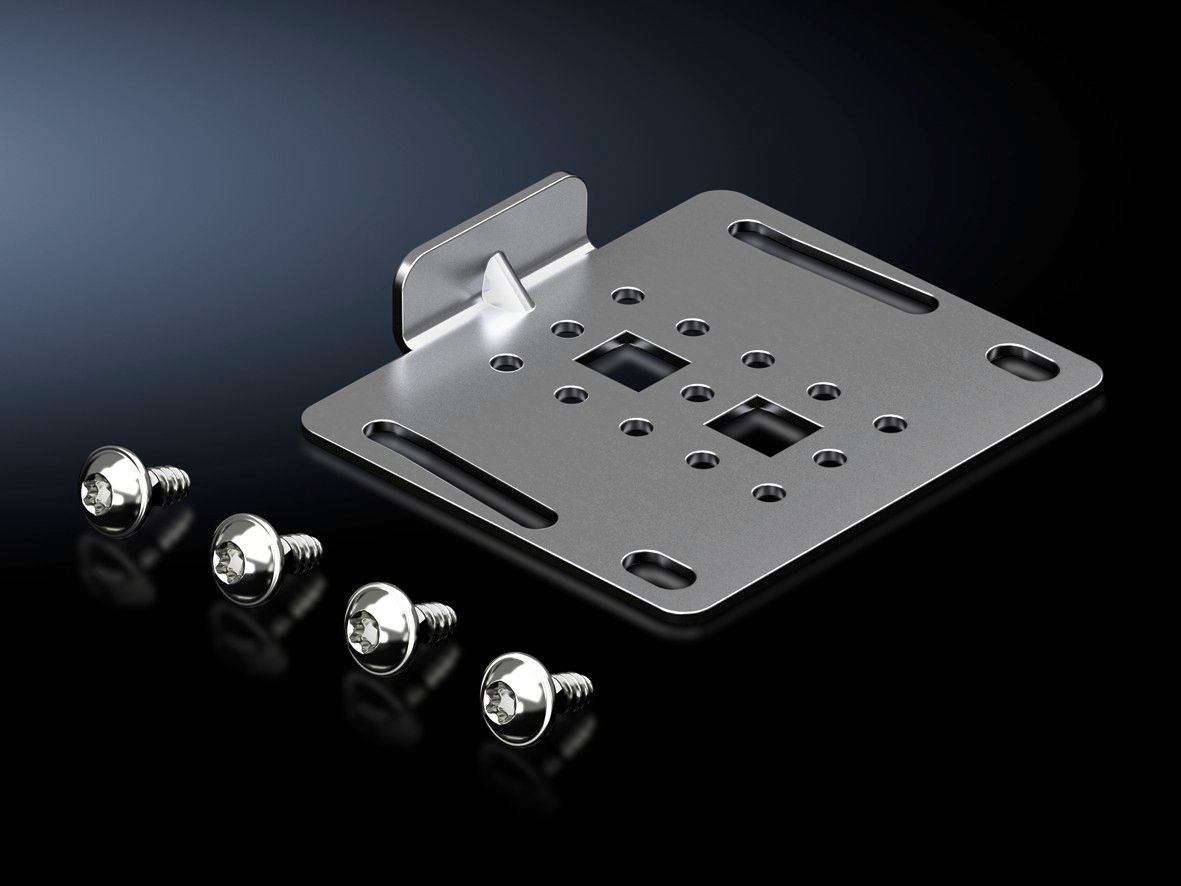

The Rittal VX 8617506 is an anreih rapid connector made of sheet steel with a zinc-coated surface, specifically developed for secure and efficient connection of enclosures in the VX system. It serves as mechanical connection elements between adjacent enclosures to ensure stable and collision-free assembly. The connection is achieved by simply screwing in the screws, driving the connector in with a hammer, and then pulling the enclosures together, resulting in a firm fixation.

Applications
The anreih rapid connector is used in industrial environments where multiple enclosures are mounted in a row, for example in production facilities, automation systems, or data processing environments. It enables quick and reliable connection without requiring additional tools or complex assembly procedures. The flexible positioning at the baying joint edge helps avoid collisions with already installed components such as cable ducts, conduits, or control devices.

Functions and Equipment in Detail
The connector is mountable all around the baying location, ensuring even load distribution and optimal stability of the enclosure row. The flexible positioning allows placing the connector at locations where no other components are obstructing. Assembly is carried out by screwing in the supplied screws, driving the connector in with a hammer, and then pulling the enclosures together. The connection is thus mechanically secured.

Technology Explained Simply
The anreih rapid connector is made of sheet steel, protected against corrosion by zinc coating. This surface treatment makes it suitable for operating conditions with increased humidity or slight chemical exposure. The zinc coating ensures longer service life and prevents rust formation. The mechanical connection is achieved by driving the connector into the designated holes, creating a firm yet easy-to-assemble connection. A hammer is required to securely press the connector into the hole.

Compatibility and Accessories

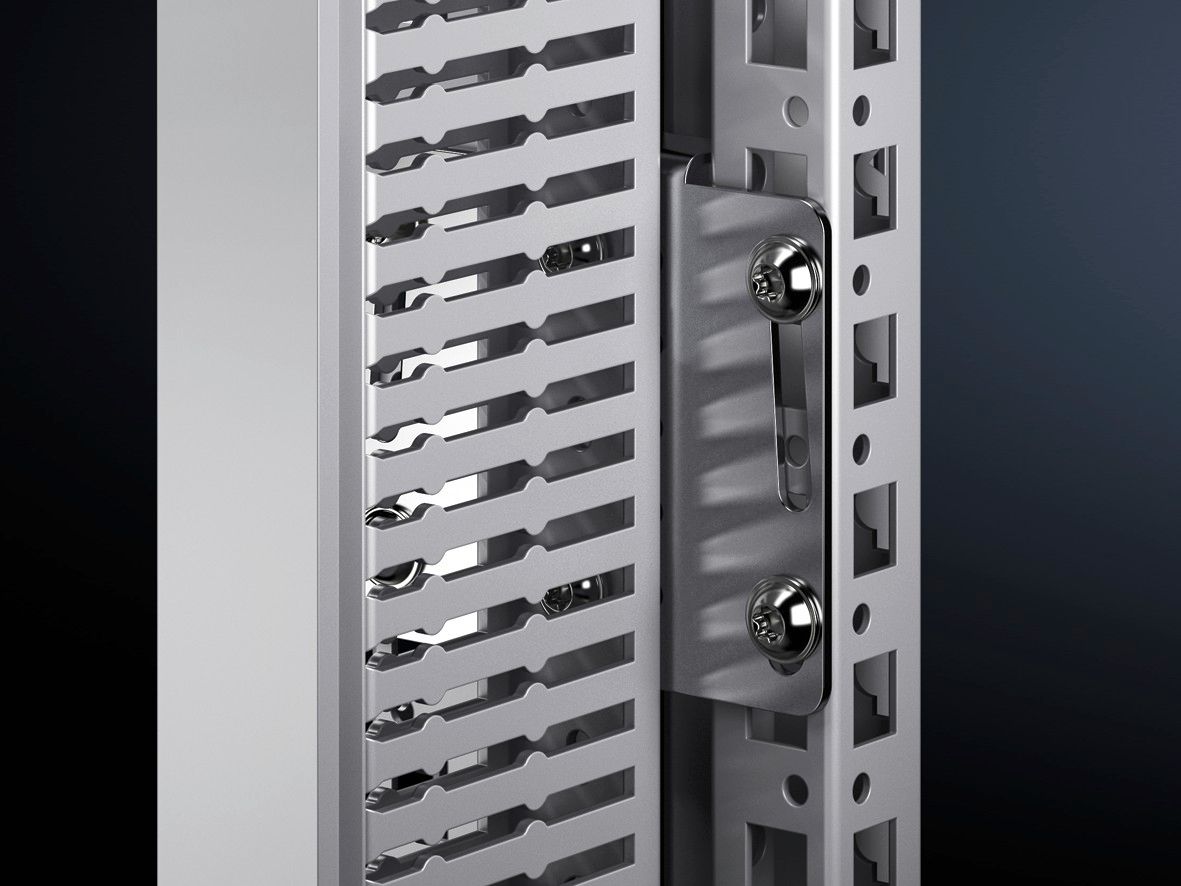

The VX 8617506 is specifically designed for Rittal’s VX system and is used there as a standard connection element. It is compatible with other VX enclosures and can be used in combination with additional system components such as cable ducts or mounting plates. The additional mounting plane between the adjacent enclosures allows, for example, the attachment of cable ducts, simplifying cable routing and maintenance.

Assembly and Installation

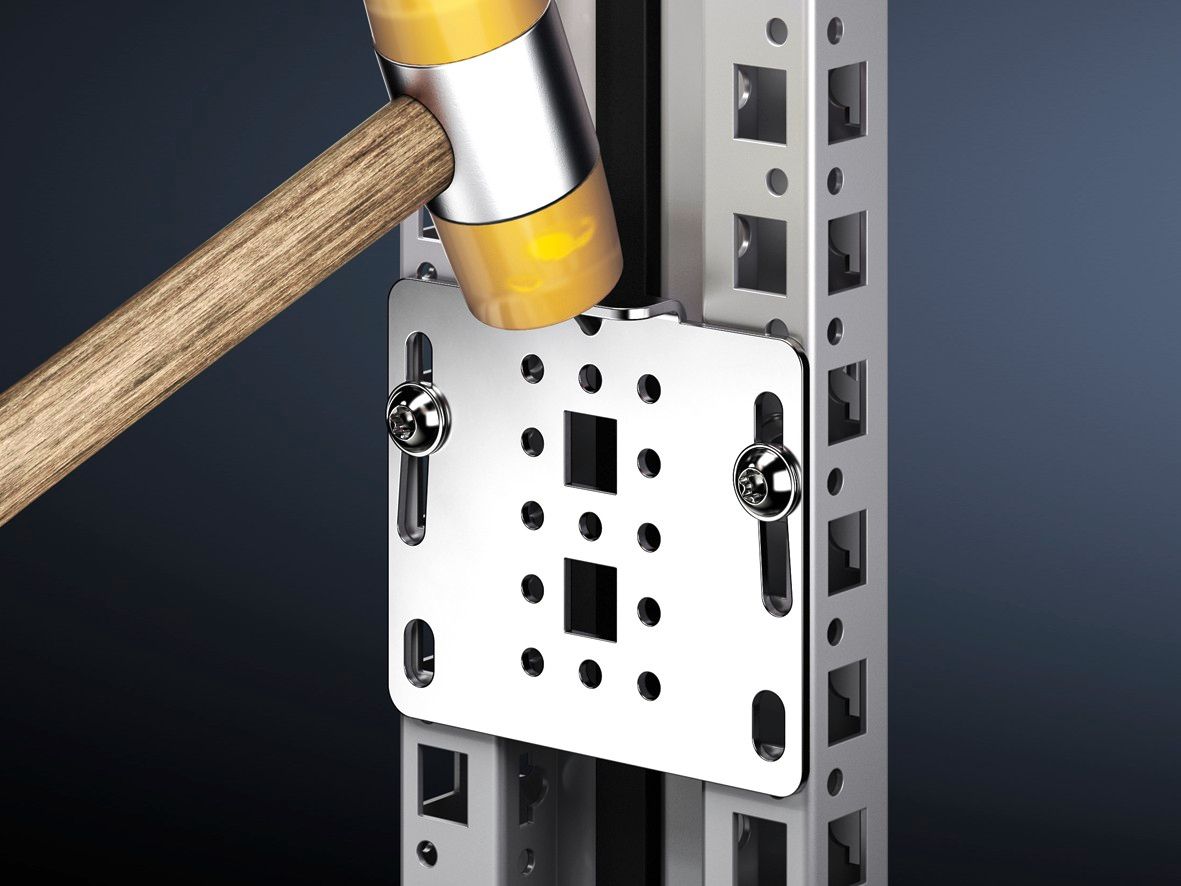

Assembly is carried out by screwing the screws into the designated holes at the baying location, driving the connector in with a hammer, and then pulling the enclosures together. The connection is quick to establish and requires no special tools other than a screwdriver and a hammer.

An anreih rapid connector is a mechanical connection element that securely connects enclosures in the VX system. The zinc-coated surface protects against corrosion, and the flexible positioning avoids collisions with installed components. Assembly is done by screwing in the screws, driving the connector in, and pulling the enclosures together. The additional mounting plane allows the attachment of cable ducts between enclosures. The product is supplied in a packaging unit of 6 pieces, including fastening material.

Operational Advantages
The anreih rapid connector reduces assembly time when arranging enclosures in a row. Its simple handling and integrated fastening enable quick and reliable connections. The additional mounting plane between enclosures provides space for cable ducts, structuring cable routing and making maintenance easier. The zinc-coated surface ensures longer service life and reduced maintenance requirements during operation.

The delivery includes the anreih rapid connector and the required fastening material. The packaging unit is 6 pieces.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware


Product data sheet
Datasheet for Rittal 8617506, EAN: 4028177942332
