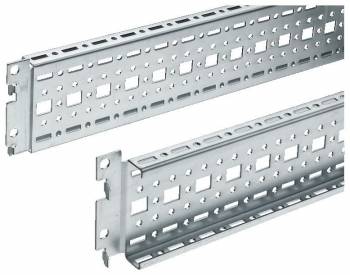

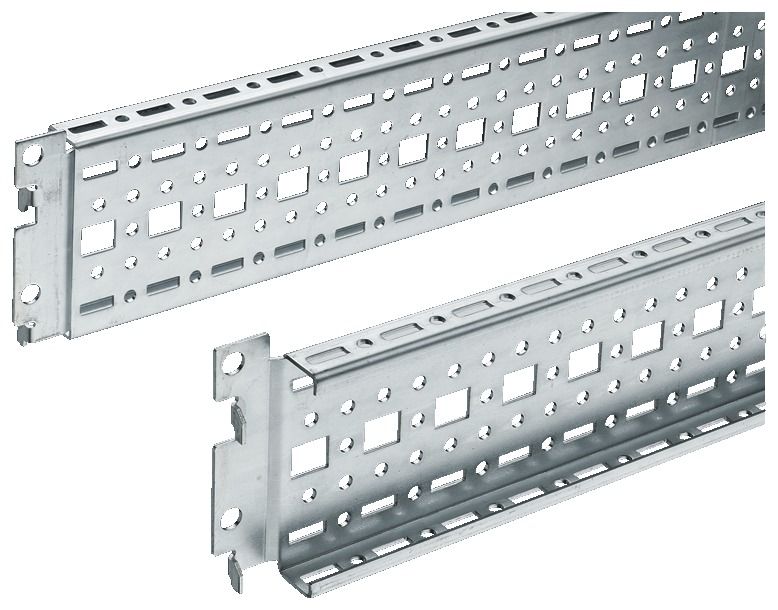

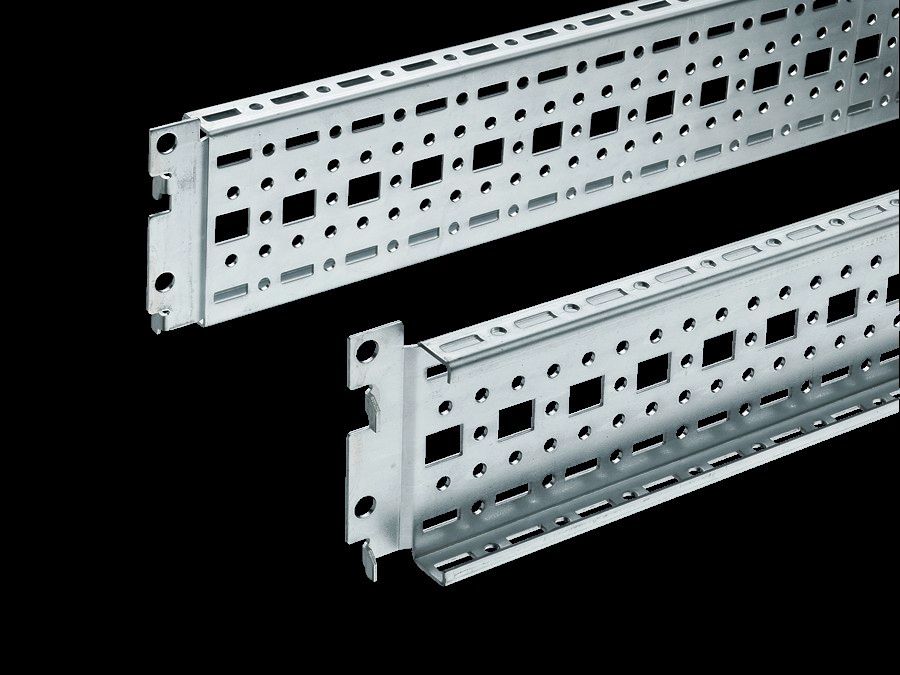

Rittal 8612130 TS TS punched section with mounting flange, 17 x 73 mm, for outer mounting level: W/D: 300 mm, L: 240 mm
|
29,56 EUR |
|
|
( 35,18 EUR incl. VAT ) ≈ £25.13 | ≈ $33.20 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 356164 |
| Mfg Part No: | 8612130 |
| UPC/EAN: | 4028177500327 |
| Weight: | 1.091 kg |
| Type: | TS 8612130 |
Further System Accessories from RittalFurther products in category System Accessories
All products of Rittal
Product information for Rittal 8612130:
Variable, with 5 rows of holes for universal skeleton structures or partial assembly. Simply locate into the 482.6 mm (48,3 cm ( 19 inch )) system punchings and secure.
Material: Sheet steel
Surface finish: Zinc-plated
Assembly instruction: The rail for internal mounting is required when installing in CM, TP
Supply includes: Assembly screws
Packs of: 4 pc(s).
EAN: 4028177500327
Customs tariff number: 73269098
eCl@ss 5.1: 27189250
eCl@ss 7.0: 23159101
ETIM 6.0: EC002625
Design: For the outer mounting level
To fit: Width/depth: 300 mm
Dimensions: Length: 240 mm

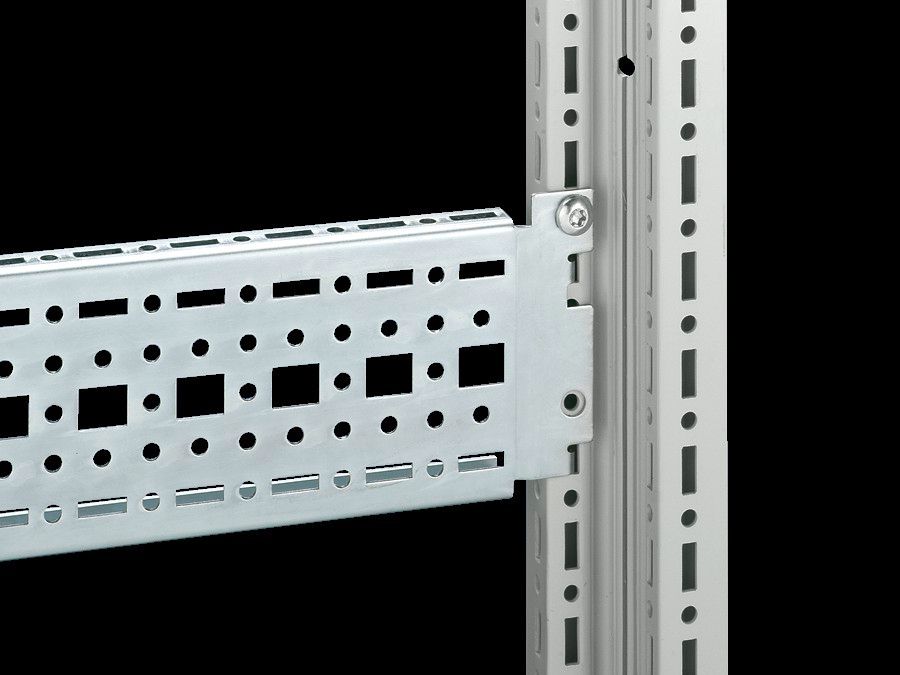

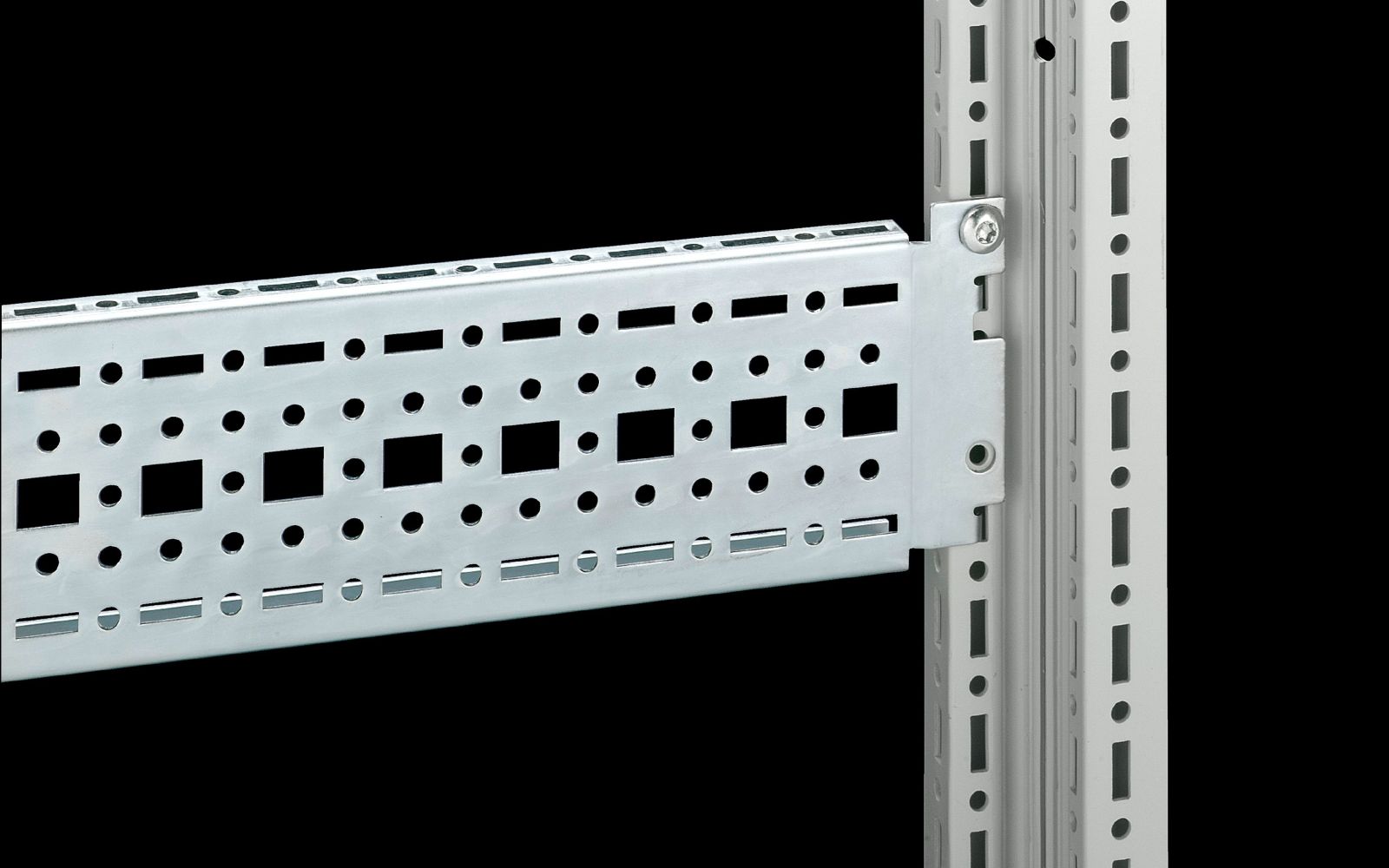

Installation options: On the vertical TS enclosure section: On the outer mounting level, all-round, at the same height
For SE, may additionally be mounted on the top horizontal section in the depth
In CM and TP via rail for interior installation: In the depth, for outer mounting level
Weight/pack: 1.11 kg
Material: Sheet steel
Surface finish: Zinc-plated
Assembly instruction: The rail for internal mounting is required when installing in CM, TP
Supply includes: Assembly screws
Packs of: 4 pc(s).
EAN: 4028177500327
Customs tariff number: 73269098
eCl@ss 5.1: 27189250
eCl@ss 7.0: 23159101
ETIM 6.0: EC002625
Design: For the outer mounting level
To fit: Width/depth: 300 mm
Dimensions: Length: 240 mm
Installation options: On the vertical TS enclosure section: On the outer mounting level, all-round, at the same height
For SE, may additionally be mounted on the top horizontal section in the depth
In CM and TP via rail for interior installation: In the depth, for outer mounting level
Weight/pack: 1.11 kg
