Rittal 7980100 DK Fan expansion kit, WHD: 119x119x25 mm, 230 V, 1 ~, 50/60 Hz
|
52,07 EUR |
|
|
( 61,96 EUR incl. VAT ) ≈ £44.26 | ≈ $58.47 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 848841 |
| Mfg Part No: | 7980100 |
| UPC/EAN: | 4028177187313 |
| Weight: | 0.486 kg |
| Type: | DK 7980100 |
Further Rack-Climatization from RittalFurther products in category Rack-Climatization
All products of Rittal
Product information for Rittal 7980100:
For use as a stand-alone fan, and for upgrading various fan units or to supplement the fan mounting plate.

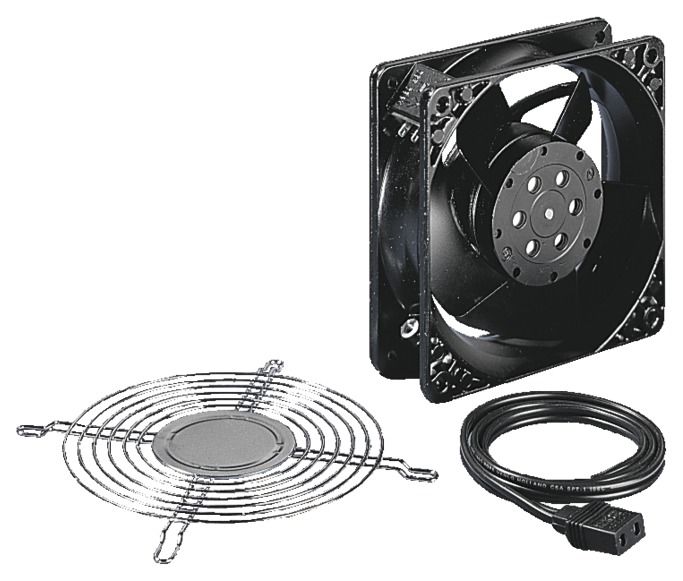

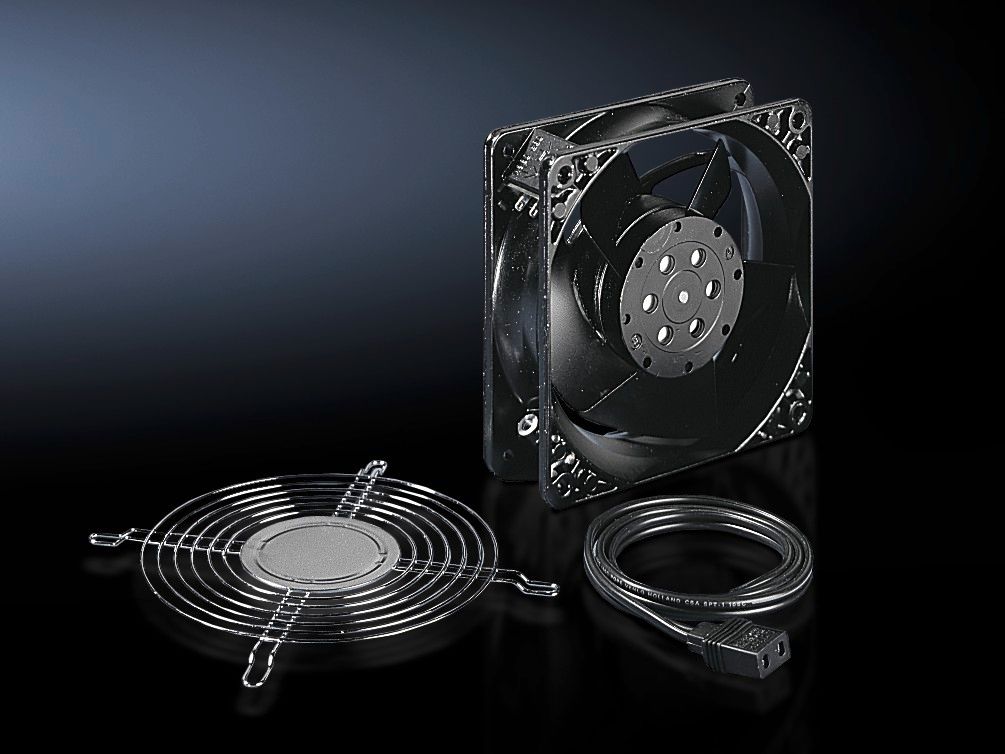

Supply includes: Fan
Connection cable (0.61 m)
Assembly parts
Packs of: 1 pc(s).
EAN: 4028177187313
Customs tariff number: 84149000
eCl@ss 5.1: 27180705
eCl@ss 7.0: 27180716
ETIM 6.0: EC000320
Air throughput (unimpeded air flow): At 50 Hz: 108 m³/h
At 60 Hz: 120 m³/h
Air throughput, unimpeded air flow: without filter mats:
with filter mats:
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 119 mm
Height: 119 mm
Depth: 25 mm
Temperature range: Operation (environment): -20°C...+70°C
Power consumption Pel: At 50 Hz: 14 W
At 60 Hz: 12 W
Noise level: At 50 Hz: 34 dB(A)
At 60 Hz: 34 dB(A)
Weight/pack: 0.48 kg
Supply includes: Fan
Connection cable (0.61 m)
Assembly parts
Packs of: 1 pc(s).
EAN: 4028177187313
Customs tariff number: 84149000
eCl@ss 5.1: 27180705
eCl@ss 7.0: 27180716
ETIM 6.0: EC000320
Air throughput (unimpeded air flow): At 50 Hz: 108 m³/h
At 60 Hz: 120 m³/h
Air throughput, unimpeded air flow: without filter mats:
with filter mats:
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 119 mm
Height: 119 mm
Depth: 25 mm
Temperature range: Operation (environment): -20°C...+70°C
Power consumption Pel: At 50 Hz: 14 W
At 60 Hz: 12 W
Noise level: At 50 Hz: 34 dB(A)
At 60 Hz: 34 dB(A)
Weight/pack: 0.48 kg
