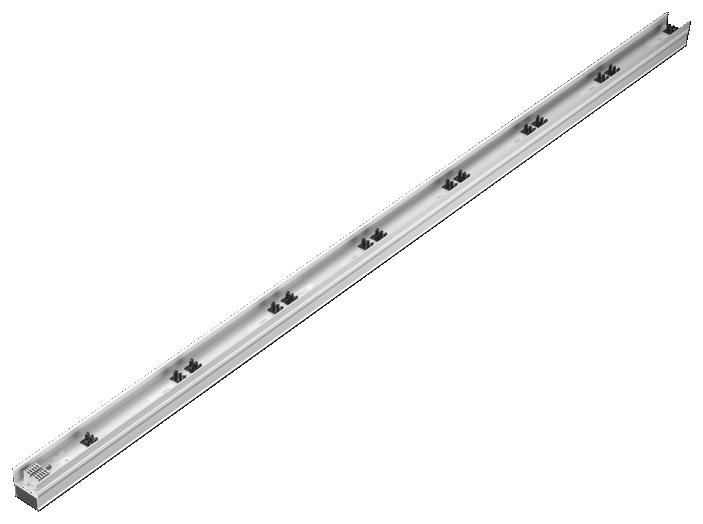

Rittal 7856006 DK PSM busbar, 7-way, 3~, 16 A, Infeed: 2, For H: 2000 mm
|
-7% 301,80 EUR 322,93 EUR |
|||||||||||
|
( 359,14 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 808010 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 7856006 | ||||||||||
| UPC/EAN: | 4028177616189 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 7856006:
Benefits: Modules may be retrofitted whilst operational.
Technical specifications: Each plug-in module picks off a phase on the support rail, either from infeed or from the redundant infeed, depending on the direction of connection.
Depending on the design, single-/3-phase construction with a maximum current of 2 x (3 x 16 A/32 A).
3-phase redundant infeed supported.
The redundant circuit is completely separate from the 3 phases of the support rail.
Modules may be equipped with integral overcurrent protection, so that only the affected module is deactivated in the event of an excessively high current. The other modules remain operational.
Packs of: 1 pc(s).
EAN: 4028177616189
Customs tariff number: 85369001
eCl@ss 5.1: 27143401
eCl@ss 7.0: 27371306
ETIM 6.0: EC000215

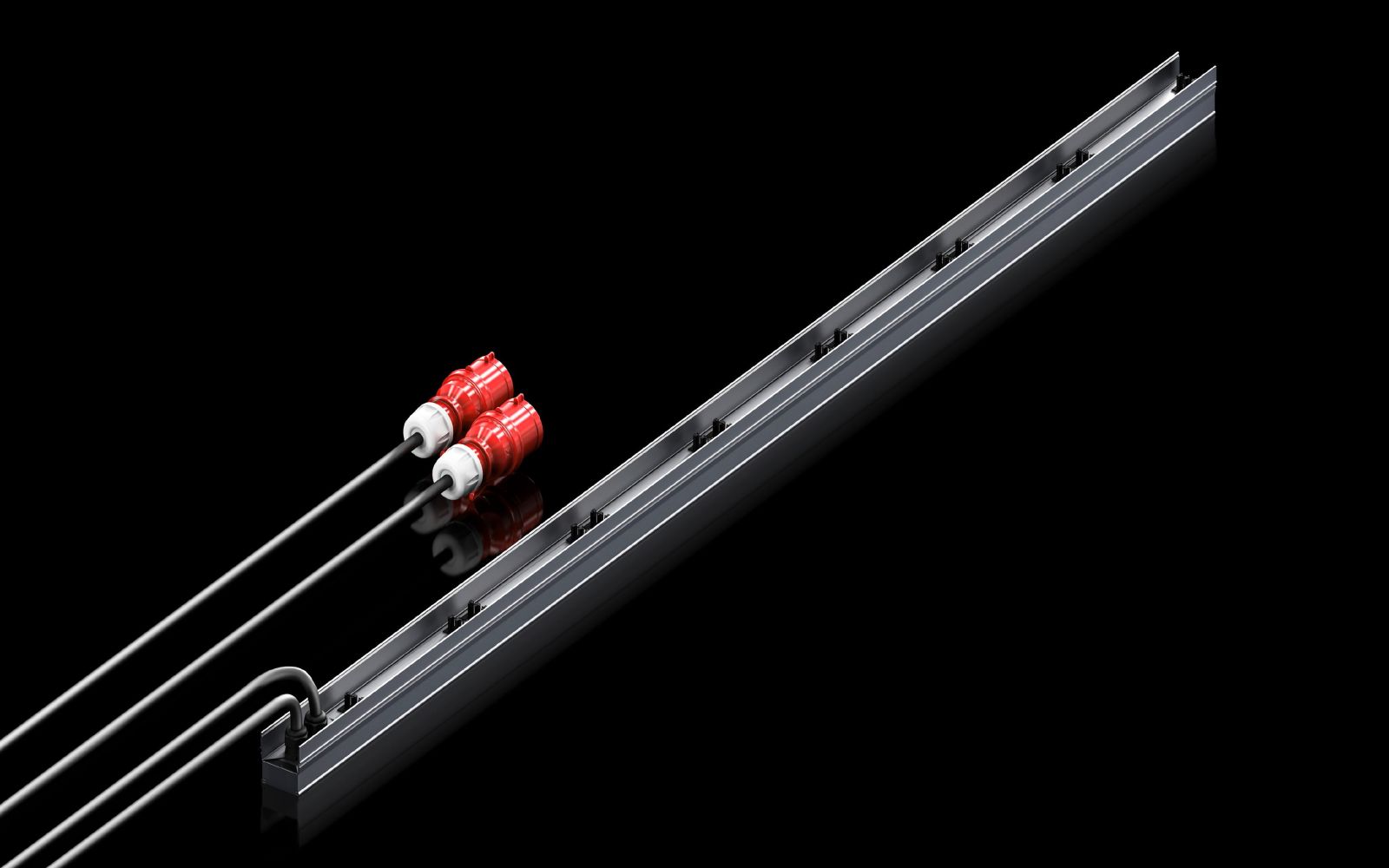

Design: With 3 m connection cable (connector type CEE/EN 60 309)
Module slots (max.): 7
To fit: Enclosure type: TS 8
Enclosure type: TS IT
Height: = 2000 mm
Infeeds: Qty.: 2
Phases per infeed: 3~
Length of connection cable: 3 m
Ambient conditions: Operating temperature: +5°C...+45°C
Storage temperature: -20°C...+60°C
Operating humidity, non-condensing: 5 % - 95 %
Type of electrical connection: CEE
Rated current (max.): 16 A
Weight/pack: 5.8 kg
Type: DK 7856.006
Questions & answers
What is the delivery time of Rittal 7856006 DK PSM busbar, 7-way, 3~, 16 A, Infeed: 2, For H: 2000 mm?
The article Rittal 7856006 DK PSM busbar, 7-way, 3~, 16 A, Infeed: 2, For H: 2000 mm is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7856006 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 7856006 DK PSM busbar, 7-way, 3~, 16 A, Infeed: 2, For H: 2000 mm always at the best possible price. We can give you a discount of 2% on Rittal 7856006 DK PSM busbar, 7-way, 3~, 16 A, Infeed: 2, For H: 2000 mm if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Rittal 7856006 DK PSM busbar, 7-way, 3~, 16 A, Infeed: 2, For H: 2000 mm we can offer you a price of 292,75 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
