Rittal 7721135 DK Wall-mounted enclosures, 3-part, WHD: 600x1012x473 mm, 21 U, With punched rails, and mounting angles, depth-variable
|
-9% 701,73 EUR 770,32 EUR |
|
|
( 835,06 EUR incl. VAT ) ≈ £586.65 | ≈ $777.52 plus delivery charges |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| End-Of-Life: | 05. Sep 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 414293 |
| Mfg Part No: | 7721135 |
| UPC/EAN: | 4028177324220 |
| Weight: | 49 kg |
| Type: | DK 7721135 |
Further Walls and Doors from RittalFurther products in category Walls and Doors
All products of Rittal
Product information for Rittal 7721135:

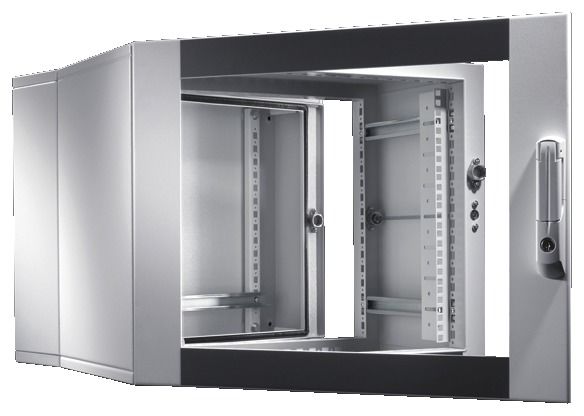

Wall-mounted enclosure with optimum accessibility due to hinged part.
Material: Wall and hinged part: Sheet steel, 1.5 mm
Viewing window: Single-pane safety glass, 3 mm
Surface finish: Powder-coated
Colour: Wall and hinged part: RAL 7035
Glazed door: RAL 7035/7015 (slate grey)
Protection category IP to IEC 60 529: IP 55
Supply includes: Wall section
Hinged part with 25 mm pitch pattern of holes in the front and rear frame
Designer glazed door
Wall section: Gland plate, solid, top and bottom
Wall section: 2 vertical punched rails
Wall section: C rail mounted horizontally for cable clamping
Hinged part with two 482.6 mm (48,3 cm ( 19 inch )) mounting angles, fully depth adjustable
4 wall mounting brackets 10 mm
Comfort handle and 2-point locking
Security lock 3524 E
Packs of: 1 pc(s).
EAN: 4028177324220
Customs tariff number: 94032080
eCl@ss 5.1: 27180204
eCl@ss 7.0: 27180208
ETIM 6.0: EC000261
Design: with punched rails and mounting angles, depth-variable
Dimensions: Width: 600 mm
Height: 1012 mm
Units: 21 U
Depth: 473 mm
Depth hinged part: 316 mm
Installation depth: 420 mm
Clearances: Clearance width: 502 mm
Clearance height: 949 mm
Wall section: Depth: 135 mm
Load capacity: Hinged part, static (max.): 75 kg
Weight/pack: 52.3 kg
Material: Wall and hinged part: Sheet steel, 1.5 mm
Viewing window: Single-pane safety glass, 3 mm
Surface finish: Powder-coated
Colour: Wall and hinged part: RAL 7035
Glazed door: RAL 7035/7015 (slate grey)
Protection category IP to IEC 60 529: IP 55
Supply includes: Wall section
Hinged part with 25 mm pitch pattern of holes in the front and rear frame
Designer glazed door
Wall section: Gland plate, solid, top and bottom
Wall section: 2 vertical punched rails
Wall section: C rail mounted horizontally for cable clamping
Hinged part with two 482.6 mm (48,3 cm ( 19 inch )) mounting angles, fully depth adjustable
4 wall mounting brackets 10 mm
Comfort handle and 2-point locking
Security lock 3524 E
Packs of: 1 pc(s).
EAN: 4028177324220
Customs tariff number: 94032080
eCl@ss 5.1: 27180204
eCl@ss 7.0: 27180208
ETIM 6.0: EC000261
Design: with punched rails and mounting angles, depth-variable
Dimensions: Width: 600 mm
Height: 1012 mm
Units: 21 U
Depth: 473 mm
Depth hinged part: 316 mm
Installation depth: 420 mm
Clearances: Clearance width: 502 mm
Clearance height: 949 mm
Wall section: Depth: 135 mm
Load capacity: Hinged part, static (max.): 75 kg
Weight/pack: 52.3 kg
| General | |
| Model | Wall-mounted IT enclosure, with mounting rails and profile rails, variable depth |
| Material | Wall and swivel part: Sheet steel, 1.5 mm, viewing panel: Single-pane safety glass, 3 mm |
| Surface protection | Powder-coated |
| Basic colour | RAL 7035 |
| Colour | wall and swivel part: RAL 7035, vision door: RAL 7035/7015 (slate grey) |
| Scope of delivery | Wall section with flange plate closed, top and bottom, two vertical mounting rails and C-profile rail, horizontal, for cable management, swivel section with 25 mm hole pattern in front and rear frame and two 19" profile rails, front, infinitely adjustable depth, 4 wall mounting brackets 10 mm, design vision door, 1 control cabinet key double bar No. 5, safety lock 3524 E, comfort handle for lock inserts and 2-point locking |
| Height units | 21 HE |
| Width | 600 mm |
| Height | 1.012 mm |
| Depth | 473 mm |
| Built-in depth | 420 mm |
| Light dimensions | Clear width: 502 mm, clear height: 949 mm |
| Depth of swivel part | 316 mm |
| Depth of wall part | 135 mm |
| IK code | IK08 |
| Load capacity of swivel part (static) | 750 N |
| Base material | steel sheet |
| Degree of protection IP according to EN 60 529 | IP 55 |
