Rittal 7297000 Second mounting level for Data Rack

Your rating:
Average rating
product review for Rittal 7297000 Second mounting level for Data Rack
( 4.6 / 5 ) 25 ratings
Rittal 7297000
This image may differ from the desired article.
Rittal 7297000Rittal 7297000
166,69 EUR
( 198,36 EUR incl. VAT )
≈ £139.52  |  ≈ $183.19
plus delivery charges: 148,00 €
in stockinfo_outline
In Stock: >5 pieces
1x Rittal 7297000 Second mounting level for Data Rack
Datasheet:file_download Download
Lieske Part No.:543082
Mfg Part No: 7297000
UPC/EAN: 4028177128811
Weight:12.661 kg
Type:DK 7297000

Product information for Rittal 7297000:

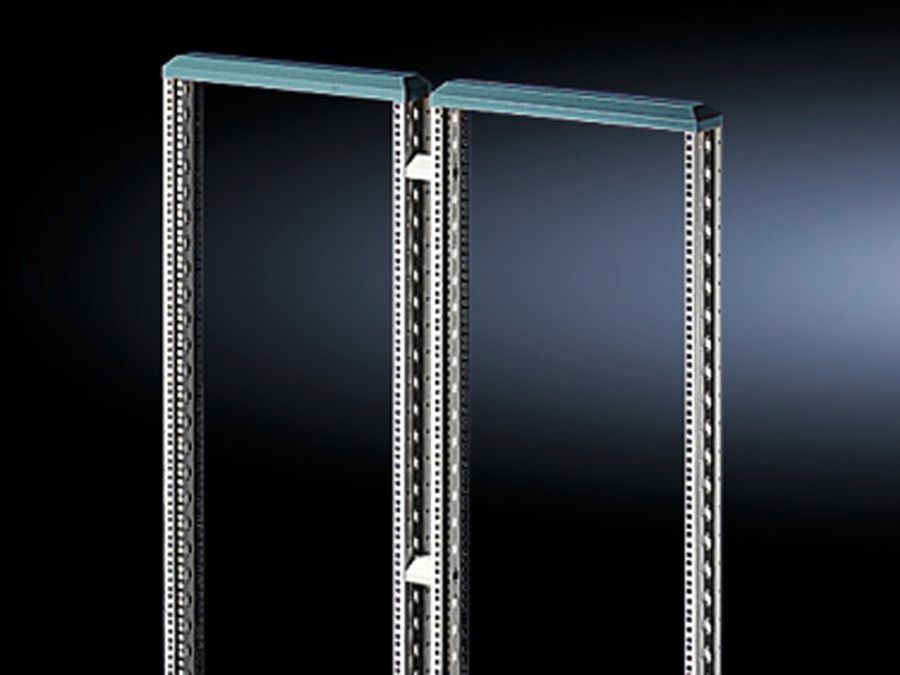

The product DK 7297000 from Rittal is a second mounting plane for Data Rack systems, designed for mounting 482.6 mm (48,3 cm ( 19 inch )) network components or for securing component shelves and slide rails. The product consists of a torsionally rigid profile frame made of 2 mm thick steel sheet and painted. The surface is finished in RAL 7035 (Grey), with the trim panel in RAL 5018 (Blue). The mounting plane is designed for an installation width of 482.6 mm (48,3 cm ( 19 inch )) and includes front-side perforation in a 482.6 mm (48,3 cm ( 19 inch )) grid. The hole center distances are 465 mm at the front and 470 mm at the rear, enabling the installation of patch panels and cable management rails. The mounting plane can be positioned in a 50 mm grid, with a minimum distance of 150 mm and a maximum of 350 mm between planes. The total height corresponds to 36 HE (height units), enabling integration into standard 19-inch frames.

Applications

The second mounting plane is used in Data Rack systems to provide additional mounting surfaces for network devices, patch panels, cable management rails, or component shelves. It is particularly suitable for applications where the standard mounting plane is insufficient to secure all required components. The torsionally rigid construction ensures stable mounting even for heavy or vibration-loaded devices. The integrated perforation enables flexible and precise mounting according to the 19-inch standard.

Functions and Equipment in Detail

The product features an integrated 482.6 mm (48,3 cm ( 19 inch )) perforation, optimized for mounting network components as well as for installing patch panels and cable management rails. The hole center distances are aligned with common mounting requirements, ensuring simple and secure installation. The mounting plane can be positioned in a 50 mm grid, allowing flexible adaptation to different device heights. The minimum distance of 150 mm and maximum of 350 mm between planes provides sufficient space for mounting various components without interference. Mounting accessories are included in the delivery scope and enable secure attachment to the flanged steel sheet plinth of the Data Rack frame.

Technology Explained Simply

The profile frame is made of 2 mm thick steel sheet and features a painted surface that resists corrosion and mechanical stress. The torsional rigidity ensures that the mounting plane maintains its shape even under load, preventing bending or shifting. The perforation in the 482.6 mm (48,3 cm ( 19 inch )) standard allows mounting of standard network components, while additional round and square holes in the 44.45 mm (HE grid) offer flexible mounting options. Positioning in a 50 mm grid provides flexibility in arranging devices within the rack.

Compatibility and Accessories

The second mounting plane is specifically designed for Data Rack systems and conforms to standard dimensions of 482.6 mm (48,3 cm ( 19 inch )) frames. It is mounted onto the flanged steel sheet plinth of the rack. Compatible accessories, such as depth braces for Data Rack, can be used additionally to enhance stability and mounting options. Compatibility with common 19-inch components is ensured by the standardized perforation.

Mounting and Installation

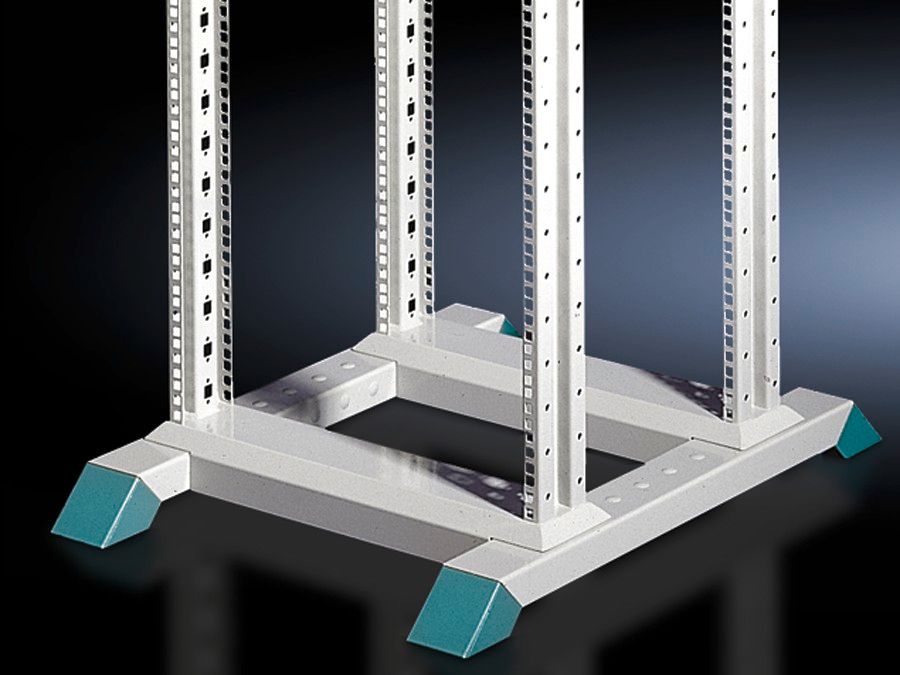

Installation is carried out using the mounting accessories included in the delivery scope. The mounting plane is attached to the flanged steel sheet plinth of the Data Rack frame. Positioning in a 50 mm grid allows flexible adaptation to specific requirements. Mounting is done using screws or bolts inserted into the pre-drilled holes. The installation is tool-assisted and requires no additional components.

Operational Advantages

The second mounting plane provides a stable and flexible mounting surface for additional components in the Data Rack. The torsionally rigid construction ensures high mechanical stability, even with heavy devices. The integrated perforation in the 19-inch standard enables simple and secure mounting of network components, patch panels, and cable management rails. The flexible positioning in a 50 mm grid offers adaptation options for different device heights and mounting requirements. The use of steel sheet with a painted surface ensures high corrosion resistance and long service life.

General
MaterialSheet steel, 2 mm
Surface protectionPainted
ColourProfile frame: RAL 7035, Insert: RAL 5018
Scope of deliveryTorsion-stiff profile frame with 482.6 mm (19") mounting, mounting accessories
Installation dimensionsInstallation width for components: 482.6 mm, installation width for components: 19"
Height units36 HE
PCF/VE (Cradle-to-Gate)48.2 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 7297000, EAN: 4028177128811

Questions & answers

What is the delivery time of Rittal 7297000 Second mounting level for Data Rack ?

The article Rittal 7297000 Second mounting level for Data Rack is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7297000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 7297000 Second mounting level for Data Rack always at the best possible price. We can give you a discount of 2% on Rittal 7297000 Second mounting level for Data Rack if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
