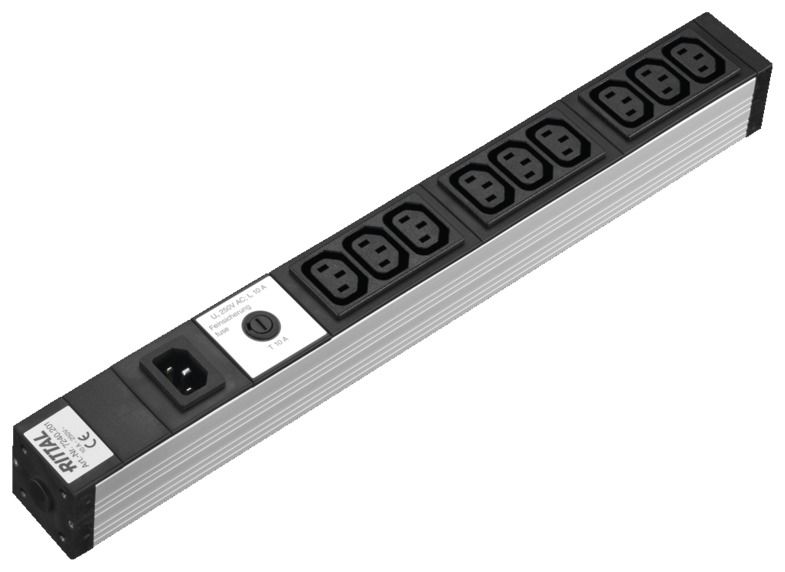

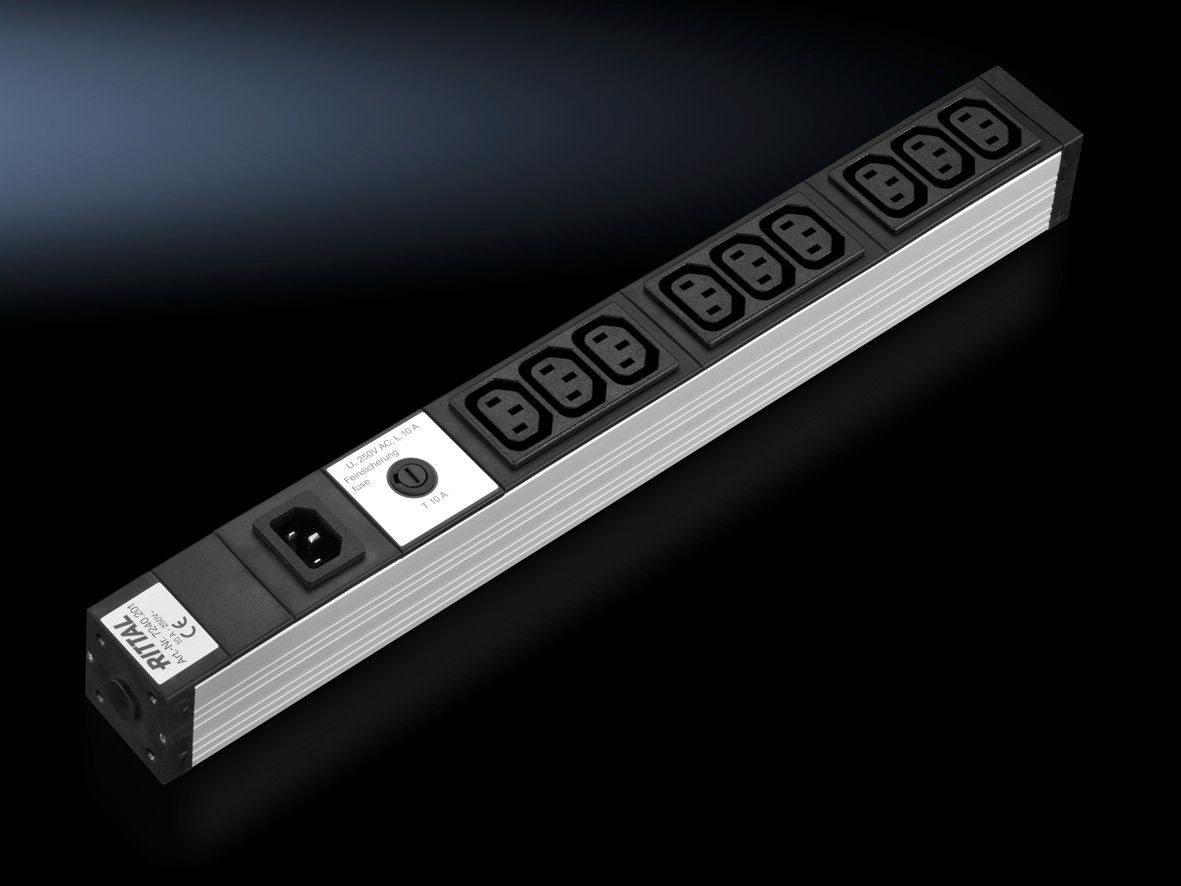

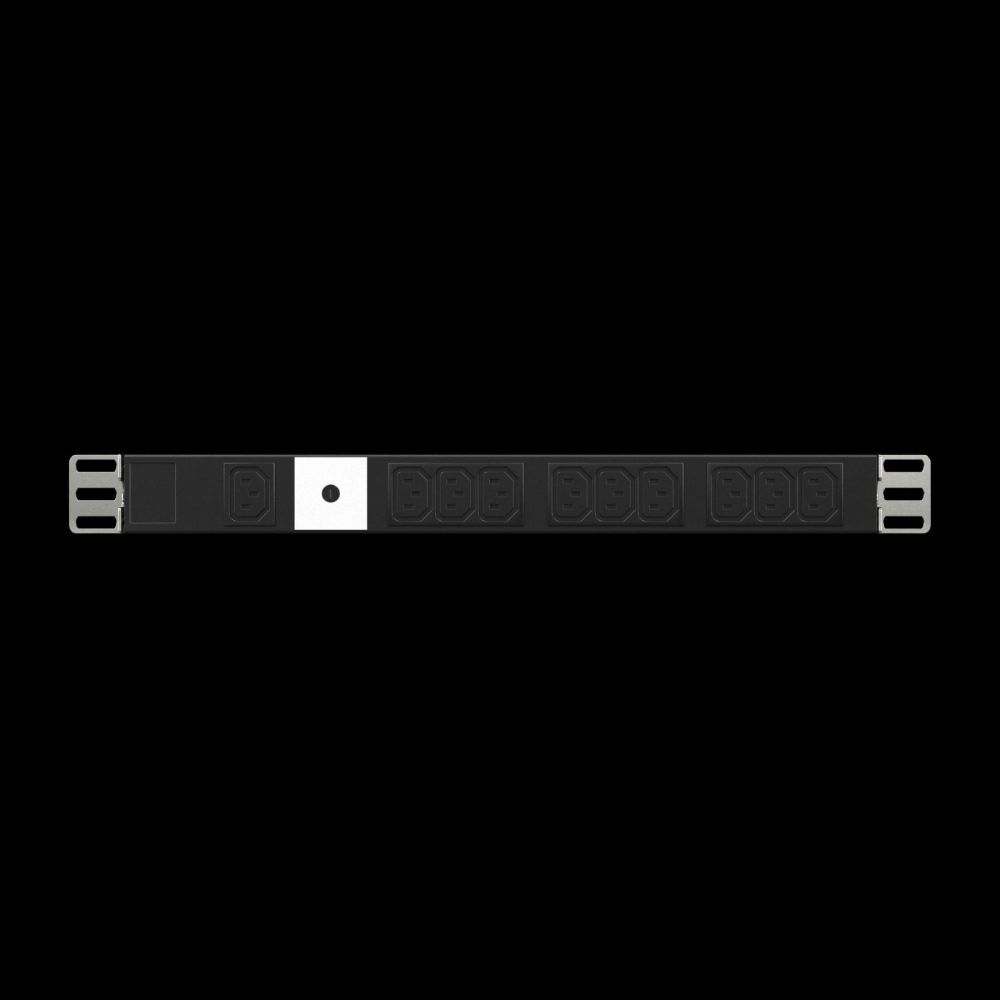

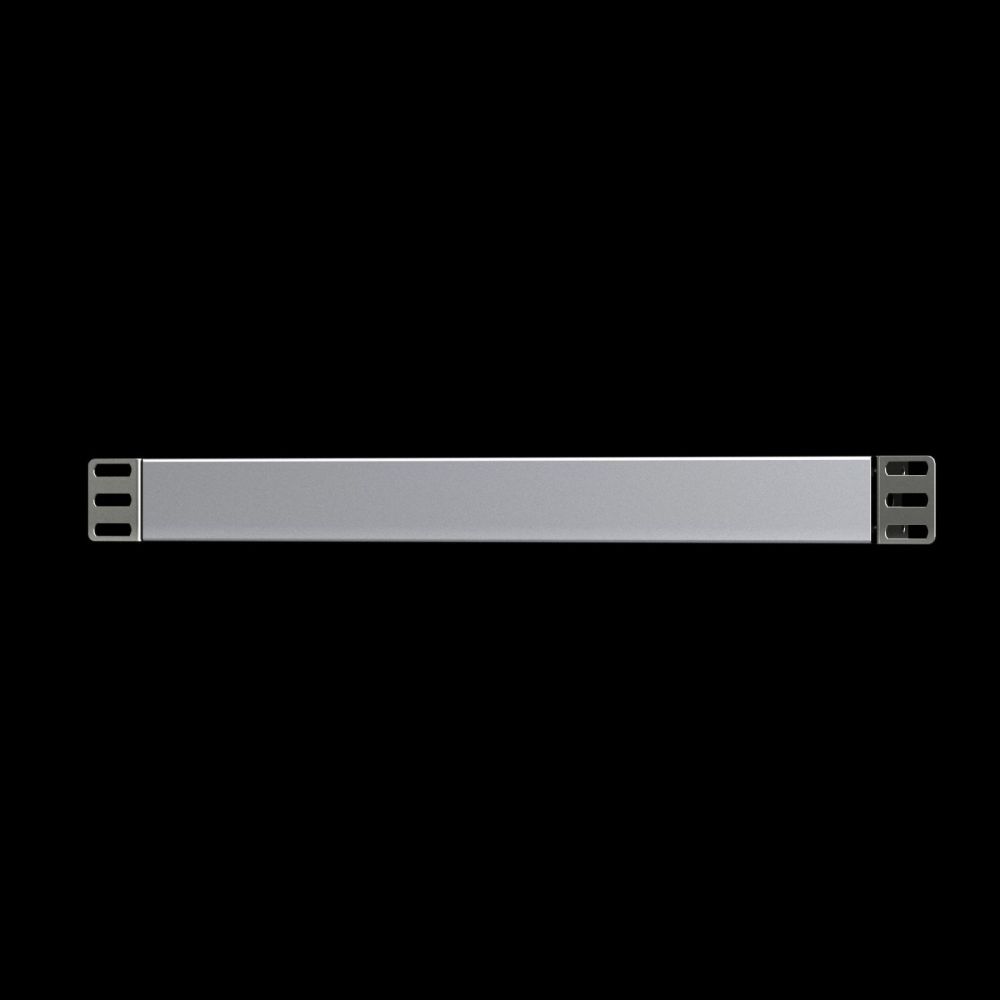

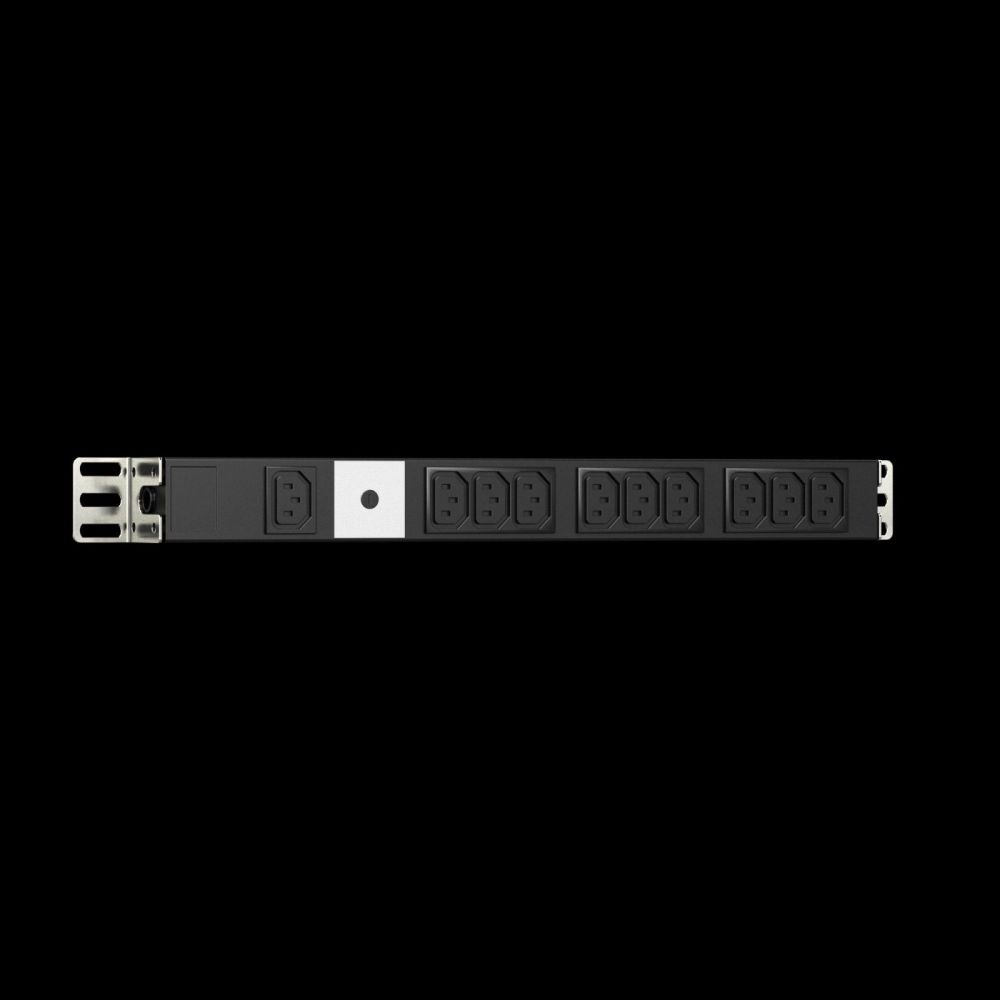

Rittal 7240201 DK Socket strip, IEC 320 socket C13, 9-way, 250 V, 10 A, LHD: 482,6x44x44 mm, For IEC 320 connectors with IEC 320 input
|
-11% 82,46 EUR 93,10 EUR |
|
|
( 98,13 EUR incl. VAT ) ≈ £70.75 | ≈ $95.57 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: 5 pieces | |
| Lieske Part No.: | 755740 |
|---|---|
| Mfg Part No: | 7240201 |
| UPC/EAN: | 4028177237544 |
| Weight: | 0.64 kg |
Product information for Rittal 7240201:
Socket strips in an aluminium duct.
Benefits: Practical, universal fastening
Providing flexibility and saving on warehousing.
In the the 482.6 mm (48,3 cm ( 19 inch )) section there is adequate space to route the infeed between the socket strip and the mounting angle without kinks
Material: Aluminium section, natural anodised
Socket inserts: Polycarbonate
Standards: Sockets: DIN VDE 0620-1
Supply includes: Socket strip
Two mounting brackets
Assembly parts
Note: Depending on the application, we recommend use of a charging current reserve to prevent incorrect activation due to starting-current spikes
Variable attachment distance within a range of 25 mm, the distance given is hole centre – hole centre of mounting bracket
Packs of: 1 pc(s).
EAN: 4028177237544
Customs tariff number: 85369085
eCl@ss 5.1: 27143401
eCl@ss 7.0: 27142604
ETIM 6.0: EC000330
Design: With IEC 320 input
Dimensions: Height: 44 mm
Depth: 44 mm
Length: 482.6 mm
Installation options: Components with a 25 mm pitch pattern
IT wall-mounted distributor, at the rear, horizontal (adequate width provided)
Enclosure frame
482.6 mm (48,3 cm ( 19 inch )) level
Mounting dimensions: 452.5 mm
Tolerance: ± 25 mm
Rated voltage: 250 V AC
Rated current (max.): 10 A
Equipment (electrical): Number of sockets: 9
Jack/socket (type): IEC 320 socket C13
Colour of socket: Black
Connection cable (type): H05VV-F3G1.5
Weight/pack: 0.64 kg
Type: DK 7240201
Benefits: Practical, universal fastening
Providing flexibility and saving on warehousing.
In the the 482.6 mm (48,3 cm ( 19 inch )) section there is adequate space to route the infeed between the socket strip and the mounting angle without kinks
Material: Aluminium section, natural anodised
Socket inserts: Polycarbonate
Standards: Sockets: DIN VDE 0620-1
Supply includes: Socket strip
Two mounting brackets
Assembly parts
Note: Depending on the application, we recommend use of a charging current reserve to prevent incorrect activation due to starting-current spikes
Variable attachment distance within a range of 25 mm, the distance given is hole centre – hole centre of mounting bracket
Packs of: 1 pc(s).
EAN: 4028177237544
Customs tariff number: 85369085
eCl@ss 5.1: 27143401
eCl@ss 7.0: 27142604
ETIM 6.0: EC000330
Design: With IEC 320 input
Dimensions: Height: 44 mm
Depth: 44 mm
Length: 482.6 mm
Installation options: Components with a 25 mm pitch pattern
IT wall-mounted distributor, at the rear, horizontal (adequate width provided)
Enclosure frame
482.6 mm (48,3 cm ( 19 inch )) level
Mounting dimensions: 452.5 mm
Tolerance: ± 25 mm
Rated voltage: 250 V AC
Rated current (max.): 10 A
Equipment (electrical): Number of sockets: 9
Jack/socket (type): IEC 320 socket C13
Colour of socket: Black
Connection cable (type): H05VV-F3G1.5
Weight/pack: 0.64 kg
Type: DK 7240201
