Rittal 3166230 SK roof fan for VX IT for the office area

Your rating:
Average rating
product review for Rittal 3166230 SK roof fan for VX IT for the office area
( 5 / 5 ) 2 ratings

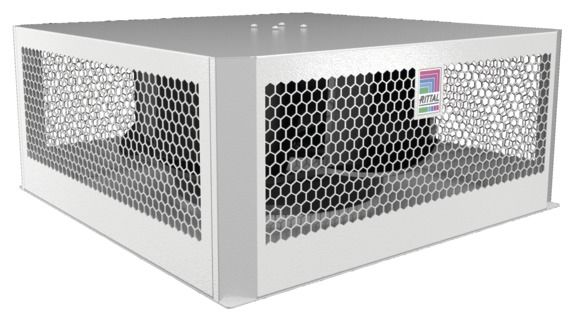

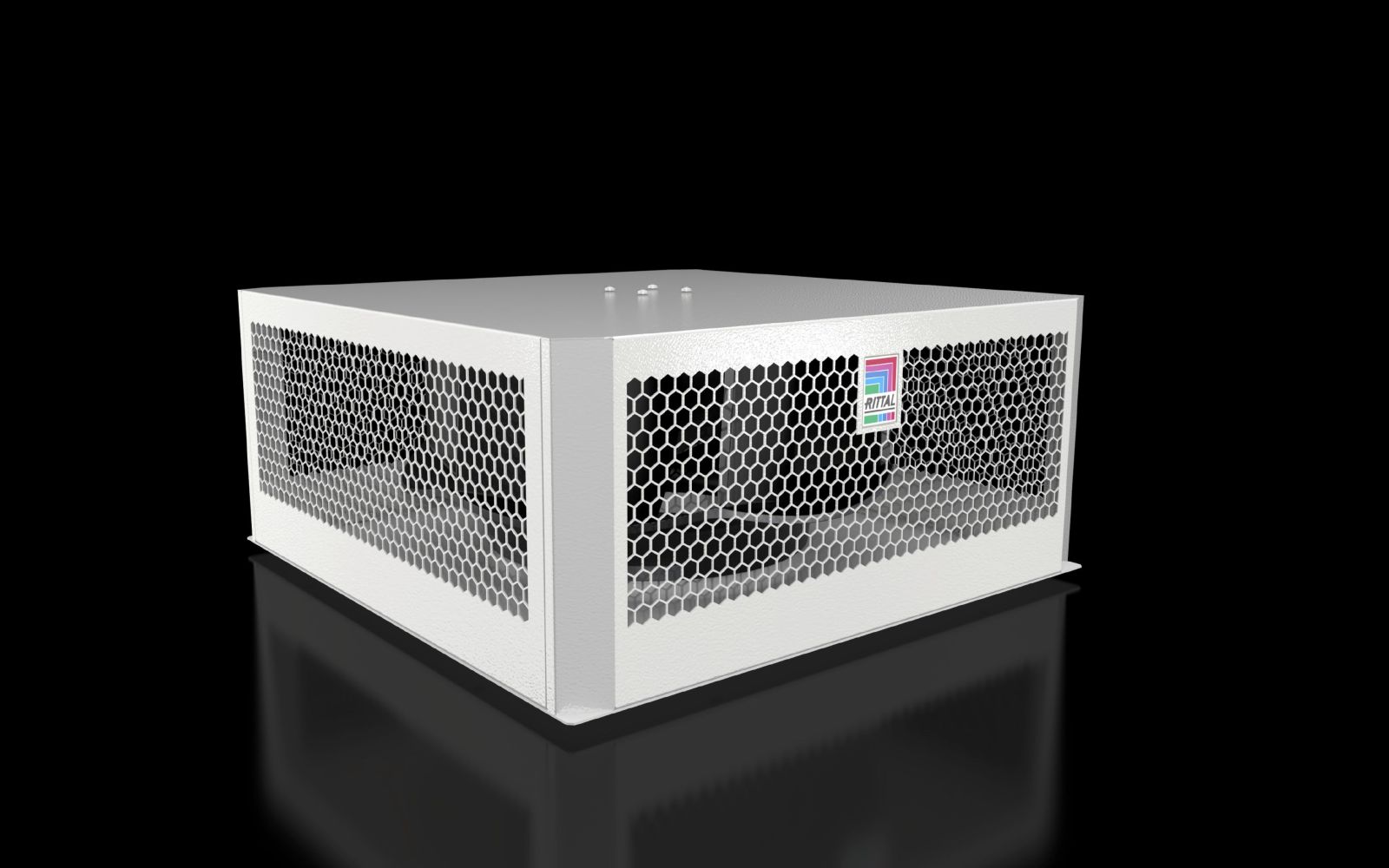

Rittal 3166230
This image may differ from the desired article.
Rittal 3166230Rittal 3166230
-21% 696,90 EUR 880,55 EUR
( 829,31 EUR incl. VAT )
≈ £583.31  |  ≈ $765.89
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 3166230 SK roof fan for VX IT for the office area
Datasheet:file_download Download
Lieske Part No.:1920782
Mfg Part No: 3166230
UPC/EAN: 4028177966277
Weight:11.96 kg
Type:SK 3166.230

Product information for Rittal 3166230:

The Rittal SK 3166.230 is a roof fan for use in enclosures of the VX IT and TS IT series, specifically designed for office environments. The device features a very low operating noise level of 39 dB(A), making it suitable for environments with high requirements for noise reduction. The air performance is 950 m³/h at the operating point with a back pressure of 40 Pa, while the free-blowing air performance reaches 1,345 m³/h. The fan unit is pre-assembled and pre-wired for connection, simplifying installation. The rated operating voltage is 200 V to 240 V, 1~, and is designed for frequencies of 50 Hz and 60 Hz, enabling worldwide use. The rated power is 30 W at both frequencies, and the maximum rated current is 0.3 A. The operating temperature range extends from +5 °C to +55 °C, making the fan suitable for use in rooms with moderate temperature fluctuations.

Applications

The fan is primarily intended for use in enclosures in office environments where quiet and reliable ventilation is required. It is specifically designed for integration into the roof plates of Rittal enclosures VX IT and TS IT, with the mounting cutout having a width and depth of 410 mm each. The fan’s own dimensions are 470 mm width, 200 mm height, and 470 mm depth. The protection rating IP 20 according to EN 60 529 protects against finger contact and ingress of solid foreign objects, but not against water or dust, requiring indoor use.

Functions and Equipment in Detail

The fan features a speed-controlled function that adjusts performance to the actual cooling demand. This increases energy efficiency and reduces unnecessary energy consumption. Temperature control is achieved via an integrated speed controller that adjusts the fan speed according to ambient temperature. The connection technology uses a C13 cold appliance socket, enabling a simple and secure connection to the power supply. The unit is equipped with an integrated pre-fuse, including a circuit breaker or fuse with a 10 A rated value, to protect the fan against overloads.

Technology Explained Simply

The speed-controlled control ensures that the fan does not run continuously at maximum capacity, but instead adjusts its speed according to the temperature inside the enclosure. This results in lower noise levels and a longer fan lifespan. The air performance of 950 m³/h at the operating point is sufficient to effectively ventilate a medium-sized enclosure, while the free-blowing performance of 1,345 m³/h represents the maximum air volume the fan can move without resistance. The sound pressure level of 39 dB(A) corresponds approximately to the noise level of a quiet conversation, making the fan suitable for office environments.

Compatibility and Accessories

The fan is specifically developed for the VX IT and TS IT enclosure series from Rittal. Compatible accessories include connection cables for power supply IEC60 320 C13, connection cables for PSM D/F/B/C13, thermostats for internal temperature control, socket strips in various configurations, and connection cables for CMC III. These components can be used to extend functionality or adapt to specific requirements.

Mounting and Installation

Installation is carried out directly into the integrated cutout in the roof plate, with dimensions of 410 mm width and 410 mm depth. The fan unit is pre-wired for connection and is mounted using the included mounting hardware. The installation and quick operating instructions, included in the delivery, provide guidance for correct installation and commissioning.

Advantages in Operation

The fan offers a reliable and quiet ventilation solution for enclosures in office environments. The speed-controlled control ensures optimal cooling performance while saving energy. The simple connection technology with C13 socket and the pre-assembled design reduce installation time. Worldwide usability, enabled by multi-voltage capability and international certification (UL + C-UL), allows use in various countries without additional modifications. The integrated pre-fuse increases safety and prevents damage from overloads.

General
Applicationsfor office area
Function principleThe speed-controlled fan optimally adapts the performance to the actual demand
Materialsheet steel, painted
ColourRAL 7035
Scope of delivery1 fan unit, speed controller, pre-wired, including mounting material, installation and quick start guide, without roof sheet
Rated operating voltage200 V - 240 V, 1~, 50 Hz/60 Hz
Note on part numberReduction of the specified air performance to 950 m³/h at 40 Pa backpressure when using two ventilated base grilles.
Rated current max.At 50 Hz: 0.3 A, At 60 Hz: 0.3 A
Modelpre-assembled
Width470 mm
Height200 mm
Depth470 mm
Mounting cutoutWidth:410 mm, Depth:410 mm
Degree of protection IP according to EN 60 529IP 20
Temperature controlSpeed-controlled fan
Operating temperature range5 °C...55 °C
Rated power PelRated power L35 L35/50 Hz: 30 W, Rated power L35 L35/60 Hz: 30 W
Air performance (free blowing)1.345 m³/h
Airflow (at operating point)950 m³/h
Sound pressure level (at operating point)39 dB(A)
FuseCircuit breaker/fuse: 10 A


Product data sheet
Datasheet for Rittal 3166230, EAN: 4028177966277
