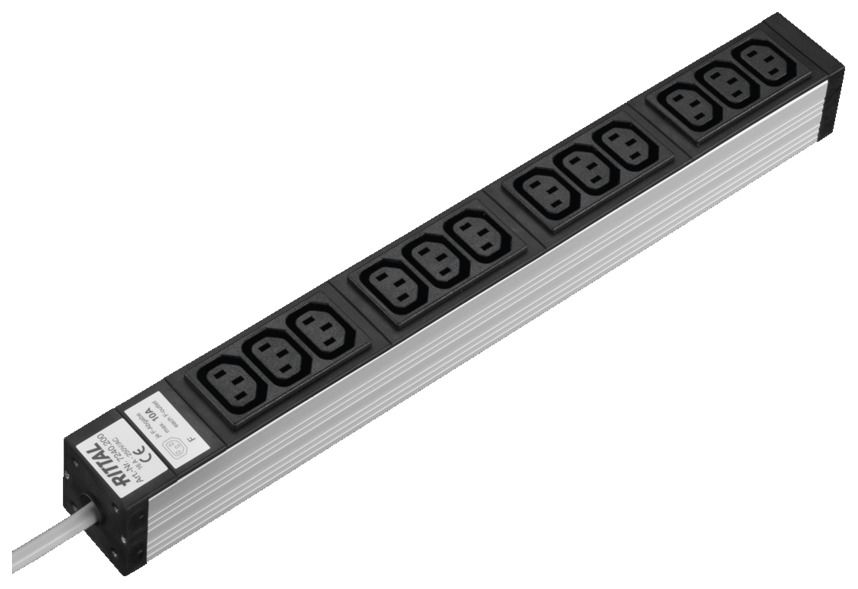

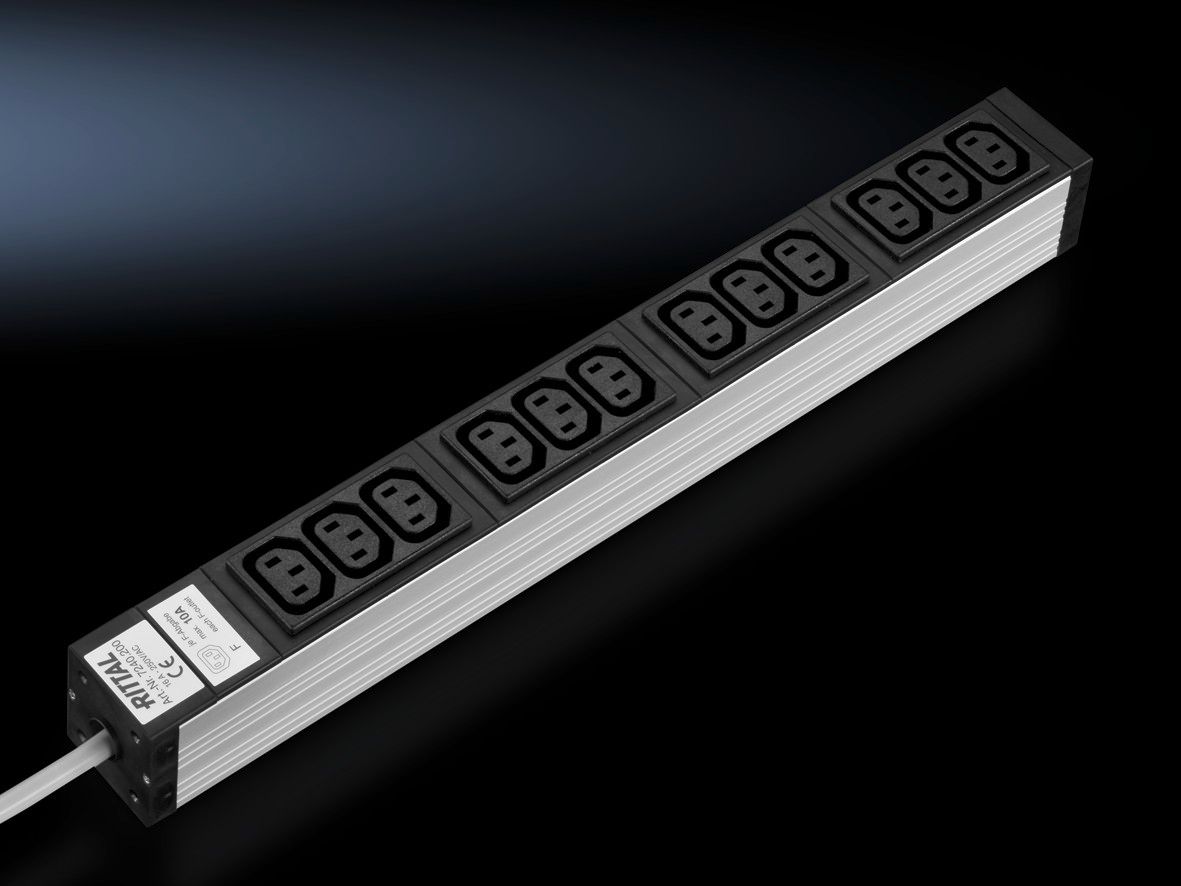

Rittal 7240200 DK Socket strip, 10 A IEC 320 connector C13, 12-way, 250 V, 16 A, LHD: 482,6x44x44 mm, Without switch
|
-11% 88,44 EUR 99,78 EUR |
|
|
( 105,24 EUR incl. VAT ) ≈ £75.88 | ≈ $102.50 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Lieske Part No.: | 292875 |
|---|---|
| Mfg Part No: | 7240200 |
| UPC/EAN: | 4028177237537 |
| Weight: | 0.874 kg |
Product information for Rittal 7240200:
Socket strips in an aluminium duct.
Benefits: Practical, universal fastening
Providing flexibility and saving on warehousing.
In the the 482.6 mm (48,3 cm ( 19 inch )) section there is adequate space to route the infeed between the socket strip and the mounting angle without kinks
Material: Aluminium section, natural anodised
Socket inserts: Polycarbonate
Standards: EN 60 320-2-2
Supply includes: Socket strip
Two mounting brackets
Assembly parts
Note: Depending on the application, we recommend use of a charging current reserve to prevent incorrect activation due to starting-current spikes
Variable attachment distance within a range of 25 mm, the distance given is hole centre – hole centre of mounting bracket
Packs of: 1 pc(s).
EAN: 4028177237537
Customs tariff number: 85369085
eCl@ss 5.1: 27143401
eCl@ss 7.0: 27142604
ETIM 6.0: EC000330
Design: Without switch
Dimensions: Height: 44 mm
Depth: 44 mm
Length: 482.6 mm
Installation options: Components with a 25 mm pitch pattern
IT wall-mounted distributor, at the rear, horizontal (adequate width provided)
Enclosure frame
482.6 mm (48,3 cm ( 19 inch )) level
Mounting dimensions: 452.5 mm
Tolerance: ± 25 mm
Rated voltage: 250 V AC
Rated current (max.): 16 A
Equipment (electrical): Number of sockets: 12
Jack/socket (type): 10 A IEC 320 connector, C13
Colour of socket: Grey
Length of connection cable: 2 m
Connection cable (type): H05VV-F3G1.5
Weight/pack: 0.9 kg
Type: DK 7240200
Benefits: Practical, universal fastening
Providing flexibility and saving on warehousing.
In the the 482.6 mm (48,3 cm ( 19 inch )) section there is adequate space to route the infeed between the socket strip and the mounting angle without kinks
Material: Aluminium section, natural anodised
Socket inserts: Polycarbonate
Standards: EN 60 320-2-2
Supply includes: Socket strip
Two mounting brackets
Assembly parts
Note: Depending on the application, we recommend use of a charging current reserve to prevent incorrect activation due to starting-current spikes
Variable attachment distance within a range of 25 mm, the distance given is hole centre – hole centre of mounting bracket
Packs of: 1 pc(s).
EAN: 4028177237537
Customs tariff number: 85369085
eCl@ss 5.1: 27143401
eCl@ss 7.0: 27142604
ETIM 6.0: EC000330
Design: Without switch
Dimensions: Height: 44 mm
Depth: 44 mm
Length: 482.6 mm
Installation options: Components with a 25 mm pitch pattern
IT wall-mounted distributor, at the rear, horizontal (adequate width provided)
Enclosure frame
482.6 mm (48,3 cm ( 19 inch )) level
Mounting dimensions: 452.5 mm
Tolerance: ± 25 mm
Rated voltage: 250 V AC
Rated current (max.): 16 A
Equipment (electrical): Number of sockets: 12
Jack/socket (type): 10 A IEC 320 connector, C13
Colour of socket: Grey
Length of connection cable: 2 m
Connection cable (type): H05VV-F3G1.5
Weight/pack: 0.9 kg
Type: DK 7240200
