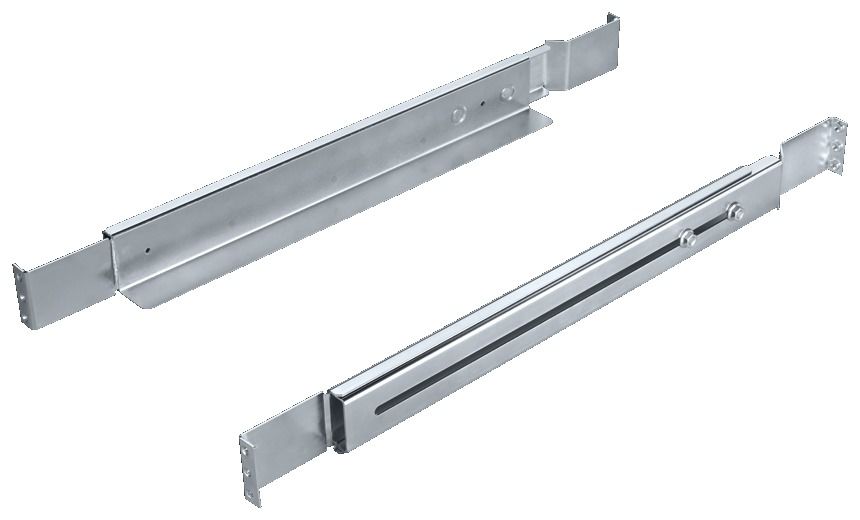

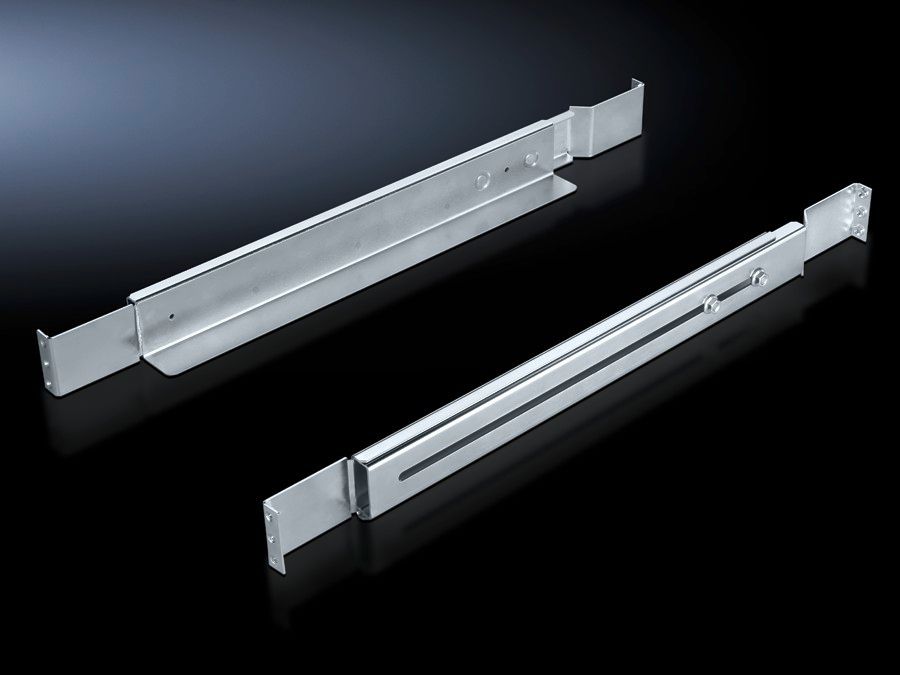

Rittal 7063750 DK Slide rail, Support surface Width: 30 mm, 1 U, depth-variable, 20 kg, static, distance between levels: 390-550 mm, For TS IT, TE
|
82,11 EUR |
|
|
( 97,71 EUR incl. VAT ) ≈ £69.79 | ≈ $92.21 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 828716 |
| Mfg Part No: | 7063750 |
| UPC/EAN: | 4028177625440 |
| Weight: | 1.98 kg |
| Type: | DK 7063750 |
Further Cat6 Patch Cable from RittalFurther products in category Cat6 Patch Cable
All products of Rittal
Product information for Rittal 7063750:

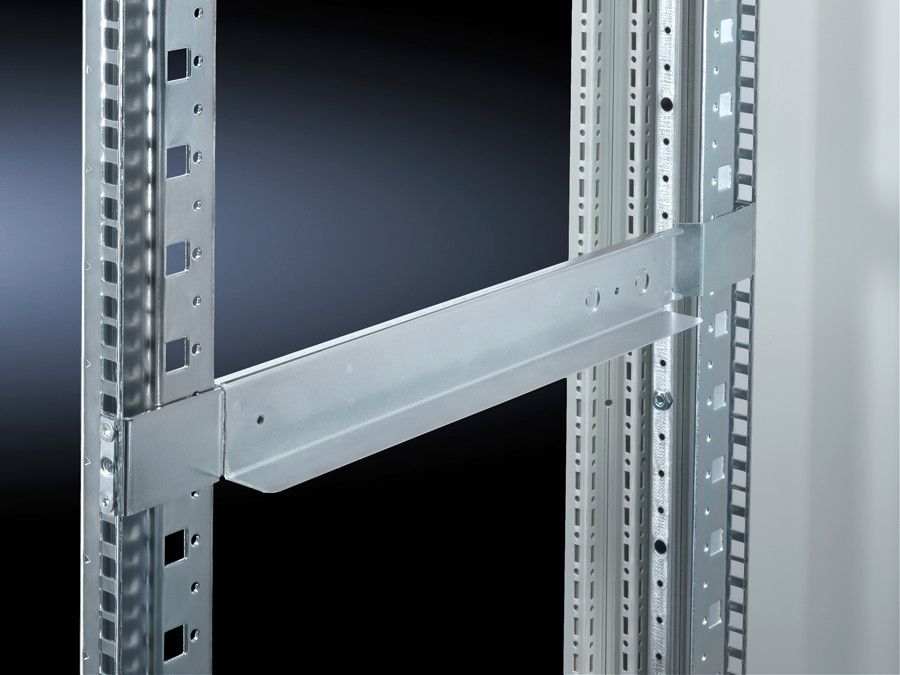

For direct attachment to the 482.6 mm (48,3 cm ( 19 inch )) system punchings on the mounting angles. The slide rails are pulled out to the required length and secured between the front and rear mounting level on the 482.6 mm (48,3 cm ( 19 inch )) pitch pattern.
Benefits: No loss of U
Thanks to the thin support surface of only around 0.8 mm thickness, exceeding the U pitch pattern is generally avoided, provided the components do not exceed a maximum height of 43.5 mm. In this way, several units may be easily arranged on top of one another without offset.
Applications: For mounting between the front and the rear pair of mounting angles
Material: Sheet steel
Surface finish: Zinc-plated
Supply includes: Assembly parts
Note: Effective contact surface 30 mm per side
Packs of: 2 pc(s).
EAN: 4028177625440
Customs tariff number: 73269098
eCl@ss 5.1: 27182504
eCl@ss 7.0: 27182590
ETIM 6.0: EC002625
Installation options: For attachment between the front and rear 482.6 mm (48,3 cm ( 19 inch )) mounting level (L-section, TS IT section, cranked section, TE mounting frame)
Distance between levels: min.: 390 mm
max.: 550 mm
Contact surface: Width: 30 mm
Units: 1 U
Load capacity: 20 kg static load
Weight/pack: 1.98 kg
Benefits: No loss of U
Thanks to the thin support surface of only around 0.8 mm thickness, exceeding the U pitch pattern is generally avoided, provided the components do not exceed a maximum height of 43.5 mm. In this way, several units may be easily arranged on top of one another without offset.
Applications: For mounting between the front and the rear pair of mounting angles
Material: Sheet steel
Surface finish: Zinc-plated
Supply includes: Assembly parts
Note: Effective contact surface 30 mm per side
Packs of: 2 pc(s).
EAN: 4028177625440
Customs tariff number: 73269098
eCl@ss 5.1: 27182504
eCl@ss 7.0: 27182590
ETIM 6.0: EC002625
Installation options: For attachment between the front and rear 482.6 mm (48,3 cm ( 19 inch )) mounting level (L-section, TS IT section, cranked section, TE mounting frame)
Distance between levels: min.: 390 mm
max.: 550 mm
Contact surface: Width: 30 mm
Units: 1 U
Load capacity: 20 kg static load
Weight/pack: 1.98 kg
