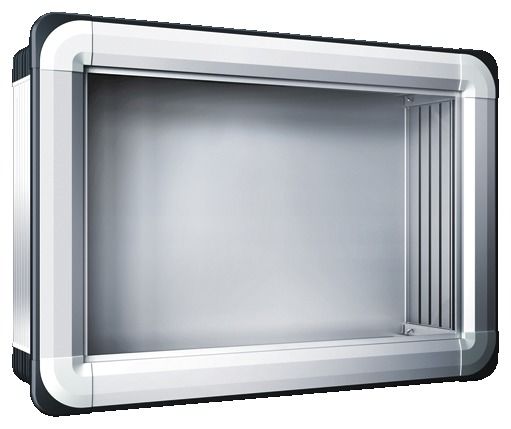

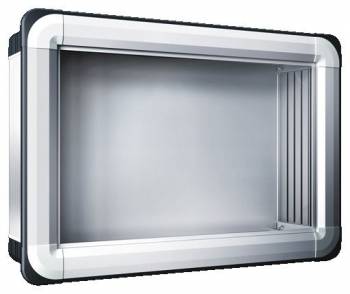

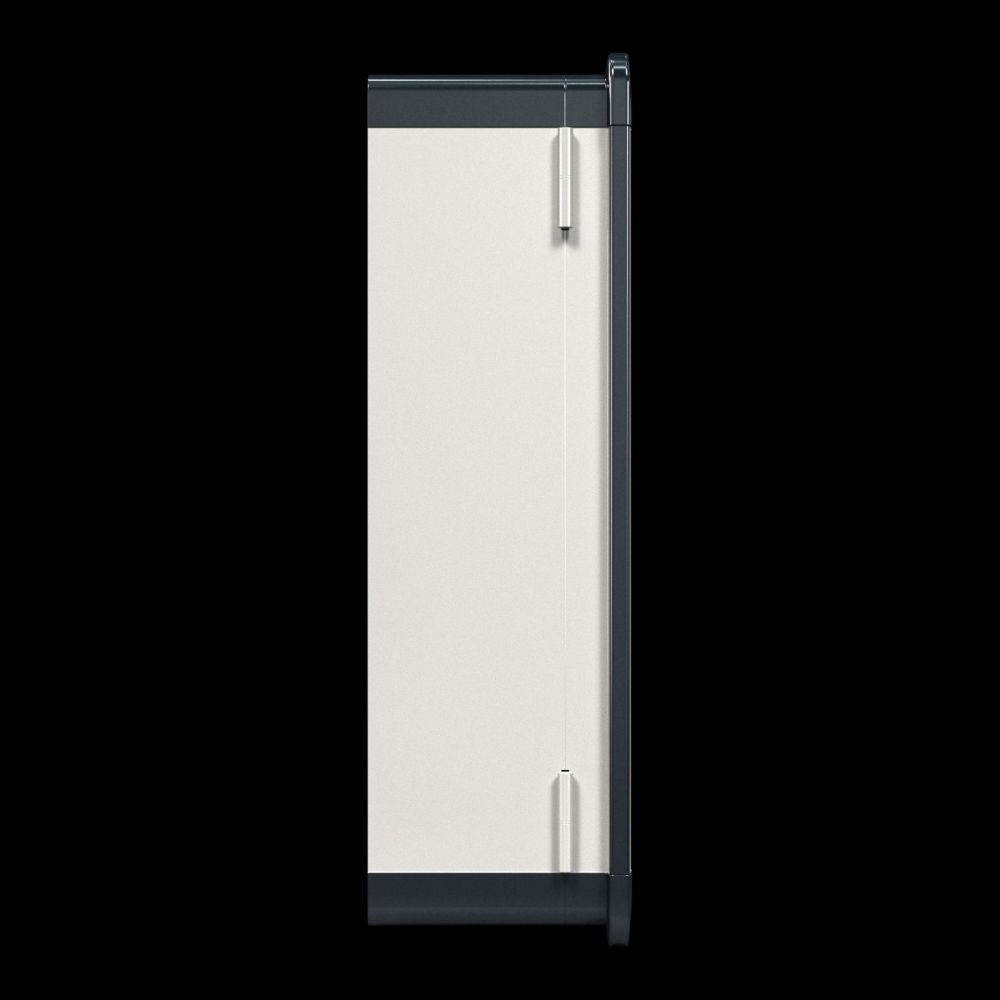

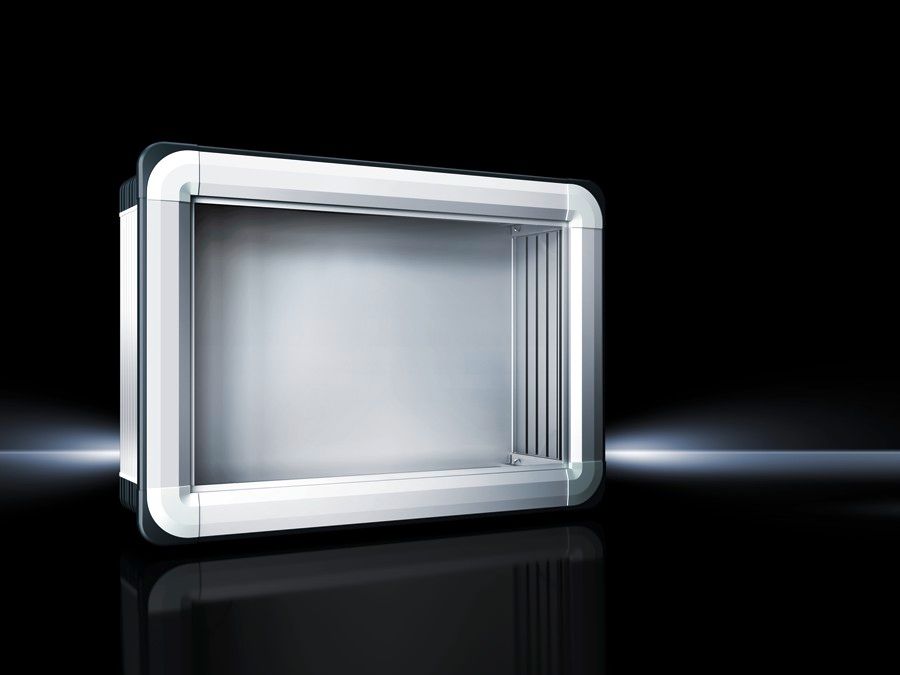

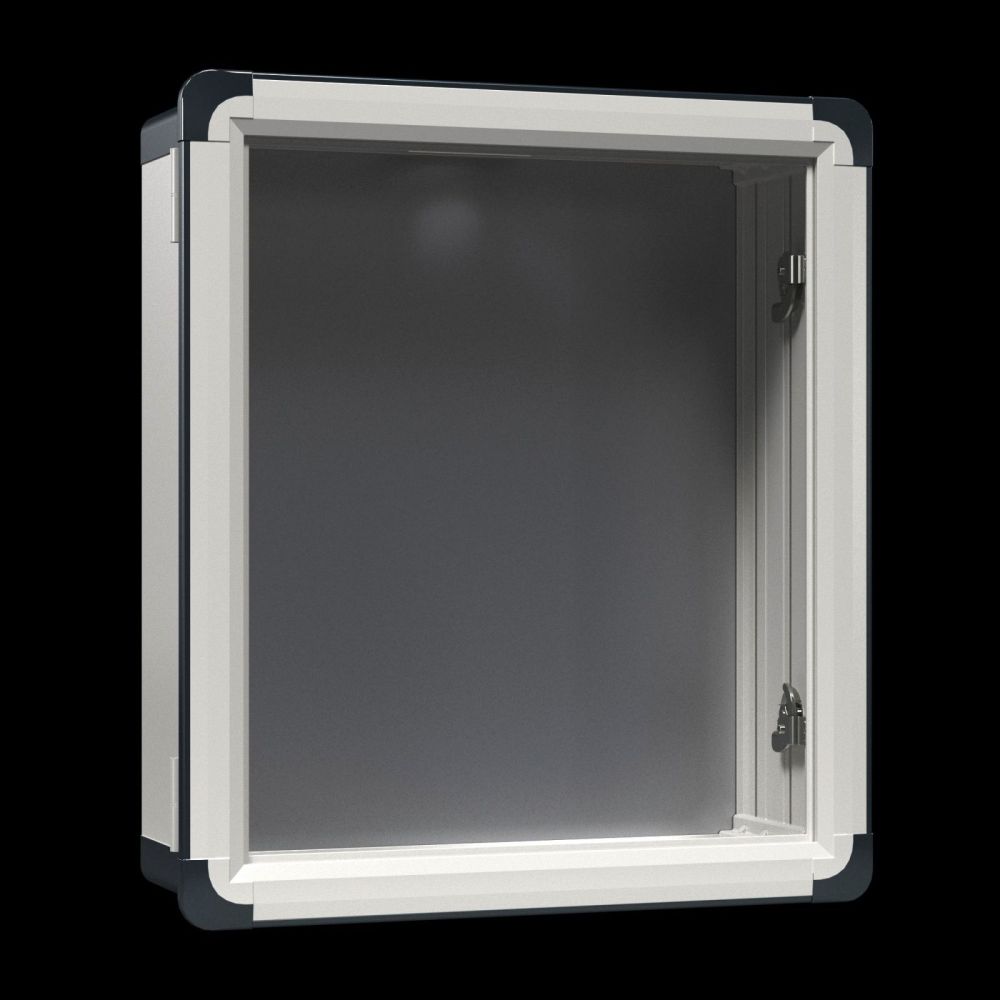

Rittal 6372553 CP Compact Panel, for front panel BH 520x500 mm, installation depth 191 mm
|
-8% 663,55 EUR 718,64 EUR |
|
|
( 789,62 EUR incl. VAT ) ≈ £569.33 | ≈ $769.05 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 754000 |
|---|---|
| Mfg Part No: | 6372553 |
| UPC/EAN: | 4028177663114 |
| Weight: | 0.123 kg |
Further Switchboard-Systems from RittalFurther products in category Switchboard-Systems
All products of Rittal
Product information for Rittal 6372553:
Benefits: Aluminium enclosure, high thermal conductivity for optimum passive heat dissipation.
Low weight coupled with high stability
Compatible with all Rittal stand and support arm systems
Material: Enclosure: Extruded aluminium section
Corner pieces: Die-cast zinc
Corner protectors: Plastic
Colour: Enclosure: Natural anodised.
Corner pieces: RAL 7035
Corner protectors: similar to RAL 7024
Protection category IP to IEC 60 529: IP 65
Protection category NEMA: NEMA 12

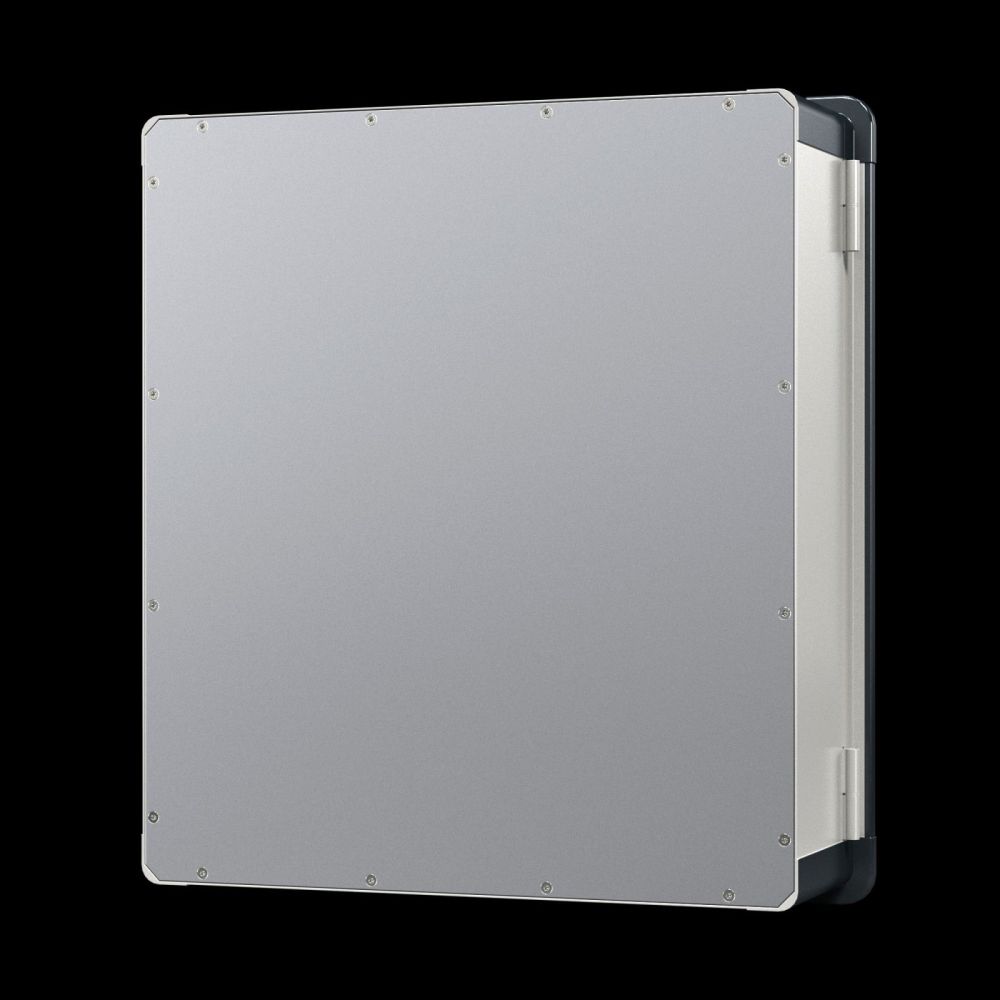

Supply includes: Enclosure with screw-fastened rear panel
Seals and assembly parts for front panels.
Note: The support arm connection may be swapped over by rotating the enclosure
3 mm double-bit lock insert may be exchanged for 41 mm lock inserts, plastic handles and T handles, type C

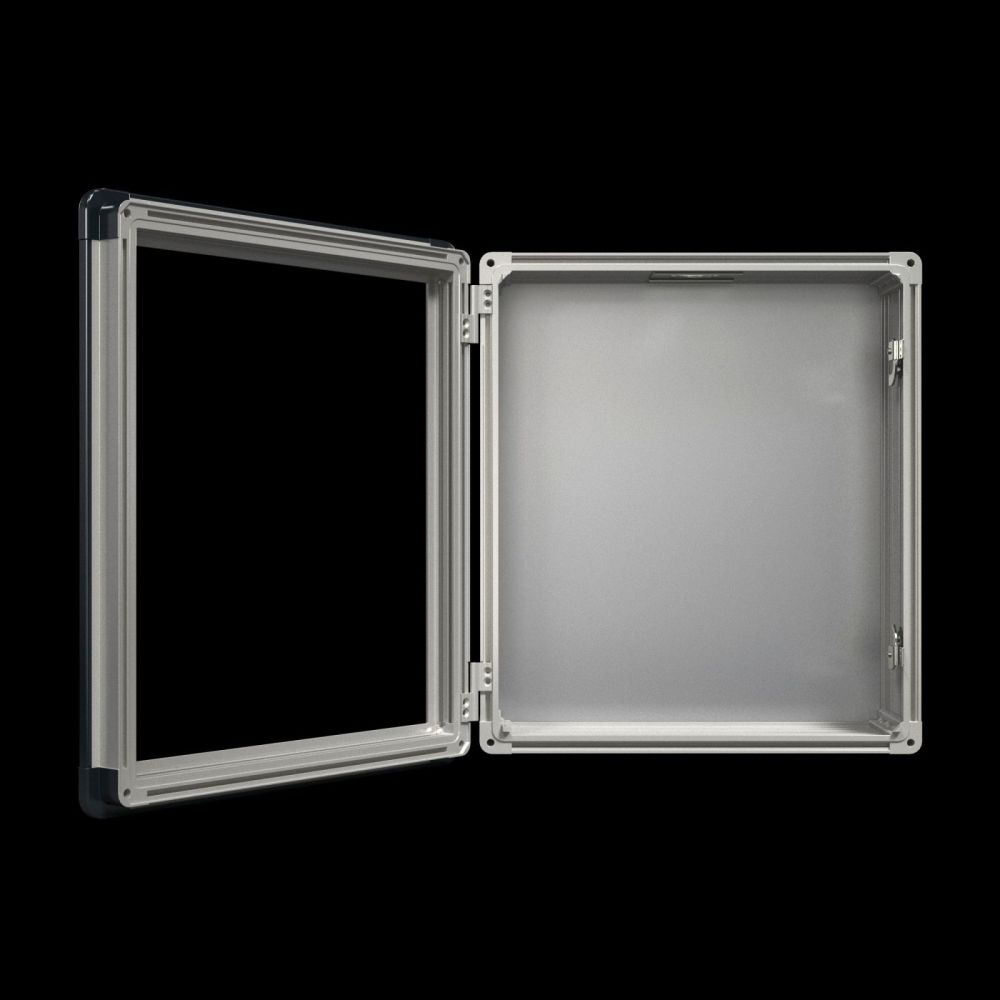

Enclosure hinged at the front
Packs of: 1 pc(s).
EAN: 4028177663114
Customs tariff number: 94039010
eCl@ss 5.1: 27180505
eCl@ss 7.0: 27180505
ETIM 6.0: EC002504
Design: Support arm connection Ø 130 mm
For the configuration of subracks: To fit front panel width: 520 mm
Installation depth: 191 mm
To fit front panels: with width: 520 mm
with height: 500 mm
Lock version: Crescent-shaped cam
Number of locks: 2
Lock insert: 3 mm double-bit
Weight/pack: 15.2 kg
Type: CP 6372553
Low weight coupled with high stability
Compatible with all Rittal stand and support arm systems
Material: Enclosure: Extruded aluminium section
Corner pieces: Die-cast zinc
Corner protectors: Plastic
Colour: Enclosure: Natural anodised.
Corner pieces: RAL 7035
Corner protectors: similar to RAL 7024
Protection category IP to IEC 60 529: IP 65
Protection category NEMA: NEMA 12
Supply includes: Enclosure with screw-fastened rear panel
Seals and assembly parts for front panels.
Note: The support arm connection may be swapped over by rotating the enclosure
3 mm double-bit lock insert may be exchanged for 41 mm lock inserts, plastic handles and T handles, type C
Enclosure hinged at the front
Packs of: 1 pc(s).
EAN: 4028177663114
Customs tariff number: 94039010
eCl@ss 5.1: 27180505
eCl@ss 7.0: 27180505
ETIM 6.0: EC002504
Design: Support arm connection Ø 130 mm
For the configuration of subracks: To fit front panel width: 520 mm
Installation depth: 191 mm
To fit front panels: with width: 520 mm
with height: 500 mm
Lock version: Crescent-shaped cam
Number of locks: 2
Lock insert: 3 mm double-bit
Weight/pack: 15.2 kg
Type: CP 6372553
