Rittal 6206490 Connection console for rear connection of flat cable

Your rating:
Average rating
product review for Rittal 6206490 Connection console for rear connection of flat cable
( 4.6 / 5 ) 8 ratings
Rittal 6206490
This image may differ from the desired article.
Rittal 6206490Rittal 6206490Rittal 6206490
-10% 84,07 EUR 93,78 EUR
( 100,04 EUR incl. VAT )
≈ £70.37  |  ≈ $92.39
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 6206490 Connection console for rear connection of flat cable
Datasheet:file_download Download
Lieske Part No.:1343456
Mfg Part No: 6206490
UPC/EAN: 4028177814059
Weight:0.622 kg
Type:CP 6206490

Product information for Rittal 6206490:

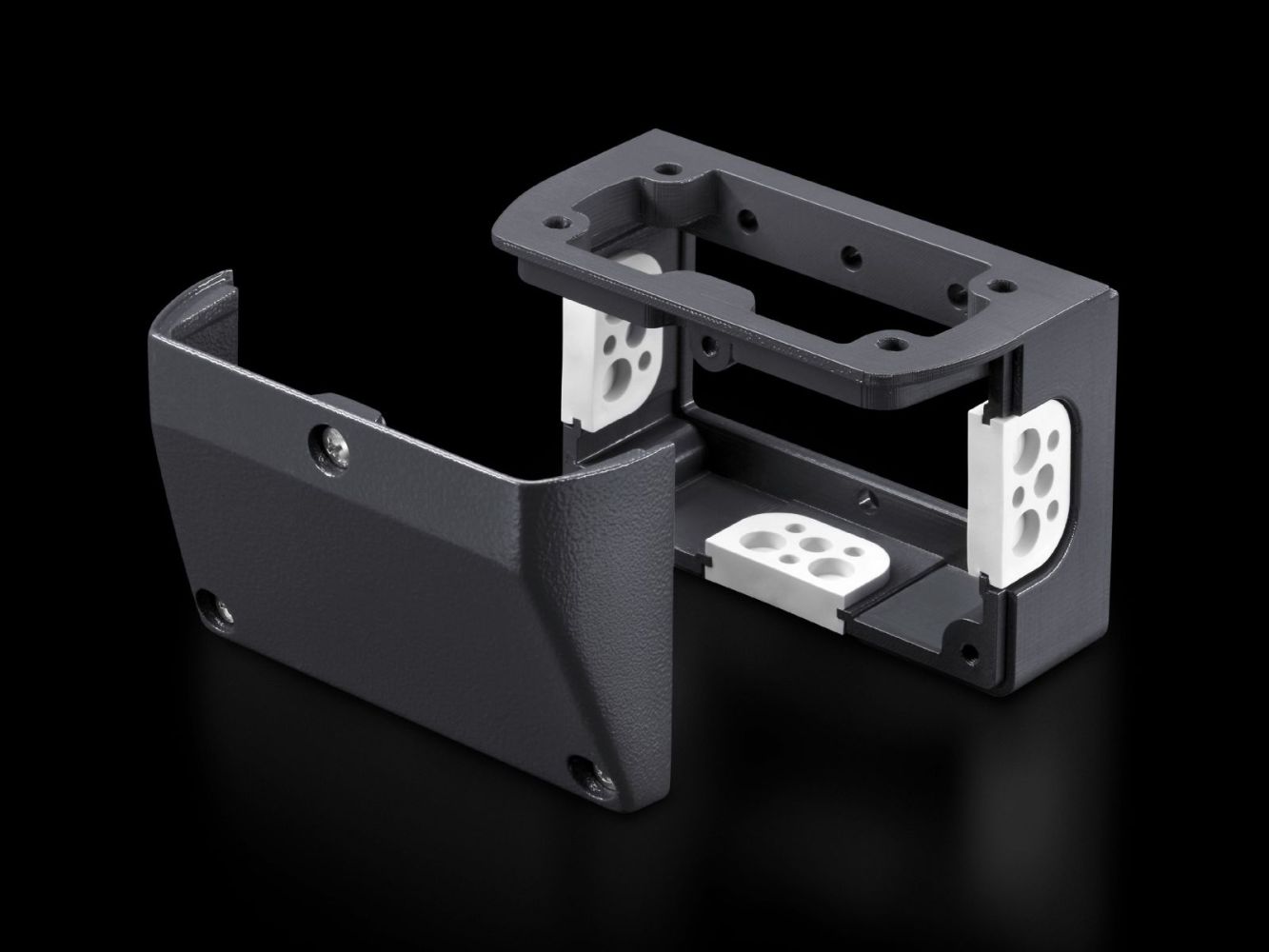

The Rittal CP 6206490 is a connection console made of aluminium casting, specifically designed for rear-side connection of flat command panel housings to Rittal support arm systems. It enables connection to models such as CP 40, CP 60, and CP 120 via an adapter that ensures transition from the support arm connection with a diameter of 130 mm to dimensions 120 x 65 mm. The console is rigidly constructed and serves as a fixed mounting base for control panels, particularly for Beckhoff Control-Panels. The removable cover facilitates cable entry and provides access to the rear of the device.

Applications

The connection console is used in industrial plants where flat control or operating devices must be mounted onto existing support arm structures. It is particularly suitable for installations requiring clean and structured cable routing. The lateral cable entry ferrules allow cables to be routed to devices located outside or below the console, increasing installation flexibility.

Functions and Equipment in Detail

The console is made of aluminium casting, ensuring high mechanical stability and corrosion resistance. The colouring is RAL 7024 for the console and cover, while the cable entry ferrules are in RAL 7035. The delivery includes two cable ties, a seal, and the required mounting material. The removable cover allows easy access to the rear and simplifies installation and maintenance.

Technology Explained Simply

The construction of the connection console is based on a solid aluminium casting body, providing the necessary stiffness for mounting control panels. The adapter allows adaptation to various support arm diameters, making the console universally applicable. The lateral cable entry ferrules are positioned to allow cables to be routed horizontally, facilitating integration into existing installations. The seal included in the delivery ensures a spark-proof closure, especially important in industrial environments.

Compatibility and Accessories

The console is compatible with Rittal support arm systems of types CP 40, CP 60, and CP 120. For mounting on these systems, an adapter is required to enable transition from Ø 130 mm to 120 x 65 mm. Available accessories include couplings such as the CP 120/60 coupling for support arm connection 120x65 mm, the CP 40 steel coupling for the same connection, and the CP 60/40 mounting. These components are required depending on the application to ensure secure and stable mounting.

Mounting and Installation

Mounting is performed via the integrated adapter onto existing support arm structures. Fixing is done using the mounting material included in the delivery. The lateral cable entry ferrules allow flexible cable routing, while positioning of the cable ties keeps the wiring structured. The removable cover facilitates access during installation and maintenance.

Advantages in Operation

The rigid construction ensures stable mounting, even under mechanical stress. The integrated seal provides a spark-proof closure, increasing reliability in industrial environments. The combination of aluminium casting and removable cover enables easy installation and maintenance, while the lateral cable entry ferrules support flexible cable routing. Compatibility with various support arm types increases the console’s application flexibility in different plant configurations.

General
ModelConnection to Rittal mounting arm systems, CP 40, CP 60, CP 120 via adapter from mounting arm connection Ø 130 mm to 120 x 65 mm
MaterialAluminium casting
ColourConsole, cover: RAL 7024, cable entry bushings: RAL 7035
Scope of delivery2 cable ties, incl. seal and mounting material
NoteDepending on application, mounting or coupling is required
ApplicationsFor connection to Beckhoff Control Panels; side cable entry glands enable cable routing to devices above and below the console
Rigid (yes/no)Ja


Product data sheet
Datasheet for Rittal 6206490, EAN: 4028177814059

Questions & answers

What is the delivery time of Rittal 6206490 Connection console for rear connection of flat cable?

The article Rittal 6206490 Connection console for rear connection of flat cable is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 6206490 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 6206490 Connection console for rear connection of flat cable always at the best possible price. We can give you a discount of 2% on Rittal 6206490 Connection console for rear connection of flat cable if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Rittal 6206490 Connection console for rear connection of flat cable

Rittal 6206340 Coupling CP 120/60 for support arm connection 120x65 mm Rittal LogoRittal 6206340 Coupling CP 120/60 for support arm connection 120x65 mm For swivel mounting of the enclosure on the vertical section of the support arm system 60
Material: Die-cast zinc
Colour: RAL 7035
Supply includes: Seals
Self-tapping screws for support section ...

Lieske Part No.: 395220
Mfg Part No: 6206340
Type: CP 6206340
123,11 EUR
Rittal 6206340 plus VAT
≈ £103.04  |  ≈ $135.30
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
Rittal 6501130 Coupling CP 40, steel, for support arm connection 120x65 mm Rittal LogoRittal 6501130 Coupling CP 40, steel, for support arm connection 120x65 mm The Rittal CP 6501130 is a housing coupling of type CP 40, specifically designed for the rotatable mounting of enclosures or housings on the vertical part of the support arm system 40. The product ...

Lieske Part No.: 642864
Mfg Part No: 6501130
Type: CP 6501130
82,80 EUR 86,11 EUR
Rittal 6501130 plus VAT
≈ £69.30  |  ≈ $91.00
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
Rittal 6206360 Mounting CP 60/40 for support arm connection 120x65 mm Rittal LogoRittal 6206360 Mounting CP 60/40 for support arm connection 120x65 mm The Rittal CP 6206360 is a mounting bracket for the support arm system 60, specifically designed for the support arm connection 120 x 65 mm. It enables stable and rigid mounting of enclosures or ...

Lieske Part No.: 993478
Mfg Part No: 6206360
Type: CP 6206360
56,24 EUR
Rittal 6206360 plus VAT
≈ £47.07  |  ≈ $61.81
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
