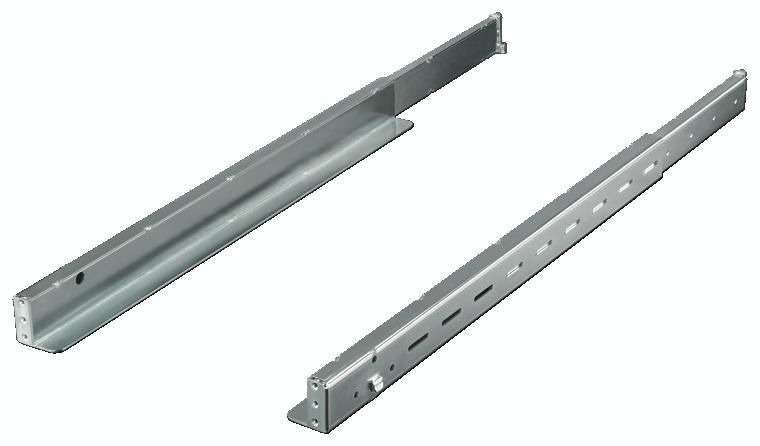

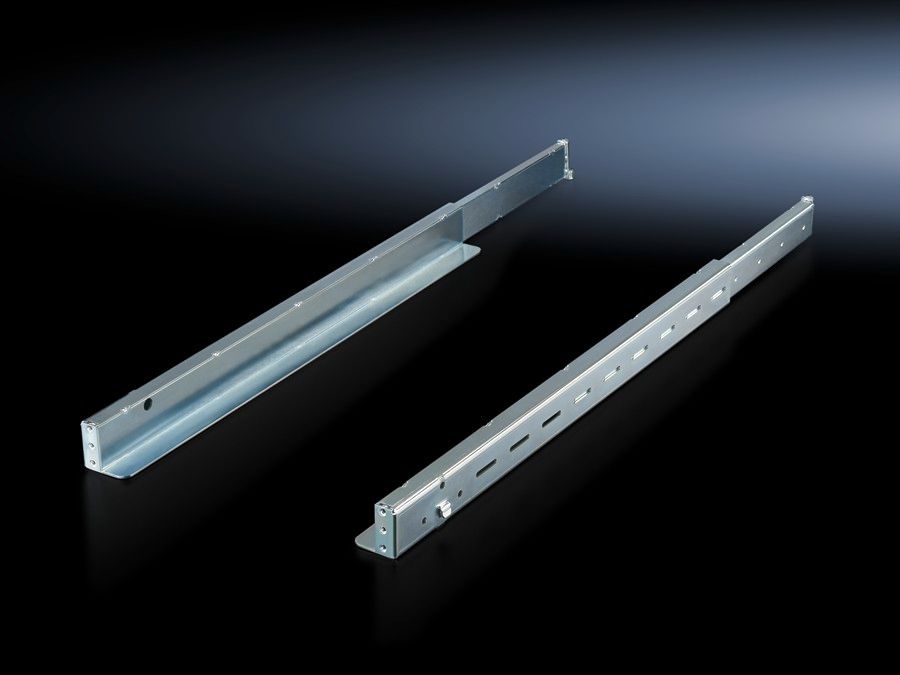

Rittal 5501460 DK Slide rail, support surface width: 25 mm, depth-variable, 80 kg
|
-7% 84,36 EUR 90,33 EUR |
|
|
( 100,39 EUR incl. VAT ) ≈ £72.30 | ≈ $95.83 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: 4 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 167015 |
| Mfg Part No: | 5501460 |
| UPC/EAN: | 4028177679016 |
| Weight: | 2.34 kg |
| Type: | DK 5501460 |
Further System Accessories from RittalFurther products in category System Accessories
All products of Rittal
Product information for Rittal 5501460:
Benefits: Tool-free, time-saving one-man assembly from the enclosure front
All three mounting holes in the EIA system punchings are available for screw-fastening the equipment.
Alternatively, direct screw fastening to the 482.6 mm (48,3 cm ( 19 inch )) system punchings is also possible

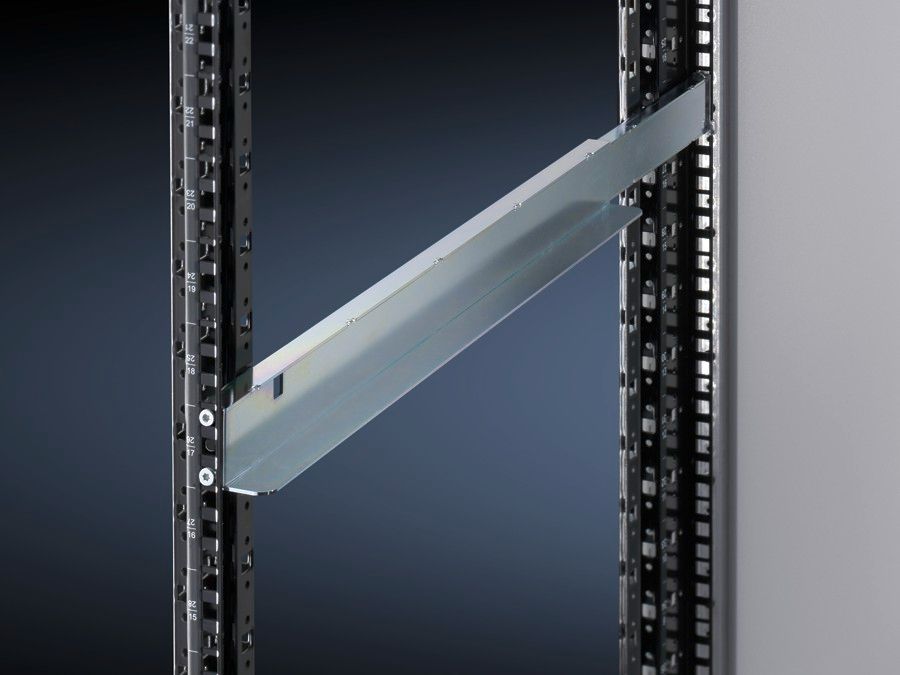

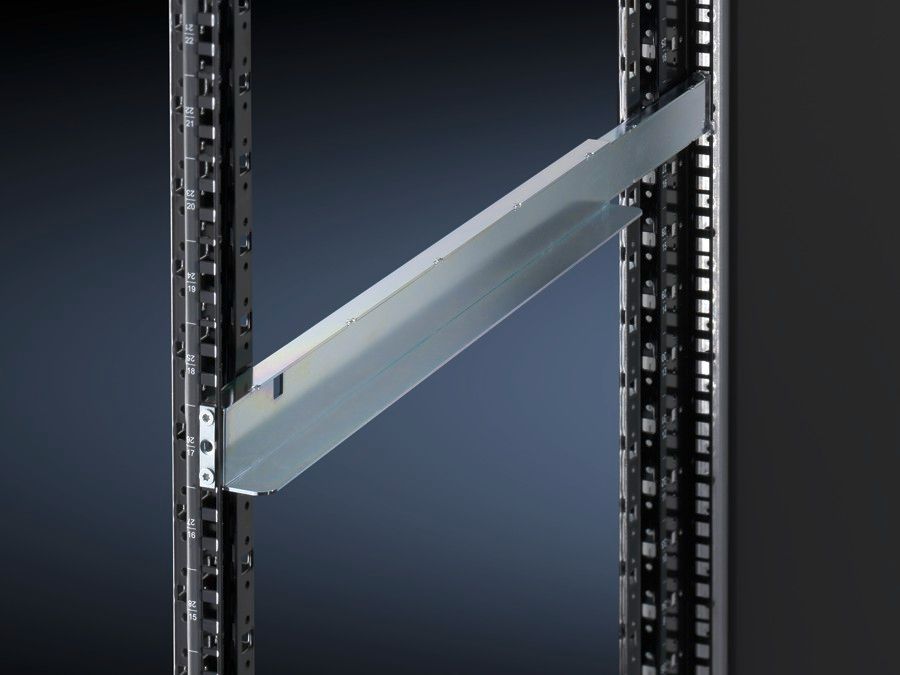

Applications: For mounting between the front and the rear pair of mounting angles
To support heavy installed equipment
To adapt to individual distances between 482.6 mm (48,3 cm ( 19 inch )) levels
Material: Sheet steel
Surface finish: Zinc-plated
Supply includes: Assembly parts
Note: Effective contact surface 25 mm per side
Packs of: 2 pc(s).
EAN: 4028177679016
Customs tariff number: 73269098
eCl@ss 5.1: 27182504
eCl@ss 7.0: 27182590
ETIM 6.0: EC002620
To fit: Enclosure type: TS IT
Enclosure type: TE 7000
Installation options: 482.6 mm (48,3 cm ( 19 inch )) L mounting angles, front and rear
482.6 mm (48,3 cm ( 19 inch )) mounting frames front and rear
Distance between levels: min.: 400 mm
max.: 600 mm
Contact surface: Width: 25 mm
Load capacity: 80 kg
Weight/pack: 2.36 kg
