Rittal 5302101 48,3 cm ( 19 inch ) profile rails standard, rear, 15 U

Your rating:
Average rating
product review for Rittal 5302101 48,3 cm ( 19 inch ) profile rails standard, rear, 15 U
( 4.3 / 5 ) 4 ratings
Rittal 5302101

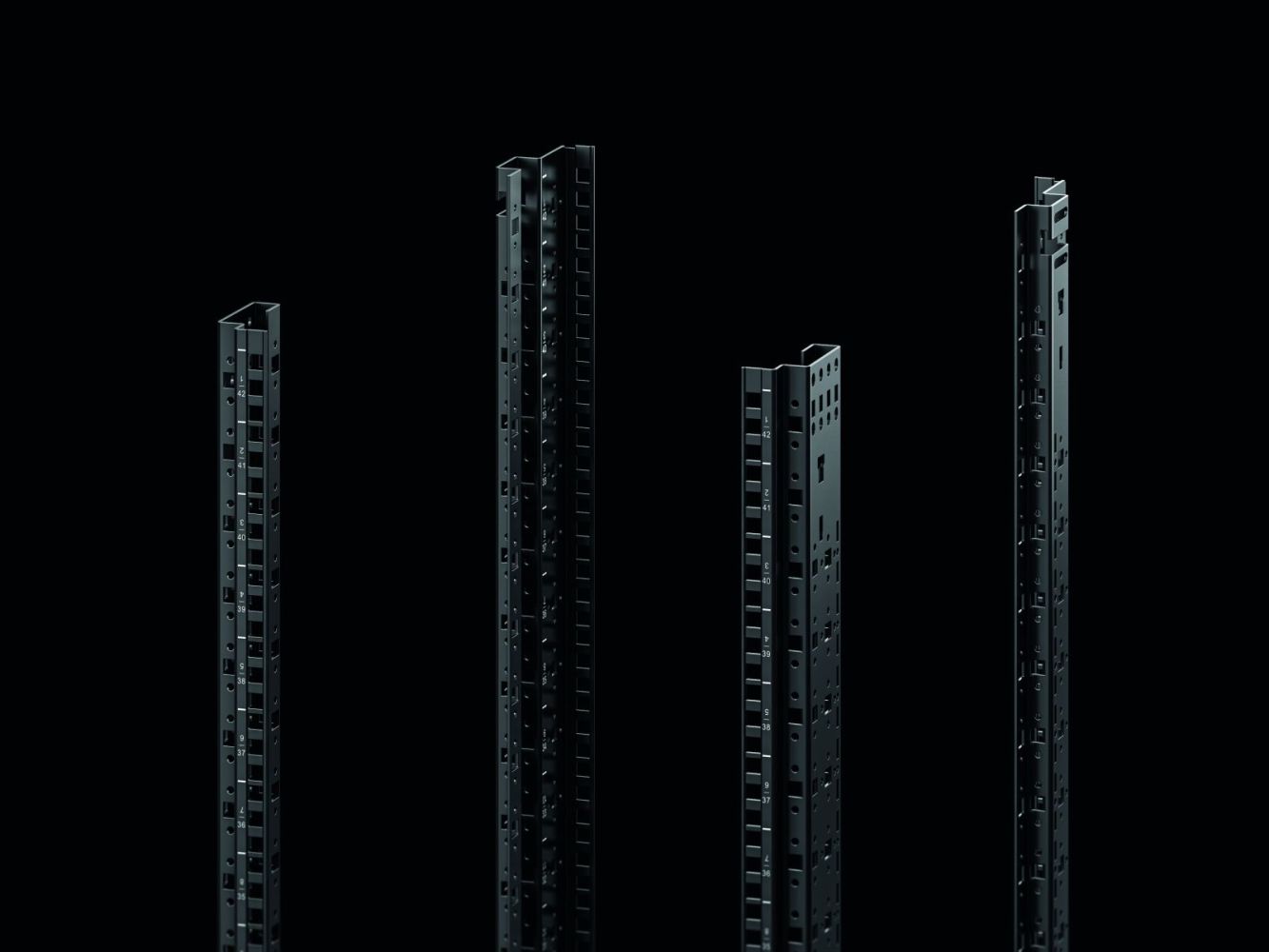

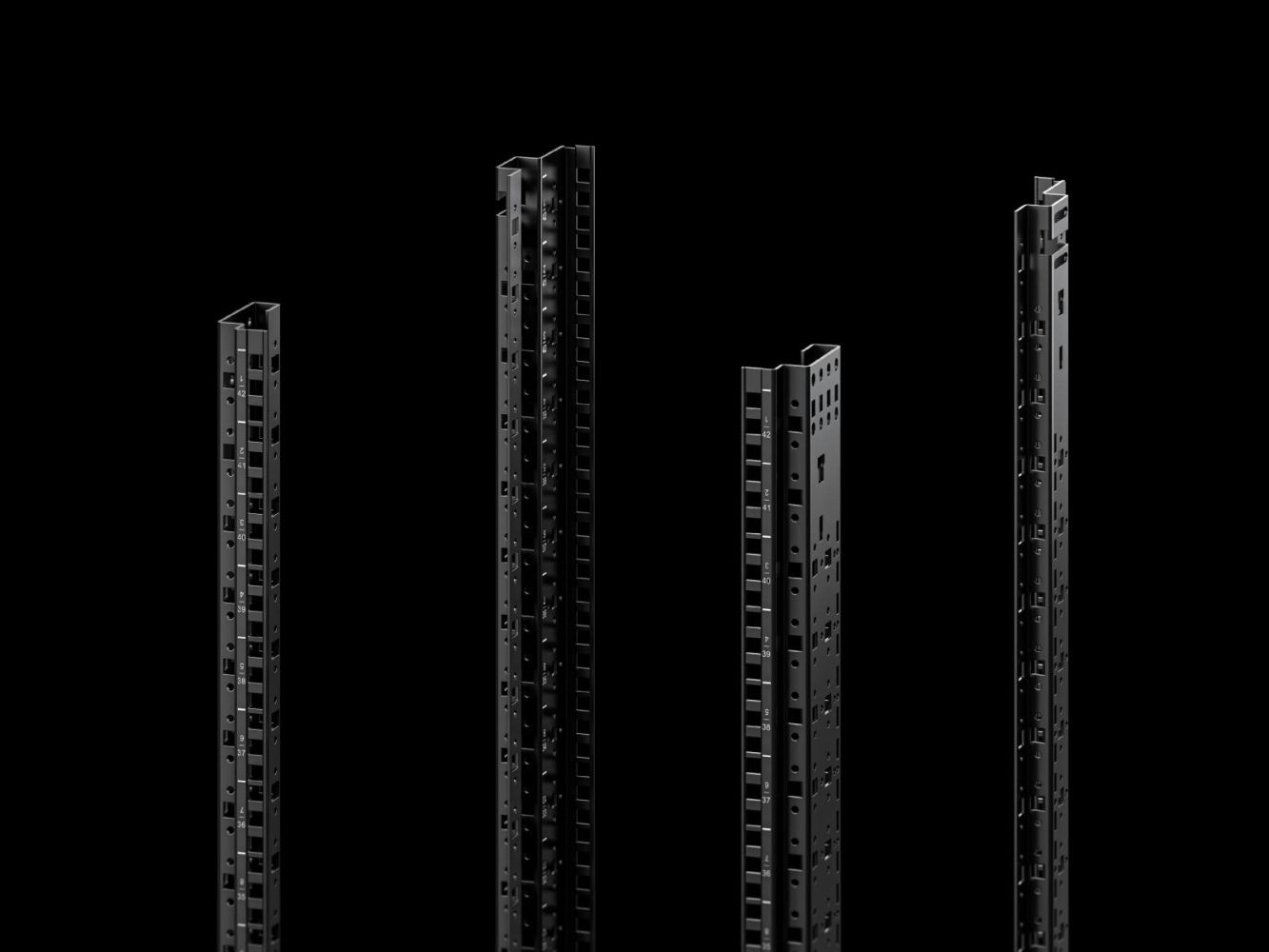

This image may differ from the desired article.
Rittal 5302101Rittal 5302101
43,60 EUR
( 51,88 EUR incl. VAT )
≈ £36.49  |  ≈ $47.92
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 5302101 48,3 cm ( 19 inch ) profile rails standard, rear, 15 U
Datasheet:file_download Download
Lieske Part No.:1714672
Mfg Part No: 5302101
UPC/EAN: 4028177955394
Weight:3.36 kg
Type:VXIT 5302101

Product information for Rittal 5302101:

The Rittal VXIT 5302101 is a 48,3 cm ( 19 inch )-profile rail standard for the VX IT enclosure system, designed to create a metric mounting plane in the rear area of the enclosure. The profile rail is manufactured from steel sheet with a thickness of 2 mm and features a primed surface in RAL 9005. It is specifically designed for enclosures with a height of 15 U (800 mm) and enables the mounting of server and IT components that are secured to the 48,3 cm ( 19 inch )-system hole pattern. The L-shaped design ensures direct installation of mounting kits for server systems.

Applications

The profile rail primarily serves to establish a metric mounting plane within the VX IT system. It is suitable for metric partial installations and enables structured cabling through integrated system hole patterns. The side round and square holes in the U grid allow U-based mounting of cable management elements, supporting an organized and clear cabling layout. The installation position is fixed at rear, meaning it is typically mounted in the rear area of the enclosure.

Functions and Equipment in Detail

The rail features an integrated, bidirectional U labeling, enabling clear identification of the mounting plane. The metric mounting hole pattern conforms to the EIA 310 E standard and also includes a U center mounting, which facilitates the installation of devices using standard 48,3 cm ( 19 inch ) mounting screws. Equipotential bonding within the mounting plane and with the frame is achieved via the mounting elements, ensuring a secure electrical connection.

Technology Explained Simply

The profile rail is made of steel sheet, which is robust and stable for industrial applications. The priming protects the material from corrosion and ensures a uniform surface. The color RAL 9005 is a dark gray standard shade commonly used in industrial environments. The L-shaped design allows for direct mounting of devices onto the rail, reducing installation time. The system hole pattern in the U grid on the front and sides enables flexible mounting of cable ducts, covers, and other accessories.

Compatibility and Accessories

The profile rail is designed for enclosures with a height of 15 U (800 mm). Installation options include alternative mounting widths from 53,3 cm ( 21 inch ) to 61 cm ( 24 inch ), depending on the chosen mounting method and enclosure dimensions. For installation, a combination with cross brace, depth brace, or mounting bracket is required. Compatible accessories include the VX IT depth brace for 48,3 cm ( 19 inch ) standard 700/800x1200 mm, the VX IT cross brace for 48,3 cm ( 19 inch ) stand/dyn 800 mm, and the VX IT mounting bracket for 48,3 cm ( 19 inch ) standard, W: 600 mm. These components enable secure and stable mounting of the profile rail within the enclosure.

Installation and Mounting

Installation takes place on the rear wall of the VX IT enclosure. Mounting requires the use of additional elements such as cross brace, depth brace, or mounting bracket, selected according to the enclosure dimensions. The exact choice of mounting elements depends on the specific enclosure configuration. The rail is mounted using the integrated mounting holes and the included mounting materials. The delivery includes the mounting materials required for installation.

Operational Advantages

The VXIT 5302101 provides a secure and stable mounting base for IT and server components in the VX IT system. The integrated U labeling and system hole pattern simplify cabling and maintenance. The use of standard 48,3 cm ( 19 inch ) mounting screws ensures universal compatibility with common devices. The robust steel sheet construction ensures long service life and high load capacity. The possibility to realize alternative mounting widths from 53,3 cm ( 21 inch ) to 61 cm ( 24 inch ) increases flexibility in planning and installing the enclosure.

General
Modelfor VX IT 19" standard profile rail
Technical dataside round and square holes in HE grid, potential equalisation within the mounting plane and with the mounting frame is achieved via the fastening elements, inch-sized fastening holes including HE centre mounting according to standard EIA 310 E
ApplicationsFor creating a standard mounting surface within the VX IT enclosure system
MaterialSheet steel, 2 mm
Surface protectionPrimed
ColourRAL 9005
Scope of deliveryIncluding mounting hardware
Installation positionBack side
Mounting optionsAlternative mounting widths of 21" – 24", depending on chosen mounting method and housing dimensions
Mounting noteFor mounting, a combination with cross brace, depth brace, or mounting angle is required. The use of different mounting options depends on the respective housing dimensions.
Suitable forHeight: = 15 U, = 800 mm
PCF/VE (Cradle-to-Gate)13.6 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5302101, EAN: 4028177955394

Questions & answers

What is the delivery time of Rittal 5302101 48,3 cm ( 19 inch ) profile rails standard, rear, 15 U?

The article Rittal 5302101 48,3 cm ( 19 inch ) profile rails standard, rear, 15 U is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5302101 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5302101 48,3 cm ( 19 inch ) profile rails standard, rear, 15 U always at the best possible price. We can give you a discount of 2% on Rittal 5302101 48,3 cm ( 19 inch ) profile rails standard, rear, 15 U if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
