Rittal 5302100 48,3 cm ( 19 inch ) profile rails standard, front, 15 U

Your rating:
Average rating
product review for Rittal 5302100 48,3 cm ( 19 inch ) profile rails standard, front, 15 U
( 4.8 / 5 ) 4 ratings
Rittal 5302100
This image may differ from the desired article.
Rittal 5302100Rittal 5302100
-8% 43,18 EUR 47,08 EUR
( 51,38 EUR incl. VAT )
≈ £36.14  |  ≈ $47.45
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 5302100 48,3 cm ( 19 inch ) profile rails standard, front, 15 U
Datasheet:file_download Download
Lieske Part No.:1714673
Mfg Part No: 5302100
UPC/EAN: 4028177955387
Weight:3.1 kg
Type:VXIT 5302100

Product information for Rittal 5302100:

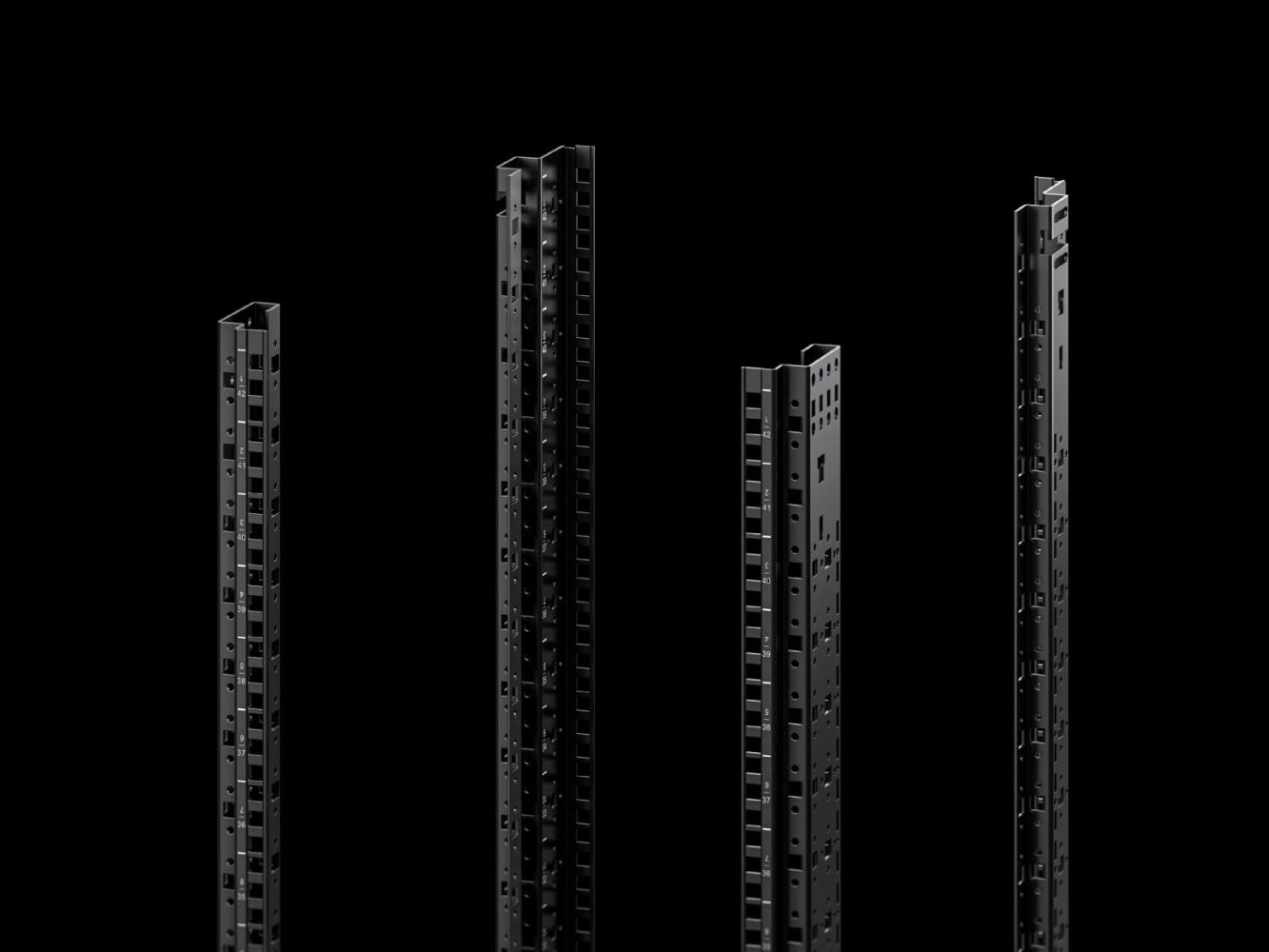

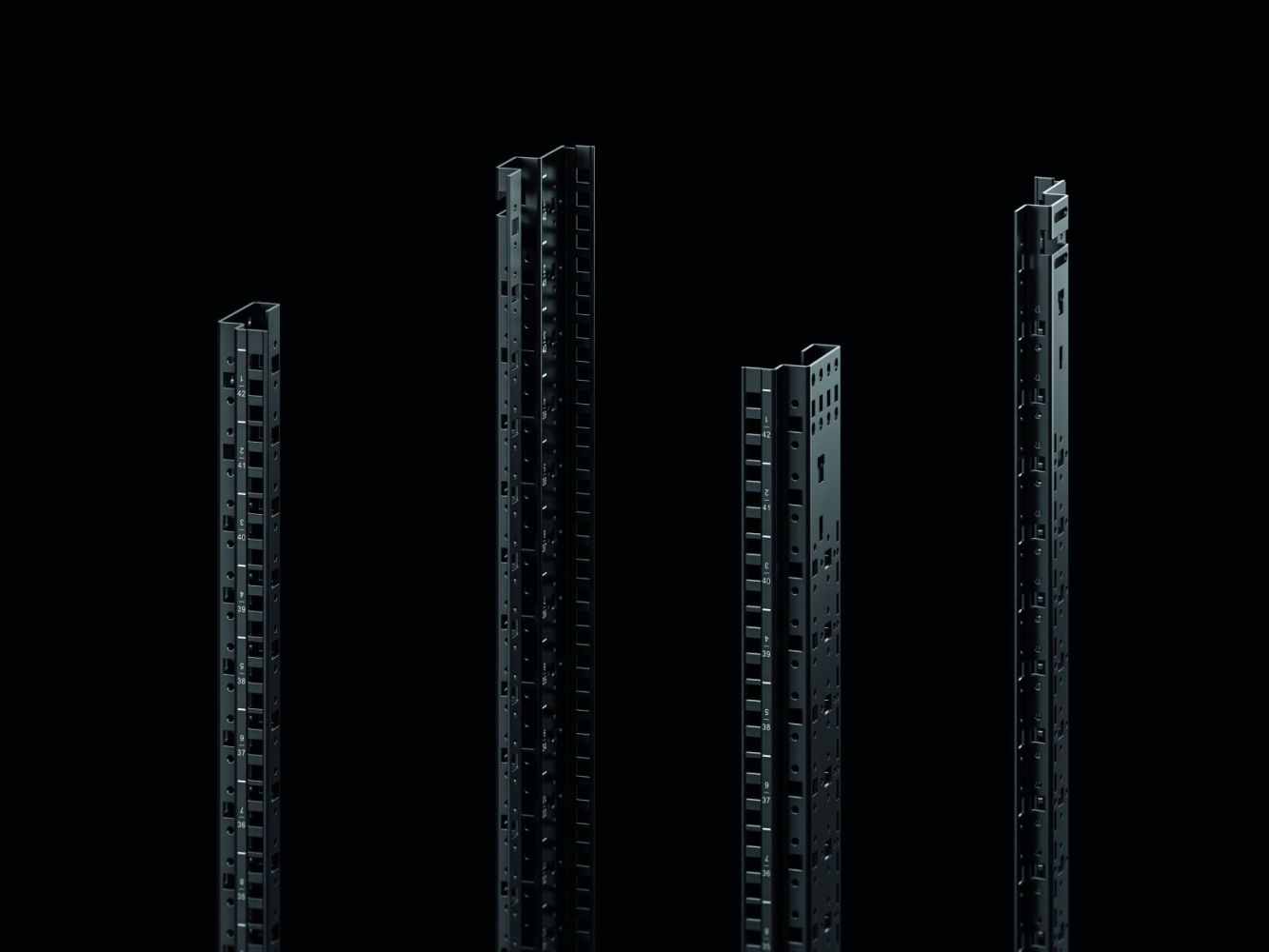

The Rittal VXIT 5302100 is a 48,3 cm ( 19 inch )-profile rail standard for the VX IT enclosure system, designed to create an inch-based mounting plane within the enclosure. The L-shaped design enables direct mounting of installation kits for server systems, which are secured to the 48,3 cm ( 19 inch )-system hole pattern. The rail is designed for an enclosure height of 15 U (equivalent to 800 mm) and is installed on the front side of the enclosure. It is made of steel sheet with a thickness of 2 mm, is primed, and finished in the colour RAL 9005, providing a robust and uniform surface for industrial use.

Applications

The profile rail is primarily used for integrating server and IT components into the VX IT system. It is suitable for partial inch-based installation or for creating a complete mounting plane. The integrated, bidirectional U marking facilitates orientation and structuring of the installation. The side round and square holes in the U grid allow precise mounting of cable management elements and other components, ensuring an orderly cabling layout.

Functions and Equipment in Detail

The rail features an inch-based mounting hole pattern, including U centre mounting, executed according to the standard EIA 310 E. This ensures compatibility with common server and network devices. Equipotential bonding within the mounting plane and with the mounting frame is achieved via the mounting elements, ensuring a secure electrical connection. The mounting width can vary between 53,3 cm ( 21 inch ) and 61 cm ( 24 inch ) depending on the chosen mounting method and enclosure dimensions.

Technology Explained Simply

The L-shaped construction of the rail provides a stable mounting surface, directly attached to the front wall of the enclosure. The integrated holes in the U grid allow precise positioning of devices and cable management elements. The primed surface protects the steel sheet from corrosion and provides an even base for any subsequent painting or coating.

Compatibility and Accessories

The profile rail is designed for use with other components of the VX IT system. It can be mounted in combination with a cross brace, a depth brace, or a mounting angle, with the choice of mounting method depending on the specific enclosure dimensions. Compatible accessories include, for example, the VX IT depth brace for 48,3 cm ( 19 inch ) standard 700/800x1200 mm, the VX IT cross brace for 48,3 cm ( 19 inch ) stand/dyn 800 mm, and the VX IT mounting angle for 48,3 cm ( 19 inch ) standard, W: 600 mm.

Installation and Mounting

Mounting of the rail requires combination with one of the mentioned accessories. Installation takes place on the front side of the enclosure, with exact positioning and selection of mounting elements depending on the specific enclosure configuration.

Operational Advantages

The VXIT 5302100 provides a reliable and standard-compliant mounting base for IT and server components. The integrated marking and precise hole pattern in the U grid simplify planning and execution of the installation. The use of steel sheet with 2 mm thickness ensures high mechanical stability, while the priming supports long service life even in industrial environments. Compatibility with the VX IT system and the mentioned accessories enables flexible and scalable use in various enclosure configurations.

General
Modelfor VX IT 19" standard profile rail
Technical dataside round and square holes in HE grid, potential equalisation within the mounting plane and with the mounting frame is achieved via the fastening elements, inch-sized fastening holes including HE centre mounting according to standard EIA 310 E
ApplicationsFor creating a standard mounting surface within the VX IT enclosure system
MaterialSheet steel, 2 mm
Surface protectionPrimed
ColourRAL 9005
Scope of deliveryIncluding mounting hardware
Installation positionFront side
Mounting optionsAlternative mounting widths of 21" – 24", depending on chosen mounting method and housing dimensions
Mounting noteFor mounting, a combination with cross brace, depth brace, or mounting angle is required. The use of different mounting options depends on the respective housing dimensions.
Suitable forHeight: = 15 U, = 800 mm
PCF/VE (Cradle-to-Gate)12.3 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5302100, EAN: 4028177955387

Questions & answers

What is the delivery time of Rittal 5302100 48,3 cm ( 19 inch ) profile rails standard, front, 15 U?

The article Rittal 5302100 48,3 cm ( 19 inch ) profile rails standard, front, 15 U is currently in stock

According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5302100 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5302100 48,3 cm ( 19 inch ) profile rails standard, front, 15 U always at the best possible price. We can give you a discount of 2% on Rittal 5302100 48,3 cm ( 19 inch ) profile rails standard, front, 15 U if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
