Rittal 5302028 VX IT equipotential bonding for VX IT 2000, 2200 mm

Your rating:
Average rating
product review for Rittal 5302028 VX IT equipotential bonding for VX IT 2000, 2200 mm
( 4.8 / 5 ) 4 ratings
Rittal 5302028
This image may differ from the desired article.
Rittal 5302028Rittal 5302028Rittal 5302028Rittal 5302028
-10% 103,96 EUR 115,97 EUR
( 123,71 EUR incl. VAT )
≈ £87.01  |  ≈ $114.25
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 5302028 VX IT equipotential bonding for VX IT 2000, 2200 mm
Datasheet:file_download Download
Lieske Part No.:1910602
Mfg Part No: 5302028
UPC/EAN: 4028177955349
Weight:1.9 kg
Type:VX 5302028

Product information for Rittal 5302028:

The Rittal equipotential bonding set Plus, type VX 5302028, is a system accessory for enclosures of the VX IT series, specifically designed to ensure continuous equipotential bonding and functional earthing. It improves electromagnetic compatibility (EMC) and supports shielding against high-frequency interference in accordance with DIN EN 50 310. The set is designed for enclosures with a height of 1800 to 2000 mm and is used in combination with closed steel sheet doors to ensure optimal shielding.

Applications

The equipotential bonding set Plus is used in industrial installations where reliable earthing and effective protection against electromagnetic interference are required. It is particularly suitable for applications where the enclosure construction consists of closed steel sheet doors, screwed side panels, a fixed roof plate, and a closed base. This configuration supports the shielding effect of the enclosure and increases the efficiency of equipotential bonding. The application is intended for systems where installed components have a connection point for equipotential bonding.

Functions and equipment in detail

The set includes a central vertical equipotential bonding bar with a length of 1545 mm, serving as a collection point for all enclosure components via the frame structure. Six flat band earthing conductors (M8) with a cross-section of 16 mm² are connected to this bar, used to connect steel sheet doors, side panels, and other enclosure elements. The earthing conductors enable a direct and conductive connection to ensure uniform equipotential bonding. The set also includes the required mounting materials for installing the bar and earthing conductors on the enclosure.

Technology explained simply

The equipotential bonding bar serves as a central collection point where all metallic enclosure components are connected via flat band earthing conductors. This creates an electrically conductive, closed circuit that minimizes interference voltages and potential differences. The use of flat band earthing conductors with a 16 mm² cross-section ensures sufficient current dissipation and reduces resistance in the earthing system. The bar is designed for enclosures with a height of 1800 to 2000 mm, ensuring optimal coverage of the entire enclosure height. Mounting is done via the frame structure, ensuring stable and secure installation.

Compatibility and accessories

The equipotential bonding set Plus is specifically developed for the VX IT series from Rittal and is used in combination with closed steel sheet doors. It is compatible with corresponding enclosure configurations featuring a fully enclosed construction. Suitable accessories include the DK expansion set earthing for TS IT and push-in terminal connectors for round conductors 1.5–1, which can be used to extend or adapt the earthing system. The specific connecting cables between installed components and the equipotential bonding bar must be provided by the user.

Mounting and installation

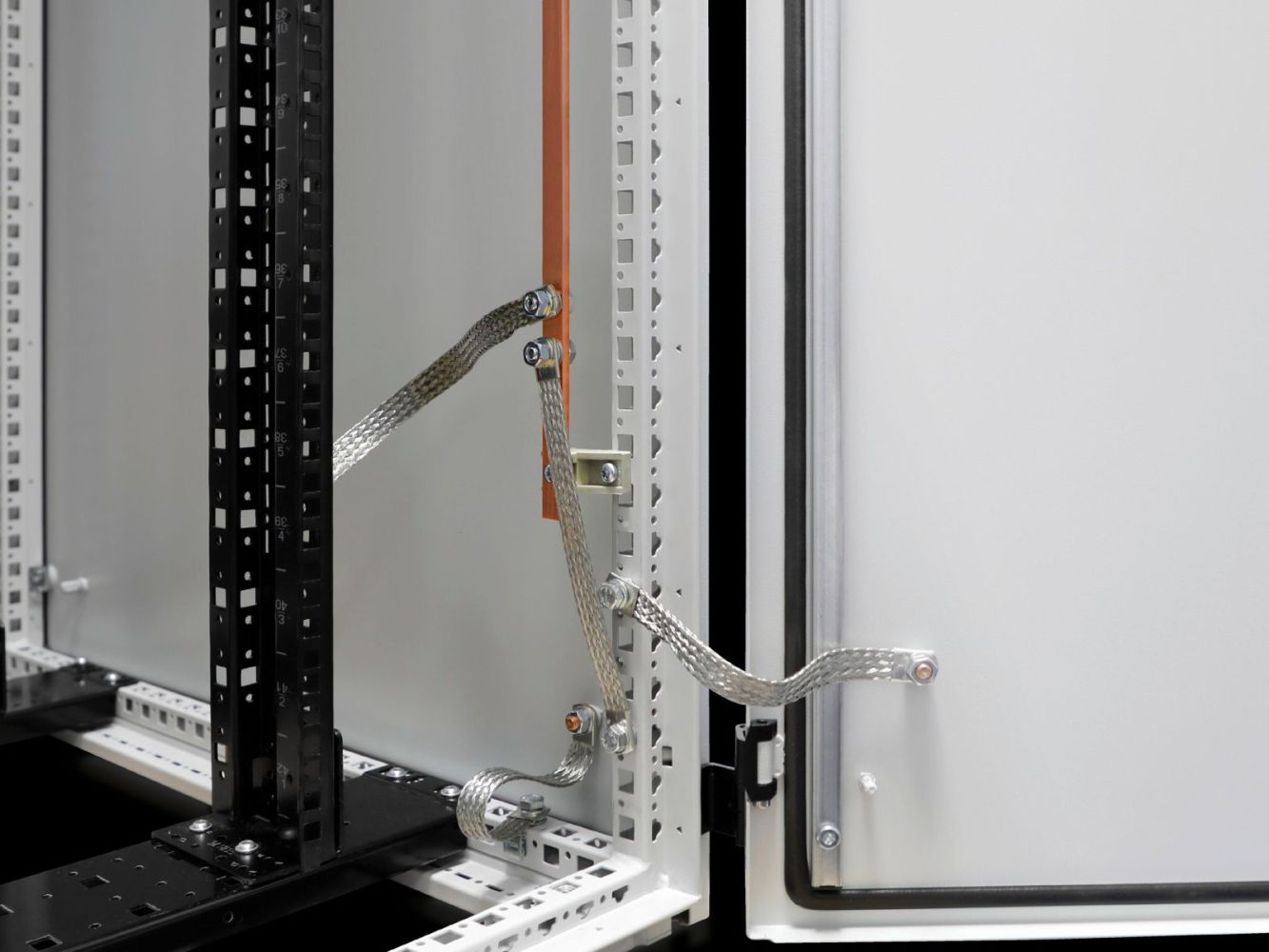

Mounting is done via the frame structure of the enclosure, with the equipotential bonding bar installed vertically. The six flat band earthing conductors are attached at designated points to steel sheet doors, side panels, and other metallic elements. Mounting is done using the included materials. The connecting cables between installed components and the bar are to be provided by the user. Installation requires no additional tools beyond standard tools for screw connections.

Advantages in operation

The equipotential bonding set Plus improves the EMC performance of the enclosure and reduces the risk of interference from high-frequency radiation. The central bar ensures uniform equipotential bonding, increasing electrical safety. The use of flat band earthing conductors with a 16 mm² cross-section ensures high conductivity and minimizes resistance. The construction is designed for industrial environments and supports requirements for reliable functional earthing. UL approvals confirm the product’s safety standards.

General
ApplicationsEnsuring a continuous equipotential bonding or functional earthing, improved protective effect according to DIN EN 50 310 against high-frequency interference, the set is designed for combination with closed steel sheet doors, to support the goal of improved shielding effect against interference radiation.
Function principlePotential equalization bar for central potential equalization of all housing-mounted extensions and installed components, if these have a connection point for potential equalization

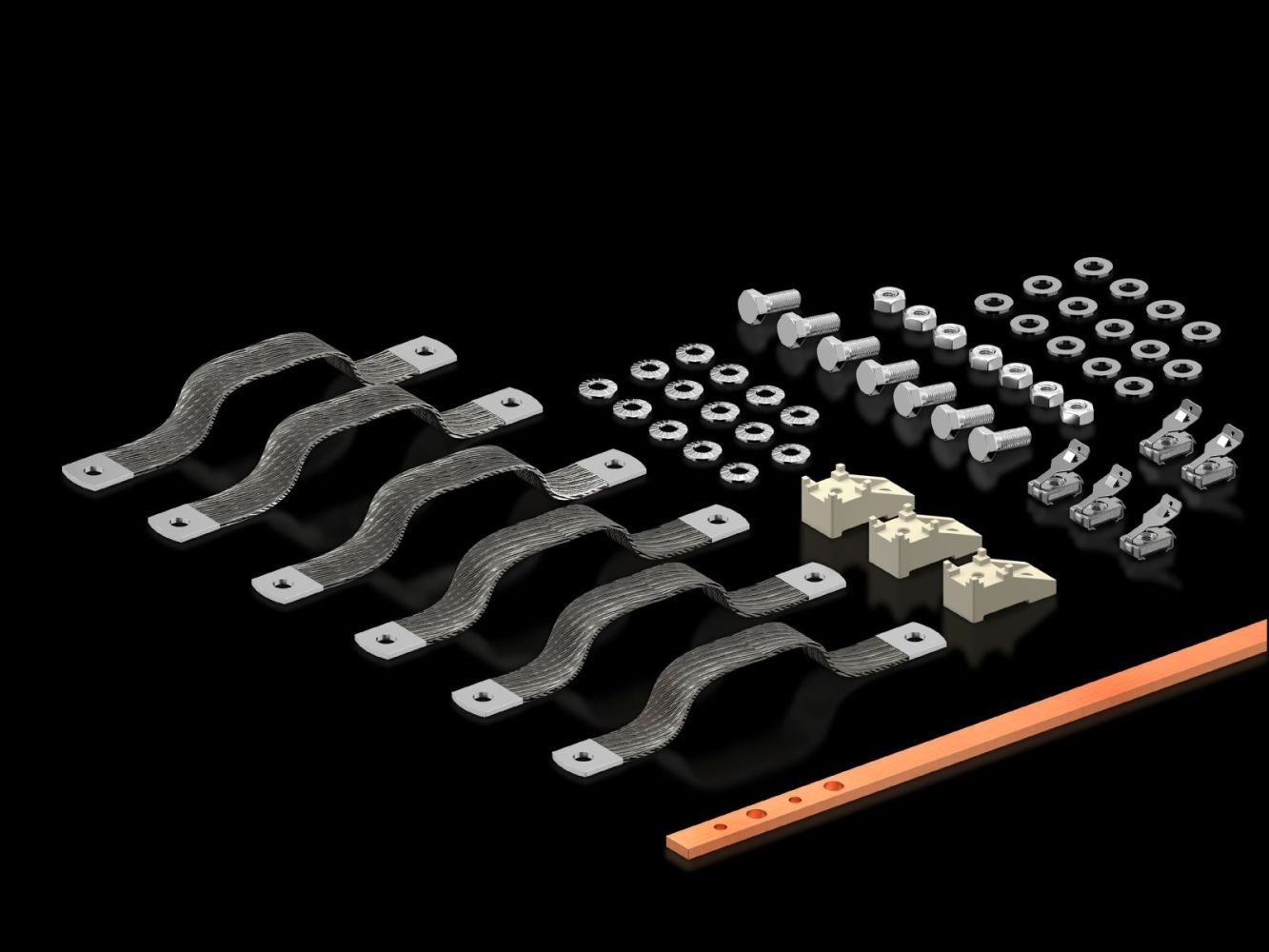

Scope of delivery6 flat earth conductors (M8), 16 mm² for steel sheet doors, side walls, equipotential bonding bar, equipotential bonding bar, length 1545 mm, for height 1800 – 2000 mm, including mounting material
Mounting noteThe specific connection cables between the installed component and the equipotential bonding bar are to be provided by the user.


Product data sheet
Datasheet for Rittal 5302028, EAN: 4028177955349
