Rittal 3451505 conductor connection terminal (push-in) for round conductor 1.5–1

Your rating:
Average rating
product review for Rittal 3451505 conductor connection terminal (push-in) for round conductor 1.5–1
( 4.5 / 5 ) 28 ratings

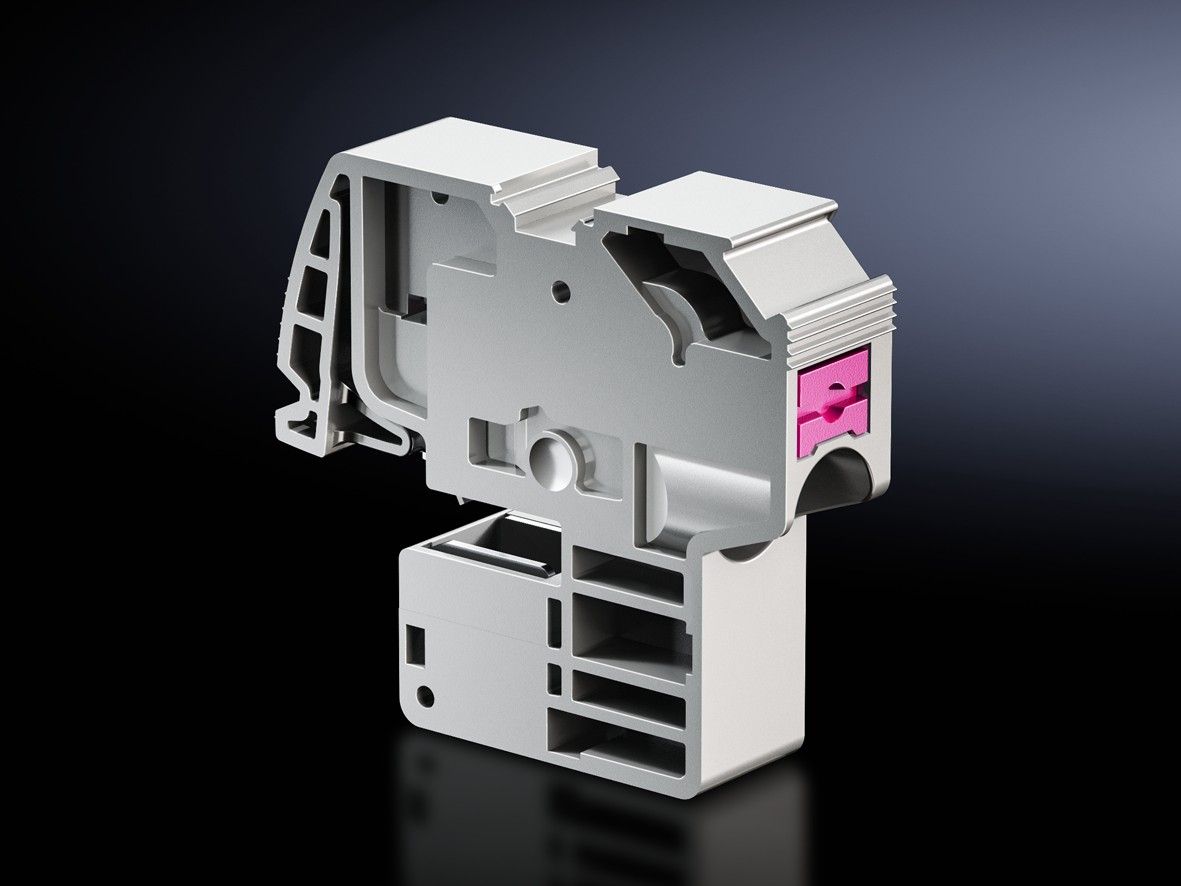

Rittal 3451505
This image may differ from the desired article.
Rittal 3451505Rittal 3451505
16,90 EUR 16,91 EUR
( 20,11 EUR incl. VAT )
≈ £14.15  |  ≈ $18.57
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 3451505 conductor connection terminal (push-in) for round conductor 1.5–1
Datasheet:file_download Download
Lieske Part No.:1087089
Mfg Part No: 3451505
UPC/EAN: 4028177813977
Weight:0.245 kg
Type:SV 3451505

Product information for Rittal 3451505:

The Rittal SV 3451505 is a wire connection terminal for use in control and switching installations as well as in meter enclosures. It serves as a busbar tap for L-, N- or PE-conductors and enables a tool-free connection of round conductors. The terminal is specifically designed for mounting on busbars with a bar thickness of 5 mm, with compatibility given for the busbar types E-Cu and CUPONAL. The Push-in technology allows for quick and secure connection of conductors without additional tools, with the conductor being released via an integrated release pin.

Applications include use in industrial electrical installations where reliable and maintenance-free conductor connections are required. The terminal is particularly suitable for applications in enclosures where high mounting speed and secure electrical connections are prioritized. The fully insulated design protects against short circuits and provides high operational safety.

Functions and equipment in detail include a construction that enables universal connection of round conductors. The terminal is designed for conductor cross-sections from 1.5 to 16 mm², regardless of whether the conductors are single-strand, multi-strand, fine-strand, with or without wire end ferrules. The terminal housing features integrated marking fields that allow clear identification of connections. The color RAL 7042 ensures good visibility and visual harmony in the enclosure environment.

Technology explained simply shows that the Push-in technology enables a mechanical locking of the conductor within the terminal body. Connection is achieved by simply inserting the conductor into the connection area, where the terminal automatically secures the conductor. Release is performed by actuating the release pin, ensuring a secure and reproducible connection. The material polyamide offers high mechanical strength and heat resistance, with flame behavior certified according to UL 94-V0, ensuring high safety at elevated temperatures and in case of fire.

Compatibility and accessories refer to use with standard busbars of 5 mm thickness, particularly types E-Cu and CUPONAL. The terminal is designed for use in switching installations complying with standards IEC 60 999-1 and IEC 60 947-7-1/-2.

Mounting and installation are performed by snap-on mounting onto the designated busbar. The tool-free mounting reduces installation effort and shortens installation time. The terminal is designed for use in industrial environments where high reliability and durability are required.

Operational advantages lie in the maintenance-free design, enabling a permanent connection without additional maintenance measures. The quick mounting and high connection safety contribute to the efficiency and reliability of the entire installation. The integrated marking fields facilitate documentation and maintenance of the installation.

General
ApplicationsFor use as busbar tap-off for L-, N- or PE-conductor in switching and control installations, and as conductor terminal block in meter cabinets. For mounting on busbars E-Cu or CUPONAL.
Function principleFully insulated terminal for tool-free wire connection, wire release via integrated release pin
MaterialPolyamide, flammability rating according to UL 94-V0
ColourRAL 7042
Test basisIEC 60 999-1, IEC 60 947-7-1/-2
Connection of stranded wires, fine-stranded with ferrule1,5 ‐ 16 mm²
Connection of round conductors, fine-stranded without ferrule1,5 ‐ 16 mm²
Connection of stranded wires, stranded1,5 ‐ 16 mm²
Connection of stranded wires, solid1,5 ‐ 16 mm²
For rail thickness5 mm
PCF/VE (Cradle-to-Gate)0.9 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 3451505, EAN: 4028177813977

Questions & answers

What is the delivery time of Rittal 3451505 conductor connection terminal (push-in) for round conductor 1.5–1?

The article Rittal 3451505 conductor connection terminal (push-in) for round conductor 1.5–1 is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3451505 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3451505 conductor connection terminal (push-in) for round conductor 1.5–1 always at the best possible price. We can give you a discount of 2% on Rittal 3451505 conductor connection terminal (push-in) for round conductor 1.5–1 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
