Rittal 5302008 VX IT air baffle plate, W x H: 600x2450 mm, for 48,3 cm ( 19 inch ) dyna

Your rating:
Average rating
product review for Rittal 5302008 VX IT air baffle plate, W x H: 600x2450 mm, for 48,3 cm ( 19 inch ) dyna
( 0 / 5 ) 0 ratings
Rittal 5302008
This image may differ from the desired article.
Rittal 5302008Rittal 5302008
-11% 201,60 EUR 225,46 EUR
( 239,90 EUR incl. VAT )
≈ £168.74  |  ≈ $221.56
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 5302008 VX IT air baffle plate, W x H: 600x2450 mm, for 48,3 cm ( 19 inch ) dyna
Datasheet:file_download Download
Lieske Part No.:593668
Mfg Part No: 5302008
UPC/EAN: 4028177955233
Weight:2.52 kg
Type:DK 5302008

Product information for Rittal 5302008:

The Rittal air baffle plate DK 5302008 is a modular partition element for enclosures, specifically designed for use with VX IT 48,3 cm ( 19 inch ) profile rails dynamic. It serves to selectively separate cold and hot zones within an enclosure, particularly in applications involving gang enclosure or the use of an LCP system. The function aims to improve the energy efficiency of climate control by preventing unwanted air circulation between the zones.

Applications

The air baffle plate is designed for enclosures with a width of 600 mm and a height of 2,450 mm. It is used in environments where targeted air guidance is required to optimize cooling performance and enhance the efficiency of climate control systems. Applications are particularly common in data centers or industrial environments with high requirements for thermal control.

Functions and Equipment in Detail

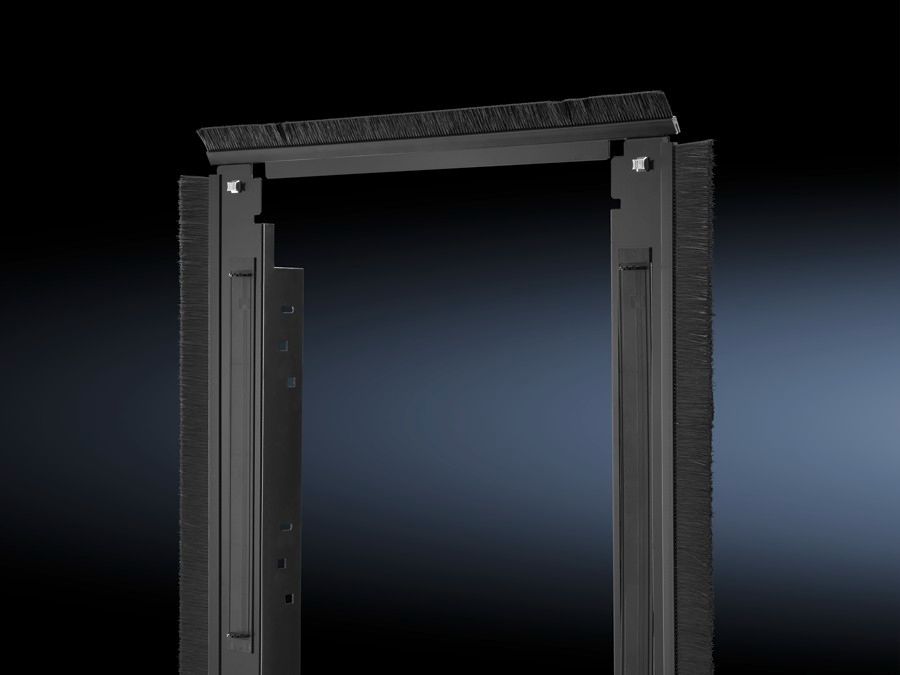

The product consists of two vertical and two horizontal panels made of sheet steel, coated with a painted surface in RAL 9005. The panels are equipped with brush strips made of plastic (UL 94-HB, halogen-free), enabling collision-free partitioning, even when rail systems are installed on the outer mounting plane. The brush strips provide a tight yet flexible seal, minimizing air circulation between the zones. Additionally, four cell-PU foam pieces are included in the delivery, contributing to sealing and stabilizing the installation.

Technology Explained Simply

The vertical panels can be mounted on both front and rear 48,3 cm ( 19 inch ) profile rails, while the horizontal panels can only be attached to the front rails. The integrated 48,3 cm ( 19 inch ) mounting cutouts (482.6 mm) allow for optional use of plastic blanking panels (UL 94-HB, halogen-free) for closure, or they can be used for installing additional components or cable routing. Mounting is carried out using the included material, specifically designed for attachment to the profile rails.

Compatibility and Accessories

The air baffle plate is specifically designed for the VX IT 48,3 cm ( 19 inch ) profile rail dynamic. It is compatible with enclosure configurations using these rails. Suitable accessories include the DK expansion set earthing for TS IT and 48,3 cm ( 19 inch ) fasteners 1 HE with contact (24 pieces), which can be used to extend functionality or for electrical earthing.

Mounting and Installation

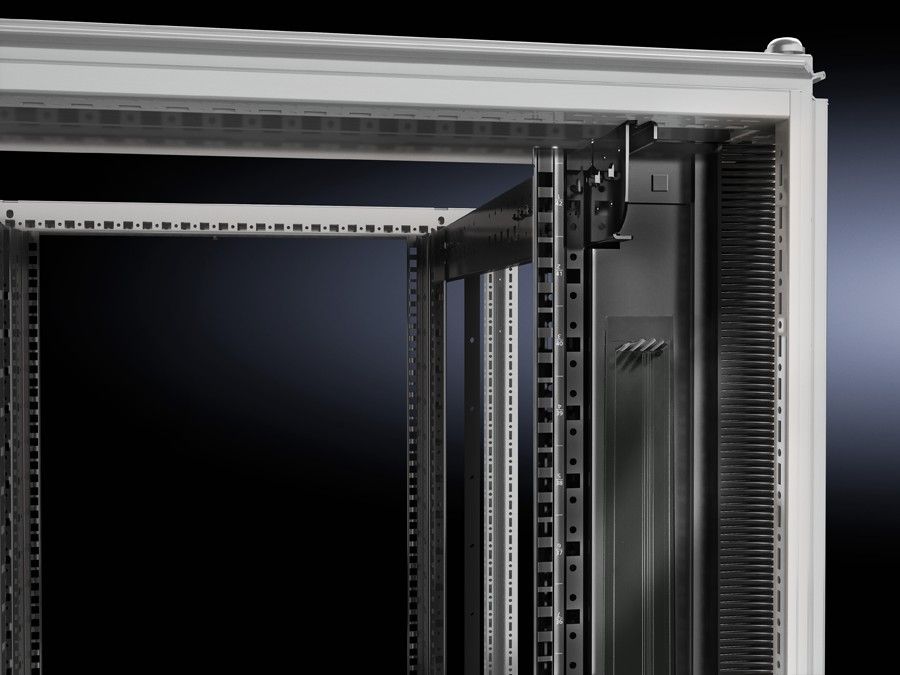

Installation is carried out on the designated 48,3 cm ( 19 inch ) profile rails. Vertical panels can be fastened to both front and rear rails, while horizontal panels must only be mounted on the front rails. The brush strips ensure a flexible yet tight seal. The integrated mounting cutouts can be sealed with the included blanking panels as needed, or used for installing additional components.

Operational Advantages

By selectively separating air flows, the cooling performance of climate control systems is improved, resulting in higher energy efficiency. The brush strips allow for flexible installation, even with already installed rail systems, without collisions or mechanical interference. The use of halogen-free plastic and UL 94-HB certified materials ensures a safe and flame-retardant design. The painted surface in RAL 9005 provides a robust and visually uniform appearance.

General
ApplicationsFor separating cold/warm zones within a cabinet in case of gang enclosure or when using an LCP system.
MaterialSteel sheet, blank panel: plastic, UL 94-HB, halogen-free, brush strip: plastic, UL 94-HB
Surface protectionPainted
ColourRAL 9005
Scope of delivery2 vertical panels, 2 horizontal panels, 4 brush strips, 4 cell-PU-foam pieces, including fastening material
Suitable forWidth: = 600 mm, Height: = 2,450 mm
PCF/VE (Cradle-to-Gate)9.6 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5302008, EAN: 4028177955233

Questions & answers

What is the delivery time of Rittal 5302008 VX IT air baffle plate, W x H: 600x2450 mm, for 48,3 cm ( 19 inch ) dyna?

The article Rittal 5302008 VX IT air baffle plate, W x H: 600x2450 mm, for 48,3 cm ( 19 inch ) dyna is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5302008 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5302008 VX IT air baffle plate, W x H: 600x2450 mm, for 48,3 cm ( 19 inch ) dyna always at the best possible price. We can give you a discount of 2% on Rittal 5302008 VX IT air baffle plate, W x H: 600x2450 mm, for 48,3 cm ( 19 inch ) dyna if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Rittal 5302008 VX IT air baffle plate, W x H: 600x2450 mm, for 48,3 cm ( 19 inch ) dyna

Rittal 7829150 DK expansion set earthing for TS IT Rittal LogoRittal 7829150 DK expansion set earthing for TS IT To DIN EN 60 950/VDE 0805, Ø 4 mm². For system-compatible earthing of all enclosure parts on the enclosure frame. The earth conductors are pre-assembled ready for connection with connectors and cut ...

Lieske Part No.: 113218
Mfg Part No: 7829150
Type: DK 7829150
-6% 25,76 EUR 27,31 EUR
Rittal 7829150 plus VAT
≈ £21.56  |  ≈ $28.31
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
Rittal 2090000 48,3 cm ( 19 inch ) fastener 1 U with contact, 24 pcs Rittal LogoRittal 2090000 48,3 cm ( 19 inch ) fastener 1 U with contact, 24 pcs The Rittal DK 2090000 is a 48,3 cm ( 19 inch )-fastener in the configuration 1 HE, specifically developed for mounting expansion components within a 482.6 mm (48,3 cm ( 19 inch )) mounting plane. The ...

Lieske Part No.: 178441
Mfg Part No: 2090000
Type: DK 2090000
25,12 EUR 25,18 EUR
Rittal 2090000 plus VAT
≈ £21.03  |  ≈ $27.61
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
