Rittal 5302006 VX IT air baffle plate, W x H: 600x2200 mm, for 48,3 cm ( 19 inch ) dyna

Your rating:
Average rating
product review for Rittal 5302006 VX IT air baffle plate, W x H: 600x2200 mm, for 48,3 cm ( 19 inch ) dyna
( 4 / 5 ) 1 ratings
Rittal 5302006
This image may differ from the desired article.
Rittal 5302006Rittal 5302006
-11% 191,48 EUR 214,08 EUR
( 227,86 EUR incl. VAT )
≈ £160.27  |  ≈ $210.44
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 5302006 VX IT air baffle plate, W x H: 600x2200 mm, for 48,3 cm ( 19 inch ) dyna
Datasheet:file_download Download
Lieske Part No.:593667
Mfg Part No: 5302006
UPC/EAN: 4028177955219
Weight:2.92 kg
Type:DK 5302006

Product information for Rittal 5302006:

The Rittal air baffle plate DK 5302006 is a specially designed component for separating cold and hot zones within an enclosure, particularly when using row containment or when employing an LCP system. It serves to specifically enhance the energy efficiency of climate control systems in server and IT enclosures. The product is designed for enclosures with a width of 600 mm and a height of 2,200 mm and is mounted on the 48,3 cm ( 19 inch ) profile rails of the VX IT dynamic system. The surface is painted and finished in RAL 9005, enabling a uniform visual appearance within the enclosure.

Applications

The air baffle plate is used to specifically control airflow within an enclosure. It prevents the mixing of cold and warm air, which is particularly beneficial when using LCP systems (fan and cooling plate systems) or row containment systems. This optimizes cooling performance and increases the efficiency of climate control. Separating air zones contributes to reducing energy losses and supports the thermal stability of installed devices.

Functions and Equipment in Detail

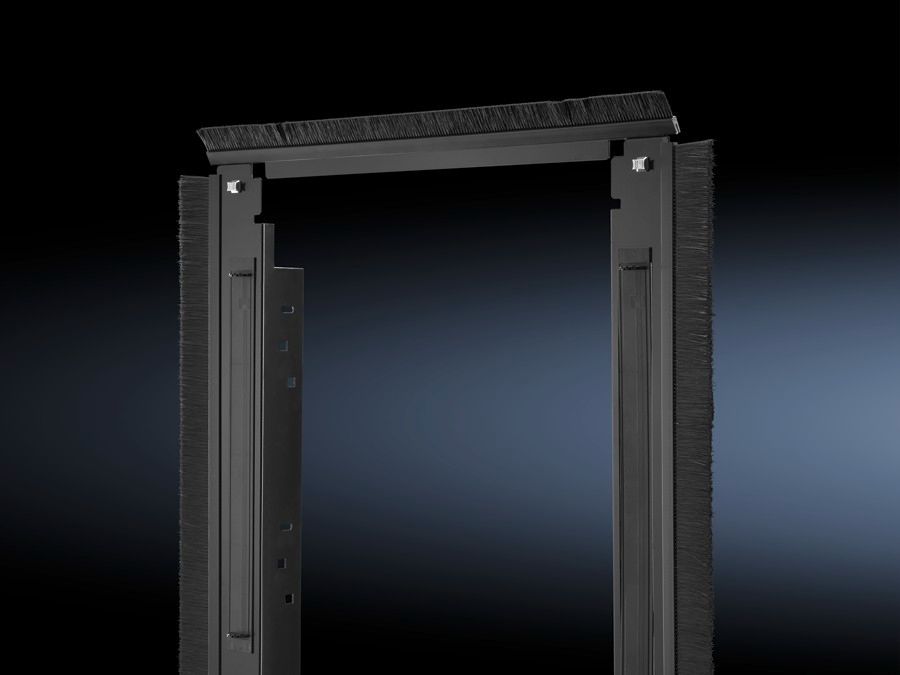

The product consists of two vertical and two horizontal panels made of sheet steel, equipped with brush strips made of plastic (UL 94-HB, halogen-free). These brush strips enable a collision-free partition, even when rail systems are installed on the outer mounting plane. Additionally, four cell-PU foam pieces are included in the delivery scope, serving for sealing and preventing air leakage at the edges of the panels. The panels feature integrated 48,3 cm ( 19 inch ) mounting cutouts, which can optionally be closed with the included blanking panels to allow installation of additional components or for cable routing.

Technology Explained Simply

The vertical panels with brush strips can be mounted on both front and rear 48,3 cm ( 19 inch ) profile rails, while the horizontal panels can only be mounted on the front rails. The brush strips made of halogen-free plastic (UL 94-HB) ensure a secure and tight partition without mechanical collisions with installed components. The cell-PU foam pieces provide additional sealing at the edges, increasing the air-tightness of the partition. The materials are suitable for use in IT and electrical installations and comply with common safety standards.

Compatibility and Accessories

The air baffle plate is specifically developed for the VX IT 48,3 cm ( 19 inch ) profile rail dynamic and is compatible with enclosures having a width of 600 mm and a height of 2,200 mm. Suitable accessories include the DK expansion set earthing for TS IT and 48,3 cm ( 19 inch ) fasteners 1 U with contact (24 pieces). These components can be used to extend earthing functionality or for secure mounting of devices on the rails. Installation is carried out using the included mounting hardware.

Installation and Mounting

Mounting is performed on the 48,3 cm ( 19 inch ) profile rails of the VX IT dynamic system. The vertical panels can be attached to front and rear rails, while the horizontal panels are mounted exclusively on the front rails. The integrated mounting cutouts allow flexible use for additional components or cable routing. The brush strips and cell-PU foam pieces ensure a tight partition, enabling targeted control of airflow within the enclosure.

Operational Advantages

By specifically separating cold and hot zones, the cooling performance of the climate control system is optimized. This leads to higher energy efficiency and reduced energy consumption. The brush strips ensure a collision-free partition, even on occupied mounting planes, simplifying installation and maintenance. The integrated mounting cutouts offer flexibility for installing additional components or for cable routing. The product is made from robust materials suitable for use in IT and electrical installations.

Delivery Scope

The delivery includes: 2 vertical panels, 2 horizontal panels, 4 brush strips, 4 cell-PU foam pieces, and the required mounting hardware. The components are designed to enable a tight and collision-free partition within the enclosure.

General
ApplicationsFor separating cold/warm zones within a cabinet in case of gang enclosure or when using an LCP system.
MaterialSteel sheet, blank panel: plastic, UL 94-HB, halogen-free, brush strip: plastic, UL 94-HB
Surface protectionPainted
ColourRAL 9005
Scope of delivery2 vertical panels, 2 horizontal panels, 4 brush strips, 4 cell-PU-foam pieces, including fastening material
Suitable forWidth: = 600 mm, Height: = 2,200 mm
PCF/VE (Cradle-to-Gate)11.1 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5302006, EAN: 4028177955219

Questions & answers

What is the delivery time of Rittal 5302006 VX IT air baffle plate, W x H: 600x2200 mm, for 48,3 cm ( 19 inch ) dyna?

The article Rittal 5302006 VX IT air baffle plate, W x H: 600x2200 mm, for 48,3 cm ( 19 inch ) dyna is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5302006 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5302006 VX IT air baffle plate, W x H: 600x2200 mm, for 48,3 cm ( 19 inch ) dyna always at the best possible price. We can give you a discount of 2% on Rittal 5302006 VX IT air baffle plate, W x H: 600x2200 mm, for 48,3 cm ( 19 inch ) dyna if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
