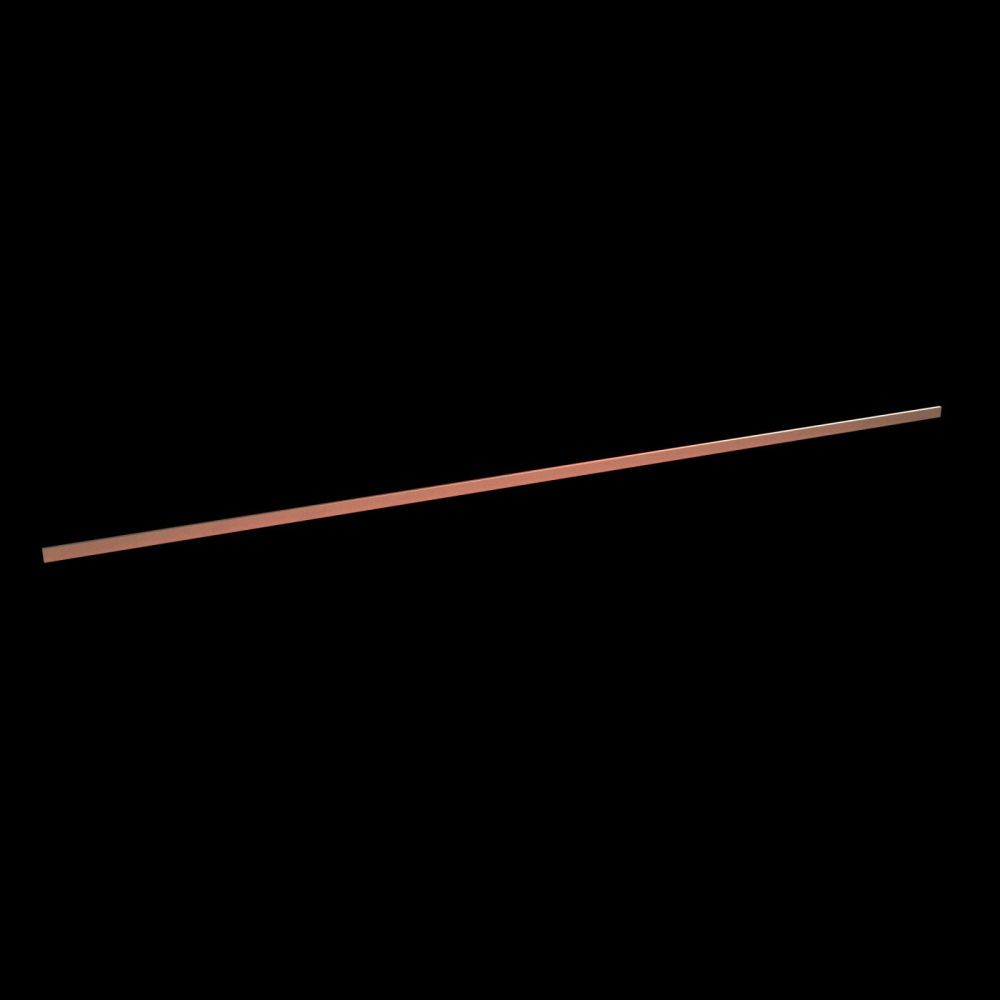

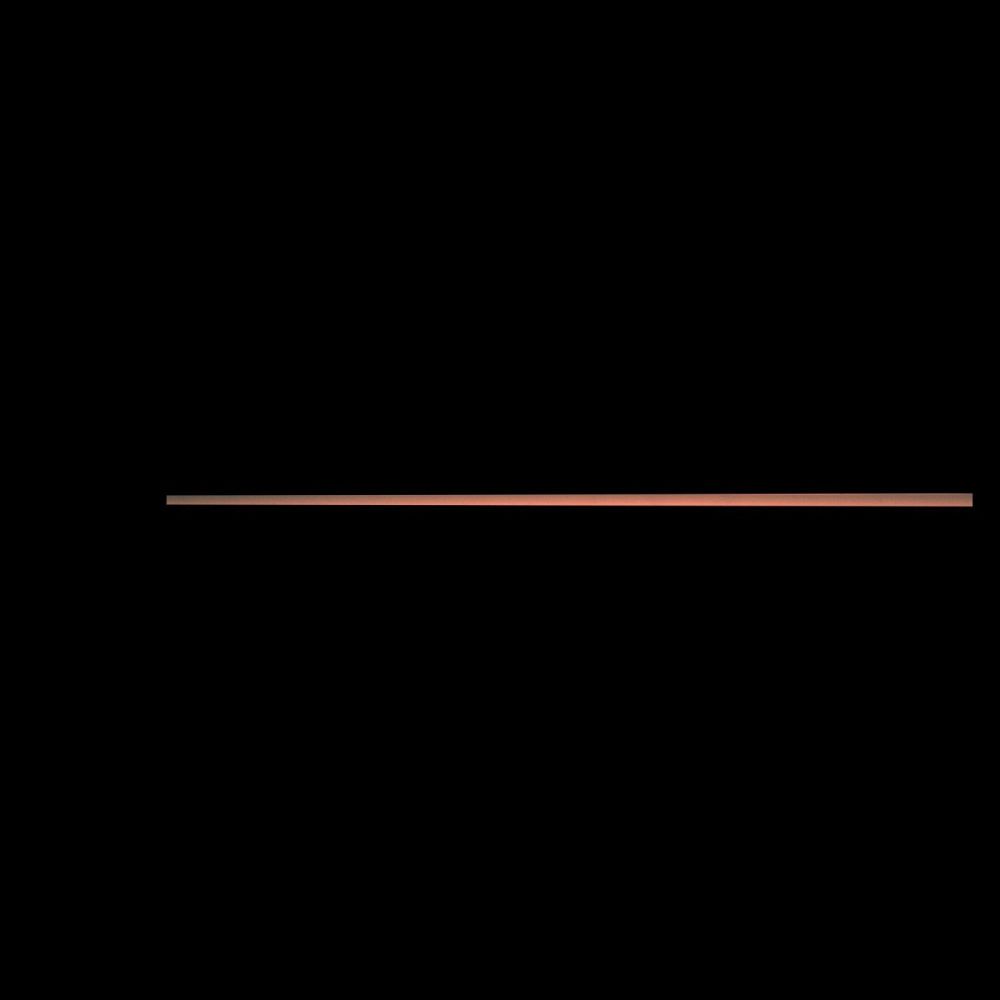

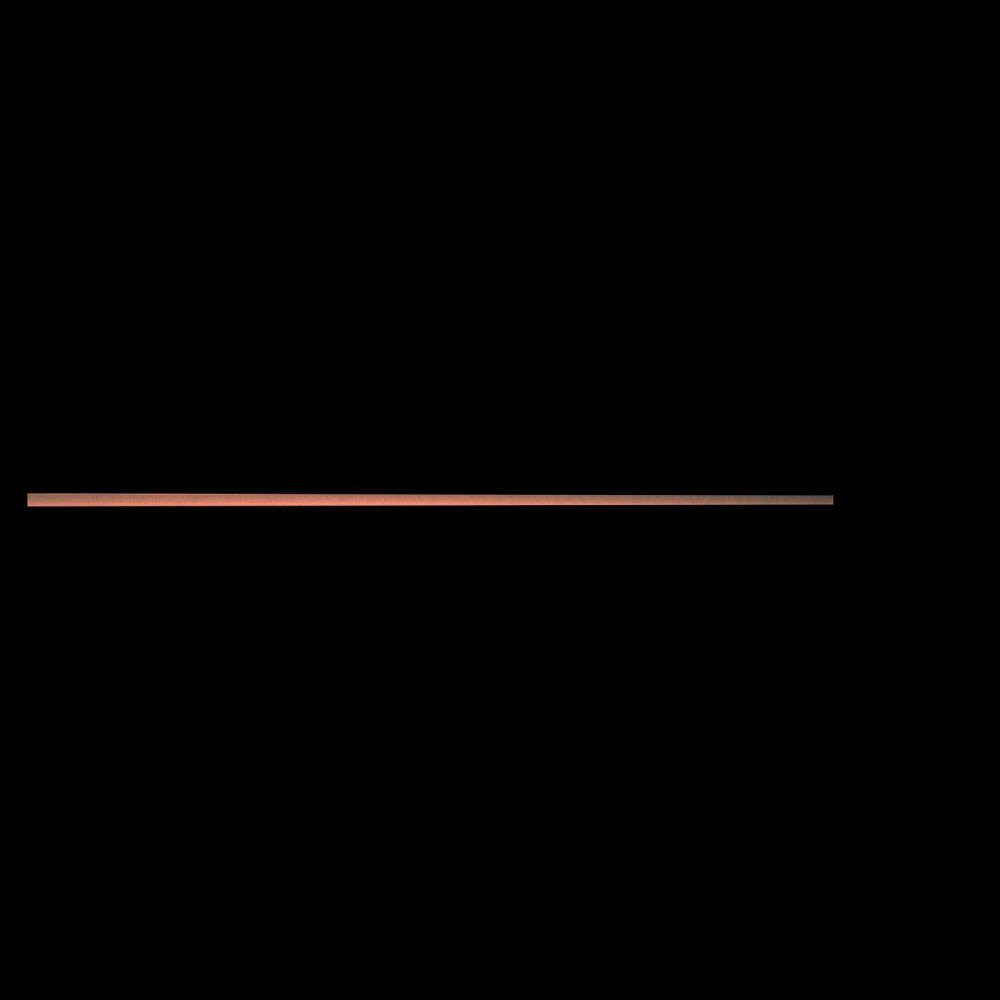

Rittal 3584020 busbar CUPONAL 30x5 mm, L=2400 mm

Your rating:
Average rating
product review for Rittal 3584020 busbar CUPONAL 30x5 mm, L=2400 mm
( 4.4 / 5 ) 10 ratings
Rittal 3584020
This image may differ from the desired article.
Rittal 3584020Rittal 3584020Rittal 3584020Rittal 3584020Rittal 3584020Rittal 3584020
262,83 EUR 269,32 EUR
incl. 26,27 EUR copper surcharge
( 312,77 EUR incl. VAT )
≈ £219.99  |  ≈ $288.85
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: 4 pieces
1x Rittal 3584020 busbar CUPONAL 30x5 mm, L=2400 mm
Datasheet:file_download Download
Lieske Part No.:1132623
Mfg Part No: 3584020
UPC/EAN: 4028177686571
Weight:9.02 kg
Type:SV 3584020

Product information for Rittal 3584020:

The Rittal SV 3584020 is a busbar from the CUPONAL series, designed for use in industrial switchgear and power distribution systems. It is made of aluminium, coated with a copper cladding to ensure optimal electrical conductivity and corrosion protection. The busbar has a cross-section of 30 mm x 5 mm and a length of 2,400 mm. It is specifically intended for use with busbar holders 9340.000 and 9340.050, enabling secure mounting in enclosures and distributors.

Applications
The busbar is used in industrial electrical engineering where reliable power distribution over long distances is required. It is suitable for installations in manufacturing, power supply, and automation technology. The combination of aluminium and copper ensures good heat dissipation and mechanical stability, which is particularly advantageous in environments with high thermal loads.

Functions and Equipment in Detail
The busbar is individually cuttable, allowing it to be adapted to the specific requirements of the installation. This enables flexible use in different enclosure sizes and configurations. The rated current is up to 328 A, determined under conditions of a busbar temperature of 65 °C and an ambient temperature of 35 °C. The current-carrying capacity can be adjusted using the correction factor diagram according to DIN EN 43 671 for other operating conditions.

Technology Explained Simply

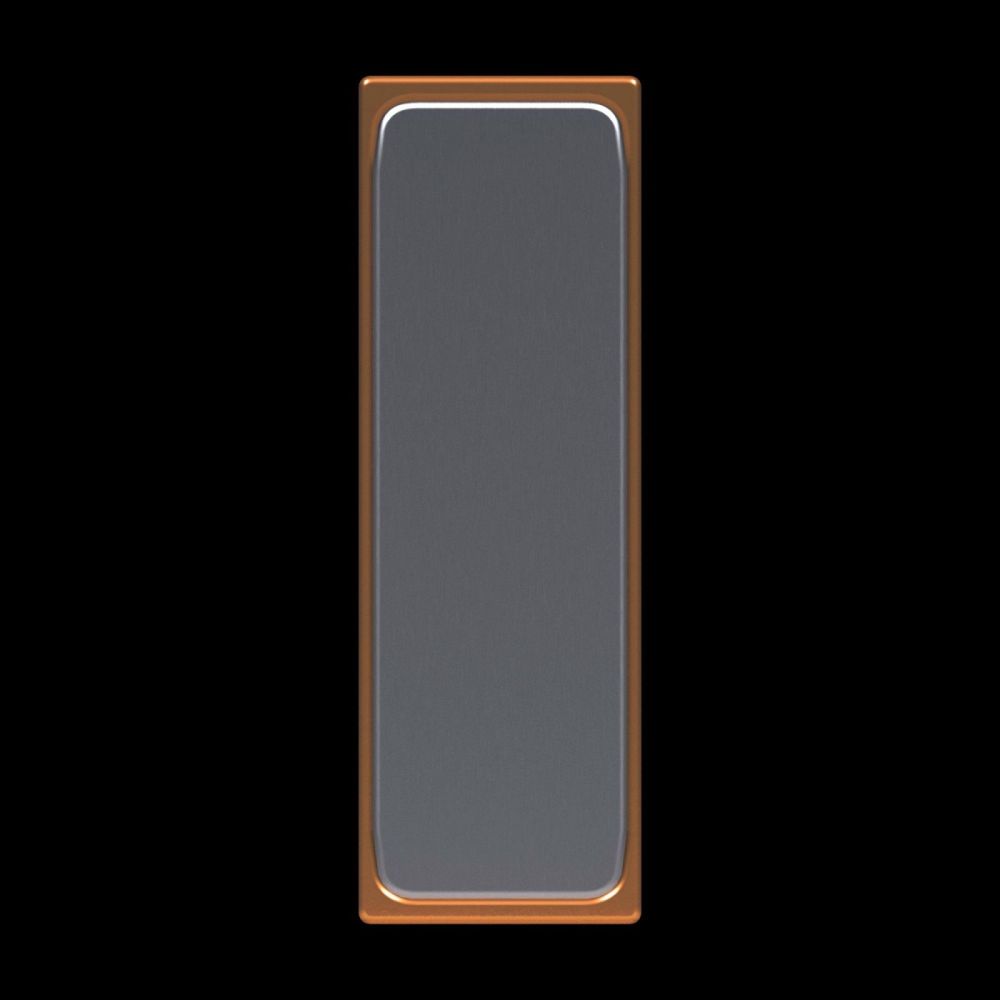

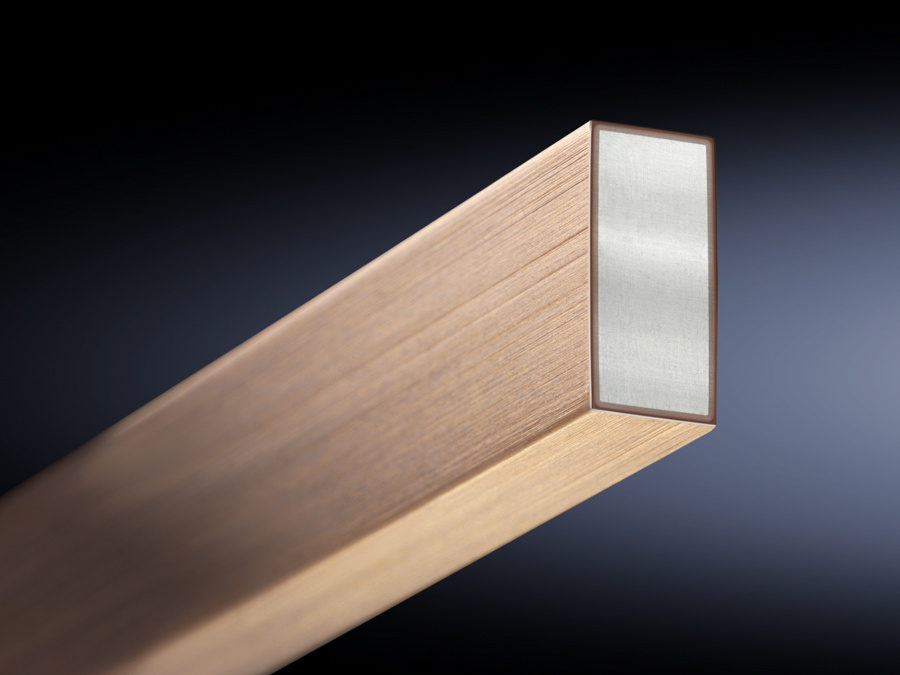

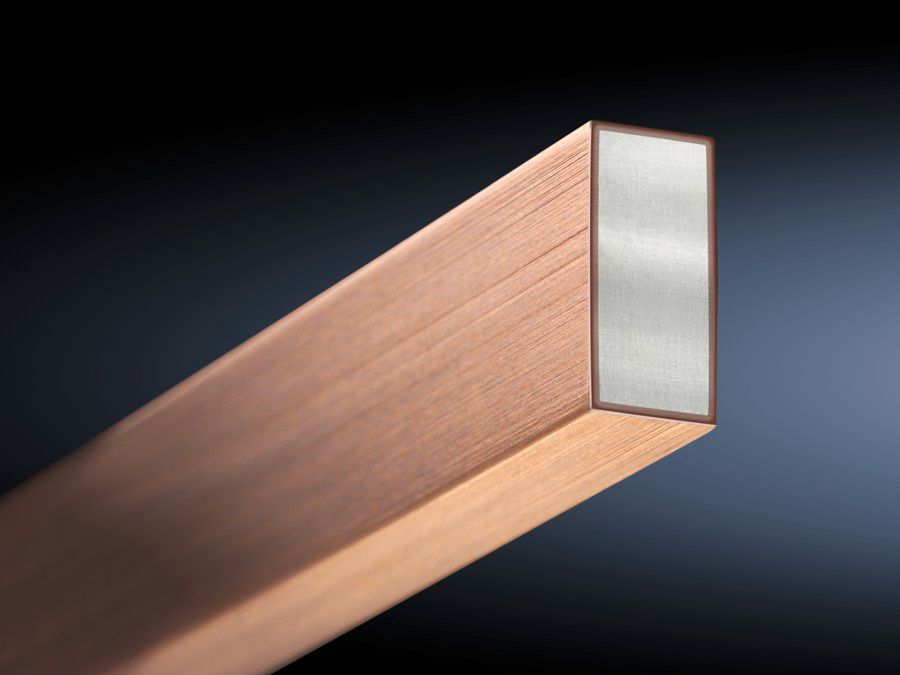

The use of copper-clad aluminium offers a compromise between the low weight of aluminium and the high electrical conductivity of copper. The copper cladding improves contact quality and reduces the risk of oxidation at connection points. The standard DIN EN 13 601 specifies the requirements for the manufacture and testing of busbars, ensuring the product's quality and safety.

Compatibility and Accessories
The busbar is specifically designed for use with busbar holders 9340.000 and 9340.050. Suitable accessories include the busbar cover profile for E-Cu 12x5 to 30x10, which can be used to shield and protect the busbars from mechanical stress and contamination. Combining it with this cover profile enables proper and safe installation in enclosures.

Mounting and Installation
Mounting is done using the specified holders, which securely fix the busbar in the enclosure. The individual cuttability allows precise adaptation to the respective enclosure depth. The busbar is delivered in a packaging unit of 6 pieces, with a net weight per package of 8.52 kg. Mounting does not require special tools, although the use of appropriate cutting tools for shortening is necessary.

Advantages in Operation
The combination of aluminium and copper provides high mechanical strength and good electrical properties. The individual cuttability increases flexibility in planning and installation. Compliance with the DIN EN 13 601 standard ensures safe and reliable operation. The busbar is designed for use in industrial environments where high loads and long service life are required.

General
MaterialAluminium, copper
Rated current max.328 A
NoteThe rated current is determined at 65 °C busbar temperature and 35 °C ambient temperature, correction factor diagram according to DIN EN 43 671, individually cuttable
StandardsDIN EN 13 601
Cross section30 mm x 5 mm
Length2.400 mm
Copper content (kg/piece)0,52


Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
This article contains a copper surcharge of 26,27 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Rittal 3584020, EAN: 4028177686571

Questions & answers

What is the delivery time of Rittal 3584020 busbar CUPONAL 30x5 mm, L=2400 mm?

The article Rittal 3584020 busbar CUPONAL 30x5 mm, L=2400 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3584020 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3584020 busbar CUPONAL 30x5 mm, L=2400 mm always at the best possible price. We can give you a discount of 2% on Rittal 3584020 busbar CUPONAL 30x5 mm, L=2400 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
