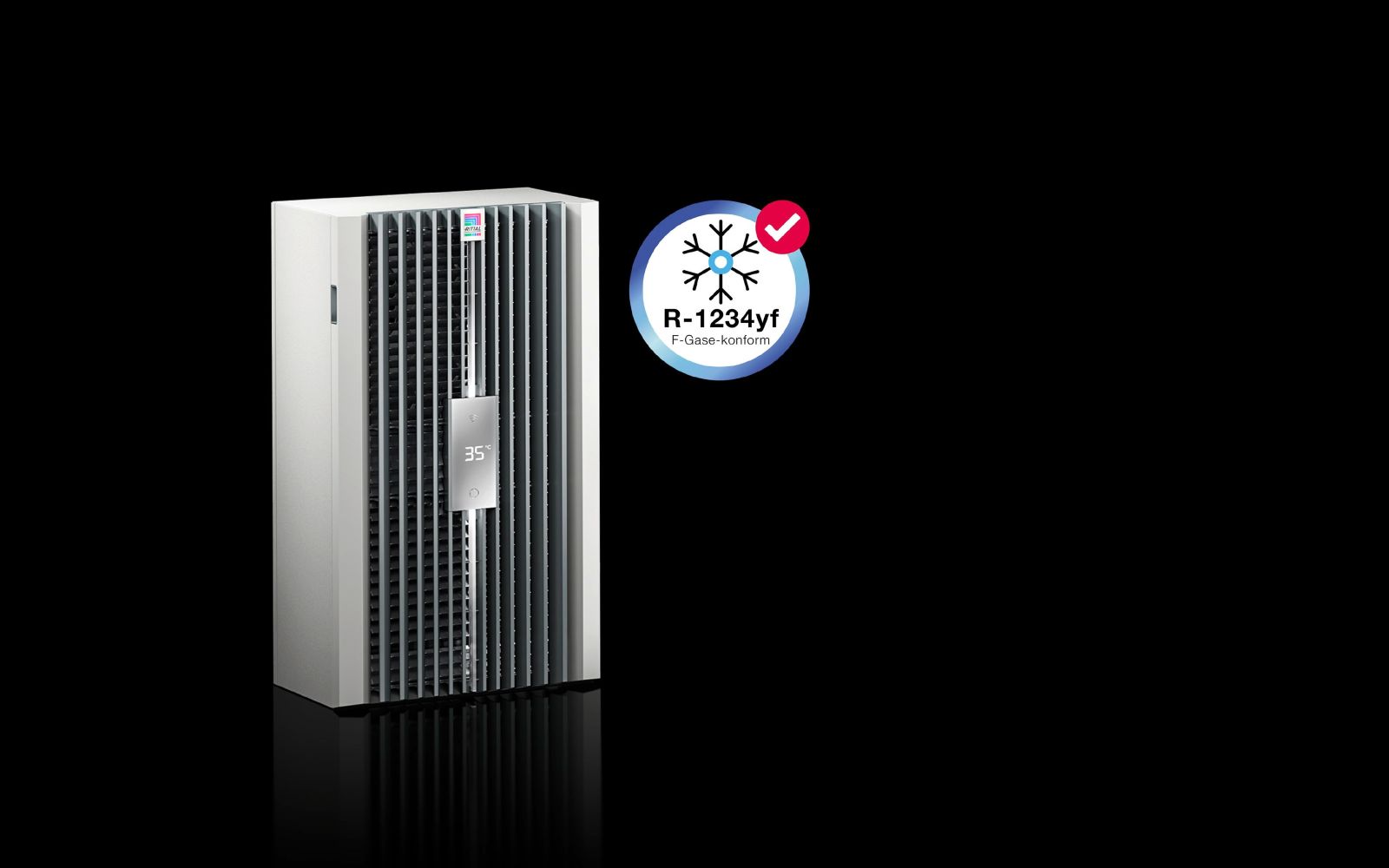

Rittal 3480800 SK 3480.800 Blue e+S wall-mounted cooling unit 720 W R-1234yf

Your rating:
Average rating
product review for Rittal 3480800 SK 3480.800 Blue e+S wall-mounted cooling unit 720 W R-1234yf
( 4.6 / 5 ) 7 ratings
Rittal 3480800
This image may differ from the desired article.
1.513,40 EUR
( 1.800,95 EUR incl. VAT )
≈ £1,266.72  |  ≈ $1,663.23
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: 2 pieces
1x Rittal 3480800 SK 3480.800 Blue e+S wall-mounted cooling unit 720 W R-1234yf
Lieske Part No.:2034227
Mfg Part No: 3480800
UPC/EAN: 4069196016741
Weight:16.95 kg
Type:SK 3480.800

Product information for Rittal 3480800:

The Rittal SK 3480.800 is a wall-mounted cooling unit of the Blue e+ S series, specifically developed for climate control of enclosures and electronic devices in semi-outdoor environments. The unit features a total cooling capacity of 0.72 kW at an operating temperature of 35 °C (L35) and an ambient temperature of 35 °C (L35), according to DIN EN 14511. It is designed for a rated operating voltage of 110 V to 240 V, 1~, 50 Hz/60 Hz, with voltage tolerance at 110 V -10 % (99 V) and 240 V +10 % (264 V). The cooling capacity is 0.44 kW at an ambient temperature of 50 °C (L50). The rated power of the unit is 0.56 kW, with nominal power varying between 0.41 kW and 0.49 kW depending on operating conditions. The air performance in free airflow is 378 m³/h for both the outdoor and indoor circuits. The energy efficiency (EER) is 1.76 at 50 Hz and 60 Hz under L35-L35 operating conditions.

Applications
This cooling unit is designed for use in industrial environments, particularly in enclosures installed in semi-outdoor areas. The operating temperature range of the unit is from -20 °C to 60 °C, with the refrigerant circuit operating actively between 3 °C and 60 °C. The Heat Pipe operates within a temperature range of -20 °C to 45 °C. The storage temperature of the unit is between -40 °C and 70 °C. Temperature control is managed via an e+ controller, factory-set to +35 °C, with an adjustable range between 20 °C and 50 °C.

Functions and Equipment in Detail
The unit is made of sheet steel and available in the base colour RAL 7035. The enclosure is painted in RAL 7035, while the louver grille is painted in RAL 7012. It features a condenser with hydrophobic RiNano coating, which reduces condensation formation. The integrated electric condensate evaporation ensures that condensate evaporates within the unit and does not require drainage. The unit is pre-wired with a plug-in terminal strip and delivered with mounting hardware.

Technology Explained Simply
The cooling unit uses refrigerant R-1234yf, which has a very low Global Warming Potential (GWP) of 0.5, making it an environmentally friendly alternative to conventional refrigerants. The total refrigerant charge is 0.17 kg, with 0.1 kg in the compression system and 0.07 kg in the Heat Pipe system. The CO₂ equivalent (CO₂e) is 0 t. The protection rating of the indoor circuit corresponds to IP 55 according to EN 60 529, meaning it is dust-tight and protected against water spray. The NEMA protection rating corresponds to UL Type 1 and UL Type 12. The permissible operating pressure is 35 bar.

Compatibility and Accessories
For remote monitoring and networking of cooling units and chillers from the Blue e+ generation, the IoT Interface with article number 3124.300 can be used. This enables monitoring of device data, statuses, and system messages. Additional compatible accessories include metal filters for SK 3178.80x/3179.80x, filter mats for cooling units, air/air heat exchangers, TS support rollers, door position switches, SK temperature sensors for Blue e+ cooling units, SK condensate hoses (12 x 2 mm, length 10 m), and VX support rollers.

Mounting and Installation
The unit is designed for wall mounting and requires a mounting cutout with a width of 280 mm and a height of 550 mm. The unit dimensions are 300 mm (width) × 570 mm (height) × 250 mm (depth). Mounting is done using the included mounting hardware. The pre-wired connection with a plug-in terminal strip simplifies installation.

Operational Advantages
The cooling unit offers high energy efficiency with an average saving of 75 % compared to conventional solutions. Global usability is enabled by multi-voltage capability and country-specific certifications. Intelligent monitoring via the IoT Interface increases machine availability and process safety. Operation is conveniently managed via the Rittal Scan & Service app. The integrated electric condensate evaporation reduces maintenance effort, as no condensate drainage is required. The low GWP of refrigerant R-1234yf contributes to reducing the CO₂ footprint.

General
ModelWall surface mounted
Materialsteel sheet
Basic colourRAL 7035
ColourHousing: RAL 7035, louver grille: RAL 7012
Scope of deliveryCondenser with hydrophobic RiNano coating, incl. mounting material, pre-wired (pluggable terminal block), integrated electrical condensate evaporation
OptionsFor remote monitoring and networking of cooling units and chillers from the Blue e+ generation, use the IoT interface with article number 3124.300. Increase machine availability and process safety by remotely monitoring device data, statuses and system messages.
Total cooling capacity according to DIN EN 14511Cooling capacity L35 L35/50 Hz: 0.72 kW, cooling capacity L35 L35/60 Hz: 0.72 kW, cooling capacity L35 L50/50 Hz: 0.44 kW, cooling capacity L35 L50/60 Hz: 0.44 kW
Rated operating voltage110 V - 240 V, 1~, 50 Hz/60 Hz
NotePlease note the mounting instructions., By downloading the software, a contract is established between the contracting party and Rittal regarding the free use of the software according to these license terms., Only suitable for semi-outdoor use (see instruction manual for description)
Note on part numberTolerance: 110 V -10 % (99 V) and 240 V +10 % (264 V)
Rated power0,56 kW
Air performance (free blowing)External circuit: 378 m³/h, internal circuit: 378 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35coefficient of performance L35 L35 (EER) 50 Hz: 1.76, coefficient of performance L35 L35 (EER) 60 Hz: 1.76
Width300 mm
Height570 mm
Depth250 mm
Required mounting cutoutCutout width: 280 mm, cutout height: 550 mm
Degree of protection IP according to EN 60 529Internal circuit IP 55
NEMA degree of protectionUL Type 1, UL Type 12
Refrigerant/cooling mediumRefrigerant: R-1234yf, Quantity: 0.17 kg, Quantity compression system: 0.1 kg, Quantity heat pipe system: 0.07 kg, Global Warming Potential (GWP): 0.5, CO₂ equivalent (CO₂e): 0 t
Temperature controle+ Controller (factory setting +35 °C)
Operating temperature range-20 °C...60 °C
Storage temperature range-40 °C...70 °C
Operating temperature range refrigerant circuit (active)3 °C...60 °C
Operating temperature range heat pipe-20 °C...45 °C
Adjustment range20 °C...50 °C
Rated power Pelrated power L35 L35/50 Hz: 0.41 kW, rated power L35 L35/60 Hz: 0.41 kW, rated power L35 L50/50 Hz: 0.49 kW, rated power L35 L50/60 Hz: 0.49 kW
Permissible operating pressure (p max.)35 bar
PCF/VE (Cradle-to-Gate)93.07 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared
