Rittal 3479800 SK 3479.800 Blue e+S wall-mounted cooling unit 500 W R-1234yf

Your rating:
Average rating
product review for Rittal 3479800 SK 3479.800 Blue e+S wall-mounted cooling unit 500 W R-1234yf
( 0 / 5 ) 0 ratings

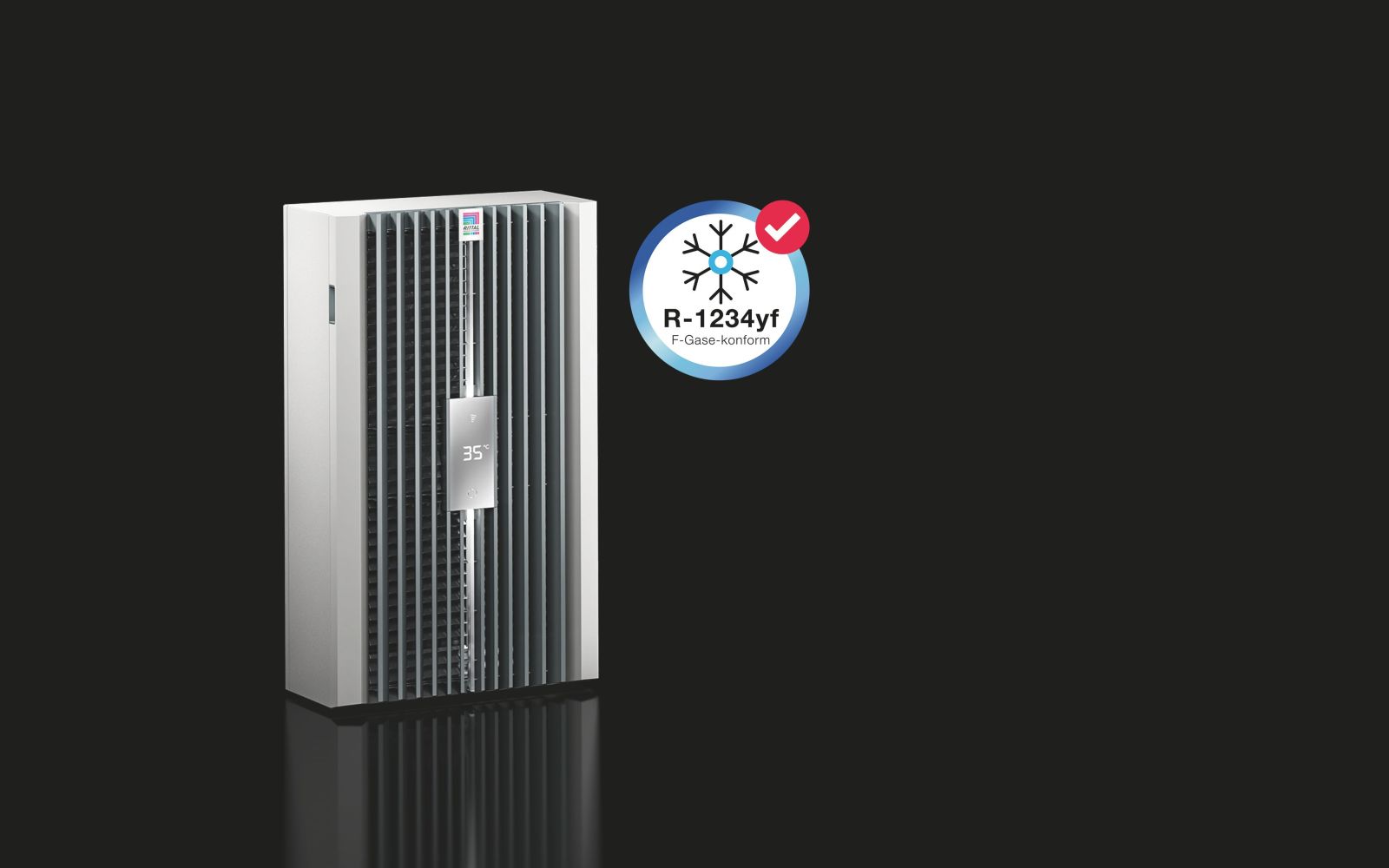

Rittal 3479800
This image may differ from the desired article.
1.512,25 EUR
( 1.799,58 EUR incl. VAT )
≈ £1,265.75  |  ≈ $1,661.96
plus delivery charges: 148,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 3479800 SK 3479.800 Blue e+S wall-mounted cooling unit 500 W R-1234yf
Lieske Part No.:2034225
Mfg Part No: 3479800
UPC/EAN: 4069196016727
Weight:14.5 kg
Type:SK 3479.800

Product information for Rittal 3479800:

The Rittal SK 3479.800 is a wall-mounted cooling unit of the Blue e+ S series, specifically designed for climate control of enclosures and industrial housings. It features a total cooling capacity of 0.5 kW at an operating temperature of +35 °C (L35) and frequencies of 50 Hz or 60 Hz. The unit is intended for use in semi-outdoor environments and operates with refrigerant R-1234yf, which has a low Global Warming Potential (GWP) of 0.5, contributing to reduced CO₂ footprint. The rated operating voltage is 110 V to 240 V, 1~, designed for frequencies of 50 Hz and 60 Hz, enabling worldwide application. The cooling unit is made of sheet steel, with a base colour of RAL 7035 and the louver grille in RAL 7012. Dimensions are 300 mm (width) × 570 mm (height) × 199 mm (depth), requiring a mounting cutout of 280 mm (width) × 550 mm (height).

Applications
This cooling unit is suitable for use in industrial enclosures and electronic housings, particularly in environments requiring controlled internal temperatures from 20 °C to 50 °C. It is designed for semi-outdoor use, meaning it can be deployed in protected outdoor areas or rooms with increased environmental stress. The operating temperature range of the unit is from -20 °C to 60 °C, with the refrigerant circuit operating actively between 3 °C and 60 °C. Storage temperature ranges from -40 °C to 70 °C.

Functions and Equipment in Detail
The unit is equipped with an e+ controller, factory-set to +35 °C, with an adjustable range from 20 °C to 50 °C. The integrated electric condensate evaporation system ensures that condensate is evaporated directly within the unit, eliminating the need for drainage. The condenser is coated with a hydrophobic RiNano coating, improving condensate drainage. The unit is pre-wired for connection and includes a plug-in terminal strip, simplifying installation. Mounting materials are included in the delivery scope.

Technology Explained Simply
The cooling unit operates on the principle of air/air heat transfer. The outdoor circuit has an air flow rate of 366.6 m³/h, while the indoor circuit has an air flow rate of 366.6 l/min. Energy efficiency is described by the Energy Efficiency Ratio (EER) of 1.92 at 50 Hz and 60 Hz (L35). The rated power is 0.36 kW, with nominal power at L35/50 Hz and L35/60 Hz each being 0.26 kW. The maximum operating pressure (p max.) is 32 bar. Refrigerant R-1234yf is used in a total quantity of 0.17 kg, with 0.1 kg in the compression system and 0.07 kg in the heat pipe system. The indoor circuit protection rating corresponds to IP 55 per EN 60 529, meaning it is dust-tight and protected against water jets. The NEMA protection rating is UL Type 1 and UL Type 12.

Compatibility and Accessories
For remote monitoring and networking of Blue e+ generation cooling units, the IoT Interface with article number 3124.300 can be used. This enables monitoring of device data, statuses, and system messages. Compatible accessories include, among others, a condensate hose (12 x 2 mm, length 10 m), a filter mat for air/air heat exchangers, a VX support roller, a TS support roller, a temperature sensor for Blue e+ plus cooling units, a door position switch, a metal filter for SK 3178.80x/3179.80x, and the IoT Interface.

Mounting and Installation
Mounting is done on the wall of the enclosure or housing. The required mounting cutout is 280 mm (width) × 550 mm (height). The unit is pre-wired for connection, simplifying installation. Mounting materials are included in the delivery scope. Mounting instructions must be strictly followed to ensure correct and safe installation.

Operational Advantages
The cooling unit offers high energy efficiency with an EER value of 1.92, leading to an average energy saving of 75 %. The integrated electric condensate evaporation reduces maintenance effort, as no external drainage is required. Worldwide applicability due to multi-voltage capability and country-specific approvals facilitates use in international projects. Remote monitoring via the IoT Interface enables increased machine availability and process safety. Operation is convenient via the Rittal Scan & Service App.

General
ModelWall surface mounted
Materialsteel sheet
Basic colourRAL 7035
ColourHousing: RAL 7035, louver grille: RAL 7012
Scope of deliveryCondenser with hydrophobic RiNano coating, incl. mounting material, pre-wired (pluggable terminal block), integrated electrical condensate evaporation
OptionsFor remote monitoring and networking of cooling units and chillers from the Blue e+ generation, use the IoT interface with article number 3124.300. Increase machine availability and process safety by remotely monitoring device data, statuses and system messages.
Total cooling capacity according to DIN EN 14511Cooling capacity L35 L35/50 Hz: 0.5 kW, cooling capacity L35 L35/60 Hz: 0.5 kW, cooling capacity L35 L50/50 Hz: 0.23 kW, cooling capacity L35 L50/60 Hz: 0.23 kW
Rated operating voltage110 V - 240 V, 1~, 50 Hz/60 Hz
NotePlease note the mounting instructions., By downloading the software, a contract is established between the contracting party and Rittal regarding the free use of the software according to these license terms., Only suitable for semi-outdoor use (see instruction manual for description)
Note on part numberTolerance: 110 V -10 % (99 V) and 240 V +10 % (264 V)
Rated power0,36 kW
Air performance (free blowing)External circuit: 366.6 m³/h, Internal circuit: 366.6 l/min
Energy efficiency ratio (EER) 50/60 Hz L35 L35Cooling capacity ratio L35 L35 (EER) 50 Hz: 1.92, cooling capacity ratio L35 L35 (EER) 60 Hz: 1.92
Width300 mm
Height570 mm
Depth199 mm
Required mounting cutoutCutout width: 280 mm, cutout height: 550 mm
Degree of protection IP according to EN 60 529Internal circuit IP 55
NEMA degree of protectionUL Type 1, UL Type 12
Refrigerant/cooling mediumRefrigerant: R-1234yf, Quantity: 0.17 kg, Quantity compression system: 0.1 kg, Quantity heat pipe system: 0.07 kg, Global Warming Potential (GWP): 0.5, CO₂ equivalent (CO₂e): 0 t
Temperature controle+ Controller (factory setting +35 °C)
Operating temperature range-20 °C...60 °C
Storage temperature range-40 °C...70 °C
Operating temperature range refrigerant circuit (active)3 °C...60 °C
Operating temperature range heat pipe-20 °C...45 °C
Adjustment range20 °C...50 °C
Rated power PelRated power L35 L35/50 Hz: 0.26 kW, rated power L35 L35/60 Hz: 0.26 kW, rated power L35 L50/50 Hz: 0.3 kW, rated power L35 L50/60 Hz: 0.3 kW
Permissible operating pressure (p max.)32 bar
PCF/VE (Cradle-to-Gate)82.62 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared
