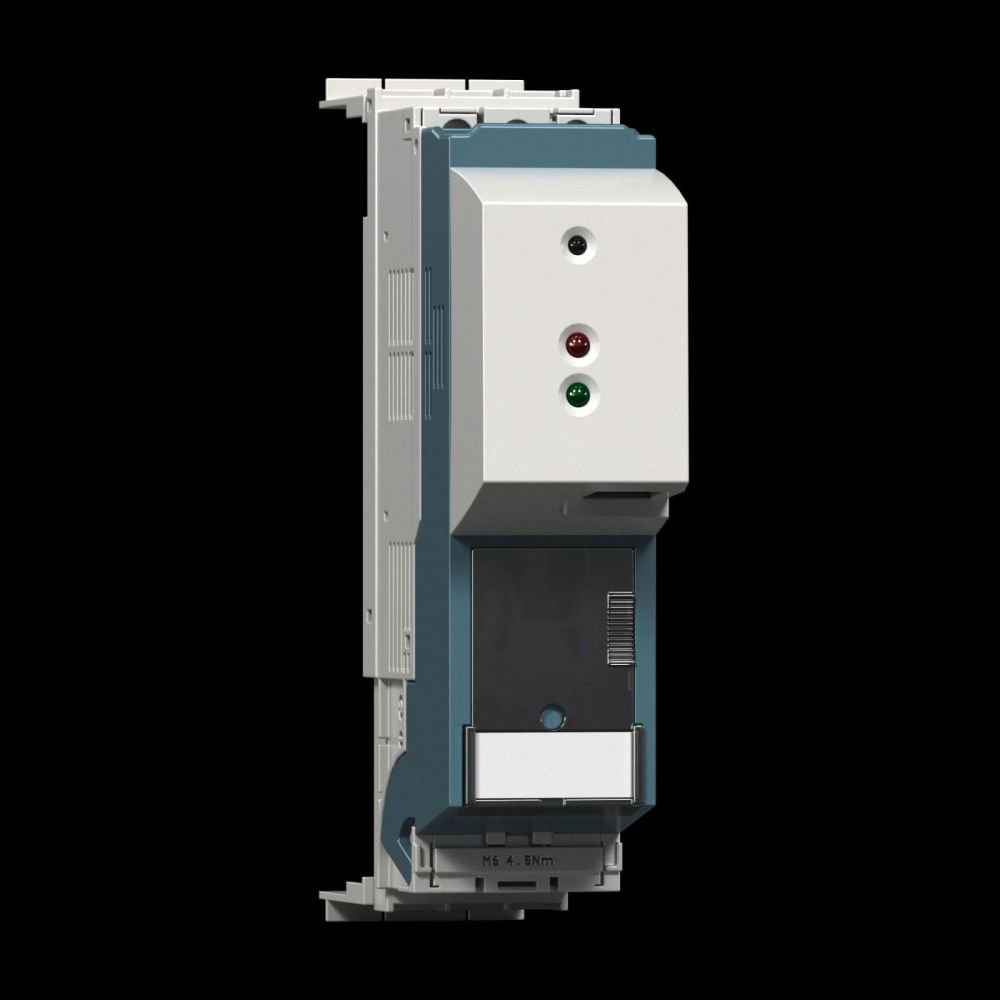

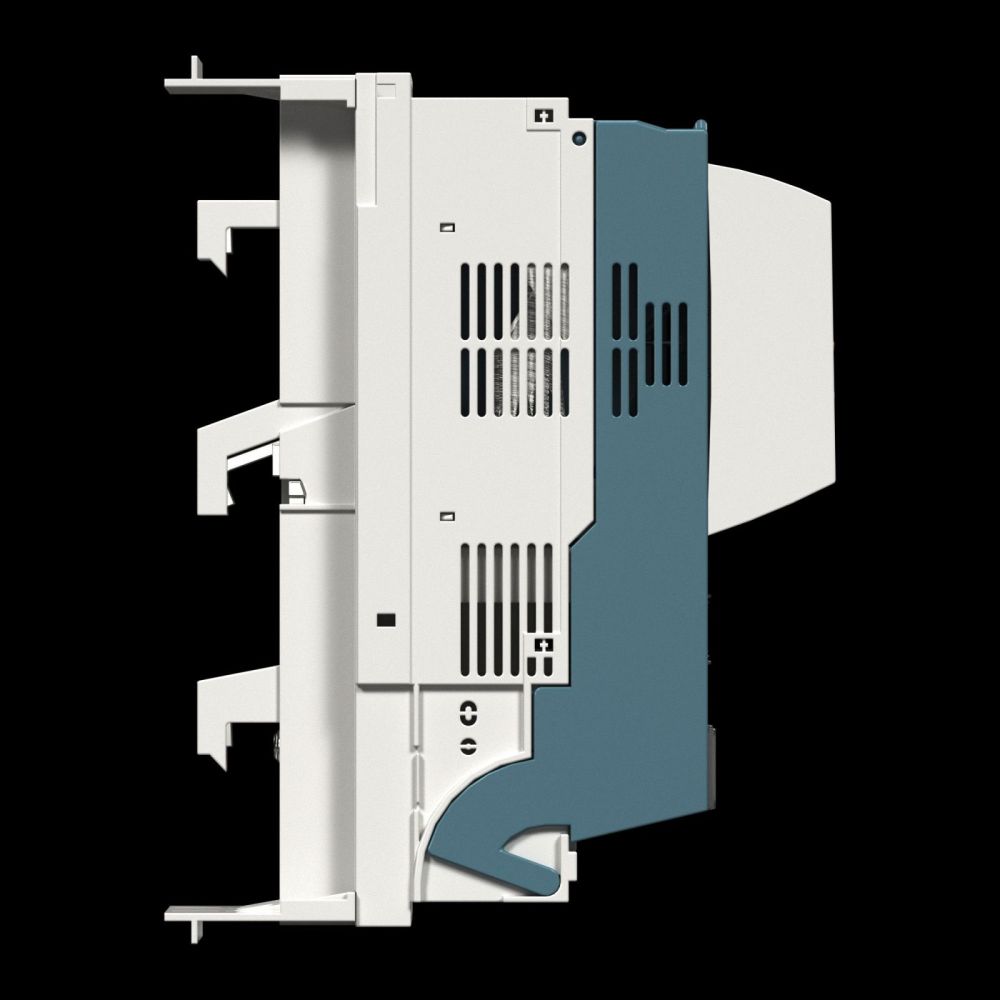

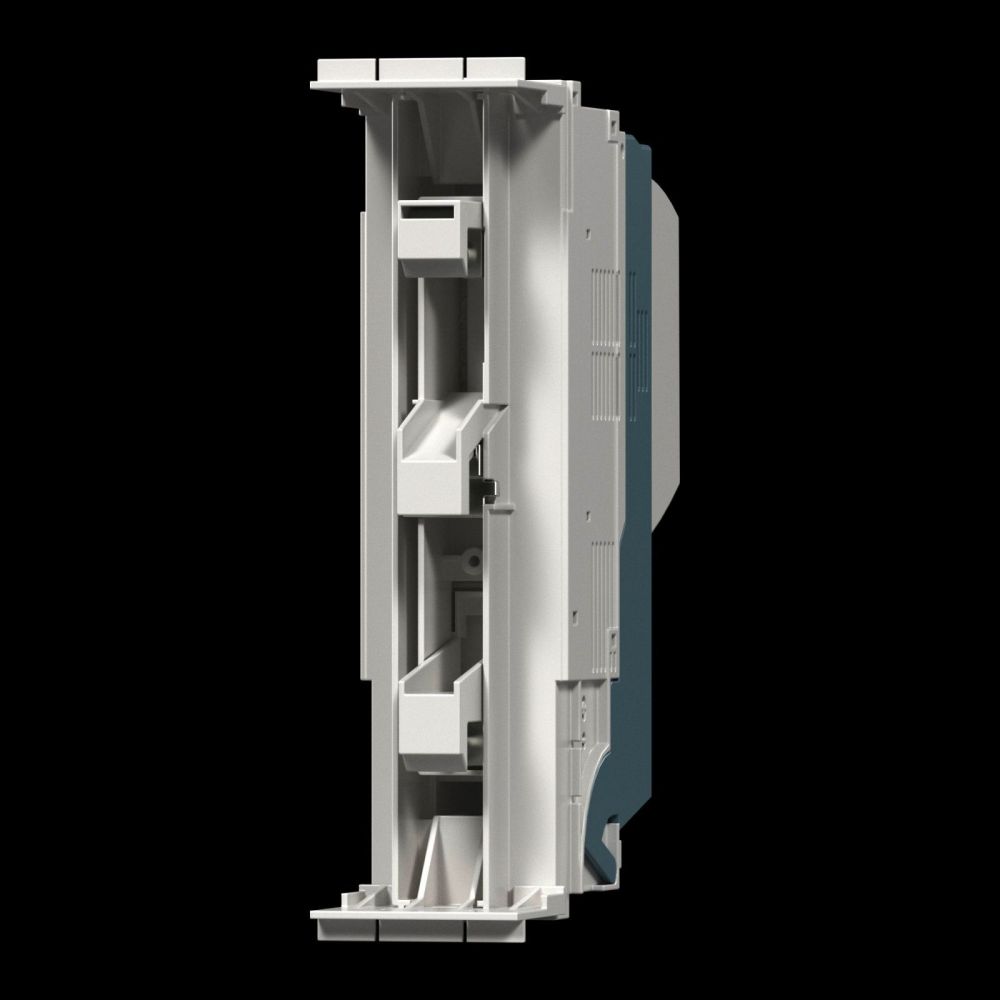

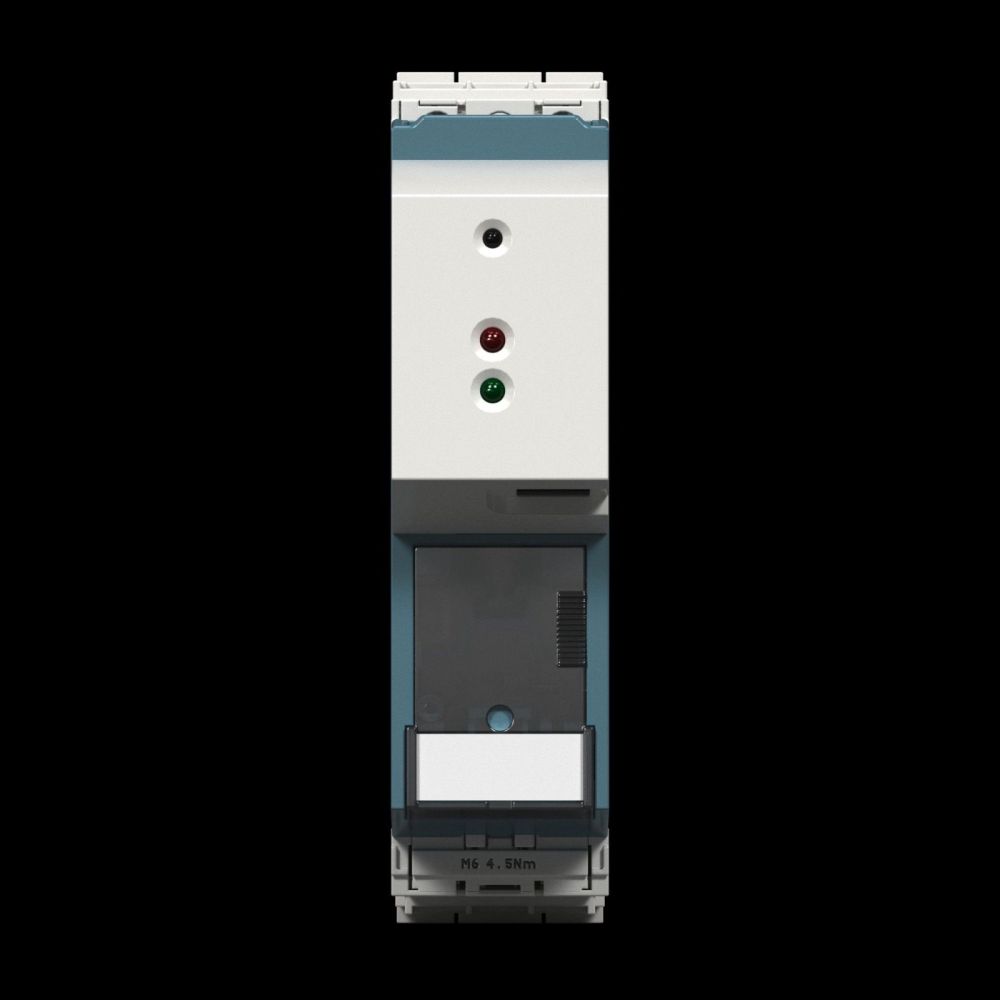

Rittal 3431035 SV NH fuse-switch disconnector, size 000, 100 A, 690 V, 3-pole, box terminal, with electronic fuse monitoring, cable outlet bottom
|
178,57 EUR |
|
|
incl. 1,47 EUR copper surcharge ( 212,50 EUR incl. VAT ) ≈ £153.03 | ≈ $202.86 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: 2 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 107525 |
| Mfg Part No: | 3431035 |
| UPC/EAN: | 4028177694125 |
| Weight: | 0.7 kg |
| Type: | SV 3431035 |
Product information for Rittal 3431035:
Fire protection corresponding to UL 94-V0
Contact tracks: Silver-plated hard copper
Colour: Chassis: RAL 7035
Cover: RAL 7001
Basis of test: IEC/DIN EN 60 947-3
DIN EN 60 269-2 (fuse inserts)
Packs of: 1 pc(s).
EAN: 4028177694125
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27371401
ETIM 6.0: EC001040
Design: Size: 000
with electronic fuse monitoring
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole

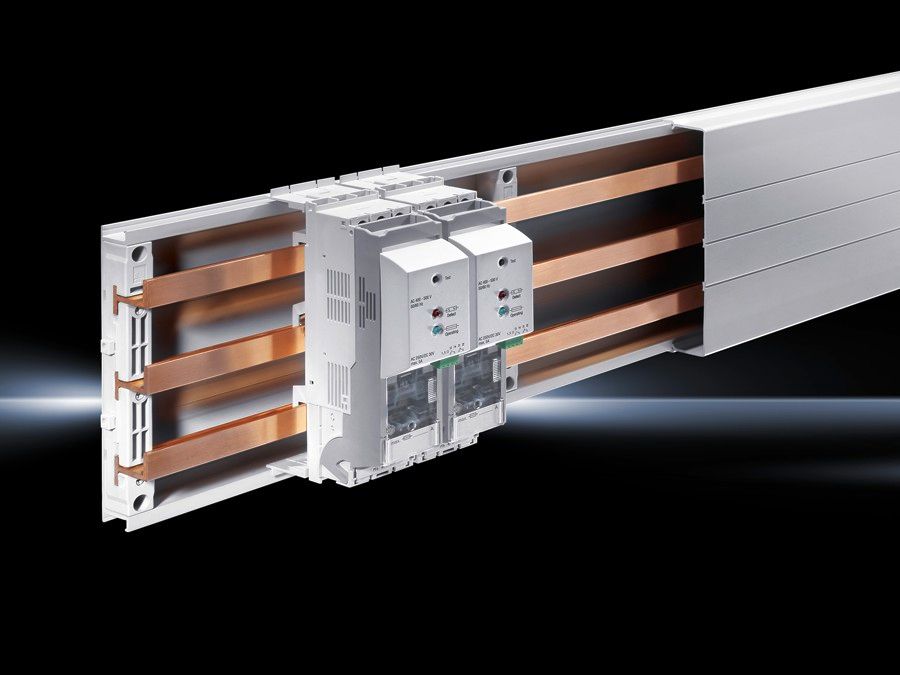

For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 53 mm
Height: 213 mm
Type of electrical connection: Box terminal
Rated operating voltage: 690 V, 3~
Connection for round conductor cross-sections: 2.5 mm² - 50 mm²
Rated operating current max.: 100 A
Cable outlet: Bottom
Weight/pack: 0.68 kg
