Rittal 3431035 NH fuse switch disconnector size 000, fuse monitoring, 100 A, 3-pole

Your rating:
Average rating
product review for Rittal 3431035 NH fuse switch disconnector size 000, fuse monitoring, 100 A, 3-pole
( 4.5 / 5 ) 253 ratings

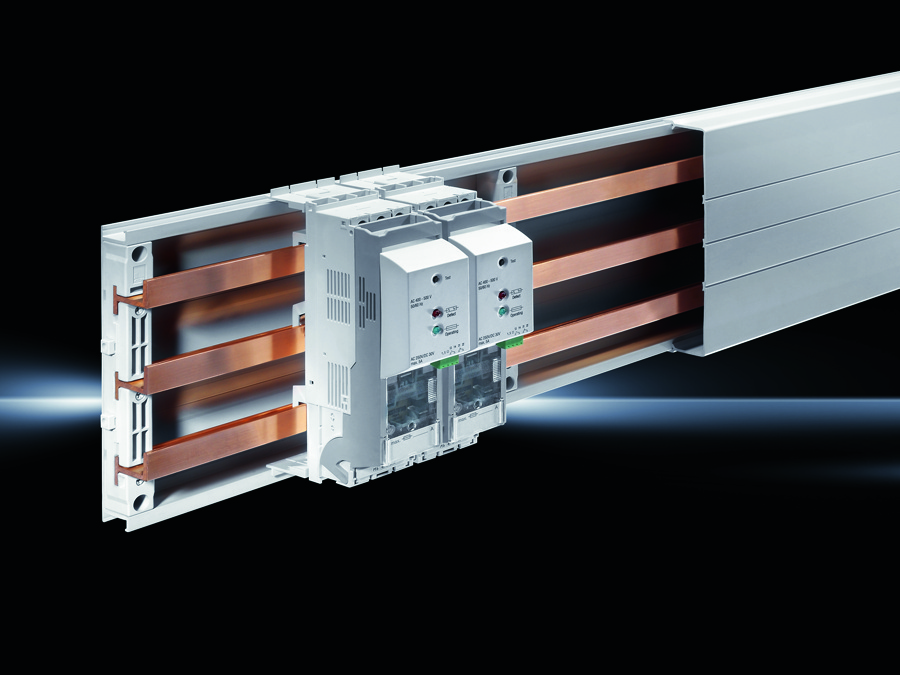

Rittal 3431035
This image may differ from the desired article.
Rittal 3431035Rittal 3431035Rittal 3431035Rittal 3431035Rittal 3431035Rittal 3431035
178,51 EUR
incl. 1,41 EUR copper surcharge
( 212,43 EUR incl. VAT )
≈ £149.23  |  ≈ $197.25
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 1 pieces
1x Rittal 3431035 NH fuse switch disconnector size 000, fuse monitoring, 100 A, 3-pole
Datasheet:file_download Download
Lieske Part No.:107525
Mfg Part No: 3431035
UPC/EAN: 4028177694125
Weight:0.7 kg
Type:SV 3431035

Product information for Rittal 3431035:

Material: Fibreglass-reinforced polyamide
Fire protection corresponding to UL 94-V0
Contact tracks: Silver-plated hard copper
Colour: Chassis: RAL 7035
Cover: RAL 7001
Basis of test: IEC/DIN EN 60 947-3
DIN EN 60 269-2 (fuse inserts)
Packs of: 1 pc(s).
EAN: 4028177694125
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27371401
ETIM 6.0: EC001040

Design: Size: 000
with electronic fuse monitoring
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 53 mm
Height: 213 mm
Type of electrical connection: Box terminal
Rated operating voltage: 690 V, 3~
Connection for round conductor cross-sections: 2.5 mm² - 50 mm²
Rated operating current max.: 100 A
Cable outlet: Bottom
Weight/pack: 0.68 kg

General
Modelwith electronic fuse monitoring (ESÜ), for 60 mm busbar systems, with electronic fuse monitoring (ESÜ)
MaterialGlass-fibre reinforced polyamide, flammability rating according to UL 94, contact strips: silver-plated hard copper
ColourChassis: RAL 7035, Cover: RAL 7001
For rail systems with centre spacing60 mm
Cable exitBelow
Electrical connection typeFrame clamp
Rated operating current max.100 A
Rated operating voltage690 V, 3~
For NH size000
Test basisIEC/DIN EN 60 947-3, DIN EN 60 269-2 (fuse inserts)
Width53 mm
Height213 mm
Connection of ring conductors2,5 ‐ 50 mm²
Suitable for busbarsHeight: 5, 10 mm
Number of poles3-pole
Cross-section round conductor2,5 ‐ 50 mm²
Copper content (kg/piece)0,15
With electronic fuse monitoring (ESÜ)Ja


Please note...
This article contains a copper surcharge of 1,41 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Rittal 3431035, EAN: 4028177694125

Questions & answers

What is the delivery time of Rittal 3431035 NH fuse switch disconnector size 000, fuse monitoring, 100 A, 3-pole?

The article Rittal 3431035 NH fuse switch disconnector size 000, fuse monitoring, 100 A, 3-pole is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3431035 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3431035 NH fuse switch disconnector size 000, fuse monitoring, 100 A, 3-pole always at the best possible price. We can give you a discount of 2% on Rittal 3431035 NH fuse switch disconnector size 000, fuse monitoring, 100 A, 3-pole if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
