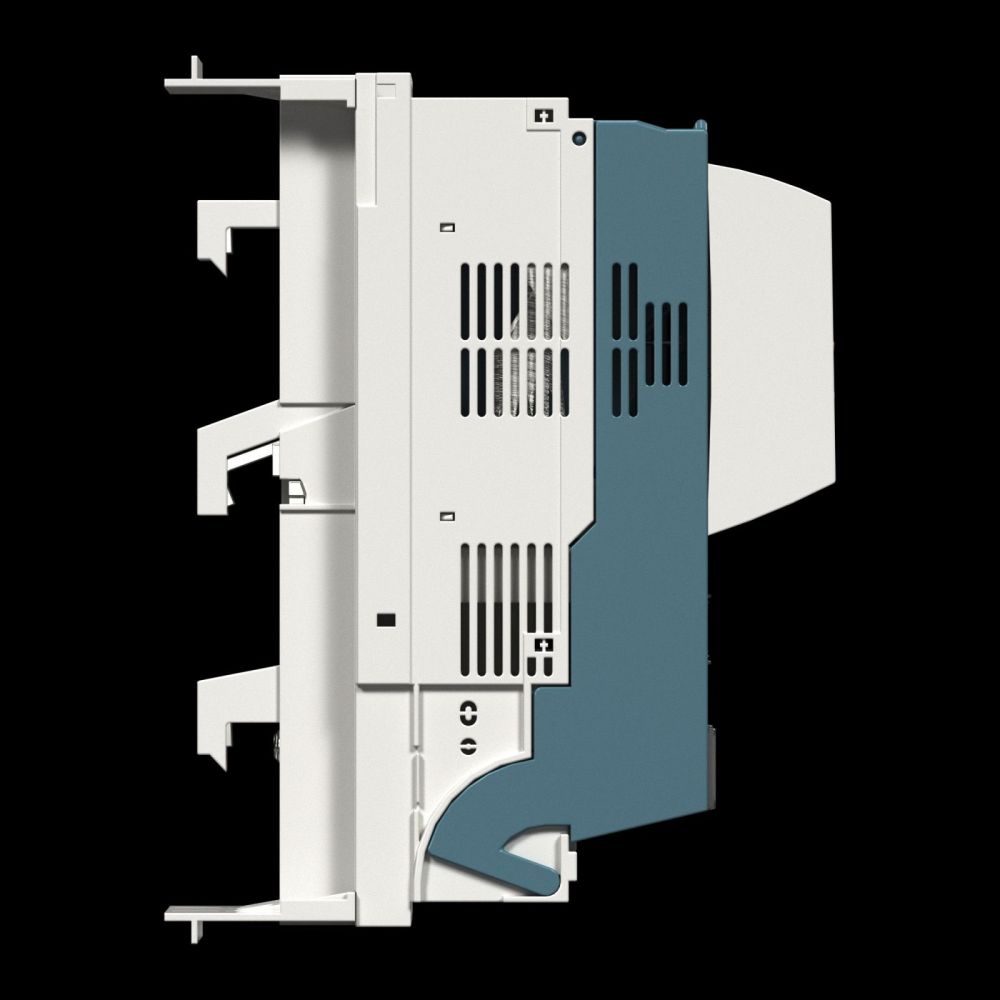

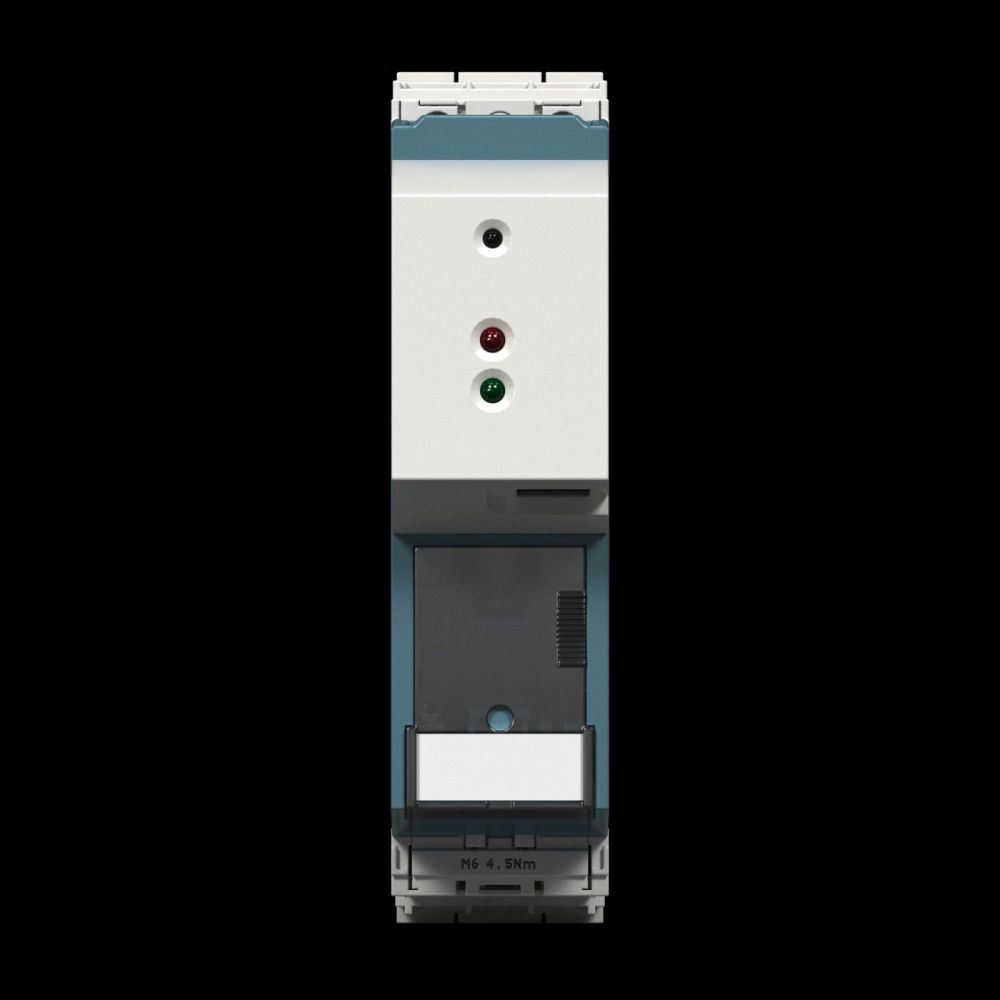

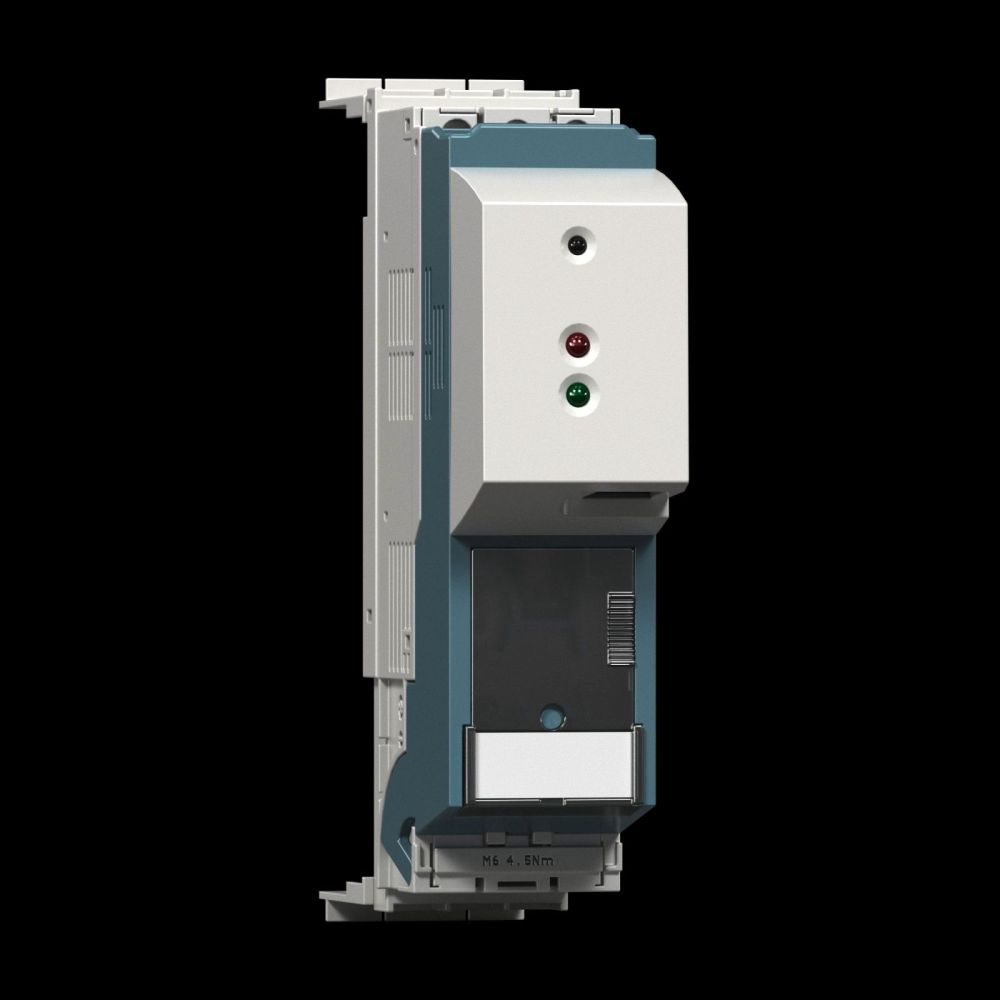

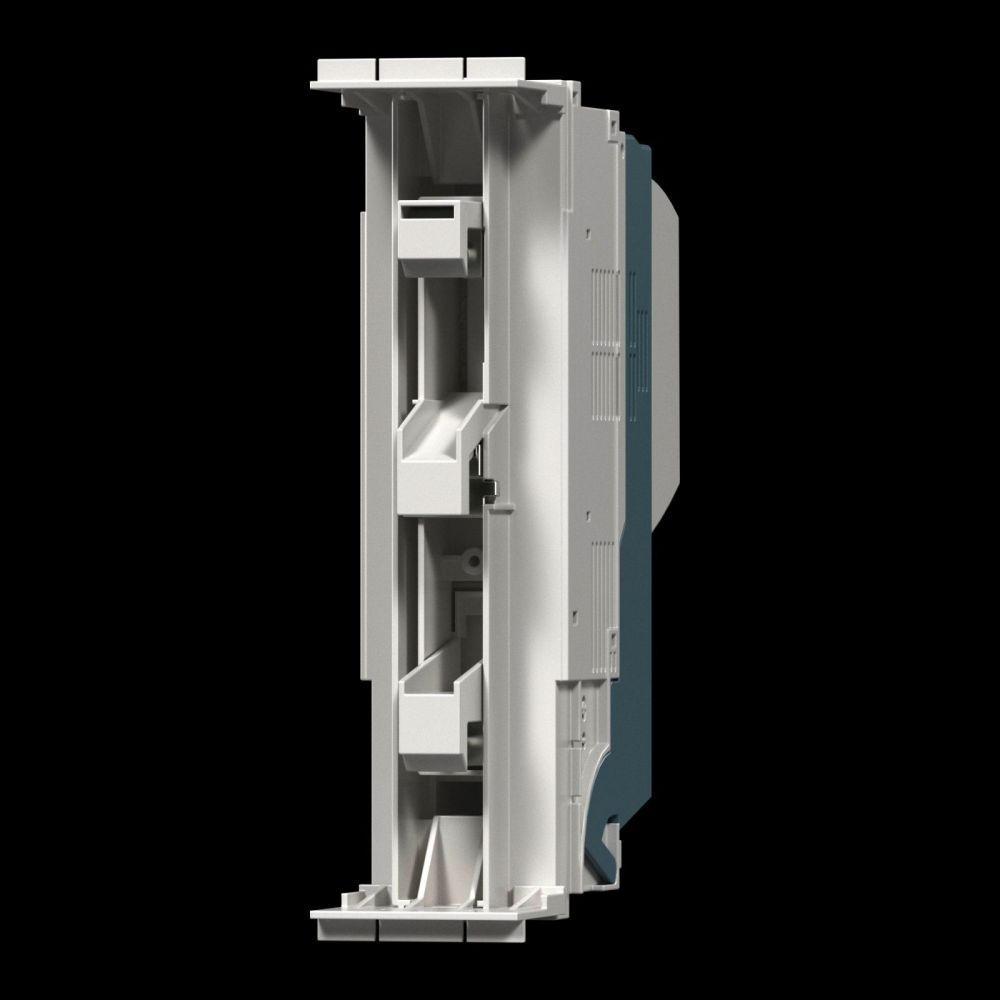

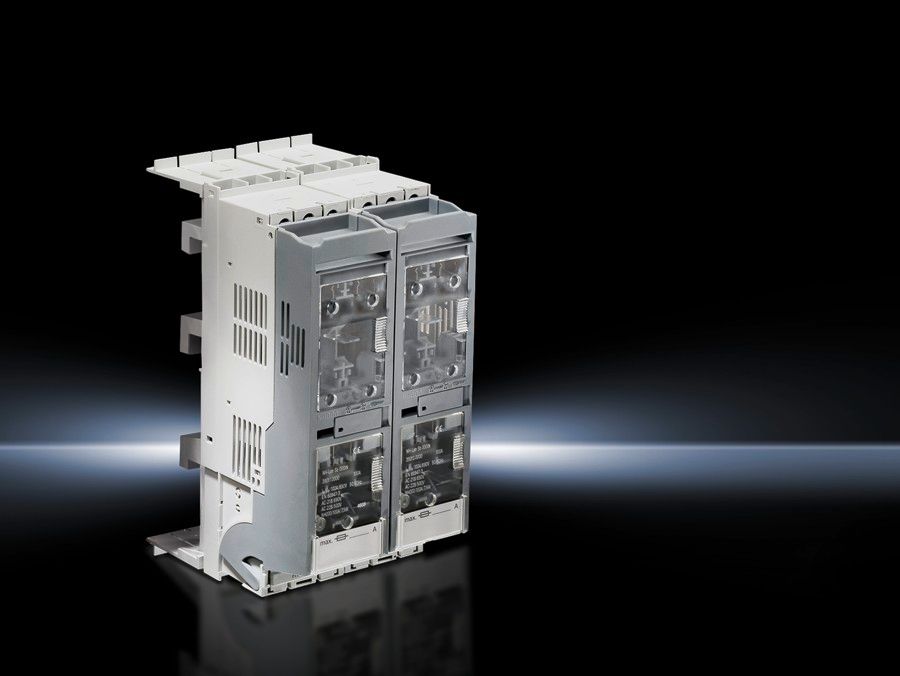

Rittal 3431030 SV NH disconnector size 000, 100 A, 690 V
|
50,96 EUR 52,42 EUR |
|
|
incl. 1,51 EUR copper surcharge ( 60,64 EUR incl. VAT ) ≈ £42.81 | ≈ $57.18 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 843321 |
| Mfg Part No: | 3431030 |
| UPC/EAN: | 4028177628731 |
| Weight: | 0.62 kg |
| Type: | SV 3431030 |
Product information for Rittal 3431030:
Fire protection corresponding to UL 94-V0
Contact tracks: Silver-plated hard copper
Colour: Chassis: RAL 7035
Cover: RAL 7001
Basis of test: IEC/DIN EN 60 947-3
DIN EN 60 269-2 (fuse inserts)
Packs of: 1 pc(s).
EAN: 4028177628731
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27371401
ETIM 6.0: EC001040
Design: Size: 000
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 53 mm
Height: 213 mm
Type of electrical connection: Box terminal
Rated operating voltage: 690 V, 3~
Connection for round conductor cross-sections: 2.5 mm² - 50 mm²
Rated operating current max.: 100 A
Cable outlet: Bottom
Weight/pack: 0.6 kg
Questions & answers
What is the delivery time of Rittal 3431030 SV NH disconnector size 000, 100 A, 690 V?
The article Rittal 3431030 SV NH disconnector size 000, 100 A, 690 V is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3431030 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3431030 SV NH disconnector size 000, 100 A, 690 V always at the best possible price. We can give you a discount of 2% on Rittal 3431030 SV NH disconnector size 000, 100 A, 690 V if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
