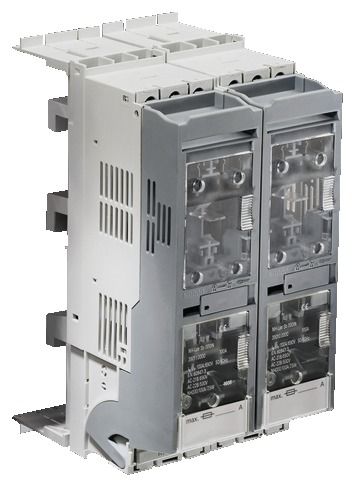

Rittal 3431020 SV NH fuse-switch disconnector, size 000, 100 A, 690 V, 3-pole, box terminal, cable outlet top
|
50,92 EUR 52,42 EUR |
|
|
incl. 1,47 EUR copper surcharge ( 60,59 EUR incl. VAT ) ≈ £43.64 | ≈ $57.85 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Lieske Part No.: | 953582 |
|---|---|
| Mfg Part No: | 3431020 |
| UPC/EAN: | 4028177628724 |
| Weight: | 0.64 kg |
| Type: | SV 3431020 |
Product information for Rittal 3431020:
Fire protection corresponding to UL 94-V0
Contact tracks: Silver-plated hard copper
Colour: Chassis: RAL 7035
Cover: RAL 7001
Basis of test: IEC/DIN EN 60 947-3
DIN EN 60 269-2 (fuse inserts)
Packs of: 1 pc(s).
EAN: 4028177628724
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27371401
ETIM 6.0: EC001040
Design: Size: 000
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 53 mm
Height: 213 mm
Type of electrical connection: Box terminal
Rated operating voltage: 690 V, 3~
Connection for round conductor cross-sections: 2.5 mm² - 50 mm²
Rated operating current max.: 100 A
Cable outlet: Top
Weight/pack: 0.62 kg
Questions & answers
What is the delivery time of Rittal 3431020 SV NH fuse-switch disconnector, size 000, 100 A, 690 V, 3-pole, box terminal, cable outlet top?
The article Rittal 3431020 SV NH fuse-switch disconnector, size 000, 100 A, 690 V, 3-pole, box terminal, cable outlet top is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3431020 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3431020 SV NH fuse-switch disconnector, size 000, 100 A, 690 V, 3-pole, box terminal, cable outlet top always at the best possible price. We can give you a discount of 2% on Rittal 3431020 SV NH fuse-switch disconnector, size 000, 100 A, 690 V, 3-pole, box terminal, cable outlet top if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Fitting accessory for Rittal 3431020 SV NH fuse-switch disconnector, size 000, 100 A, 690 V, 3-pole, box terminal, cable outlet top
 |
Rittal 3071000 SV Micro-switch, for NH fuse-switch disconnector size 000/00,, NH slimline fuse-switch disconnector, size 1-3
To indicate the switch position of the NH unit (cover). Packs of: 5 pc(s). EAN: 4028177036055 Customs tariff number: 85369085 eCl@ss 5.1: 27370302 eCl@ss 7.0: 27400613 ETIM 6.0: EC001900 Design: For ... Lieske Part No.: 928271 Mfg Part No: 3071000 Type: SV 3071000 |
-8% 17,71 EUR 19,31 EUR
 ≈ £15.18 | ≈ $20.12
Made to order · Delivery time approx. 5 workdaysinfo_outline
|
Altenative Products for Rittal 3431020 SV NH fuse-switch disconnector, size 000, 100 A, 690 V, 3-pole, box terminal, cable outlet top
 |
Rittal 9362422 RX NH fuse switch disconnector size 000 125 A 3-pole outgoing connection top, terminal
RiLineX NH-Sicherungslasttrenner in Größe 000 für 60 mm Sammelschienensysteme. Der Deckel ist abschließbar, plombierbar und verfügt über eine visuelle Sicherungsüberwachung. Die sichere ... Lieske Part No.: 1571906 Mfg Part No: 9362422 Type: RX 9362422 |
48,34 EUR
≈ £41.43 | ≈ $54.91
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
