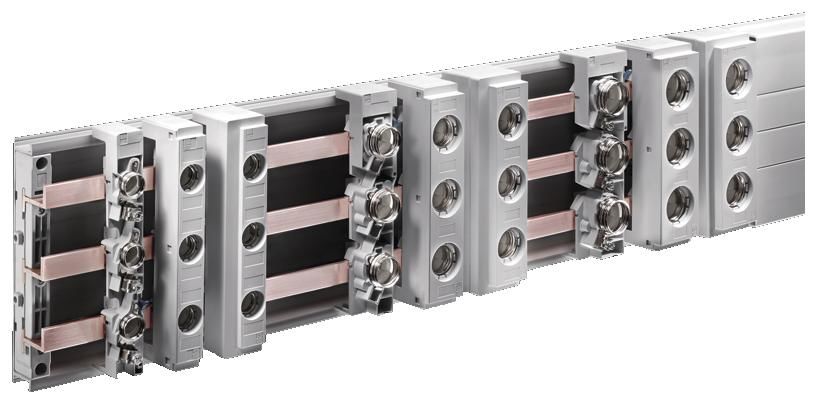

Rittal 3427010 SV Bus-mounting fuse base, DII-E27, 25 A, 500 V, 3-pole, round conductor connection 1,5-16 mm², adaptor screw
|
-6% 122,94 EUR 130,93 EUR |
|
|
incl. 4,49 EUR copper surcharge ( 146,30 EUR incl. VAT ) ≈ £105.36 | ≈ $139.66 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 125624 |
| Mfg Part No: | 3427010 |
| UPC/EAN: | 4028177674950 |
| Weight: | 2.465 kg |
| Type: | SV 3427010 |
Product information for Rittal 3427010:
Contact hazard protection: Polyamide (PA 6.6)
Fire protection corresponding to UL 94-V0
Colour: RAL 7035
Note: For the use of fuse inserts to EN 60 269-3 (DIN VDE 0636-301)
Packs of: 10 pc(s).
EAN: 4028177674950
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27371402
ETIM 6.0: EC001644
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 42 mm
Height: 209 mm
Type of electrical connection: Box terminal
Rated operating voltage: 500 V, 3~
500 V (DC)
Connection for round conductor cross-sections: 1.5 mm² - 16 mm²
Note: Wire end ferrules should be used with fine wire conductors.
Rated current (max.): 25 A
Fuse inserts: D II-E 27 (adaptor screw)
Weight/pack: 2.47 kg
Questions & answers
What is the delivery time of Rittal 3427010 SV Bus-mounting fuse base, DII-E27, 25 A, 500 V, 3-pole, round conductor connection 1,5-16 mm², adaptor screw?
The article Rittal 3427010 SV Bus-mounting fuse base, DII-E27, 25 A, 500 V, 3-pole, round conductor connection 1,5-16 mm², adaptor screw is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3427010 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3427010 SV Bus-mounting fuse base, DII-E27, 25 A, 500 V, 3-pole, round conductor connection 1,5-16 mm², adaptor screw always at the best possible price. We can give you a discount of 2% on Rittal 3427010 SV Bus-mounting fuse base, DII-E27, 25 A, 500 V, 3-pole, round conductor connection 1,5-16 mm², adaptor screw if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
